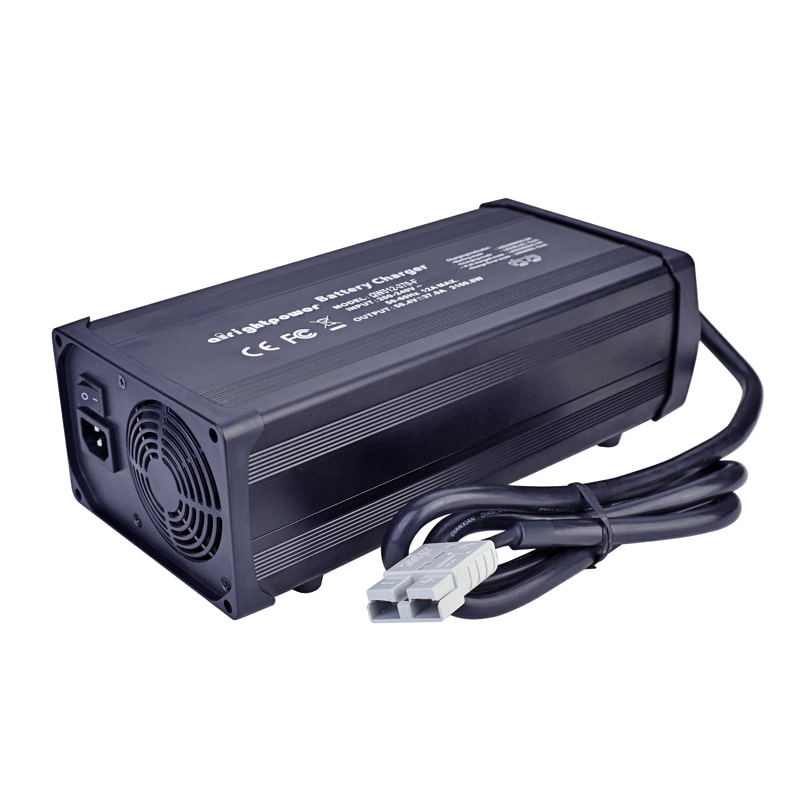

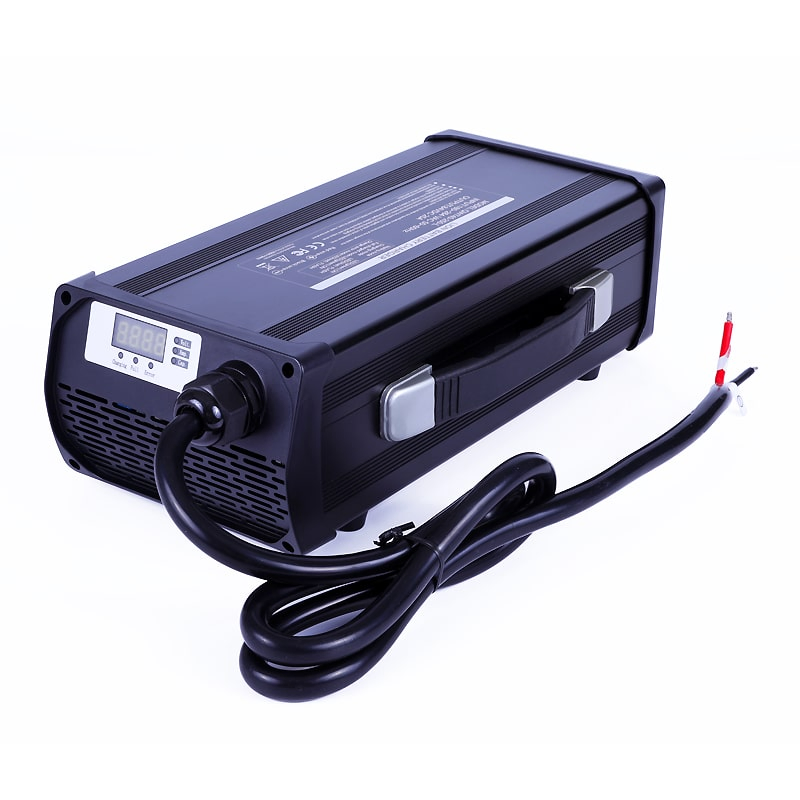

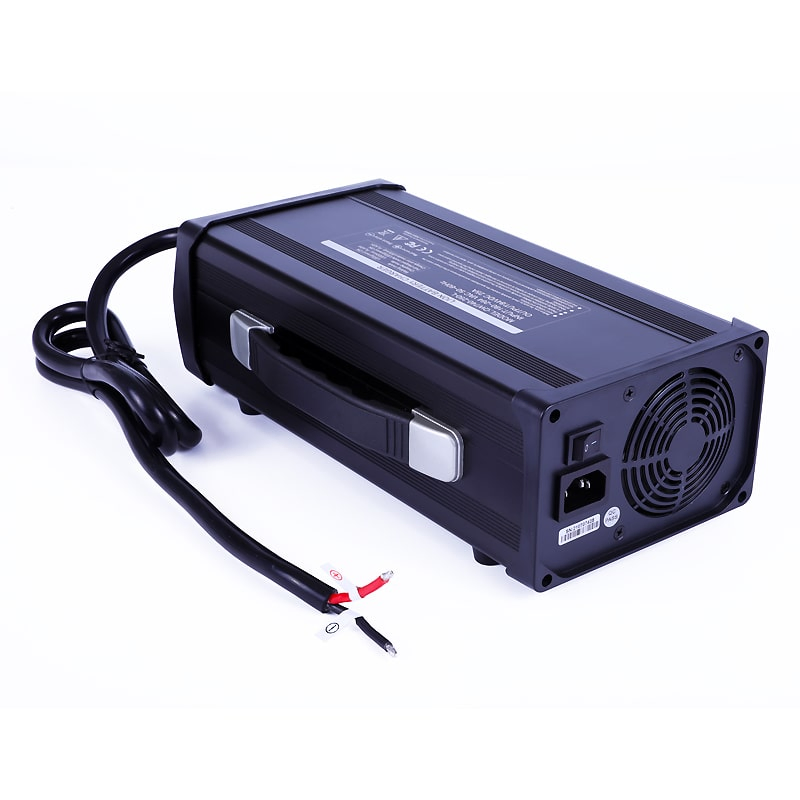

60V 13A 14A 15A 1200W Battery Charger for SLA /AGM /VRLA /Gel Lead Acid Batteries for Electric Forklift Battery Electric Golf Cart with Pfc with CE

1 / 5

60V 13A 14A 15A 1200W Battery Charger for SLA /AGM /VRLA /Gel Lead Acid Batteries for Electric Forklift Battery Electric Golf Cart with Pfc with CE

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

QW600-150-S

Application

Standard Lead-Acid Battery

Nominal Voltage

73.5V

Charger Style

Intelligent Fast Charger

Compatible Type

60V Battery Systems

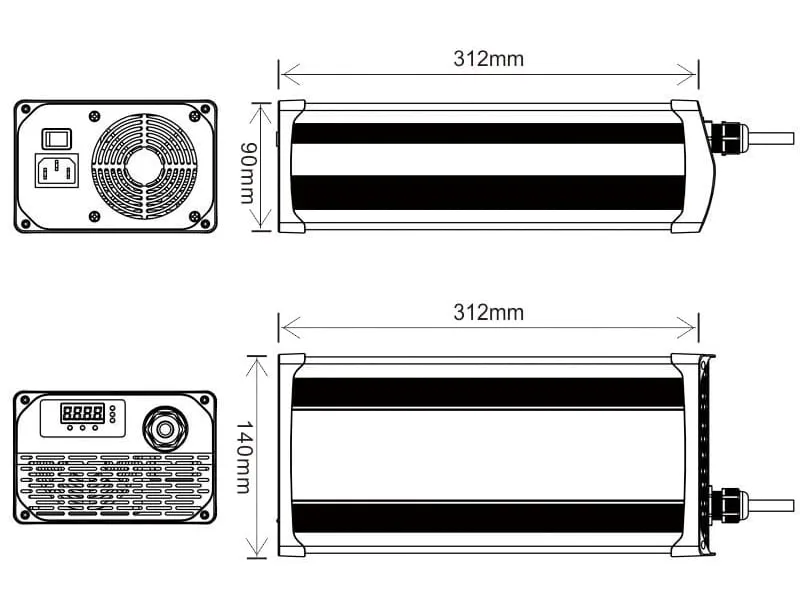

Dimensions

312*140*90mm

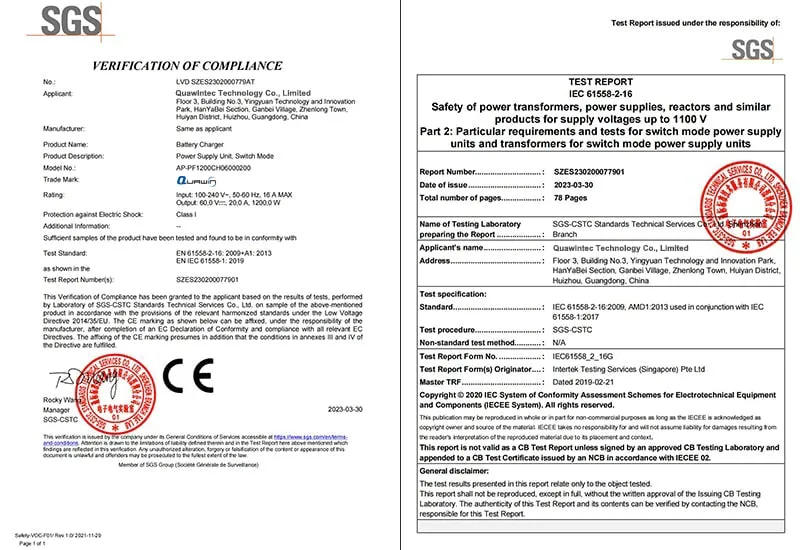

Certification

RoHS, CE

Input Voltage

100-240VAC 50/60Hz with PFC

Shell Material

Aluminum alloy

Output Power

1102.5W

Key Features

Fully automatic CC + CV(H) + CV(L) charging process controlled by MCU.
Constant high charging current for significantly faster charging times.
Automatic charging termination with Cut-Off output when full.

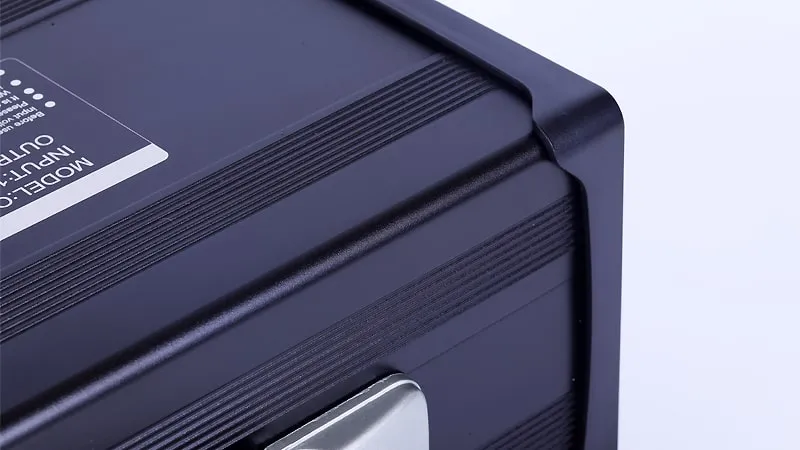

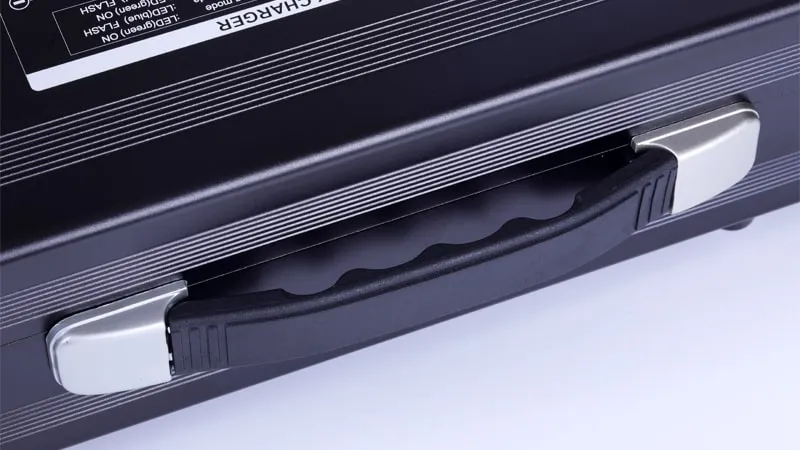

Durable Aluminum Metal case with integrated Cooling Fan.
High Efficiency >= 90% with Active PFC.
Designed for 60V SLA/VRLA/GEL/AGM batteries (60-120Ah).

Safety Protections

Over Current Protection

Over Voltage Protection

Short Circuit Protection

Reverse Polarity Protection

Anti-revert Current Protection

Anti-spark Protection

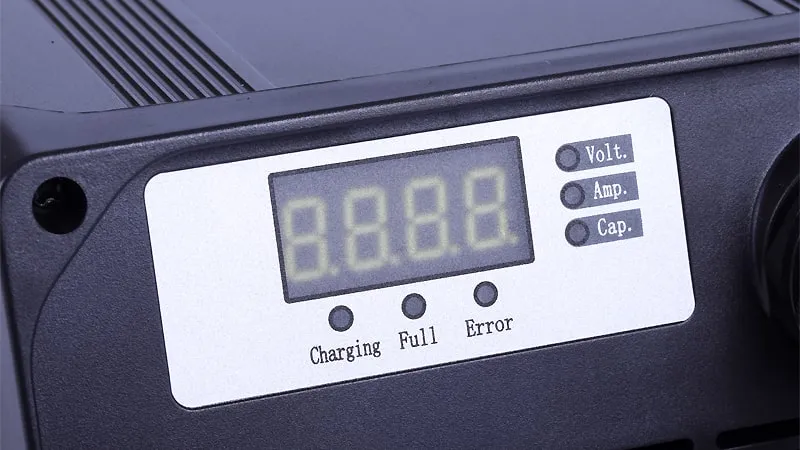

LED Indicator Status

Waiting Mode: LED (GREEN) ON

Charging Mode: LED (BLUE) FLASH

Full Charged Mode: LED (GREEN) ON

Charge Error Mode: LED (RED) FLASH

Typical Product Models

Model	Battery Type	Input Voltage	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-600-F	LiFePO4	AC 100~264V	12.8	14.6	60
QW512-200-F	LiFePO4		51.2	58.4	20
QW768-130-F	LiFePO4		76.8	87.6	13
QW370-250-L	Lithium	AC 100~264V	37	42	25
QW629-150-L	Lithium	AC 100~264V	62.9	71.4	15
QW480-200-S	Lead Acid	AC 100~264V	48	58.8	20
QW600-150-S	Lead Acid		60	73.5	15
QW720-130-S	Lead Acid		72	88.2	13

Product Gallery

Frequently Asked Questions

Which battery types can this charger support?

This charger is specifically designed for 60V Lead-Acid batteries, including SLA, AGM, VRLA, and GEL types with capacities ranging from 60Ah to 120Ah.

How does the automatic charging process work?

It uses a 3-stage charging process (CC, CV High, CV Low/Float) controlled by an MCU to ensure the battery is charged quickly and safely without overcharging.

Is this charger compatible with international power outlets?

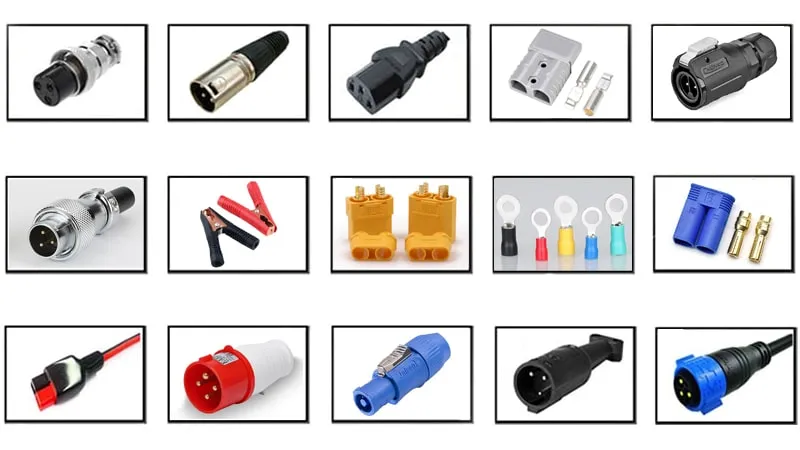

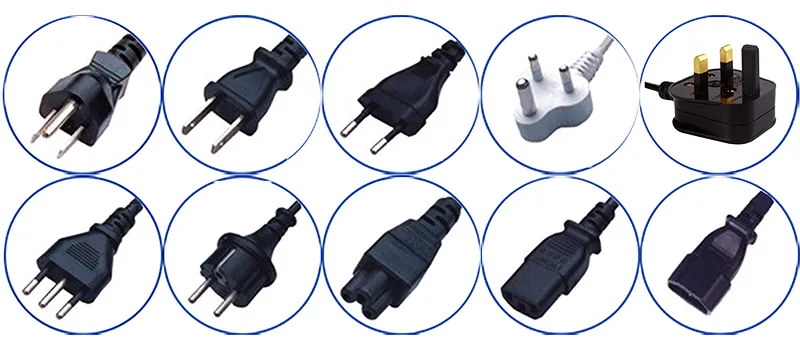

Yes, the charger supports a wide input voltage range of 100-240VAC at 50/60Hz and comes with various plug options (AU/EU/UK/US).

What safety features are included?

The unit includes multiple protections: over current, over voltage, short circuit, reverse polarity, anti-revert current, and anti-spark protection.

What do the LED indicator colors signify?

Green indicates waiting or fully charged; Blue flashing indicates active charging; Red flashing indicates a charging error.

How is the heat dissipated during high-power charging?

The charger features a durable aluminum alloy shell and a built-in cooling fan to maintain optimal operating temperatures.
