Ycl12 12W Plastic Square Housing Cc Mode LED Driver Universal Laptop Charger

Customization:	Available
Output Type:	AC
Color:	White

Send Inquiry

Product Description

Basic Specifications

Model NO.

YCL12 constant current series

Internal Structure

On-Off Type

Power Source

Half-Bridge Type

Connection

Desktop

Input

100-240VAC 50/60Hz

Certificates

TUV-GS, CB, CE, EMC, RoHS

Power

12W Max.

MTBF

100,000 Hours Minimum

Output Current

100mA-1000mA

Dimension

56*39*26mm

Packing

100PCS/CTN, 36*28.5*25cm

Service Life

3-5 Years Alternative

Weight

93g

Origin

Zhejiang, China

Product Description

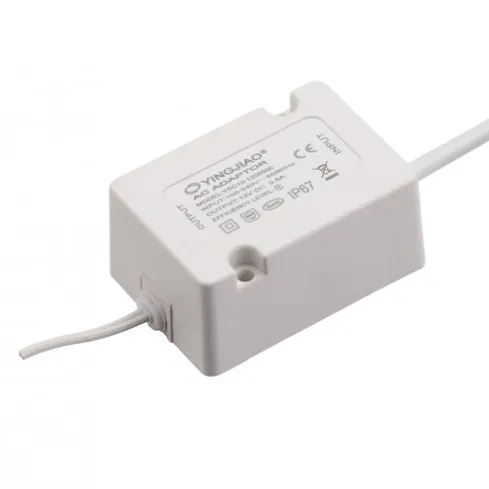

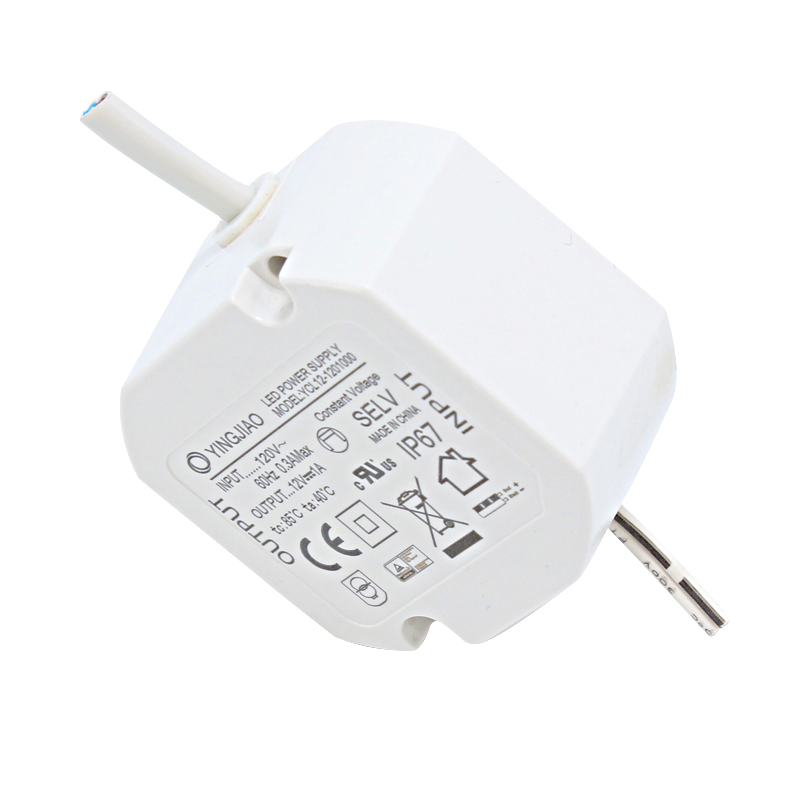

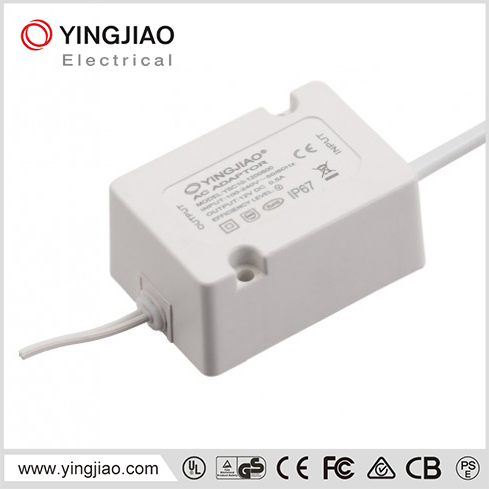

YCL12 12W Plastic Square Housing CC Mode LED Driver

High-efficiency universal power solution designed for CC mode LED applications and electronic devices requiring stable constant current output.

Detailed Specifications

Model	YCL12 Constant Current Series
Max Power	12W
Input Voltage	100-240VAC 50/60Hz
Output Range	6-48V / 100mA-1000mA
Inrush Current	65 Amps max. at 230VAC/50Hz
Protections	Short Circuit / Over Current / Over Voltage / Over Temperature
Environment	Working Temp: -20°C to 50°C \| Humidity: 5%-90% RH
MTBF	100,000 hours at 25°C full load

Model Comparison

Model	Rated Current	Voltage Range	Efficiency
YSL12-0340350	350mA	17-34V	82%
YSL12-0240500	500mA	12-24V	82%
YSL12-0170700	700mA	8-17V	82%

Manufacturing & Solutions

Frequently Asked Questions

1. What is the maximum power output of the YCL12 series?

The YCL12 series provides a maximum output power of 12W, suitable for a variety of constant current LED applications.

2. Does this LED driver support universal input voltage?

Yes, it supports a wide input voltage range of 100-240VAC at 50/60Hz, making it compatible with global power standards.

3. What safety protections are built into the device?

The driver includes comprehensive protection features: Short Circuit Protection (SCP), Over Voltage Protection (OVP), Over Current Protection (OCP), and Over Temperature Protection.

4. What are the available output current options?

The series offers various models with rated currents including 350mA, 500mA, and 700mA, with an overall range capability of 100mA to 1000mA.

5. What is the expected lifespan and reliability?

The unit has an MTBF (Mean Time Between Failures) of at least 100,000 hours at full load and offers an alternative service life of 3 to 5 years.

6. Which certifications does the YCL12 series hold?

This series is compliant with international standards and holds certificates such as TUV-GS, CB, CE, EMC, RoHS, and REACH.
