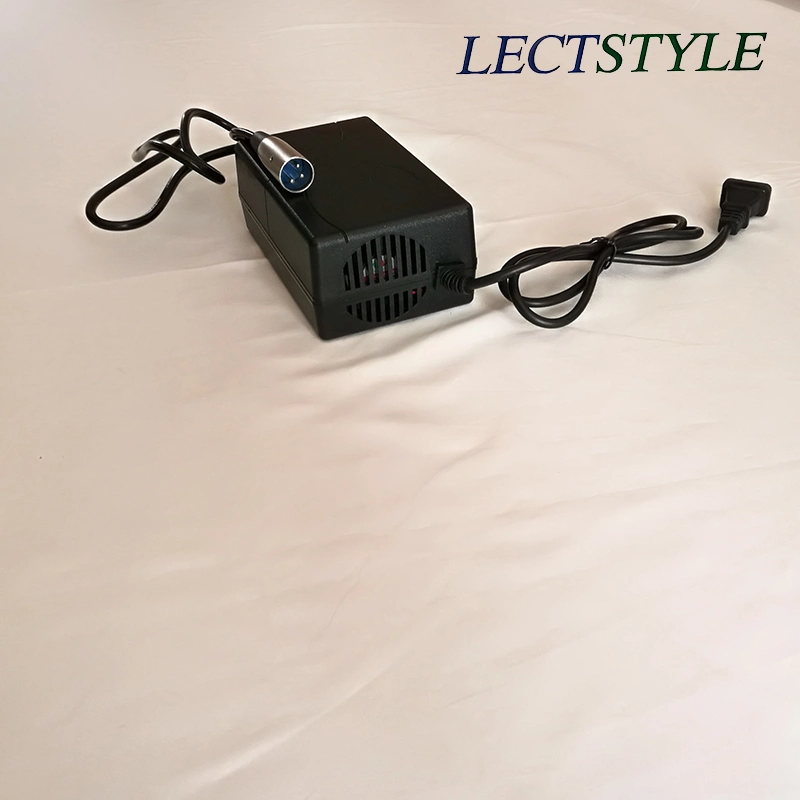

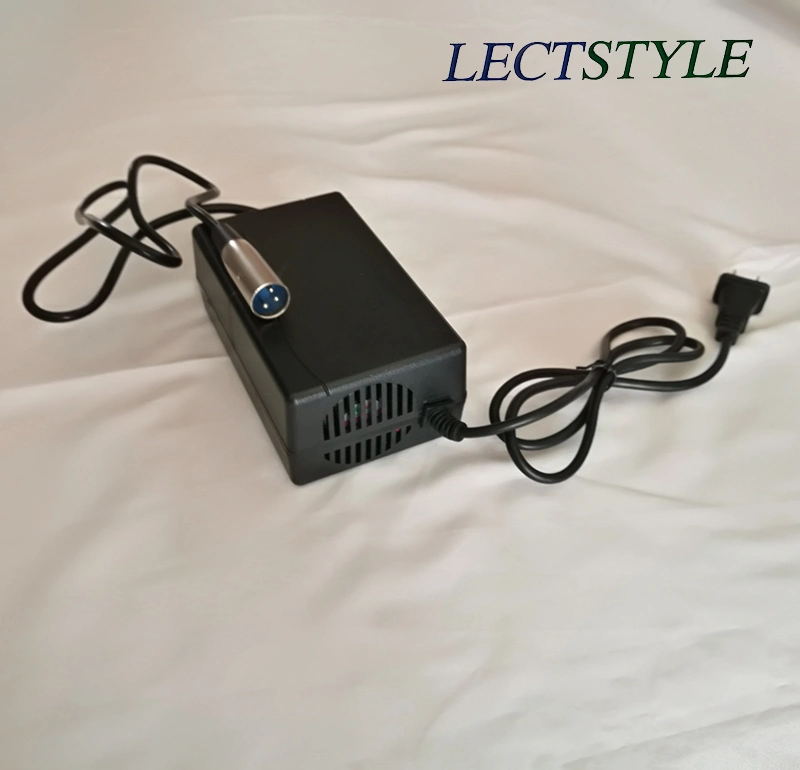

24V 2A XLR Mobility Electric Scooter Wheelchair Gel or Lead Acid Battery Smart Charger

Still deciding? Get samples of $ !
Request Sample

Product Description

📋 Overview - Basic Info
Charger Application
Standard Battery
Nominal Voltage
24V
Charger Style
Intelligent Charger
Compatible Battery Type
12-Volt
Size
1/3 AA
Certification
CE
Socket Type
For USA/Canada
Recyclable
Non-Recyclable
Transport Package
Plywood Case
Specification
ISO, CE
Origin
China
HS Code
85049090
Production Capacity
1000 Each Month
🚀 Product Description

Power chair XLR mobility scooter charger, LEAD-ACID BATTERY CHARGER

  • Input voltage: 100~240V AC/50Hz
  • Output voltage: 24V DC , 3.0A+/-0.2A, (12AH/20AH-22AH)
  • Input power: 120W
  • Compatibility: This specification applies to sealed Lead-acid battery rechargeable. Charge Battery Model for 24V 12AH and 24V 20~22AH.

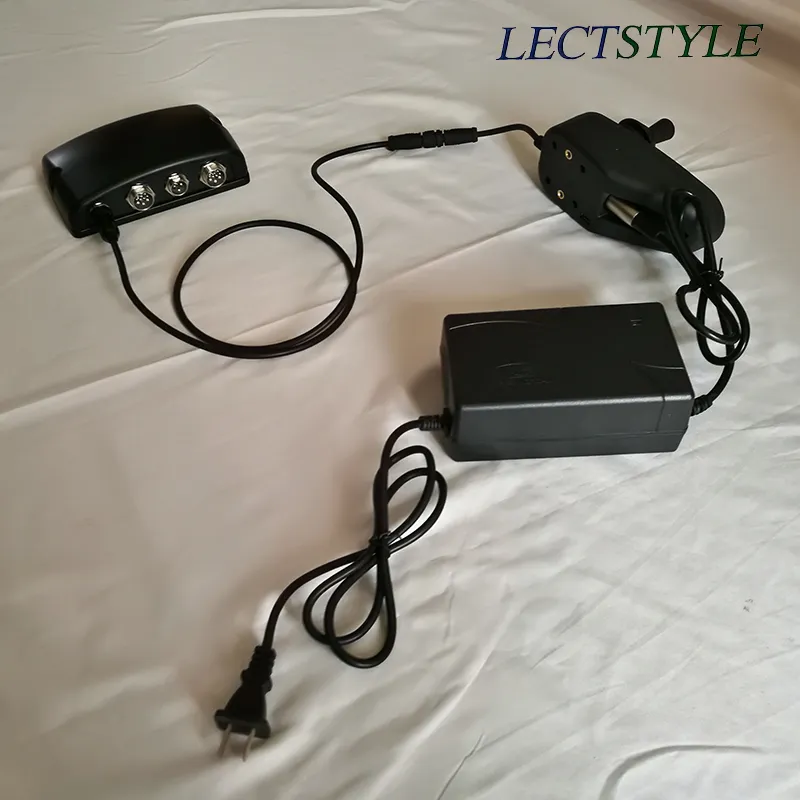

📷 Detailed Photos
Product Parameters & Protection

Protect characteristics:

  • Timing protecting function: 8 hours total timing during normal charge. Turns to green light (floating state) when complete.
  • SCP (Short Circuit Protection): Indicator lights flicker if output is short-circuited.
  • Reverse Polarity Protection: Automatically closes output if battery connection is reversed.
  • Over-current Protection: Protection enabled if output exceeds 110W (20AH).

⚠ Important Safety Notes:

  1. Read the operational manual carefully before use.
  2. Indoor use only. Keep away from rain and ensure sufficient ventilation.
  3. Do not cover the surface of the charger during high-temperature charging.
  4. Avoid heavy oscillation or vibration.
  5. High voltage inside; only professional technicians should dismantle the unit.

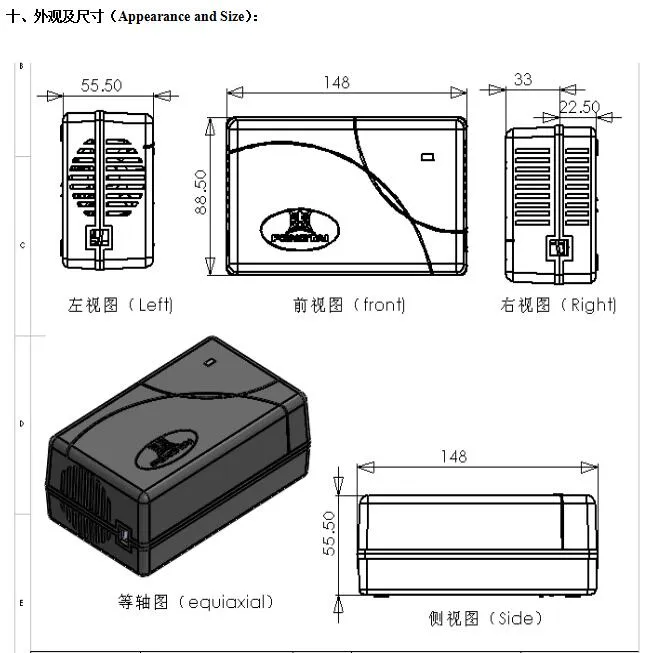

Technical Layout
🛠 After Sales Service

Our products can be repaired or replaced with new parts at free cost within three months.

🏭 Production Process

Our core range of DC motors and gearboxes are designed for versatility and interchangeability, catering to various OEM applications including wheelchairs, scooters, and industrial gearboxes.

Output Shafts

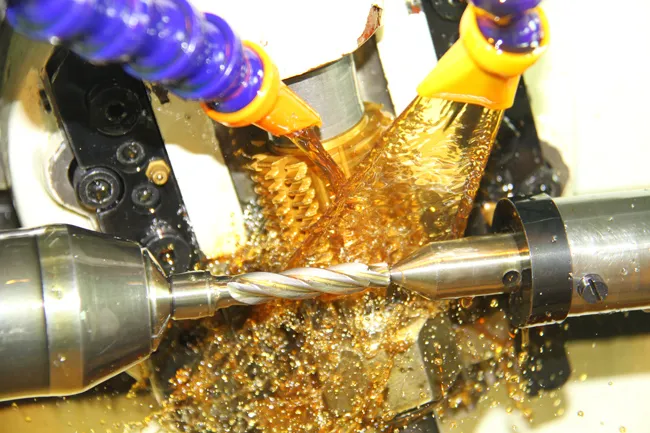

(1) Process Output Shafts

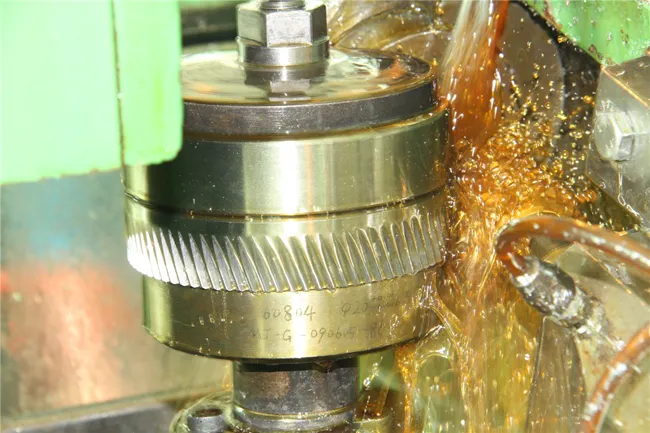

Spur Gears
(2) Process Spur Gears and Sprockets

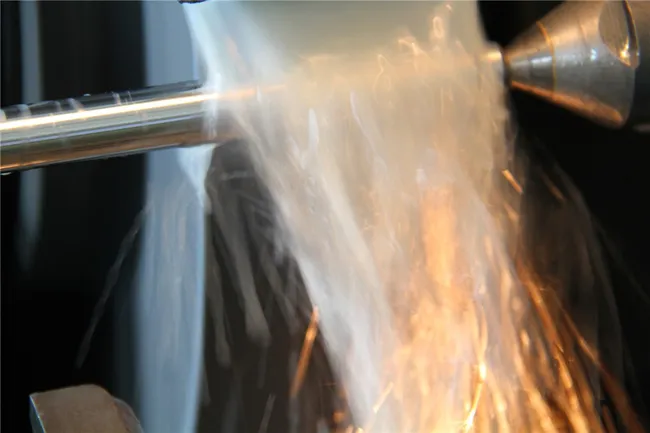

Turning Machining
(3) Turning Machining
Assembly Prep

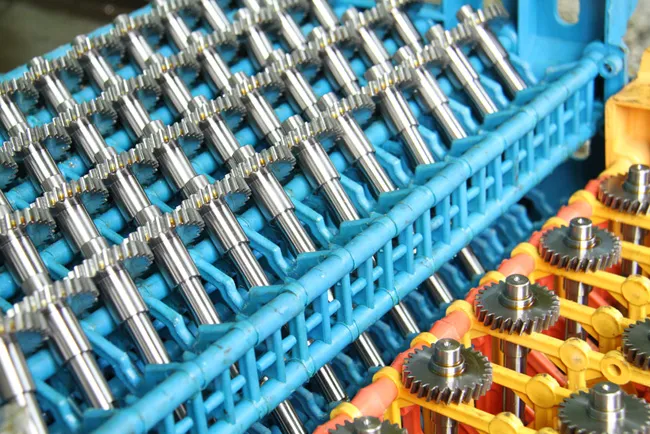

(4) Assembly Preparation
Workshop
(5) Assembly Workshop
Inspection
(6) Inspection Test Before Shipment
Frequently Asked Questions
Q: What type of batteries is this charger compatible with? A: This charger is specifically designed for 24V Sealed Lead-Acid (SLA) and Gel batteries, typically used in mobility scooters and power wheelchairs.
Q: Can I use this charger in different countries? A: Yes, it supports a wide input voltage range from 100V to 240V AC, making it suitable for international use.
Q: How do I know when the battery is fully charged? A: The charger features a timing function and status light. Once the charge is complete (up to 8 hours), the light turns green, indicating it has entered a floating maintenance state.
Q: What safety protections are included? A: The charger includes Short Circuit Protection (SCP), Reverse Polarity Protection, and Over-current Protection to ensure the safety of both the battery and the user.
Q: Can this charger be used outdoors? A: No, this unit is designed for indoor use only. It should be kept away from rain and moisture and used in a well-ventilated area.
Q: What is the warranty policy for this product? A: We offer a three-month service period during which parts can be repaired or replaced free of charge.
