Intelligent Battery Charging Solutions
Our smart battery chargers are engineered for high-performance recharging of Lead Acid, LiFePo4, and Lithium battery packs. Perfectly suited for electric vehicles, forklifts, sightseeing cars, patrol cars, golf carts, and electric dining vehicles.

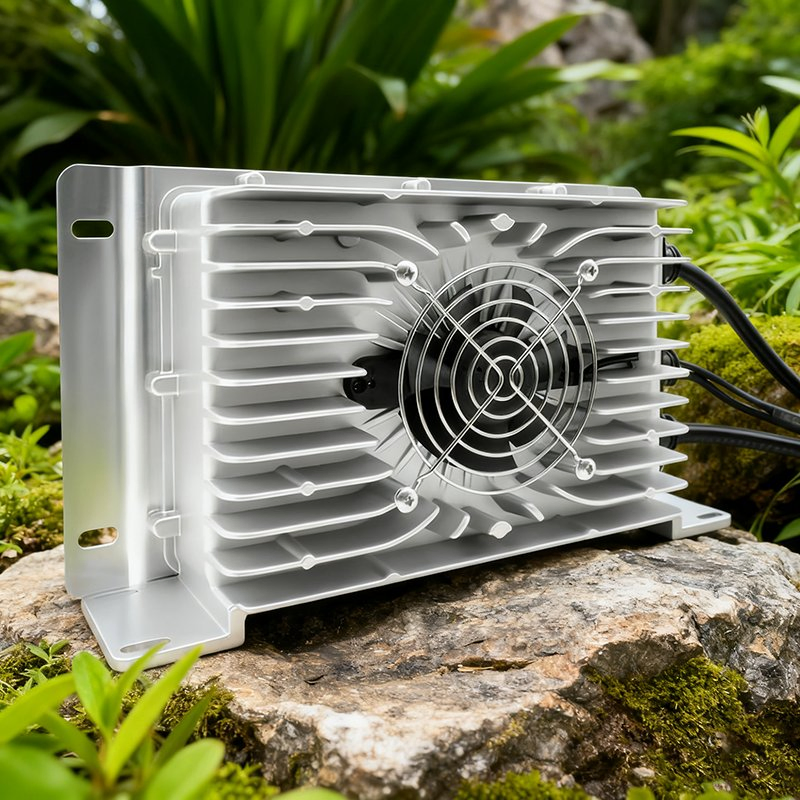

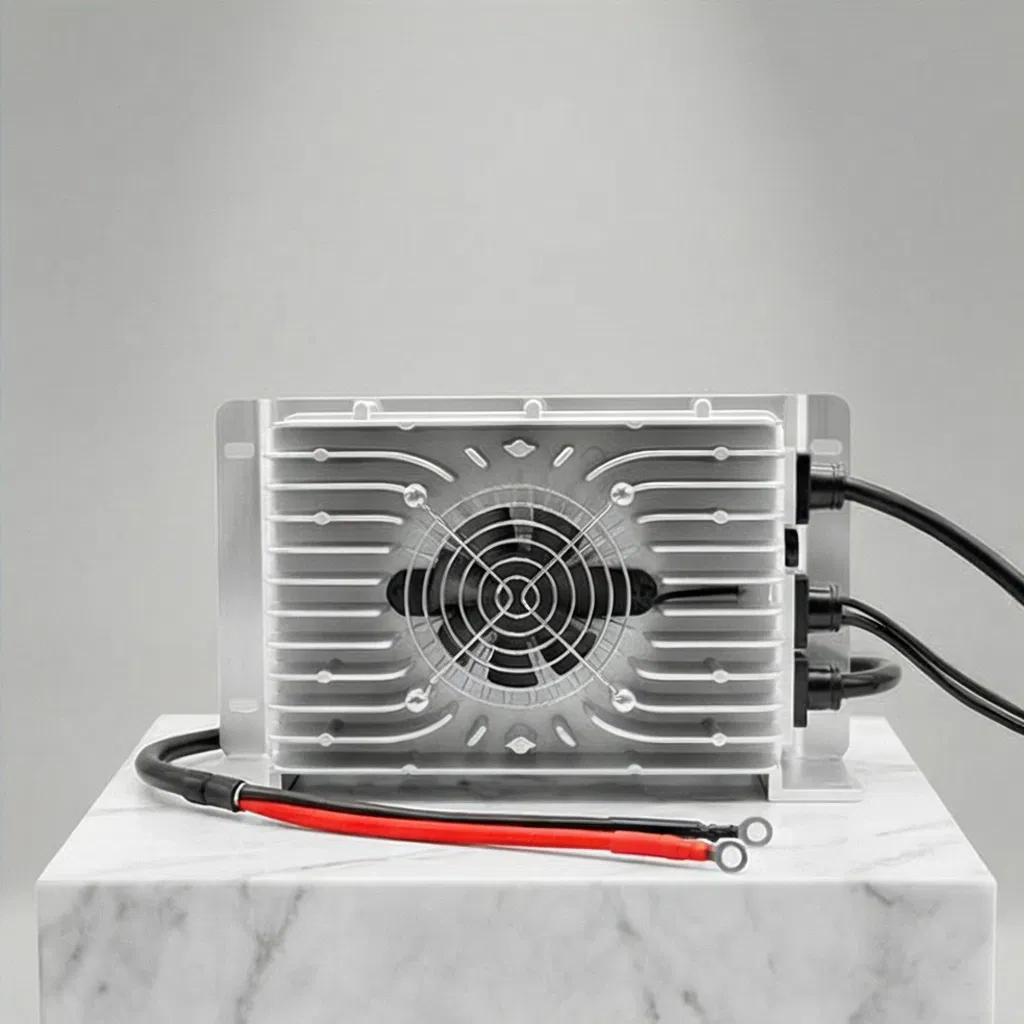

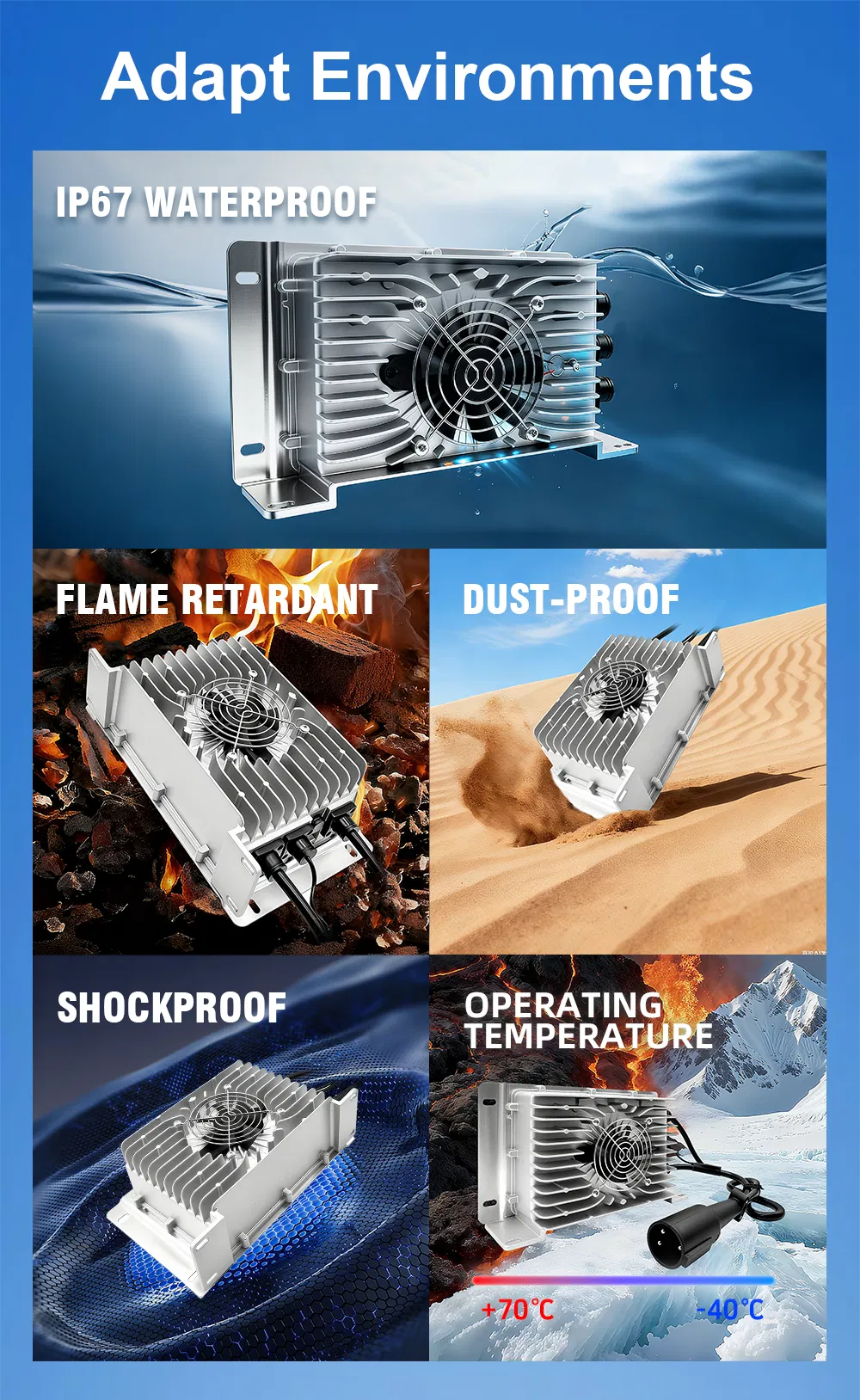

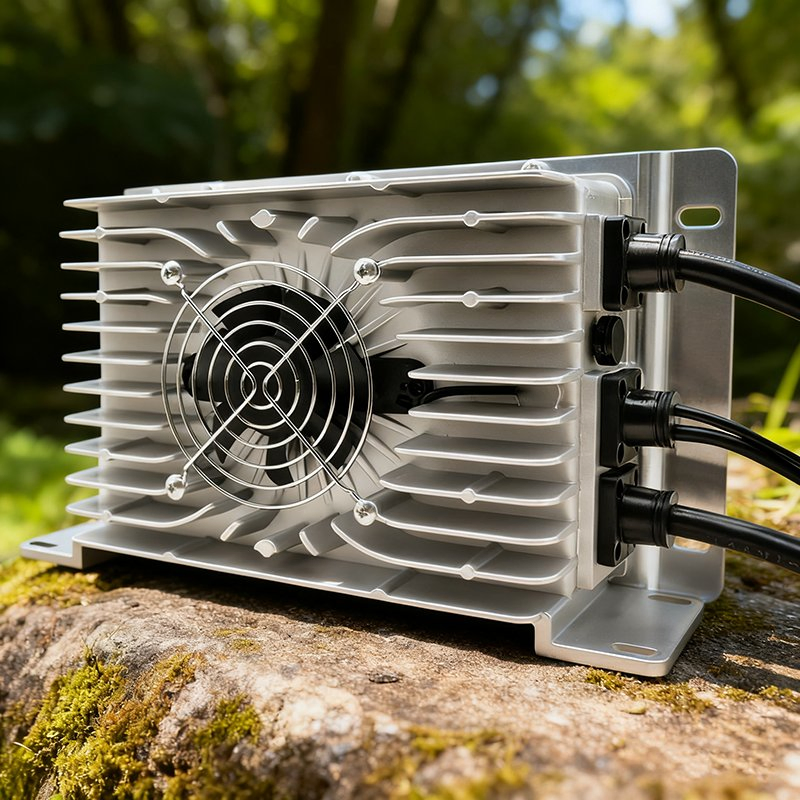

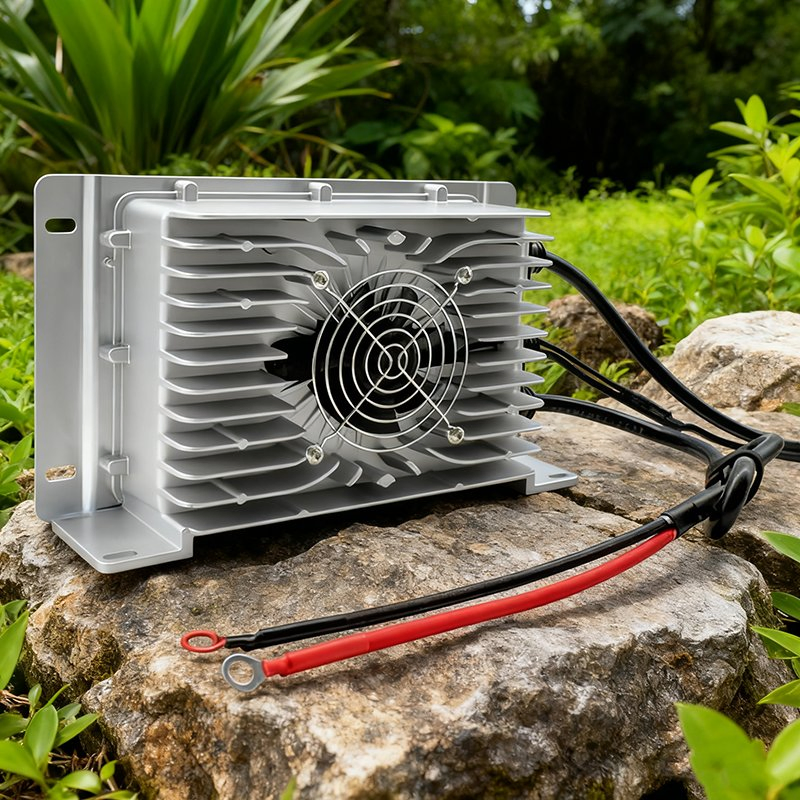

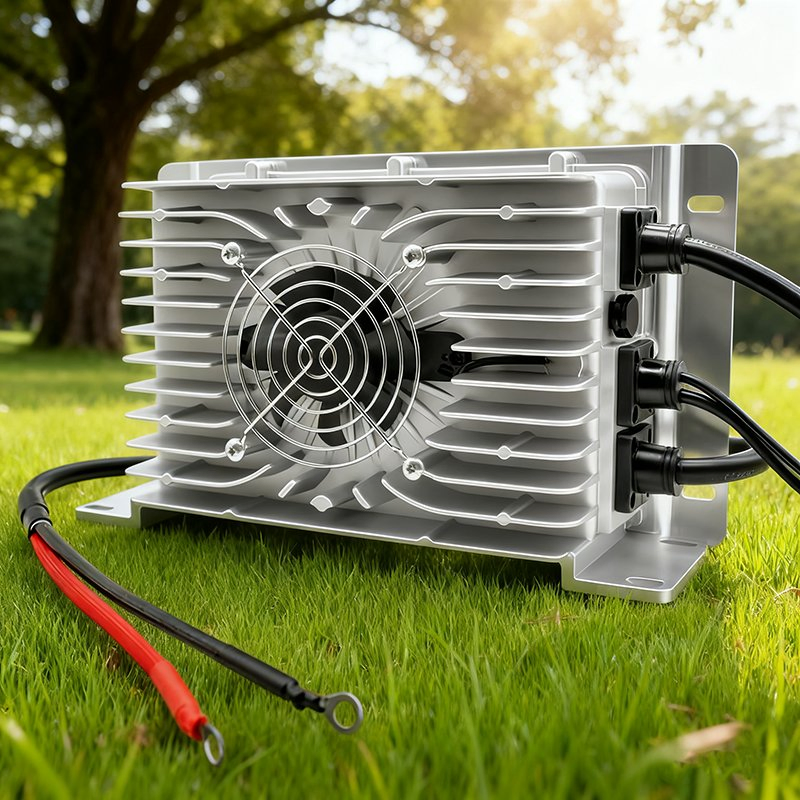

The fully enclosed aluminum alloy shell provides superior heat dissipation, supported by an intelligent temperature-controlled fan for long-term stable operation. With an IP67 waterproof rating, these chargers are splash-proof and rain-proof, ensuring reliability in outdoor environments.
| QX2000 Battery Charger Parameters (Input: 90VAC~260VAC) | ||||||||
|---|---|---|---|---|---|---|---|---|
| Rated Voltage | Lead Acid (CV) | Li-ion (CV) | LiFePo4 (CV) | @220Vac (CC) | @110Vac (CC) | Weight (kg) | Size (mm) | |

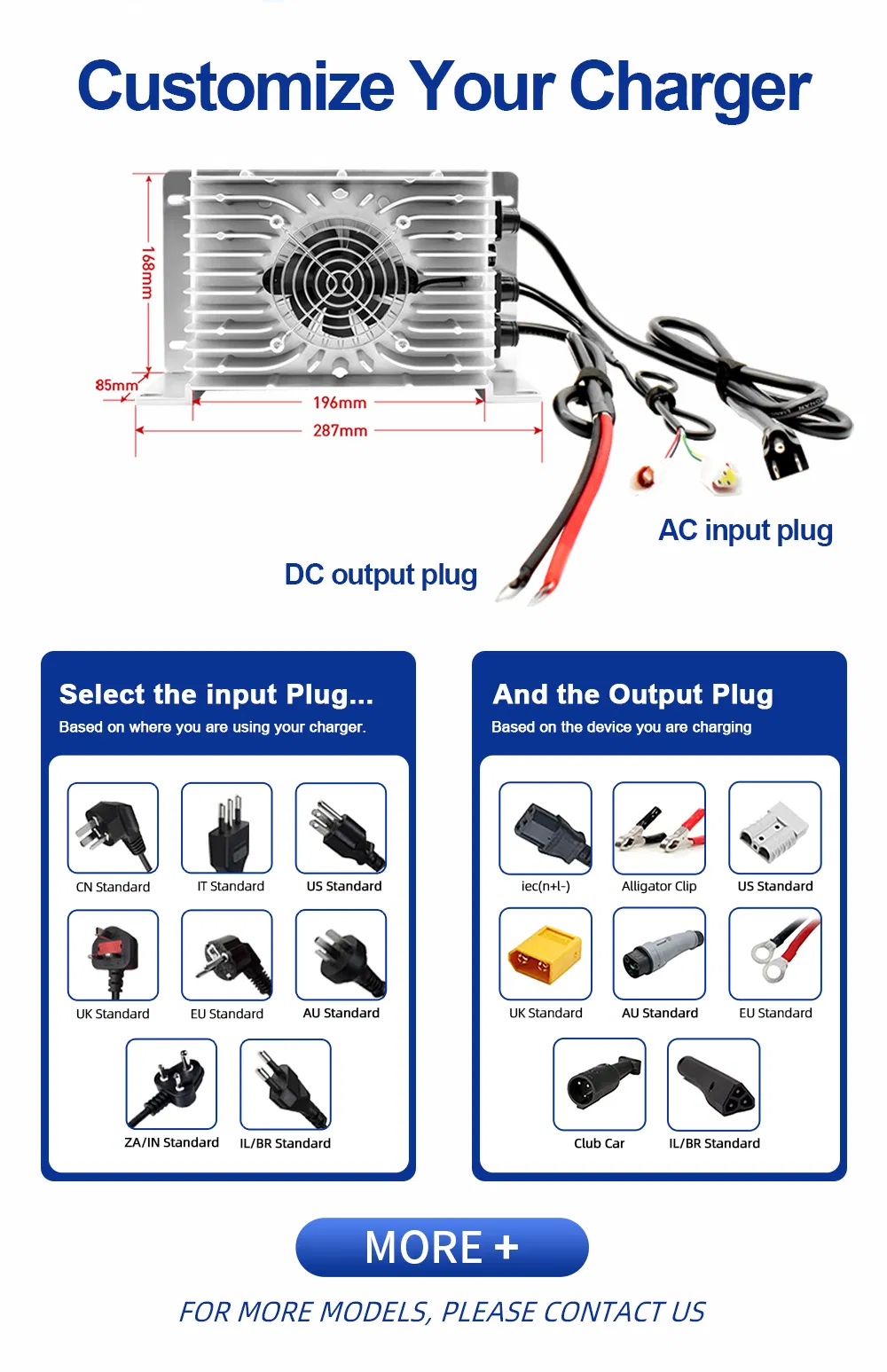

| 12V | 14.7V | 16.8V | 14.6V | 50A | 50A | 3.6 | 287*168*85 | |
| 24V | 29.4V | 33.6V | 29.2V | 50A | 30A | |||
| 36V | 44.1V | 42V | 43.8V | 35A | 25A | |||
| 48V | 58.8V | 54.6V | 58.4V | 35A | 21A | |||
| 60V | 73.5V | 71.4V | 73V | 30A | 18A | |||
| 72V | 88.2V | 84V | 87.6V | 25A | 15A | |||

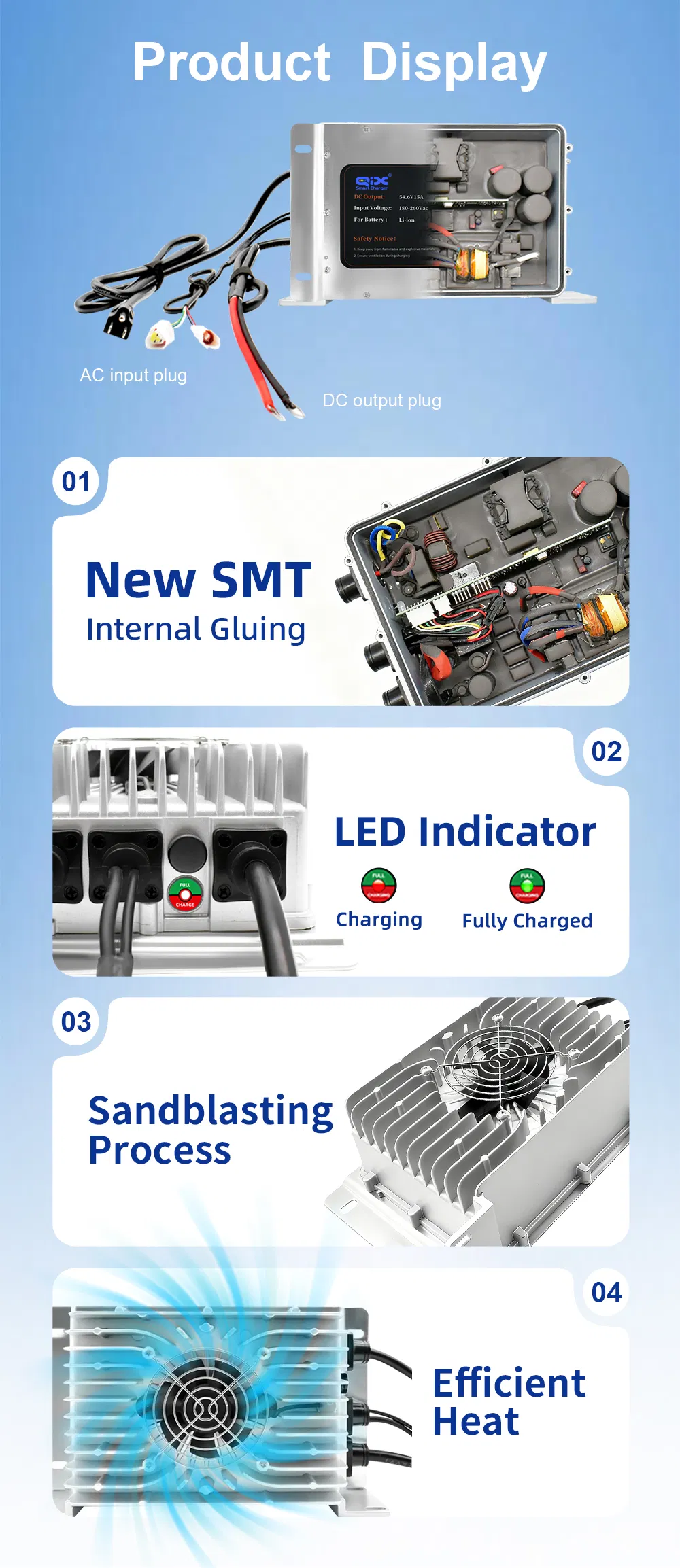

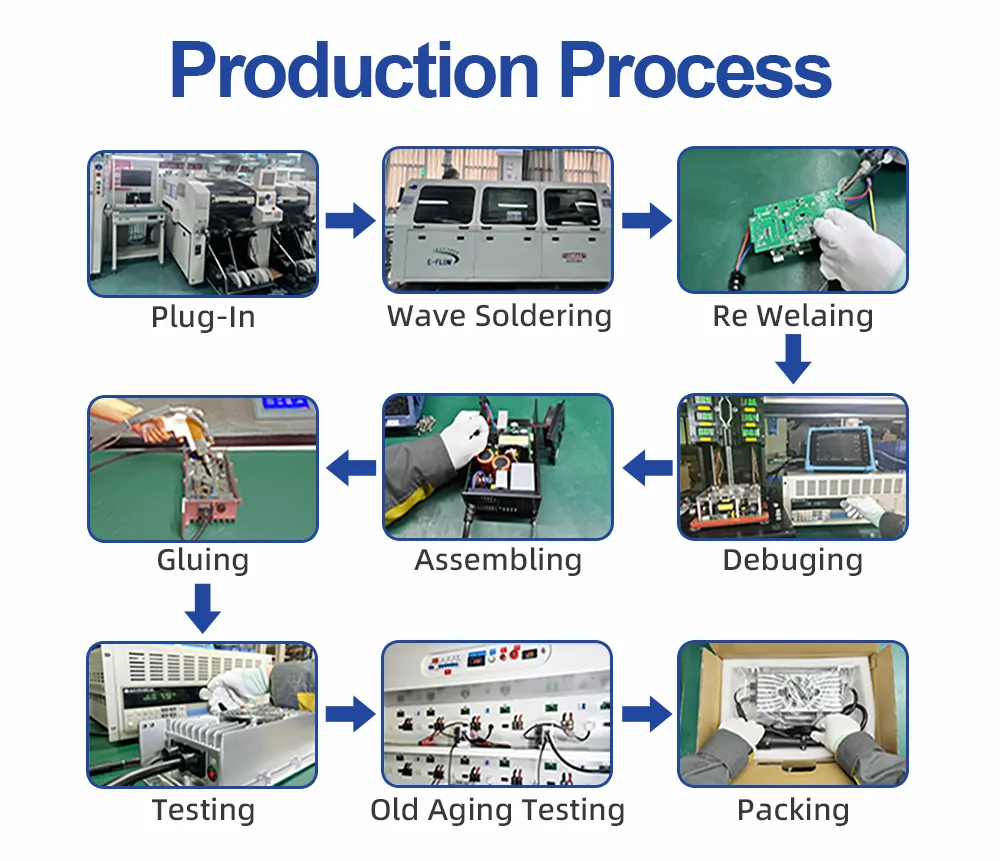

Precise mounting of electronic components followed by wave soldering for stable electrical connections.
Functional testing and modular assembly of PCBA into the structural frame.
Waterproof sealing via glue filling followed by comprehensive performance verification.
With 20 years of experience in the new energy field, we operate from a 3,000 square meter intelligent production base. Our "Five Dimensional Quality Assurance System" involves 26 inspection processes from raw material to delivery.
