DC12V/24V/48V/110V/220V/400V Universal Marine/Industrial/Automotive Lead Acid Intelligent Smart Battery Charger"

1 / 5

DC12V/24V/48V/110V/220V/400V Universal Marine/Industrial/Automotive Lead Acid Intelligent Smart Battery Charger"

Customization:	Available
Type:	Battery Charger
Charger Type:	Grid/PV

Send Inquiry

Product Description

Product Overview

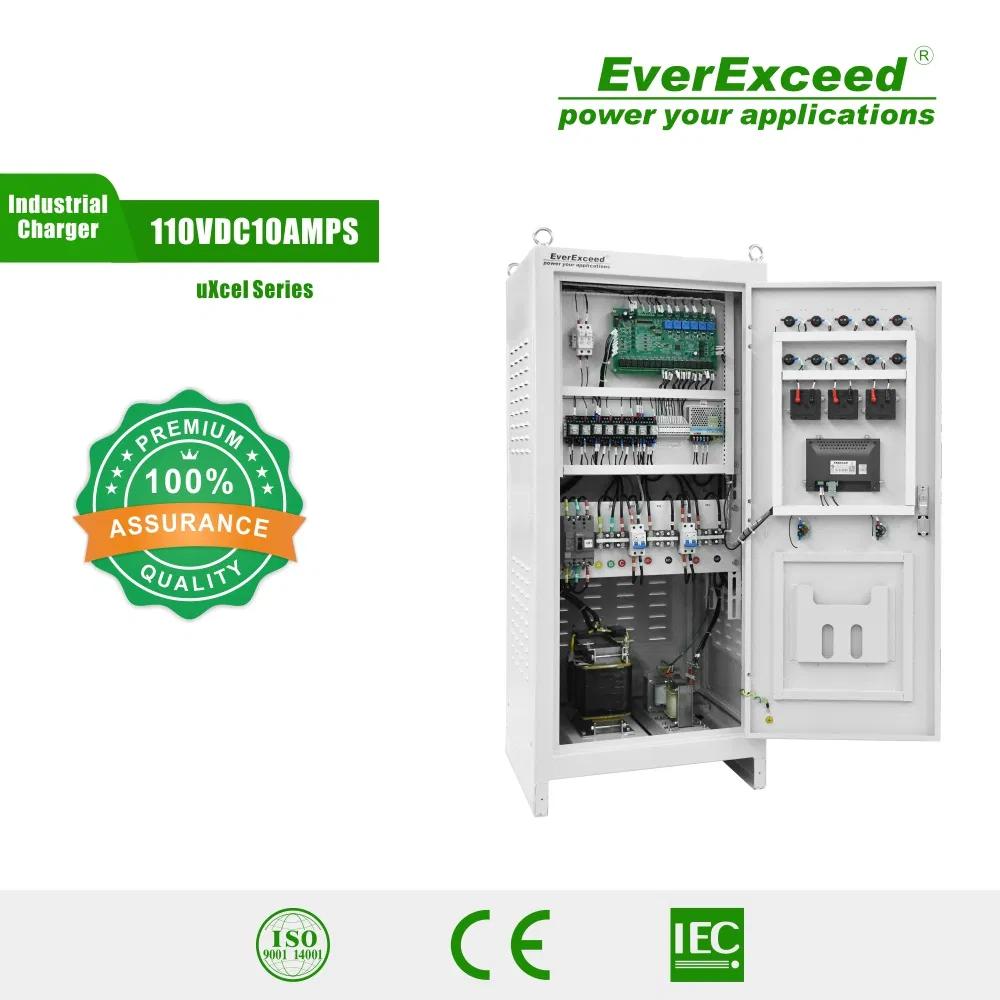

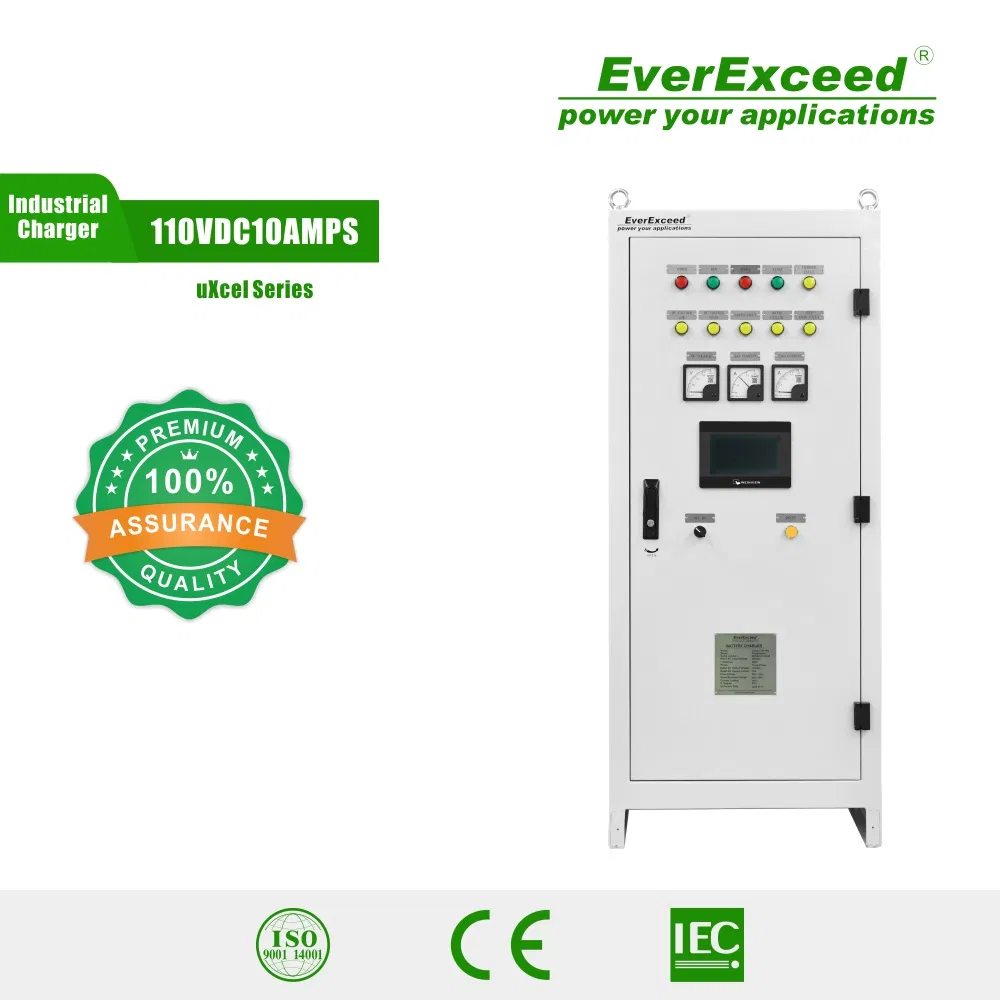

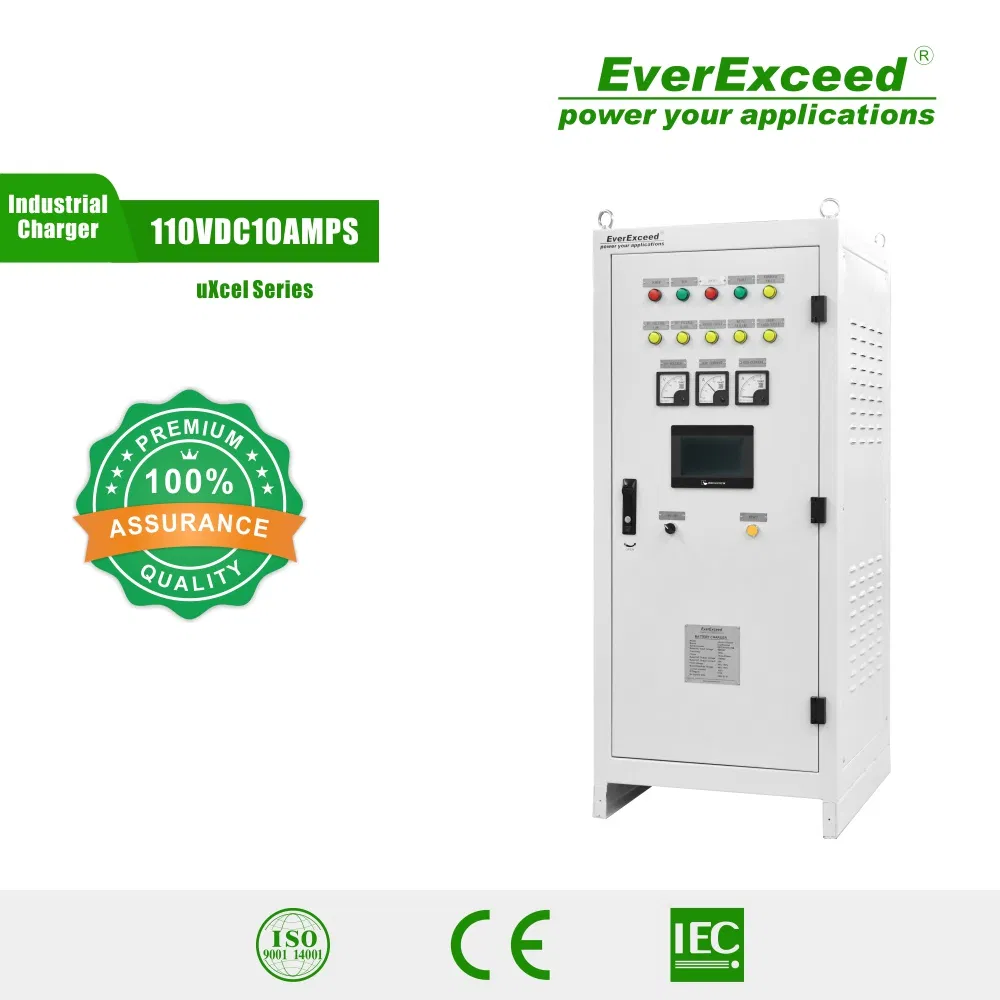

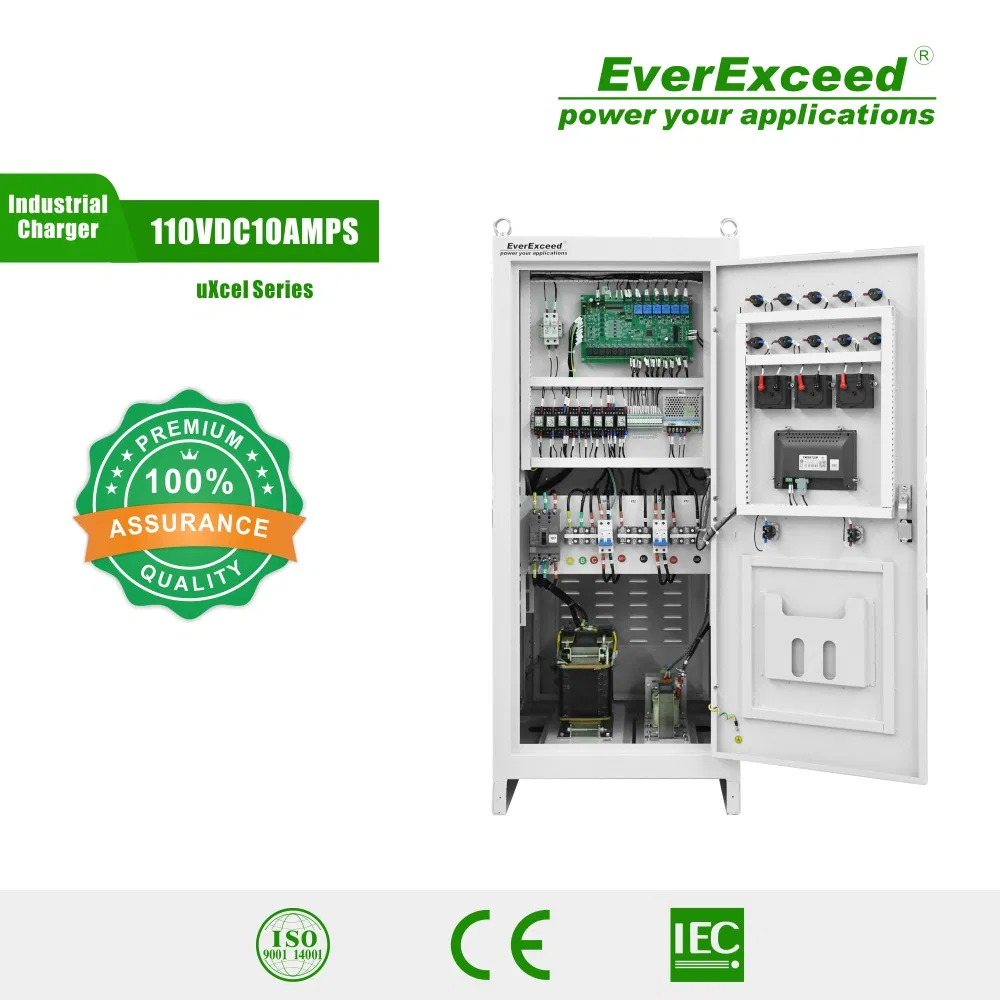

The uXcel range industrial battery charger is the flagship charger for industrial power solutions. It integrates proven design topology with the latest advanced digital control technology to control the thyristor bridge rectifier and provides the most reliable and trouble-free performance in any electrical and industrial environments.

Model NO.

uXcel Ultra 110V16A

Application

Standard Battery

Nominal Voltage

110V

Charger Style

Pulse Charger

Battery Type

Lead Acid/NiCd/ Lithium

Size

800*800*2000

Certification

RoHS, TUV, CE, Toby, En61000, IEC60146

Socket Type

Flexible/ Standard

Lead Time

4-6 Weeks

OEM/ODM

Yes

Output Voltage

16.5-165V

HS Code

8504409999

Detailed Features

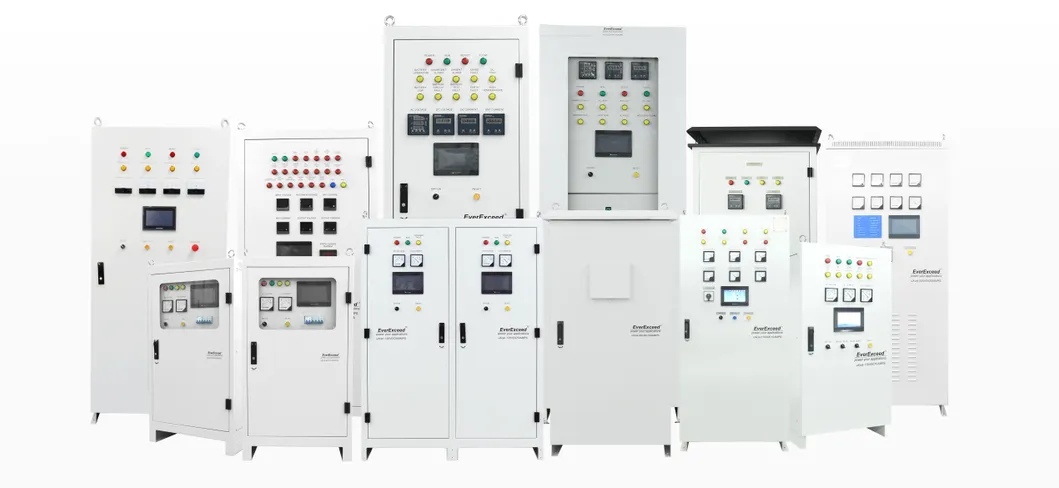

Industrial Smart Battery Charger Main View

Redundant Operation: Structured by two independent charging loops in parallel. Carries out redundancy charge function without interruption, sharing load to extend life cycle and ensure backup in emergencies.
High Reliability & MTBF: Robust design allows continuous operation at full load at 40°C ambient temperature. Includes precise adjustable temperature compensation.
Versatile Modes: Constant voltage and constant current charging modes available.
Enhanced Robustness: Mechanical design withstands vertical and horizontal acceleration stress up to 0.5g.
Leading Technology: Phase-controlled Thyristor technology with an embedded micro-computer controller processing signals 10x faster than analog methods.
Flexible Maintenance: Front-access design to all vital modules for reduced MTTR.
Long Design Life: System design life of 20+ years in continuous operation with appropriate maintenance.
Smart Communication: Remote monitoring through isolated RS232, RS485, and Ethernet with full data logging.
User Interface: Large LCD display for user-friendly operation; touch screen optional with multiple language support.

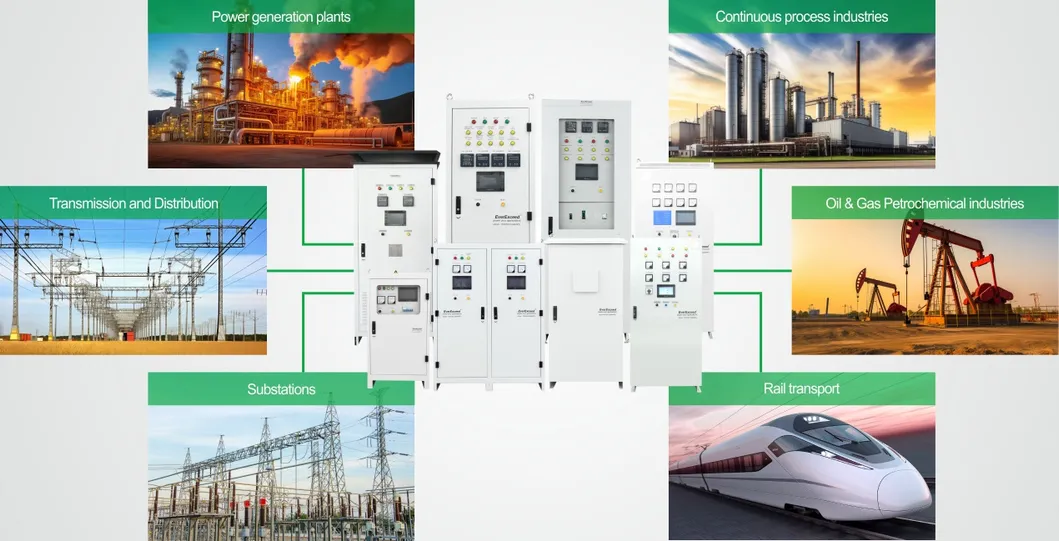

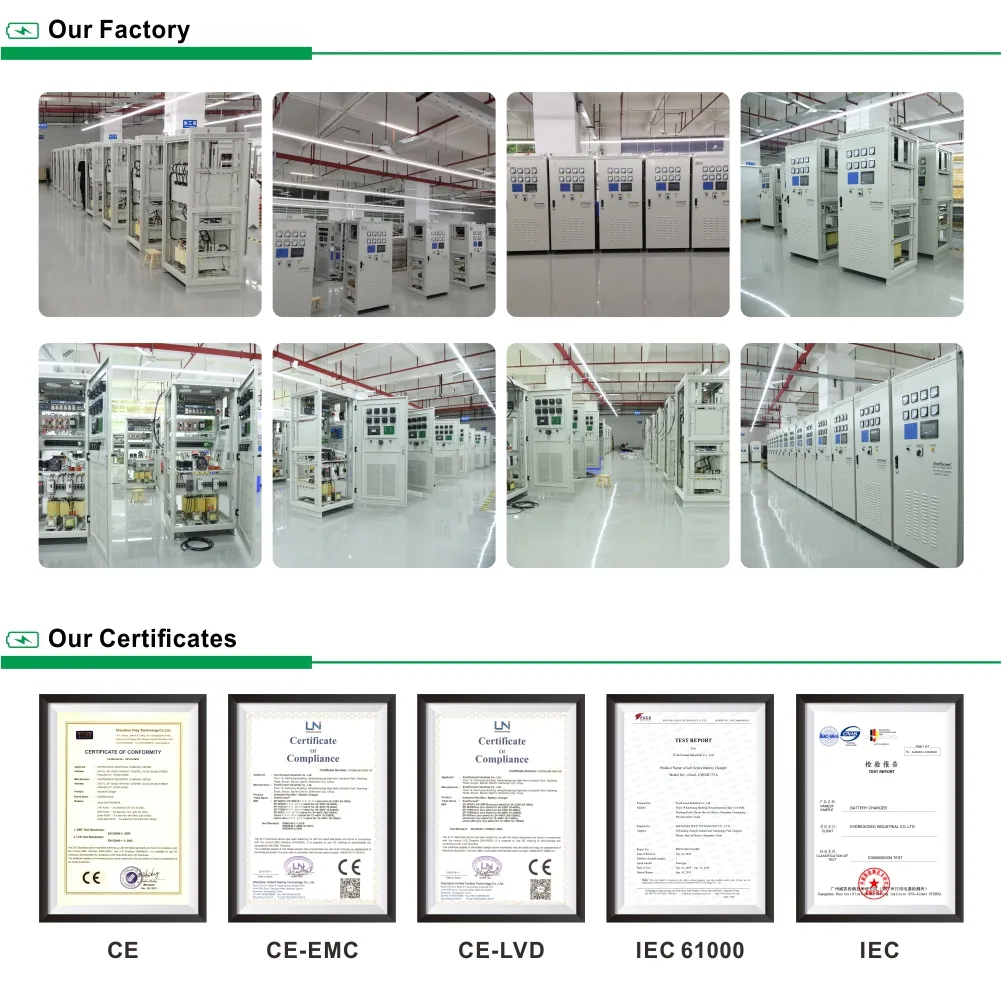

Application & Factory

Universal Industrial Applications: Ideal for Marine, Industrial, and Automotive Lead Acid battery charging requirements.

Why Choose Us

Category	Advantages
Service	RMA (24/7 pre-sales and after-sales support), OEM, ODM available.
Quality	Highly reliable quality guaranteed by European raw materials and advanced technology.
Warranty	Standard 2 years, with options for 5+ years upon request.
Experience	Founded in 1985, with over 30 years of manufacturing expertise.
Global Reach	Business coverage in 65+ countries with 2 R&D centers and 3 major production bases.
Capacity	3,500,000 KVAh per year production capacity.

Shipping & Payment

Payment Terms	T/T, L/C, Cash, Western Union etc. (Flexible terms negotiable).
Lead Time	Normally 4 weeks ex-factory.
Transportation	By sea, air, train, or truck transportation.
Packaging	Standard carton box then palletized (wooden box options).

Frequently Asked Questions

What battery types can this charger support?

The charger is fully compatible with Lead Acid, Nickel Cadmium (NiCd), and Lithium batteries, including both sealed and vented types.

How does the redundant operation work?

The system utilizes two independent parallel charging loops. They share the load during normal operation, and if one fails, the other continues to provide power without interruption.

What is the expected lifespan of the uXcel series?

The system is designed for a service life of 20+ years under continuous operation, provided appropriate maintenance is performed.

Can I monitor the charger remotely?

Yes, the system supports smart communication and remote monitoring through isolated RS232, RS485, and Ethernet interfaces with full data logging.

Does the charger include an isolation transformer?

Yes, an isolation transformer is included as part of the robust industrial design to ensure safety and stability in harsh environments.

What certifications does this product hold?

The charger complies with several international standards, including CE, RoHS, TUV, En61000, and IEC60146.
