180W Series 12volt 24V 72V Li-ion Lead Acid LiFePO4 Battery Charger

1 / 5

180W Series 12volt 24V 72V Li-ion Lead Acid LiFePO4 Battery Charger

Customization:	Available
Type:	Li-ion Battery, Lithium Battery
Cathode Material:	Other

Send Inquiry

Product Description

Basic Specifications

Model NO.

YX-180

Rechargeable

Yes

Charger Type

Electric Charger

Nominal Voltage

12V

Power Output

120W

Efficiency

≥ 87% (Full Loading)

Case Material

Aluminium

Certification

RoHS, CE

Socket Type

IEC Standard

Production Capacity

100,000 Pieces Per Month

Product Description

The 180W Series represents a versatile charging solution designed for high efficiency and reliability across various battery chemistries, including Li-ion, Lead-Acid, and LiFePO4 batteries ranging from 12V to 72V.

Input Voltage: 100V~ 240V 50HZ/60HZ		CV (Constant Voltage)			CC (Max)
Model	Nominal Voltage	Lead Acid	Li-Ion	LiFePO4	Current
YX-180W	YX-180W-12	14.7V	16.8V	14.6V	8A
	YX-180W-24	29.4V	29.4V	29.2V	5A
	YX-180W-36	44.1V	42V	43.8V	4A
	YX-180W-48	58.8V	54.6V	58.4V	3A

Technical Specification

⚙️

Application: Lithium ion, Lead-Acid, LiFePO4 options
Material: High-grade aluminum alloy shell for superior heat dissipation
Safety: Precise voltage & current limiting
Dimensions: 155*90*50mm | Net Weight: 0.9KG

Lead Acid Charging Curve

3-Stage Charging Mode:

Step 1: CC (Constant Current)
Step 2: CV (Constant Voltage)
Step 3: Floating

Lithium Charging Curve

CC-CV Charging Mode:

Stage 1: CC (Constant Current)
Stage 2: CV (Constant Voltage)
Transition: Full automatic cut-off

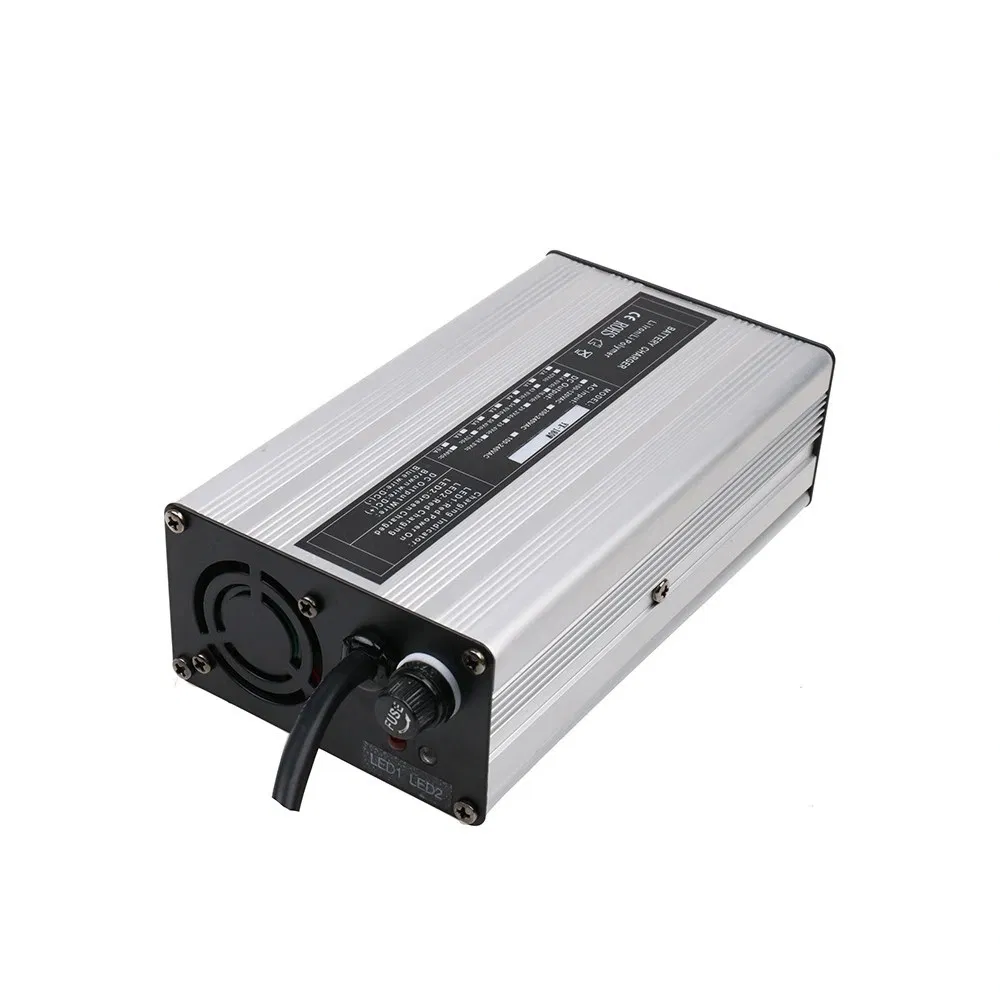

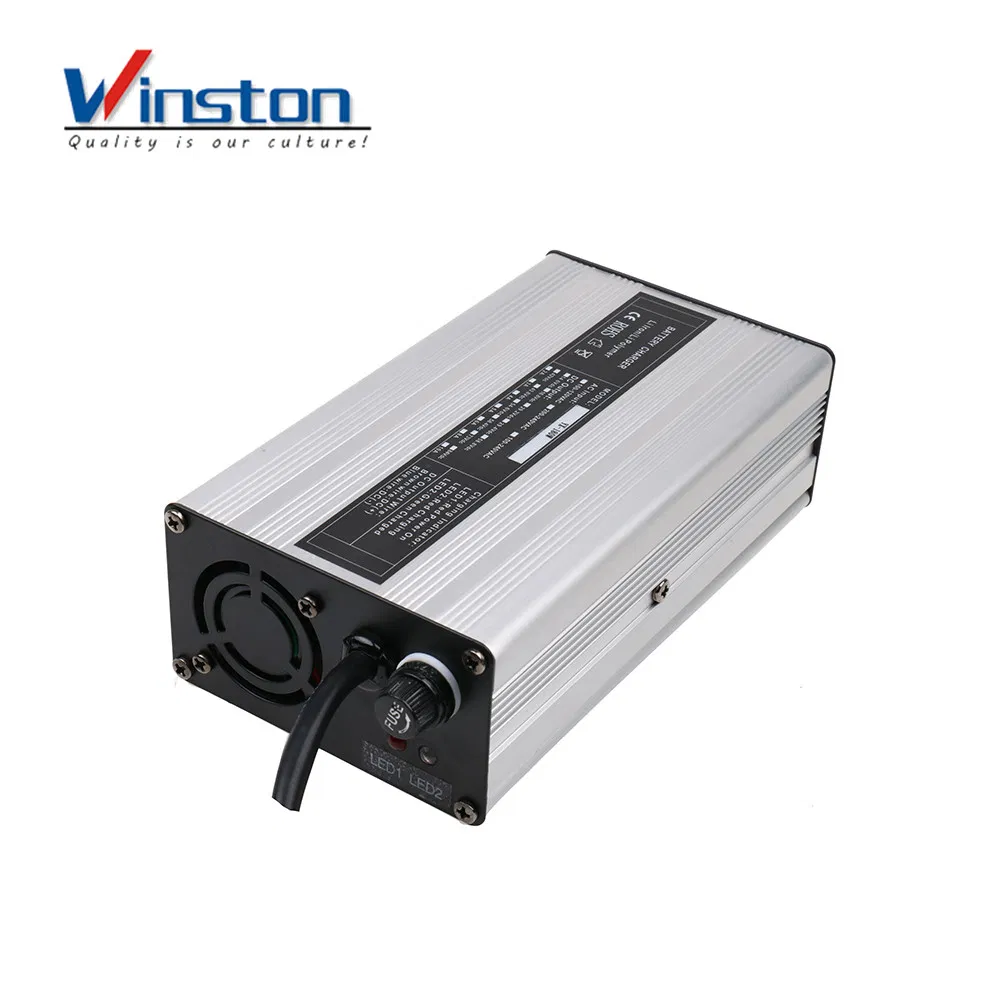

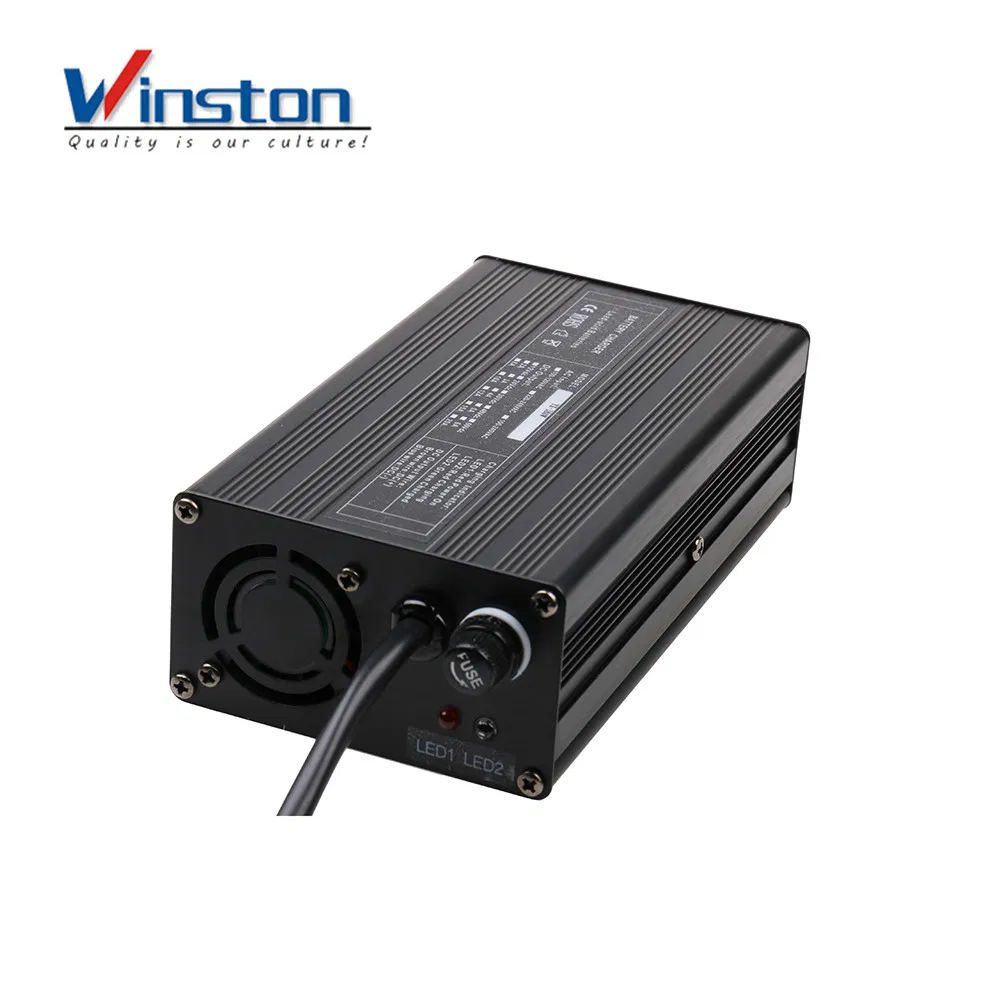

Product Visualization

Frequently Asked Questions

What battery types are compatible with the YX-180W series?

The charger is highly versatile and supports Lithium-ion (Li-ion), Lead-Acid, and LiFePO4 batteries. You can select the specific battery type option during configuration.

Does this charger support global voltage standards?

Yes, it features a wide input voltage range of 100V to 240V AC (50/60Hz), making it suitable for use in various regions including the USA, Europe, and Asia.

How does the charger handle heat during operation?

The charger is housed in a high-quality aluminum alloy shell, which acts as an effective heat sink for passive dissipation, ensuring stability and safety.

What safety certifications does the charger have?

The YX-180 series is certified with RoHS and CE standards, ensuring compliance with international safety and environmental regulations.

Is the charging process fully automatic?

Yes, it features a full automatic transition between constant current (CC), constant voltage (CV), and float/cut-off modes to prevent overcharging.

What is the energy efficiency of this charger?

The charger operates at an efficiency of ≥ 87% under full loading conditions, ensuring minimal energy loss and lower heat generation.
