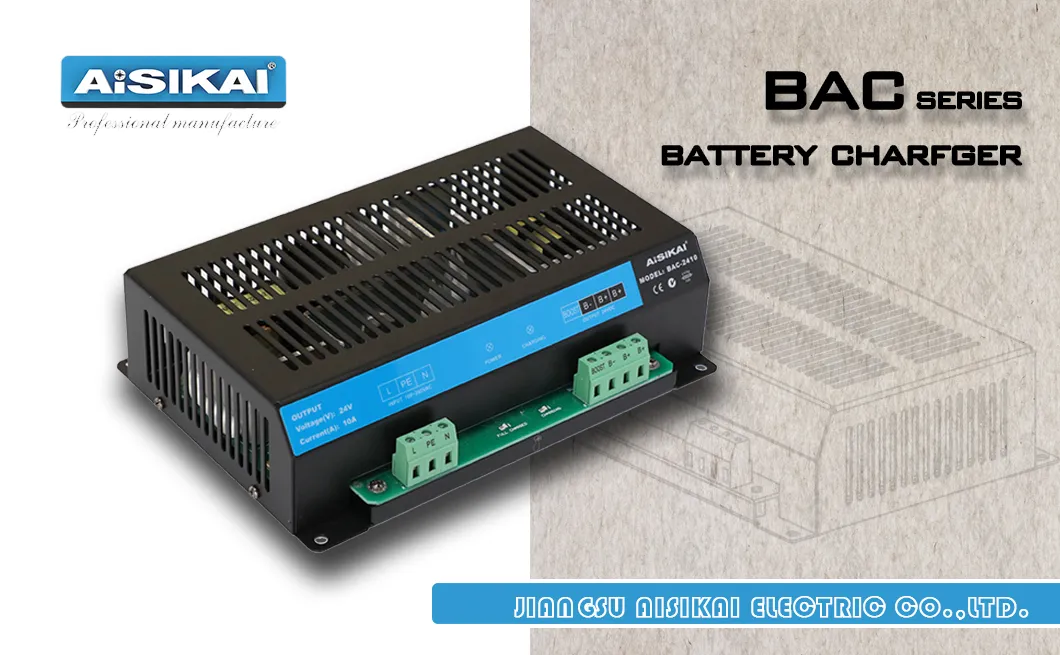

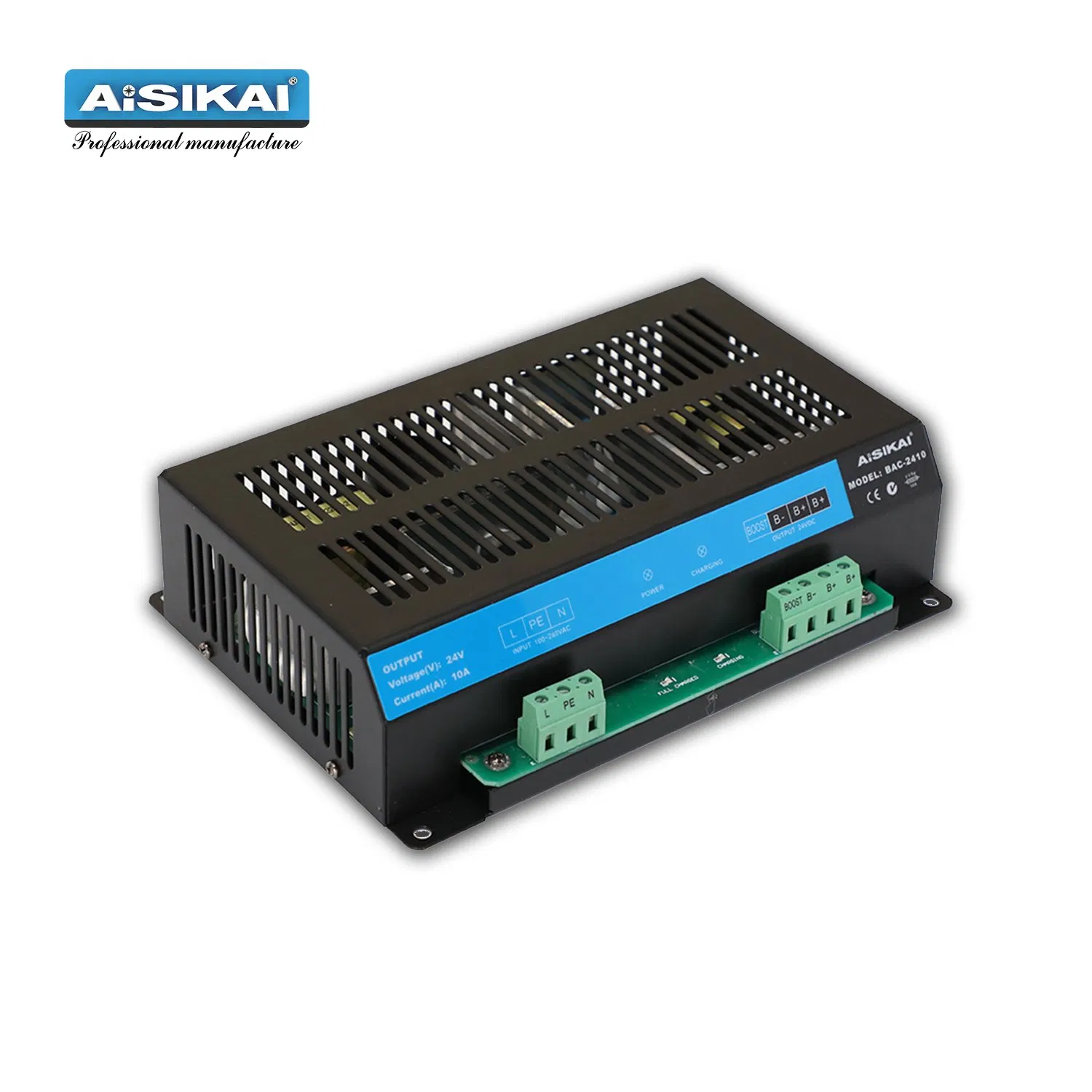

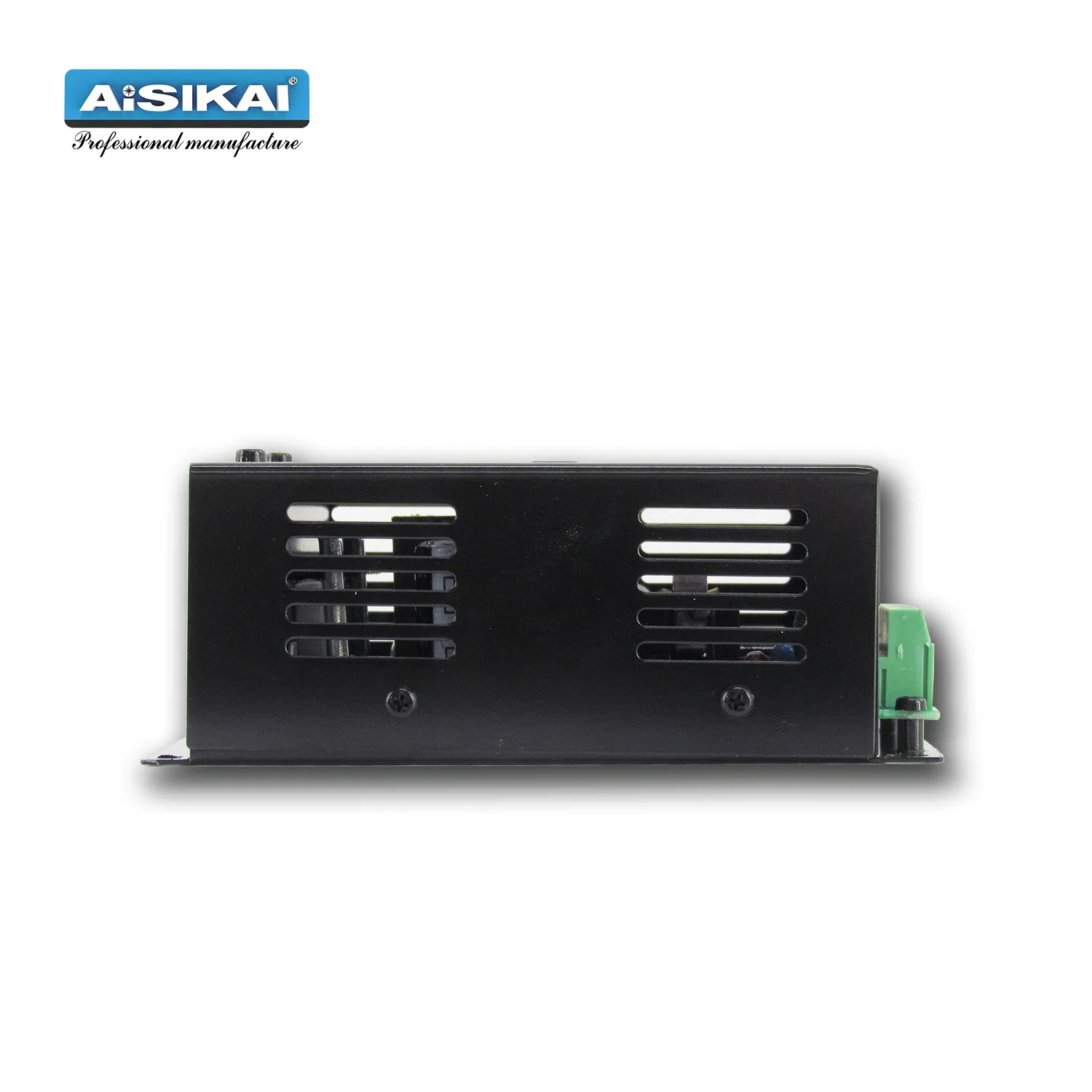

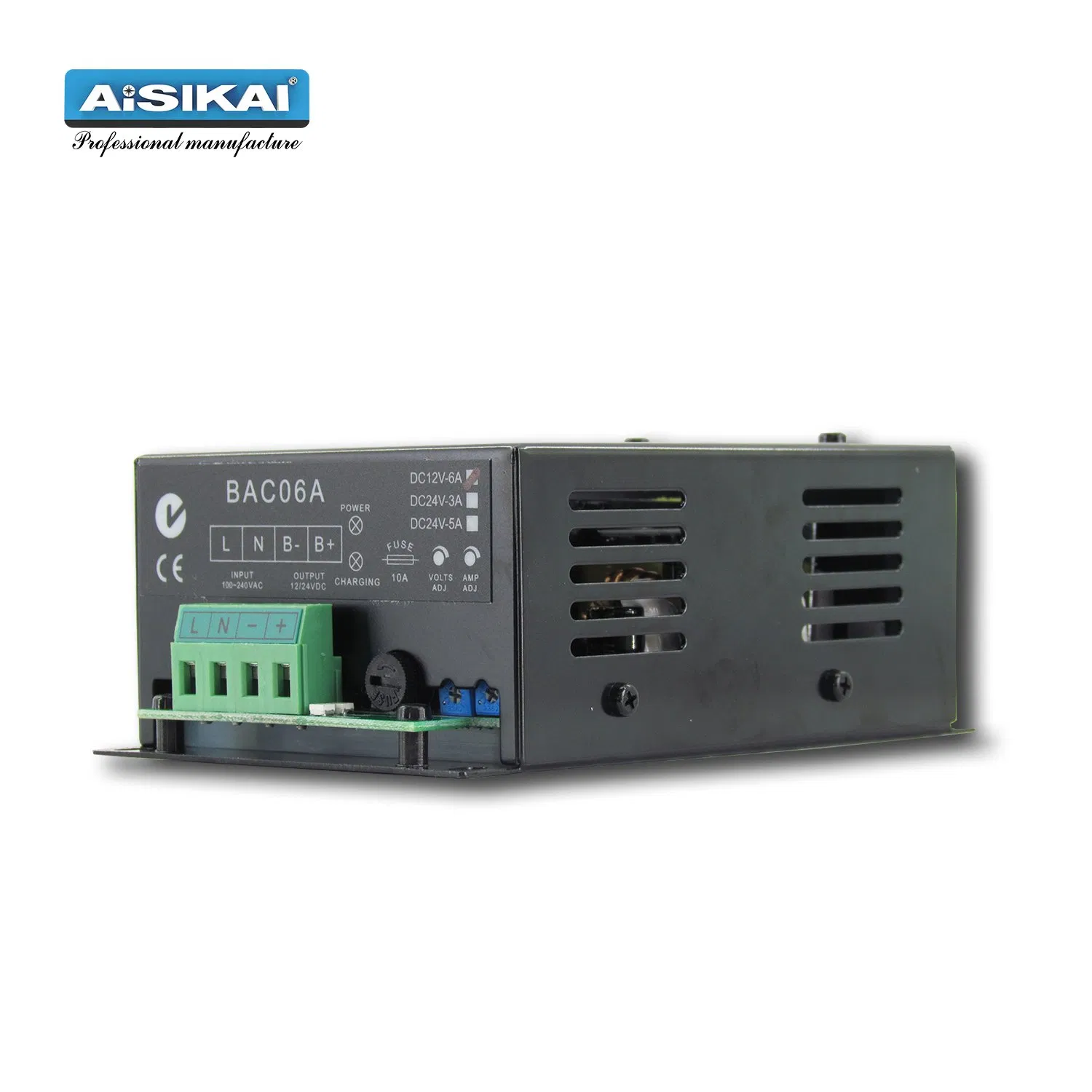

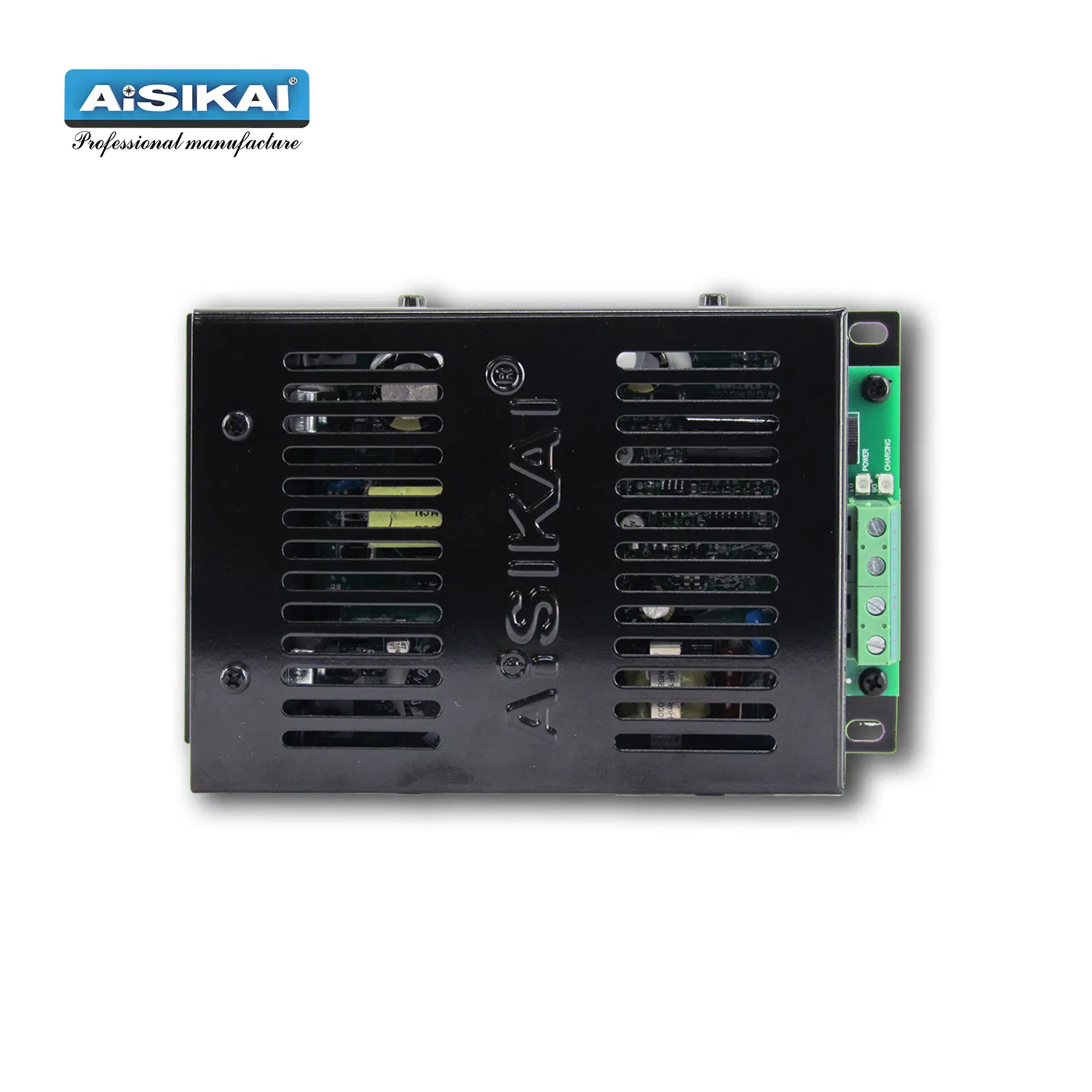

BAC series switch battery chargers use the latest switch power devices. Designed according to the charge characteristics of the lead-acid battery for starting generators, BAC chargers are suitable for the long-time supplement charge (floating charge) of the lead-acid battery. The maximum charging current is 6A for 12V and 10A for 24V.
| Category | Items | 12V Version | 24V Version |
|---|---|---|---|

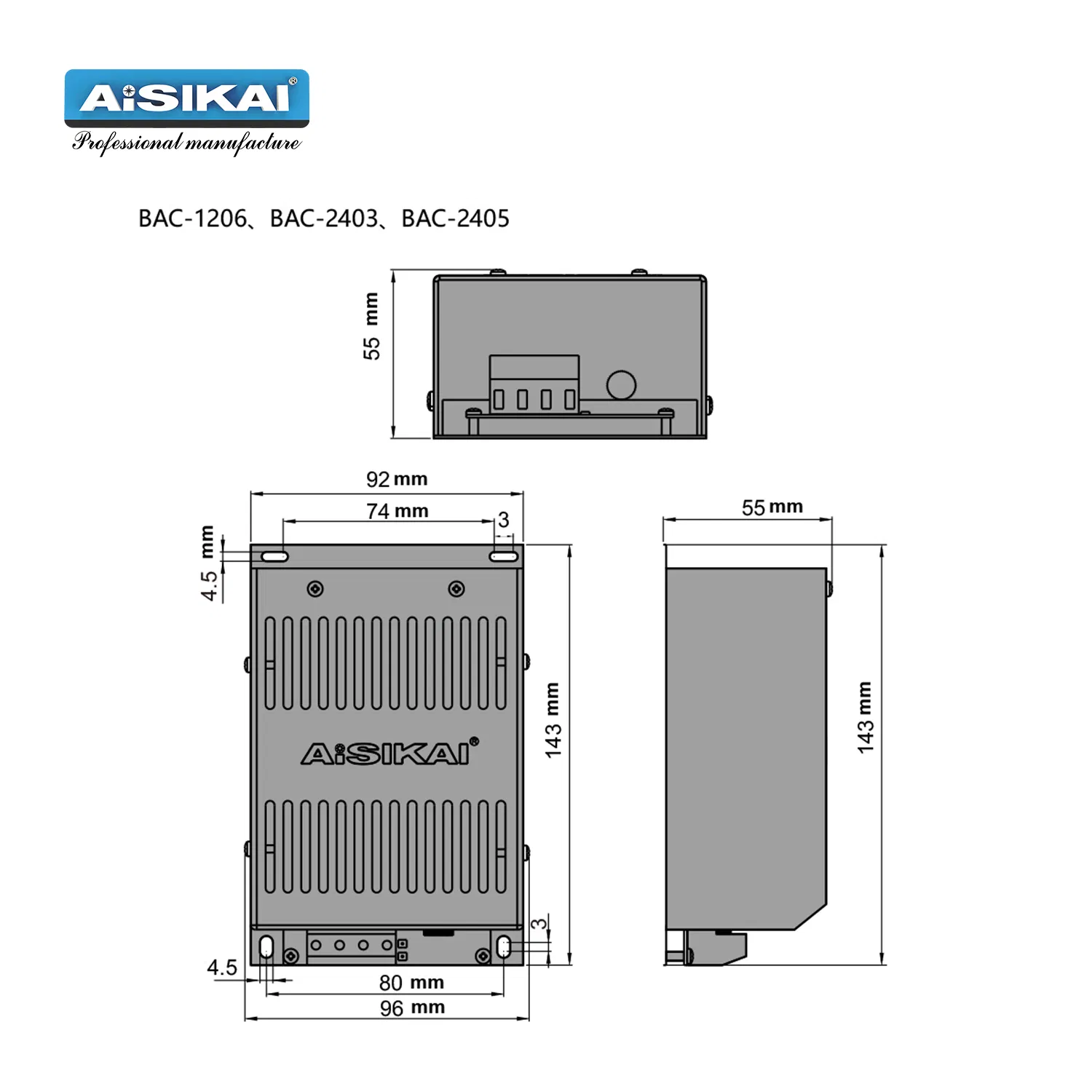

| Model | BAC | BAC-1206 | BAC-2403/2405/2410 |
| Input | Nominal Voltage | AC(100~240)V | |
| Frequency | 50Hz/60Hz | ||
| Efficiency | >85% | ||
| Output | Max Output Power | 135W | 135W / 290W |
| No-load Voltage | 13.8V (±1%) | 27.6V (±1%) | |
| No-load Consumption | <3W | ||
| Condition | Working Temp | (-30 ~ 55)ºC | |
Wide range of input voltage, small volume, light weight, and high efficiency.
Automatic constant current followed by constant voltage to maximize battery life.
Equipped with protection functions for short-circuit and reverse connection.
Clear AC power and charging indication for real-time monitoring.
