Connection Mode
Series Switching
Communication
RS232, RS485, SNMP
Protection
High Temperature

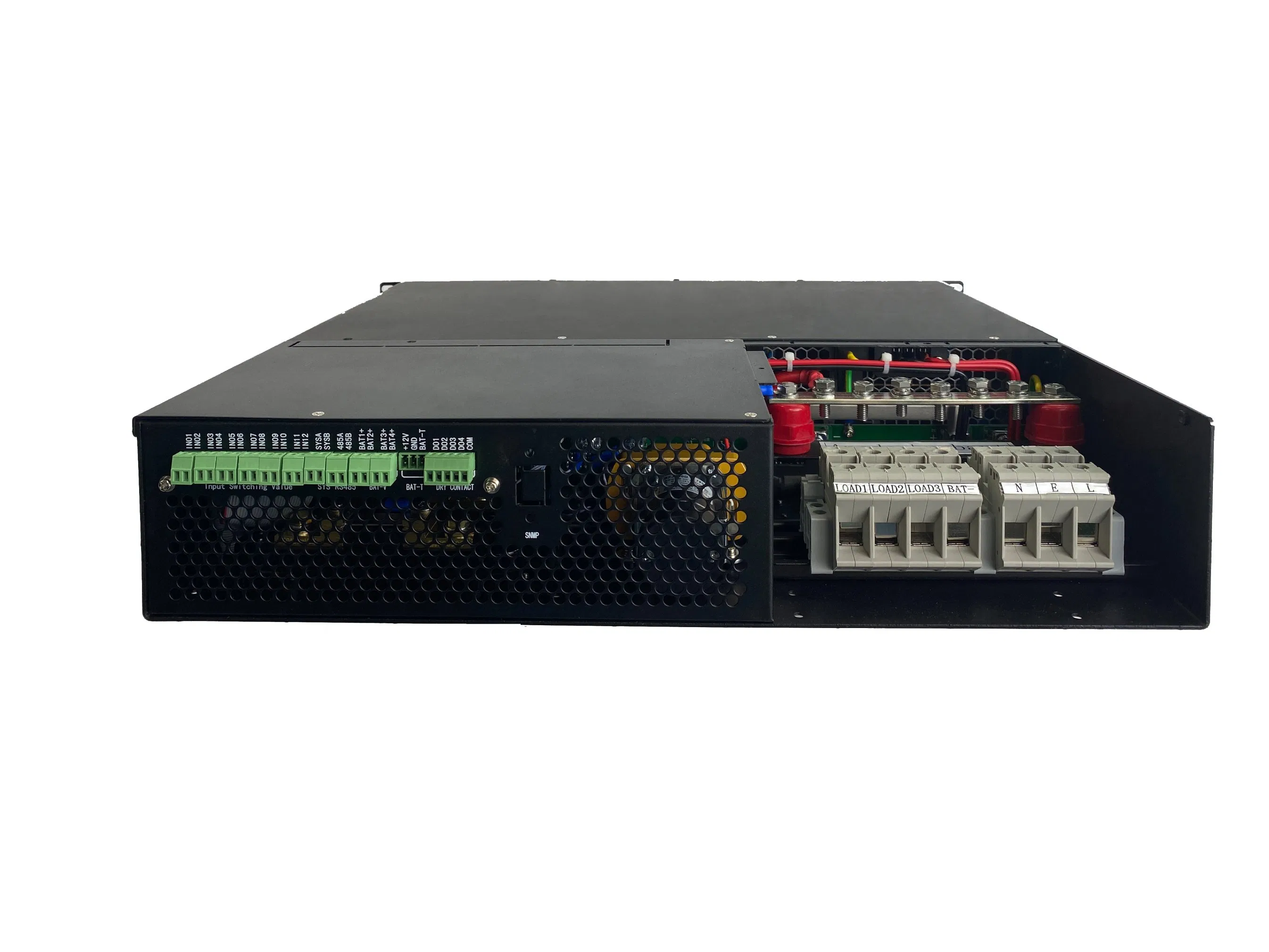

Our rectifiers bring advanced technology to the DC power industry. Innovative engineering combines the best in efficiency and reliability to meet the power requirements for a variety of system applications. This rectifier is specifically designed to recharge all types of stationary batteries for large utility, petrochemical and industrial uses.

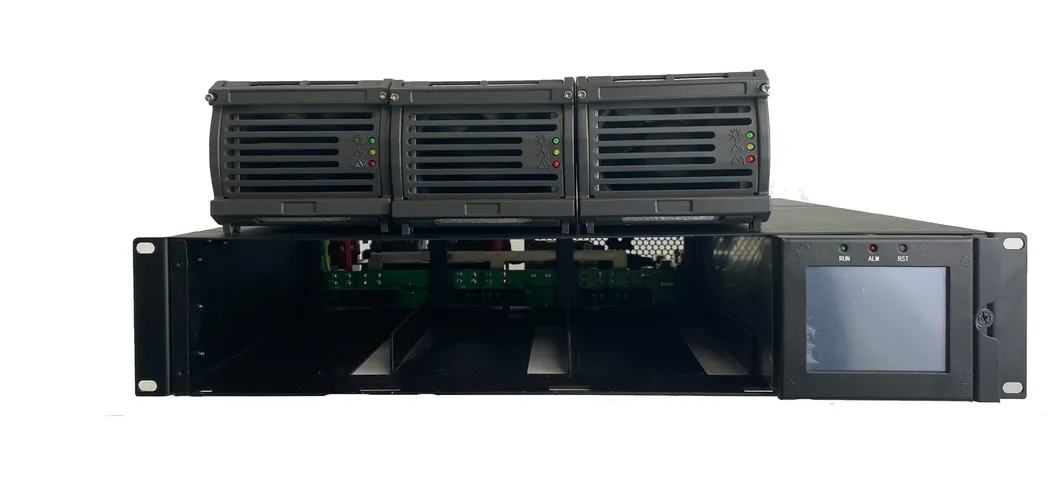

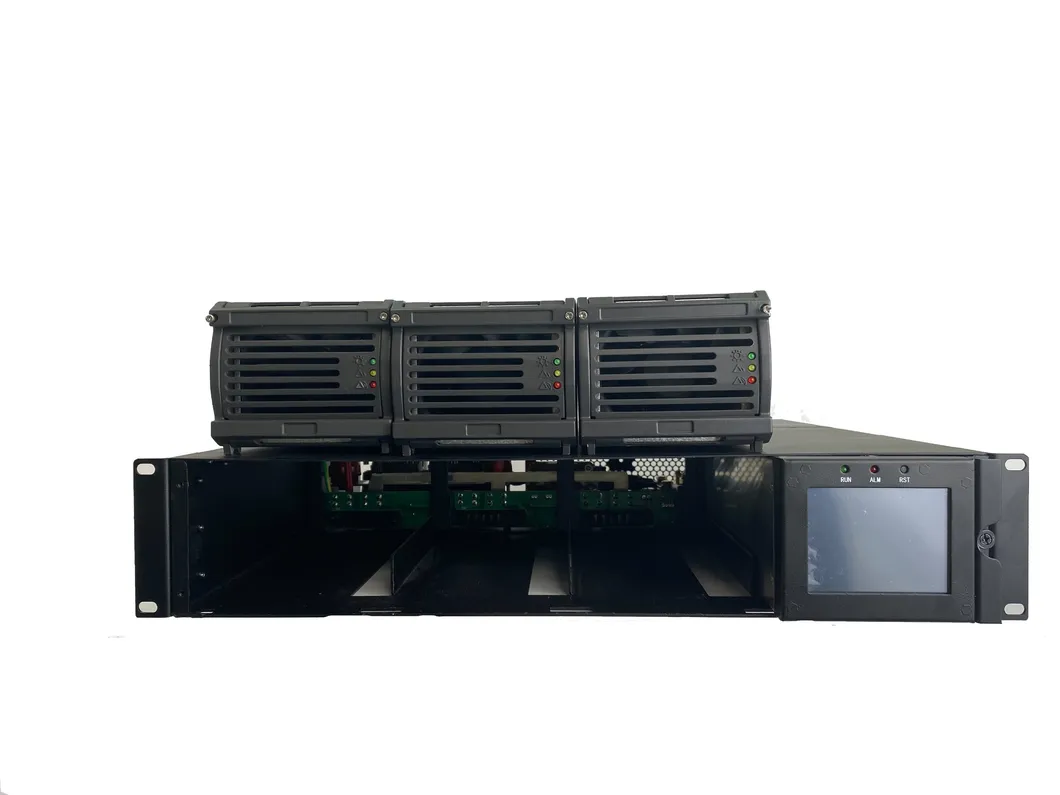

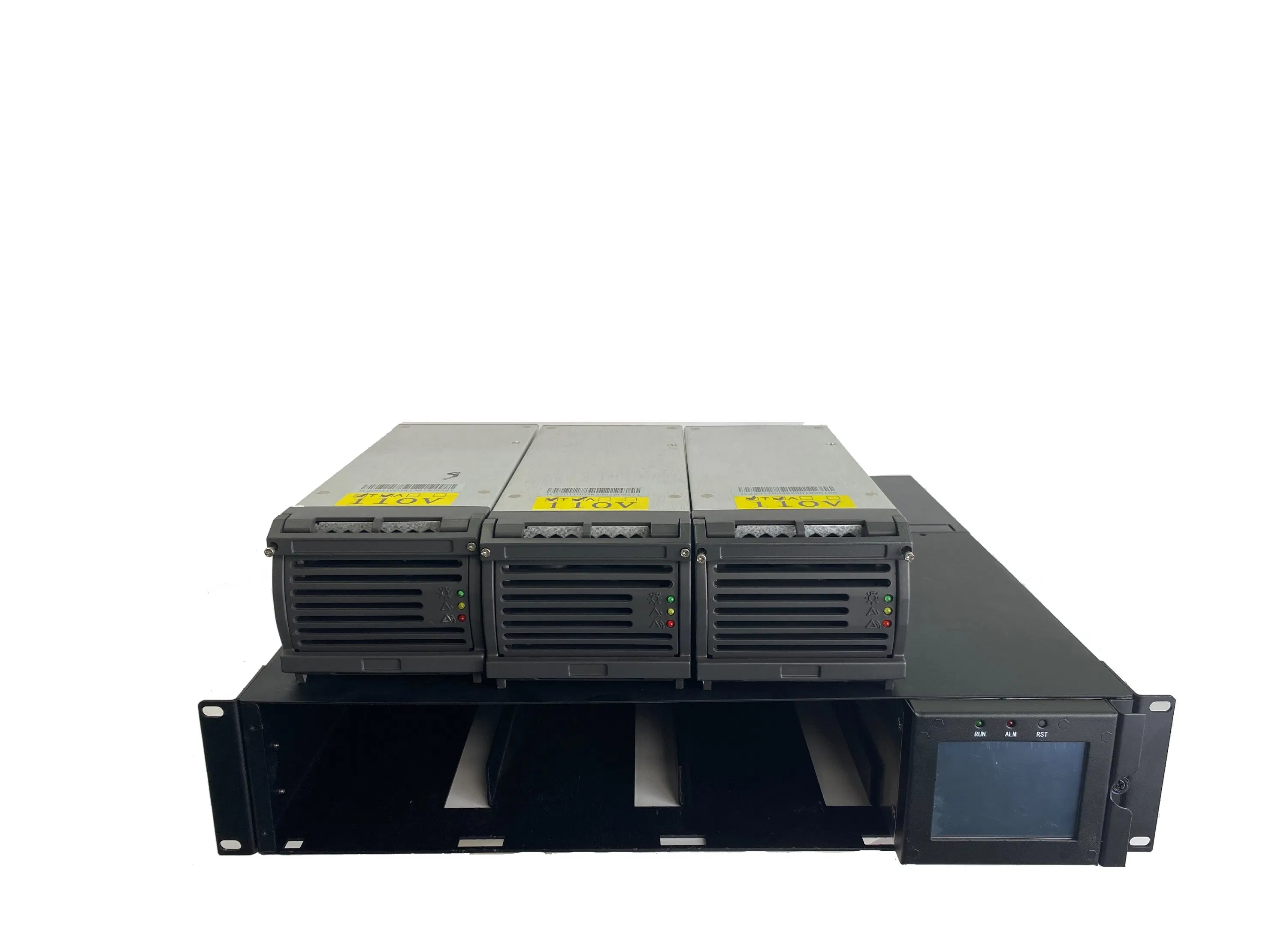

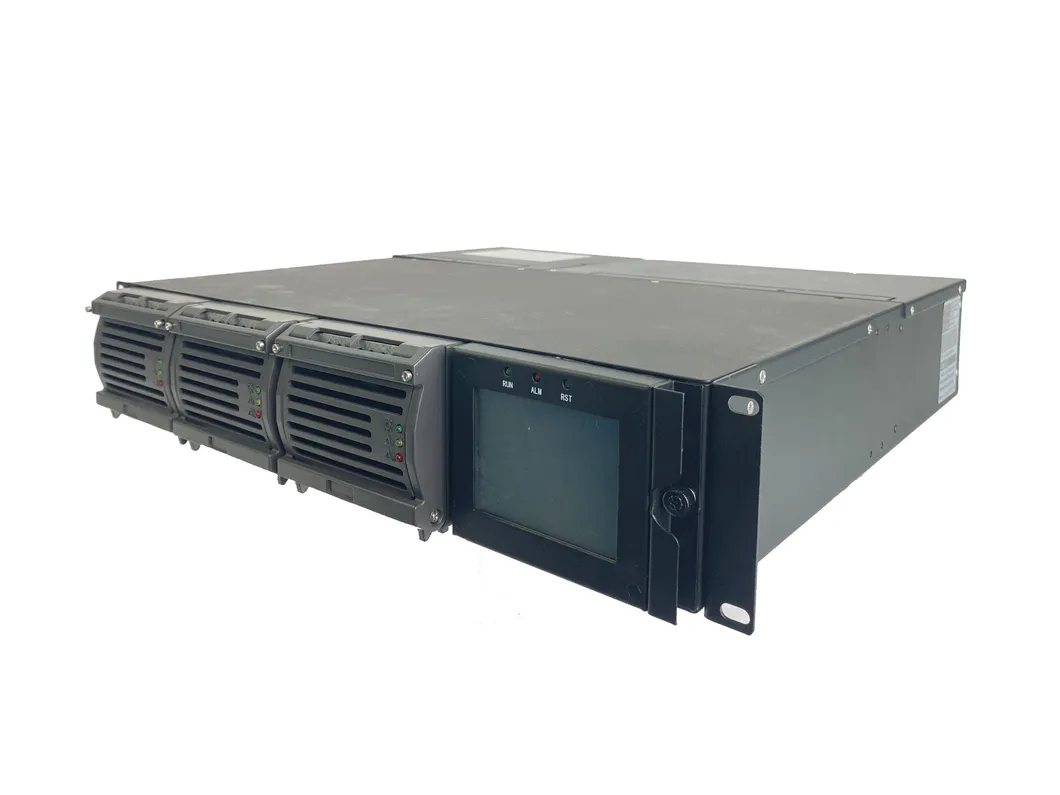

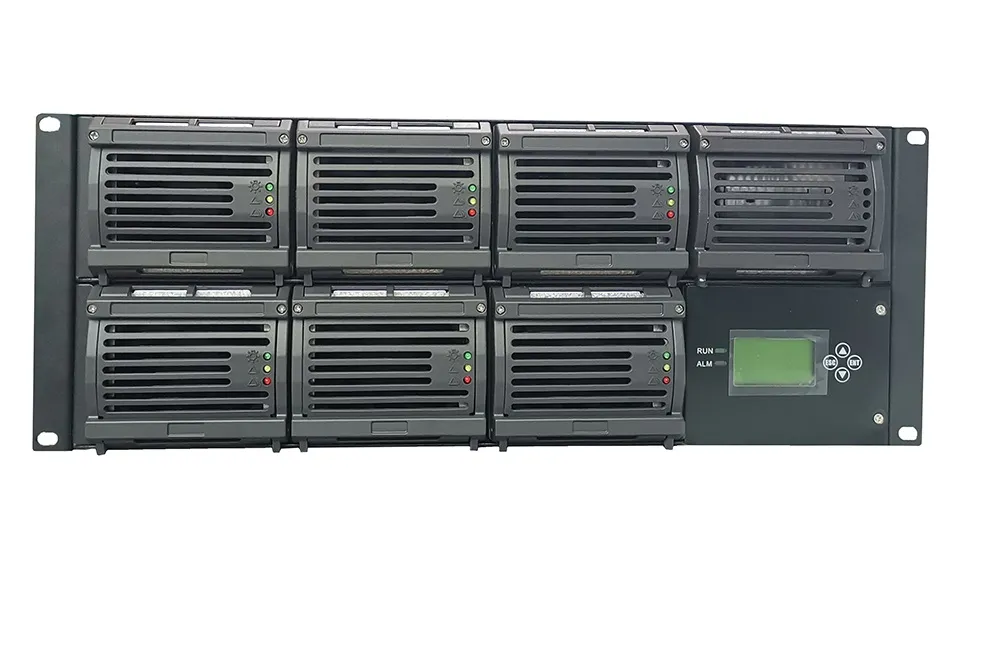

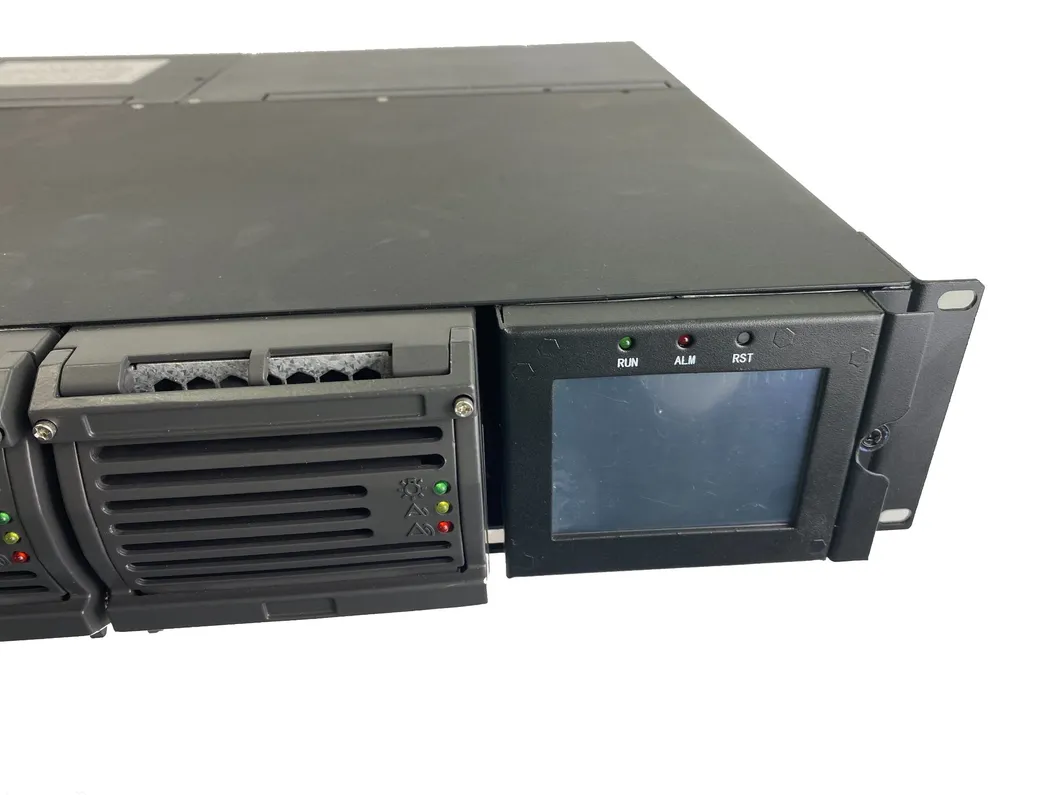

The fan cooled rectifier module has extremely high density providing the most power in the least amount of space. A compact shelf accommodates four rectifiers per 19in 2U shelf and can be paralleled up to 5*2U 19in shelf. Local and remote setup, adjustment and control is a simple, single-step process with the system Controller.
- Switch Mode Power Supply technology
- Hot swappable and Plug and Play
- N+1 redundancy available

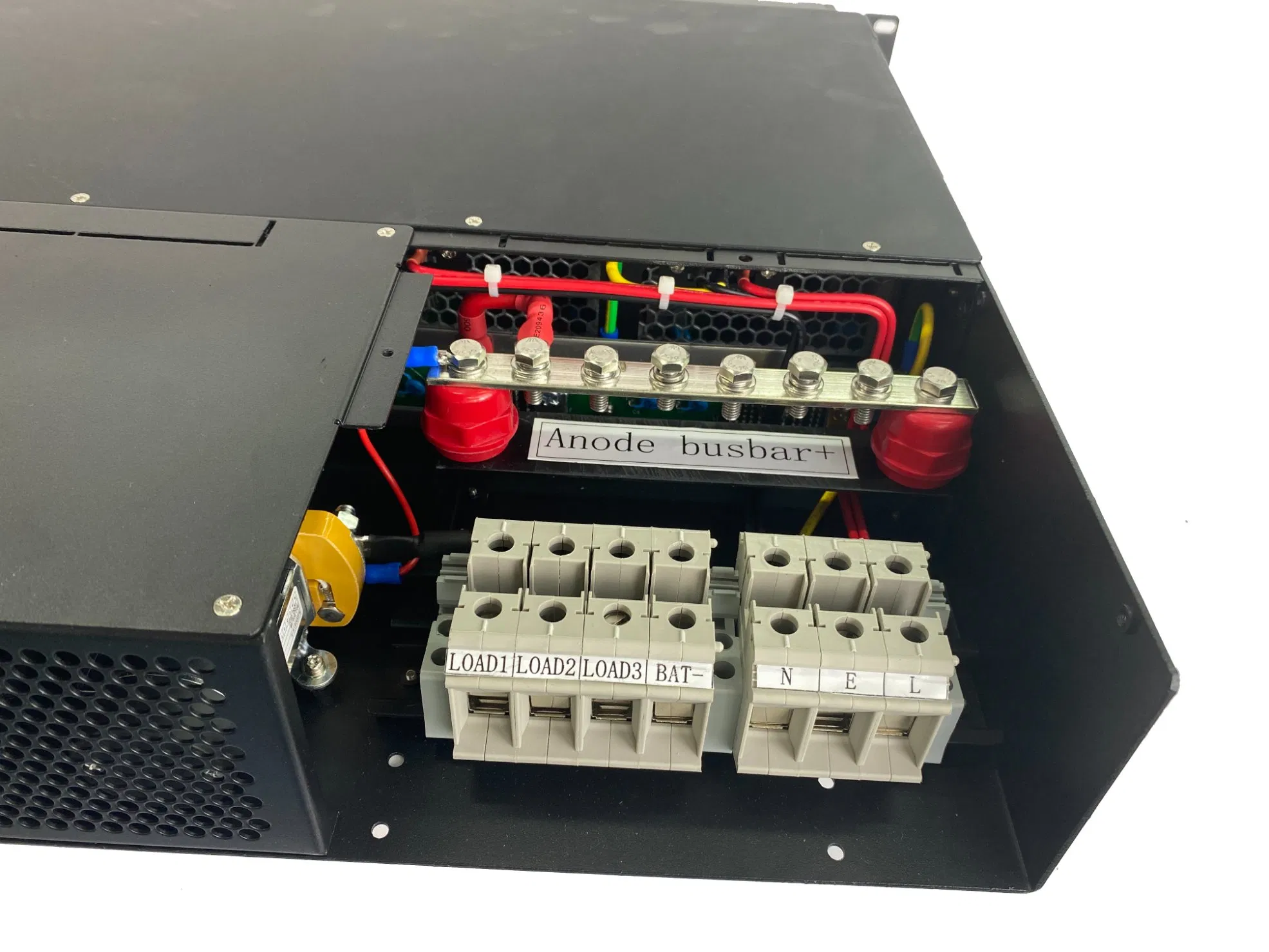

- AC/DC distribution and protection
- Remote control via RS232, RS485, SNMP
- Compact embedded modular system
- High Efficiency with low EMI (CE Certified)
- Complete over/under voltage protection
| Category |
Parameter |
Specification |
| Environmental | Operating Temperature | -40°C ~ 55°C |
| Relative Humidity | ≤ 90%RH (30°C) |
| AC Input | Voltage Range | 90VAC ~ 280VAC / 323-437VAC |
| Frequency | 45Hz ~ 65Hz |
| Power Factor | ≥ 0.99 |
| DC Output | Nominal Voltage | 220VDC |
| Rated Capacity | 7.5kW / 17.5kW / 27.5kW |
| Efficiency | ≥ 93.2% |
| Protection | Input Protection | Over/Under Voltage Recovery |
Output Protection | Short Circuit / Over Temperature |
High Frequency Technology: The SMPS based converter operates at High Frequency (20 KHz and above) utilizing advanced Switch Mode techniques.
Soft Start Feature: Slow start circuitry ensures the output voltage reaches its nominal value within 10 to 20 seconds, eliminating starting surges and protecting connected equipment.
Parallel Operation: Modules are designed for active load sharing, allowing multiple units to work in parallel with current sharing balance better than ±5%.
?
Frequently Asked Questions
Do you provide customized products?
Yes, we provide OEM and ODM services to meet specific client requirements.
What is the delivery time for the equipment?
Standard delivery time is approximately 4-6 weeks depending on the order volume.
What is the warranty period?
Generally, we provide a 2-year warranty, which can be adjusted based on customer requirements.
What is the MOQ for customized orders?
For specific requirements like custom logos or colors, a minimum of 20 units is required.
Do you test all goods before delivery?
Yes, we conduct 100% testing on all products before they are dispatched.
What are your terms of delivery?
We support multiple delivery terms including EXW, FOB, CFR, CIF, and DDU.
