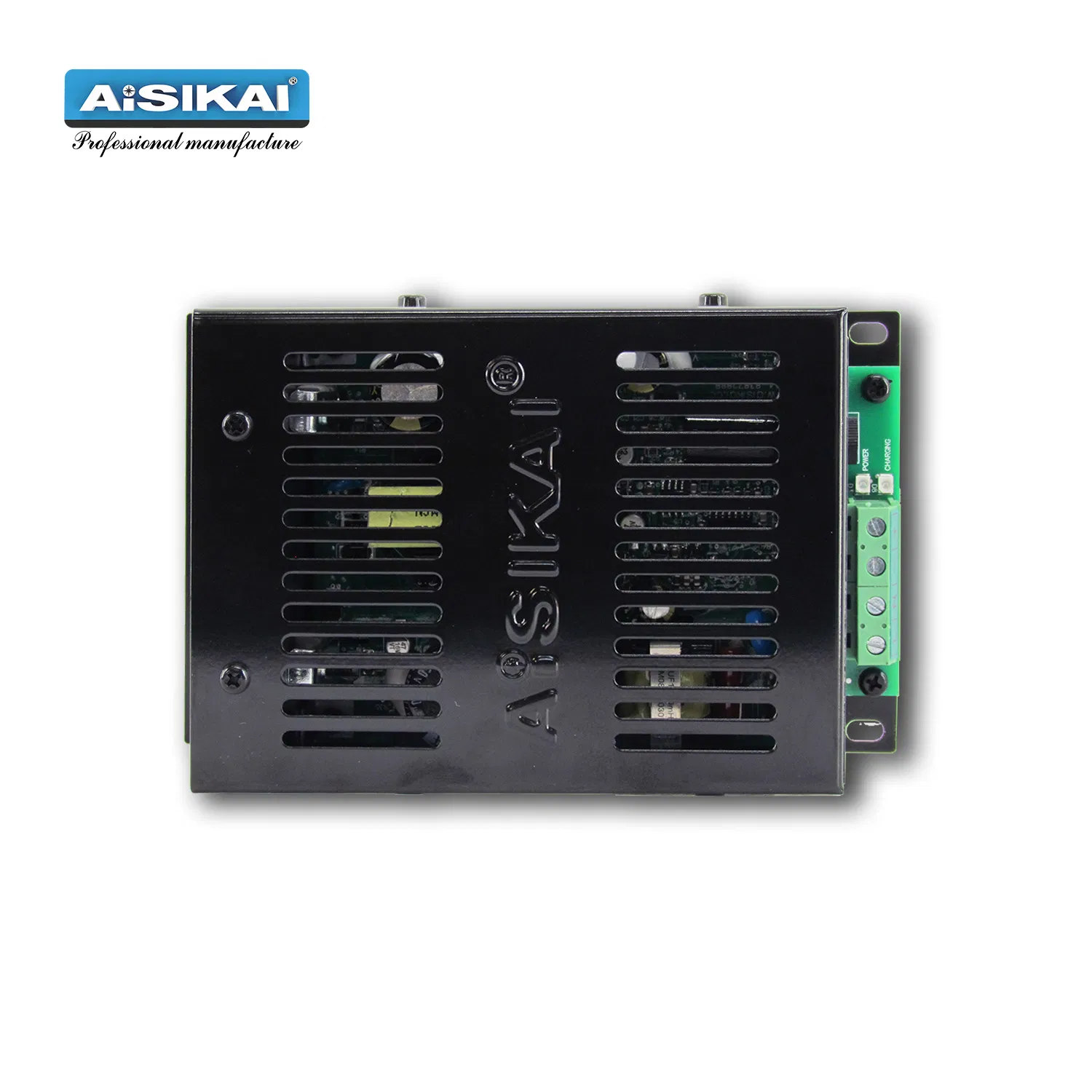

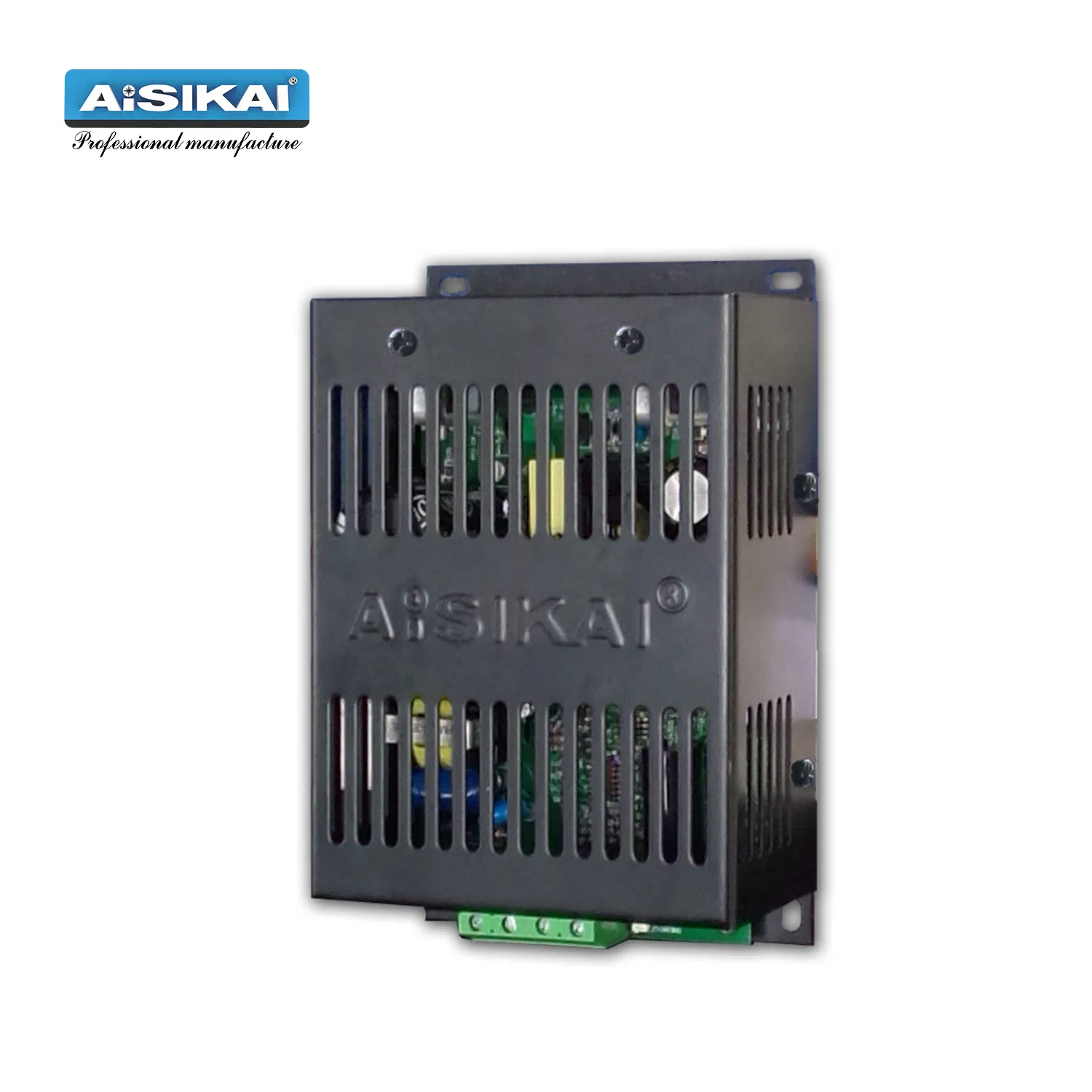

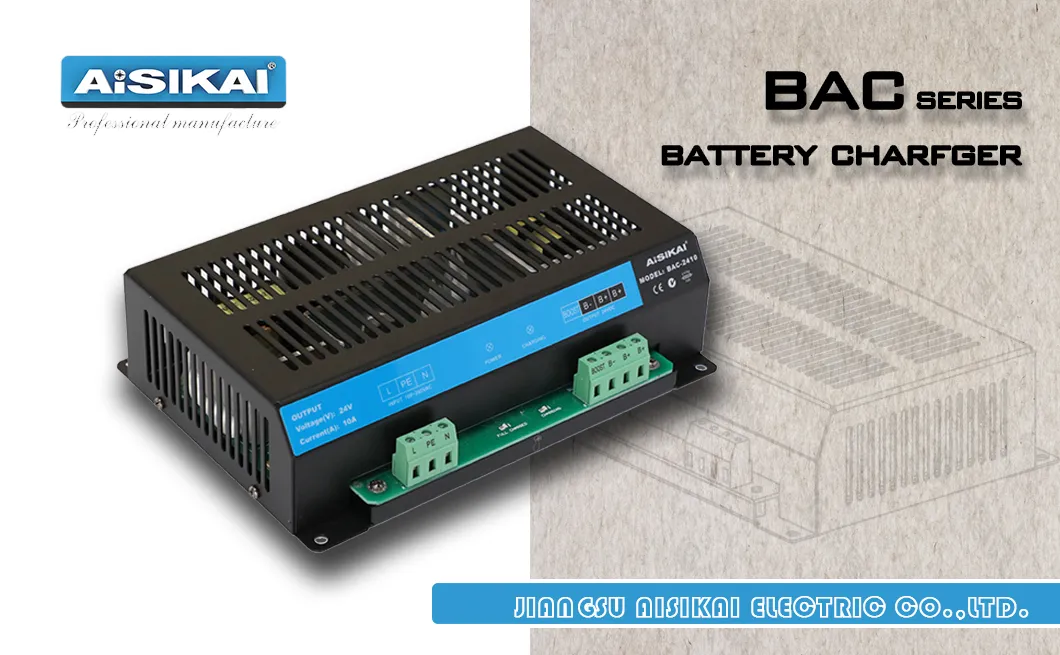

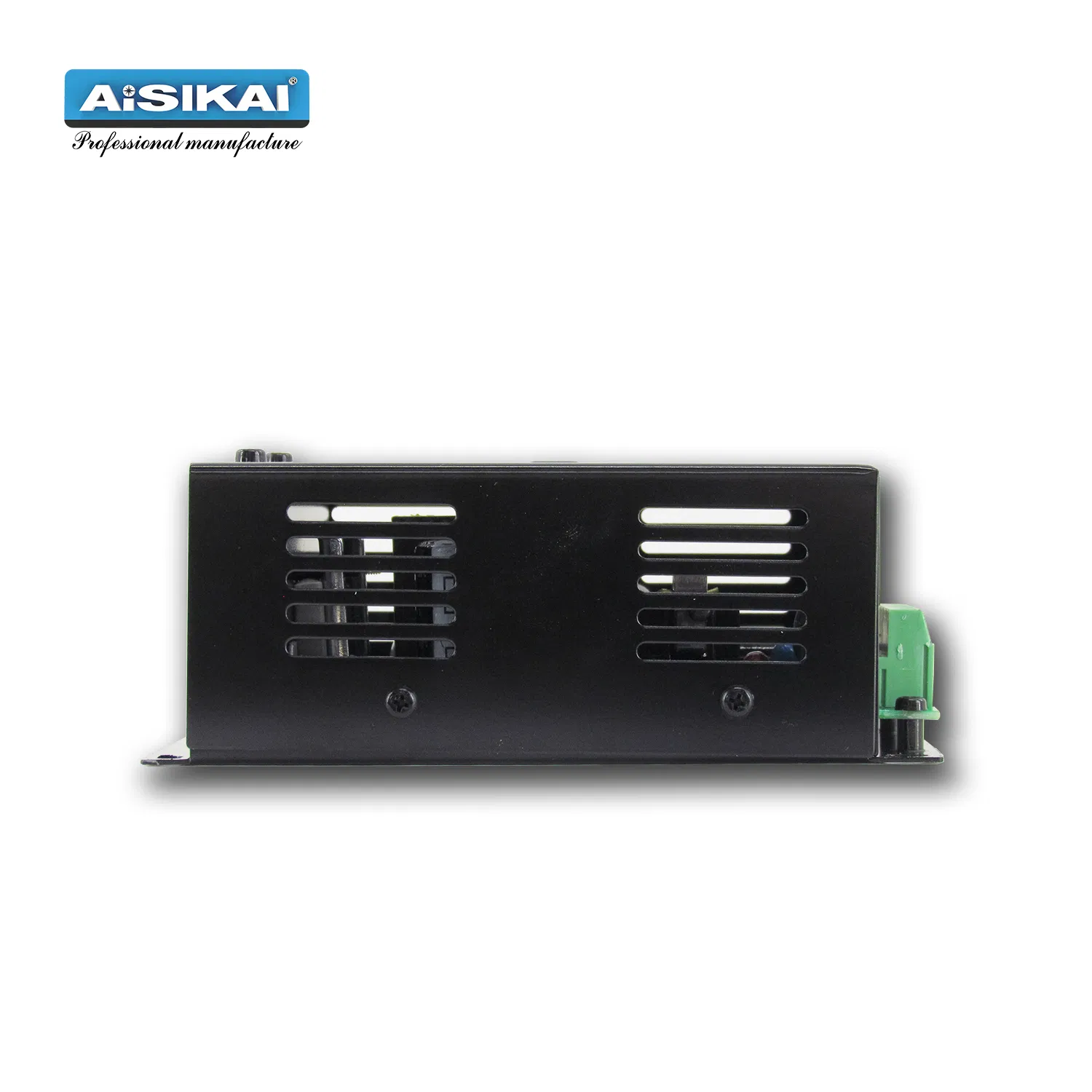

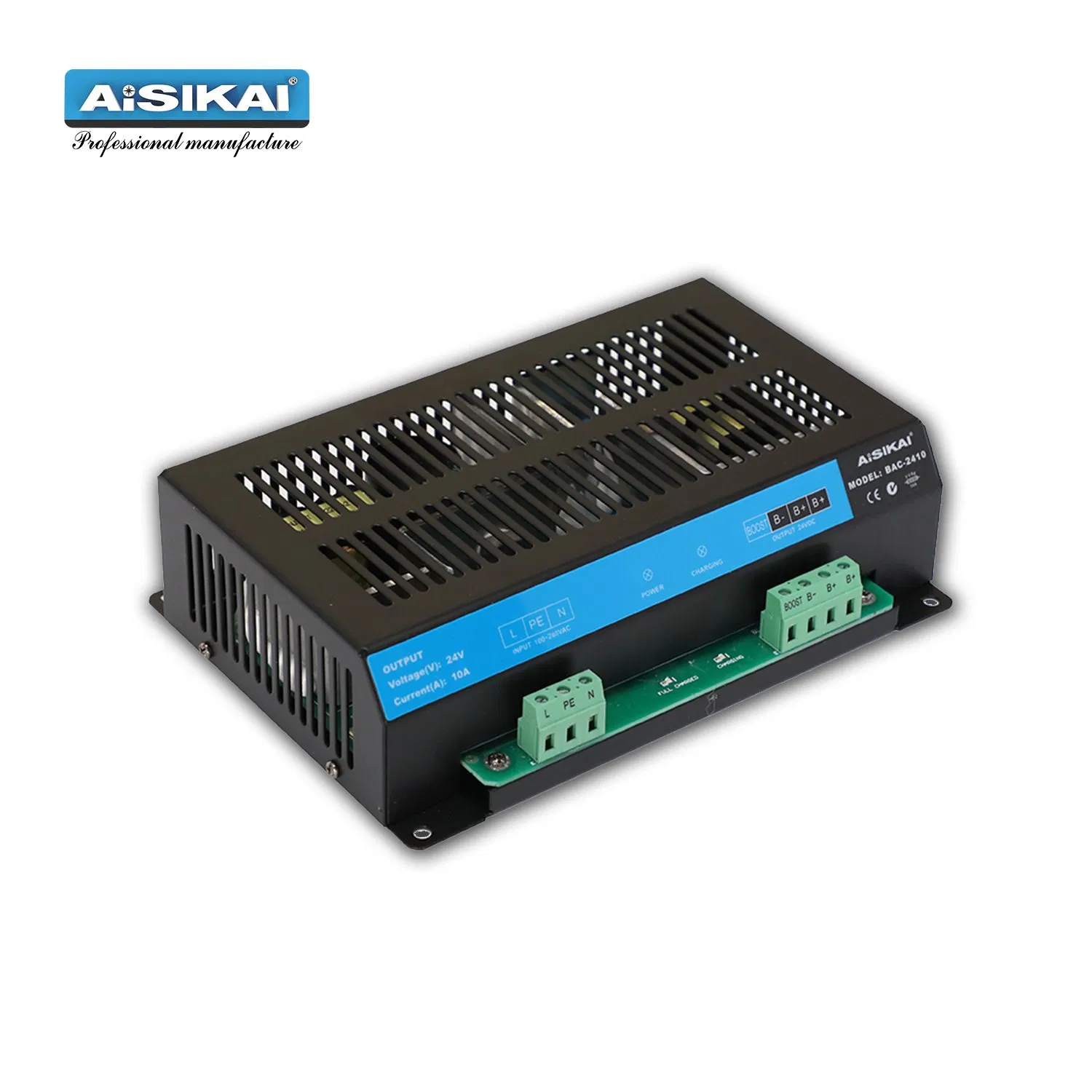

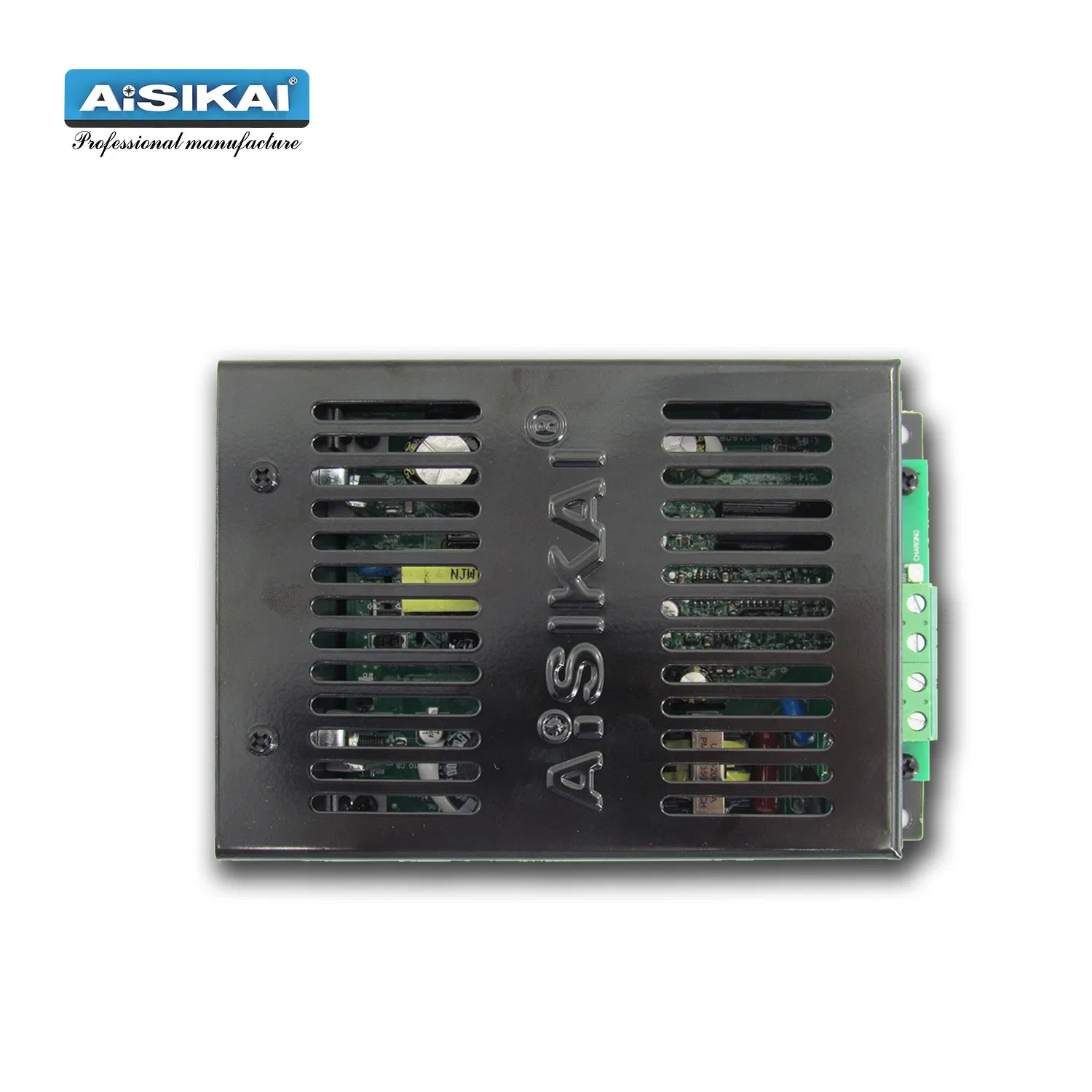

BAC series switch battery chargers utilize the latest switch power technology. Specifically designed to match the charge characteristics of lead-acid batteries used for starting generators, these chargers are ideal for long-term float charging. The maximum charging current supports 6A for 12V systems and up to 10A for 24V systems.
| Category | Items | 12V Series | 24V Series |
|---|---|---|---|
| Model | BAC | BAC-1206 | BAC-2403/2405/2410 |
| Input | Nominal Voltage | AC (100~240)V | |
| Frequency | 50Hz/60Hz | ||
| Efficiency | >85% | ||
| Output | Charging Current | 6A | 3A / 5A / 10A |
| Max Output Power | 135W | 135W / 290W | |
| No-load Voltage | 13.8V ± 1% | 27.6V ± 1% | |
| Structure | Dimensions (mm) | 143*96*55 (3A/5A/6A); 205*146*55 (10A) | |

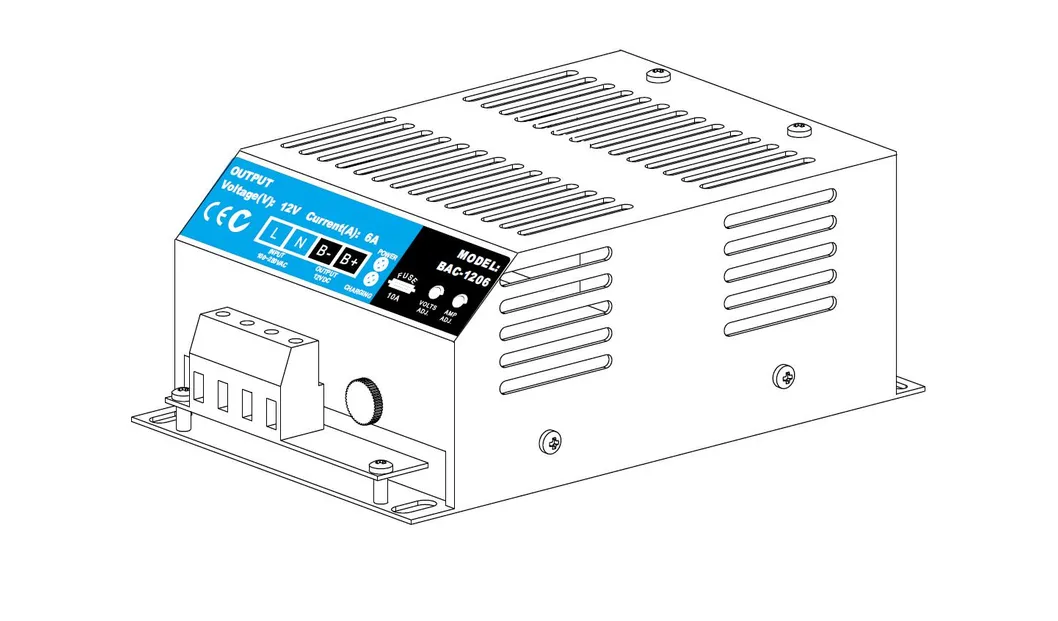

Voltage Regulation: Disconnect the battery and measure output while adjusting the VOLT potentiometer.
Current Regulation: Connect to the battery and adjust the AMP potentiometer while ensuring voltage is within safety limits.
