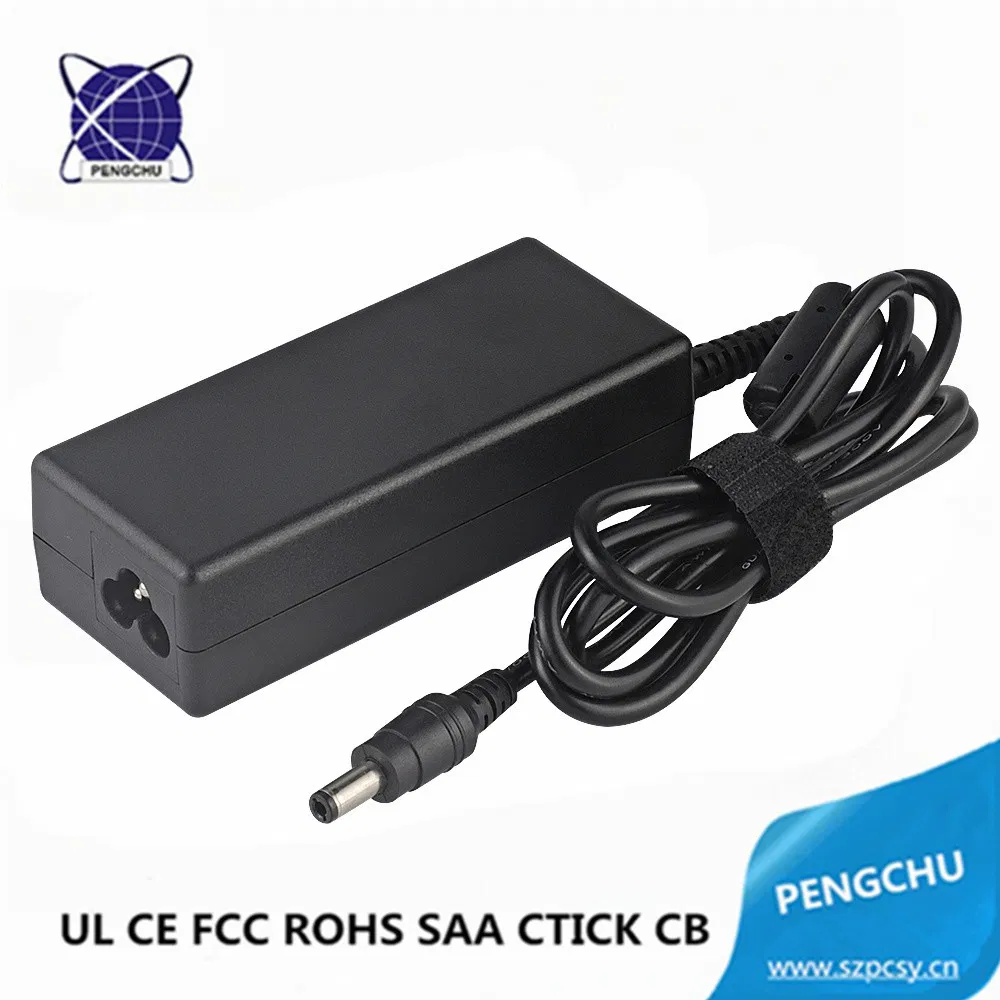

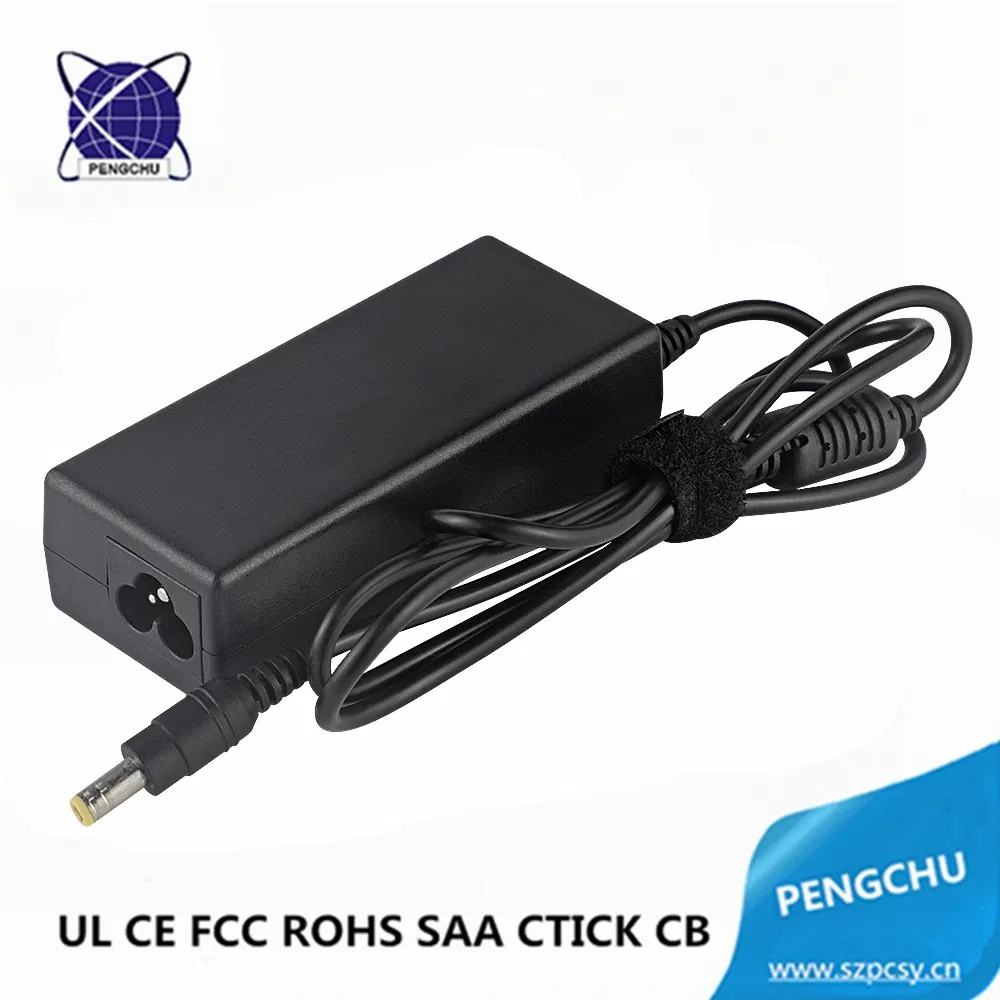

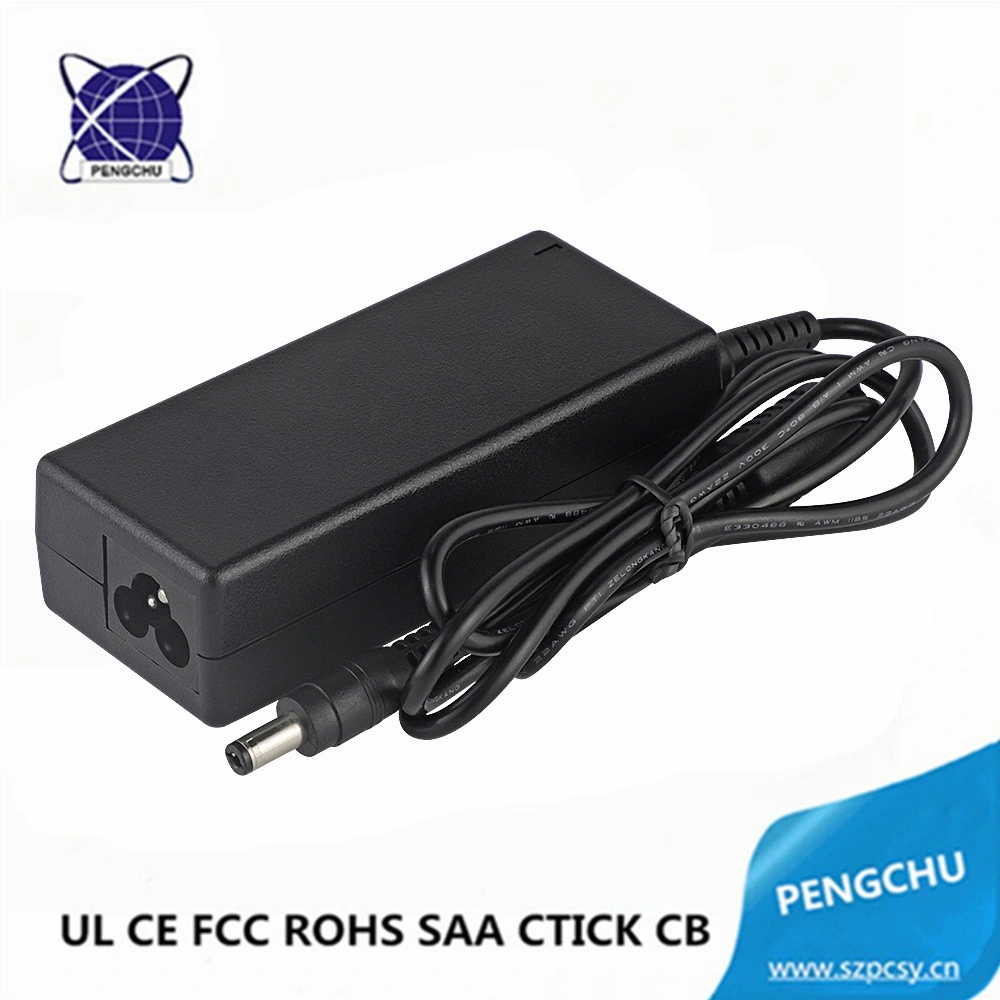

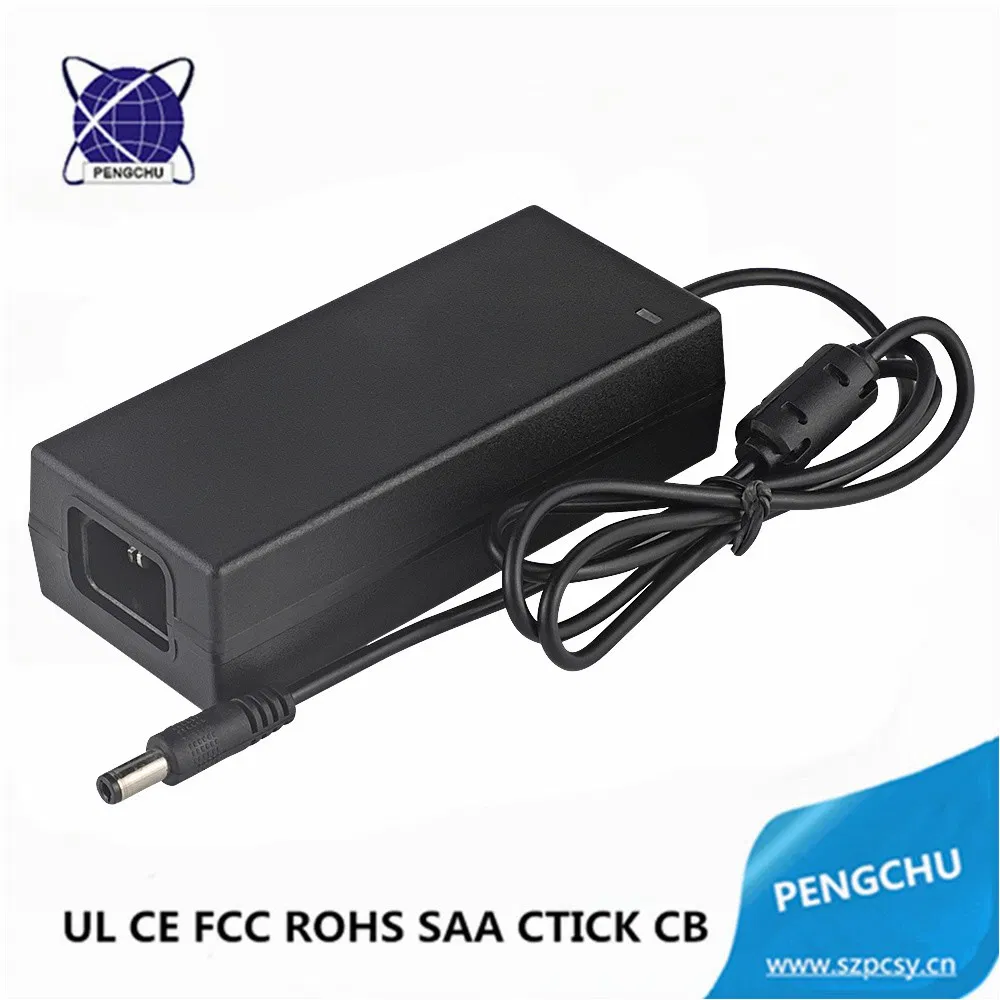

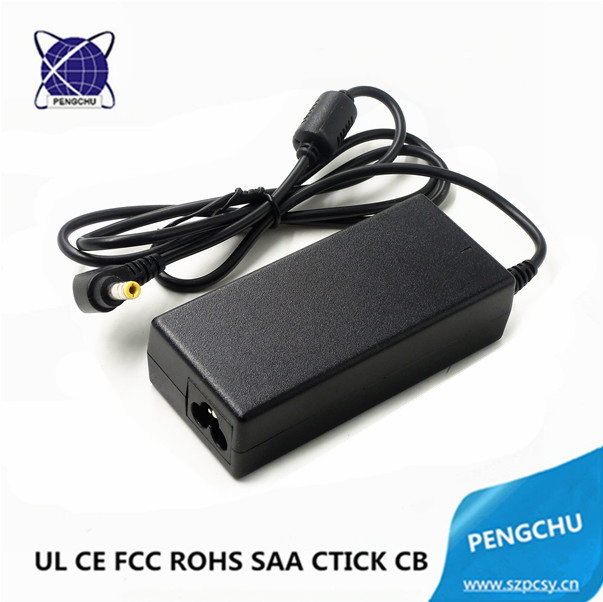

Hot sale model 36V 1.5A 54W AC DC Power Adapter/Battery Charger 36 Volt

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
PC-360015
Output Power
51 - 100W
Input Voltage
110-220V
Connection Mode
Series Switching Power Supply
Starting Mode
Self-excited Switching Power Supply
Voltage Regulating
Width Modulation Type
Modulation System
PWM
Certification
CE, RoHS, CB, FCC, SAA
Efficiency
>88%
Material
100% PC
Protection
OCP OVP SCP OPP
Output
36V 1.5A 54W
Key Features
  • Universal AC input / Full range (up to 264Vac)
  • Comprehensive Protection: Short circuit / Over current / Over temperature / Over voltage
  • High efficiency, long service life, and high reliability
  • 100% full load burn-in test conducted
  • Fully compliant with UL, ETL, CE, FCC, RoHS, SAA, CB, C-Tick approvals
  • Two years product warranty
  • Safety Class 1 design structure
Product Specifications
36V 1.5A 54W AC DC Power Adapter / Battery Charger
DC Voltage36V
Rate Current1.5A
Current Range0 ~ 1.5A
Rate Power54W
Voltage Tolerance±5%
AC Input Range100~240Vac 50/60Hz (Max: 90~264Vac)
Efficiency>88%
Operating Temperature-10 to 50ºC
DC Connector5.5*2.5mm / 5.5*2.1mm / 4pin Optional
AC Cable1.2m with Global Plugs (USA/UK/EU/AU)
Product Display
36V 1.5A Power Adapter
Specifications Diagram
Global Certifications
Region / Standard Certification Details
US MarketUL 62368, FCC, ETL, DoE Level VI
EU MarketCE, CB, RoHS, ERP, EN 62368
UK MarketCE, CB, ERP
AU MarketSAA, C-Tick, AS/NZS 62368
JP / KR MarketPSE (J60065), KC

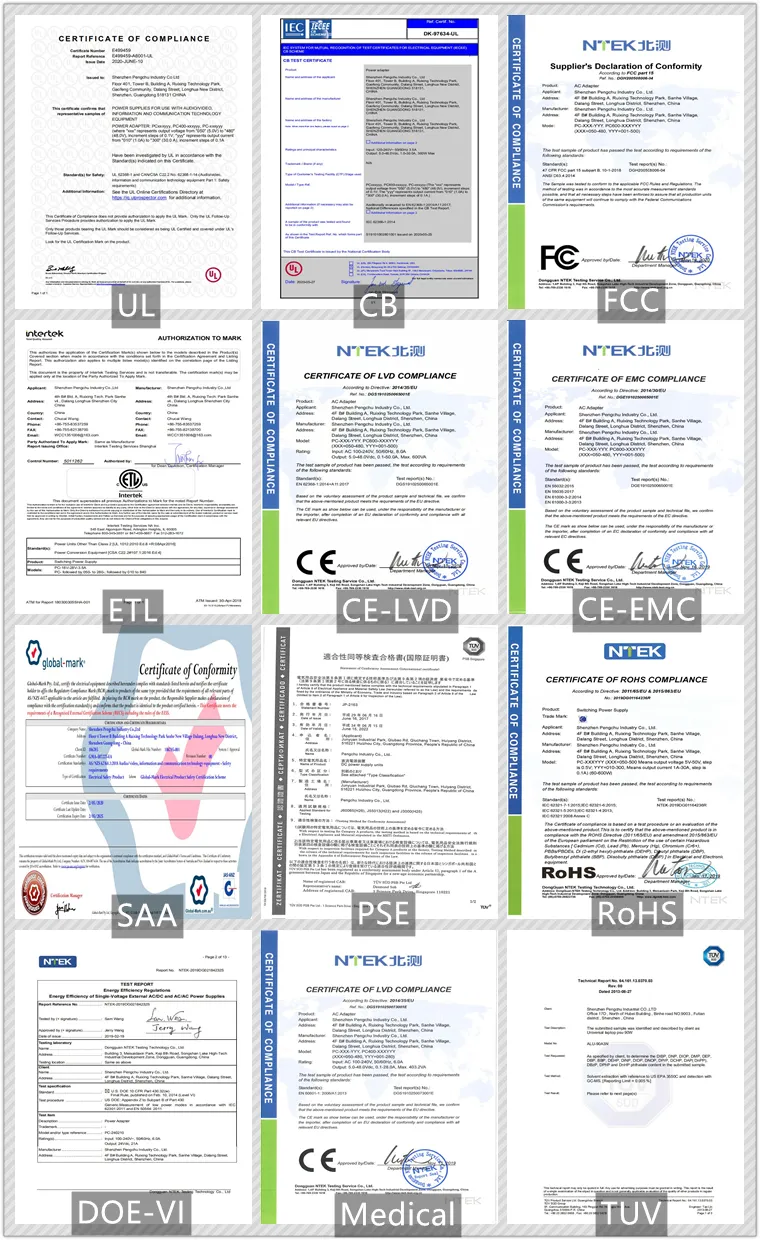

Certificates List
Compatible Models Portfolio
Model Output Voltage Output Current Power
PC-0500705V7A35W
PC-12005012V5A60W
PC-190034219V3.42A65W
PC-24002524V2.5A60W
PC-36001536V1.5A60W
PC-480012548V1.25A60W
Applications & Accessories
Product Application
Trade & Logistics
  • Payment Terms: T/T, PayPal, Western Union
  • Standard Lead Time: 7-9 working days
  • Sample Availability: 3-5 working days after confirmation
  • Compliance: Meets global EMC/EMI radiation and RoHS environmental requirements
  • Customization: OEM & ODM services available for tailored specifications
Frequently Asked Questions
What output voltages and currents can you provide?
We supply a wide range of voltages including 5V, 9V, 12V, 24V, 36V, and 48V, with current options ranging from 0.5A up to 40A to suit various applications.
Does this 36V power adapter have safety certifications?
Yes, our products are fully certified with international standards including UL, ETL, FCC, RoHS, CE, CB, SAA, and PSE, ensuring global market access.
What kind of protections are built into the device?
The adapter features multiple safety protections: Short Circuit Protection (auto-restart), Over Current Protection (130%-150%), Over Voltage Protection (115%-135%), and Over Temperature Protection.
Can I customize the DC connector or AC plug?

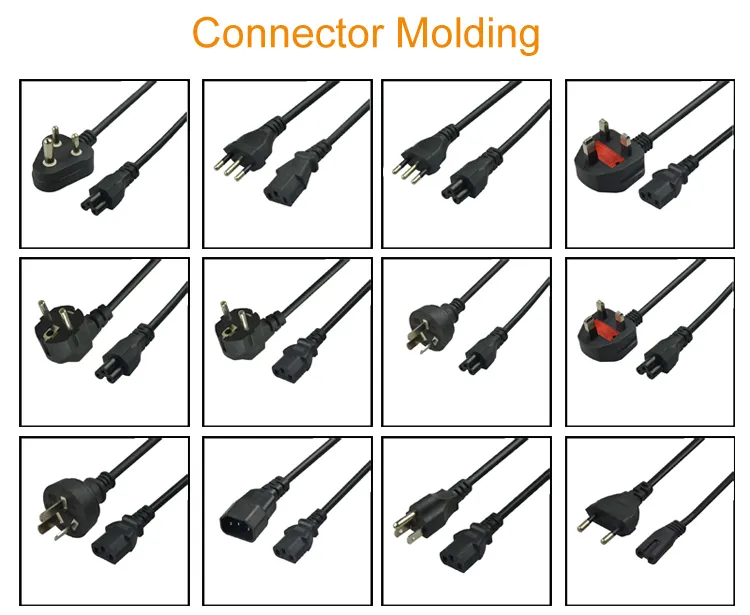

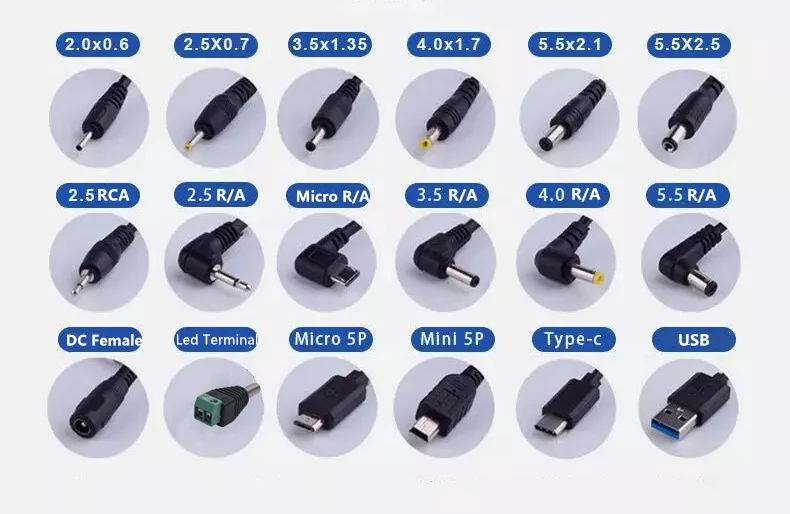

Absolutely. We offer various AC inlets (C14/C8/C6) and DC connectors (5.5*2.5/2.1mm, 4pin, or bare wire). Custom cable lengths are also available.
What is the typical lead time for an order?
Samples are usually ready within 3 working days, while bulk production orders typically take about 7-12 working days depending on the quantity.
Is there a warranty for this power supply?
Yes, we provide a two-year warranty for this model, backed by our professional R&D and after-sales service teams.
