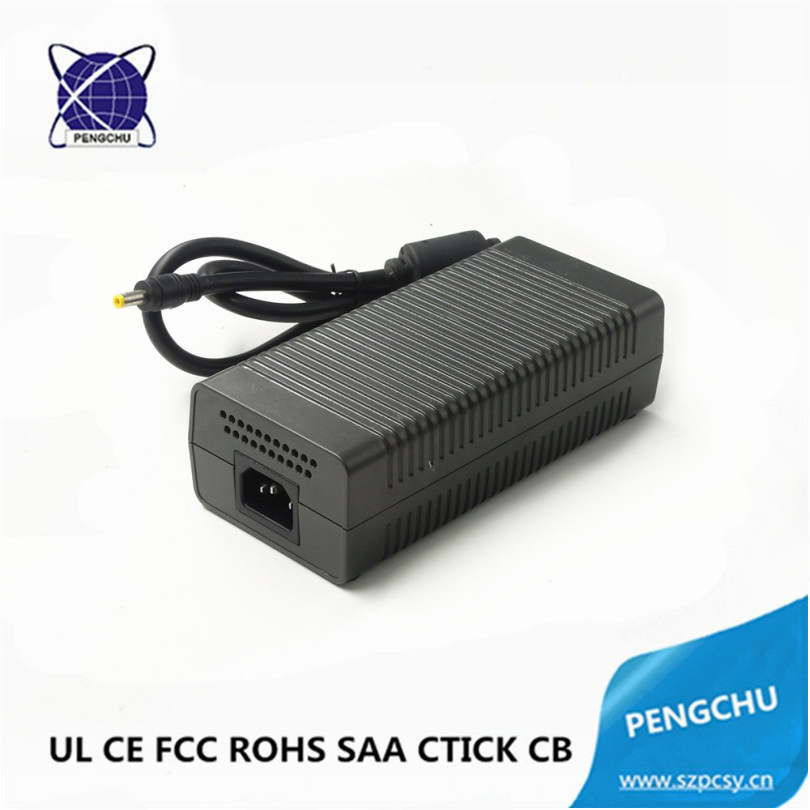

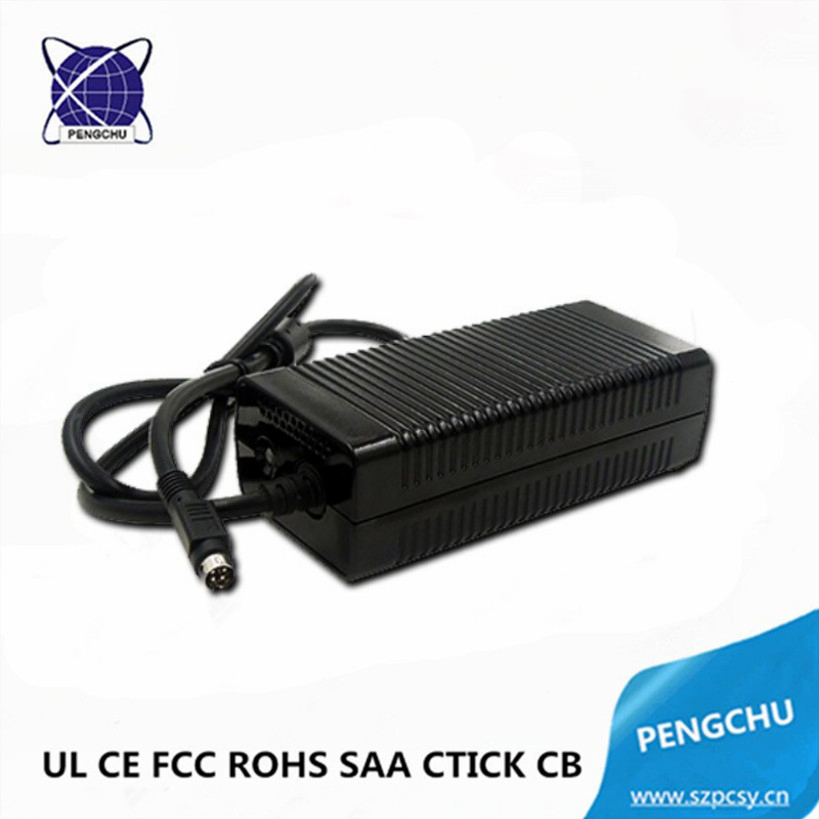

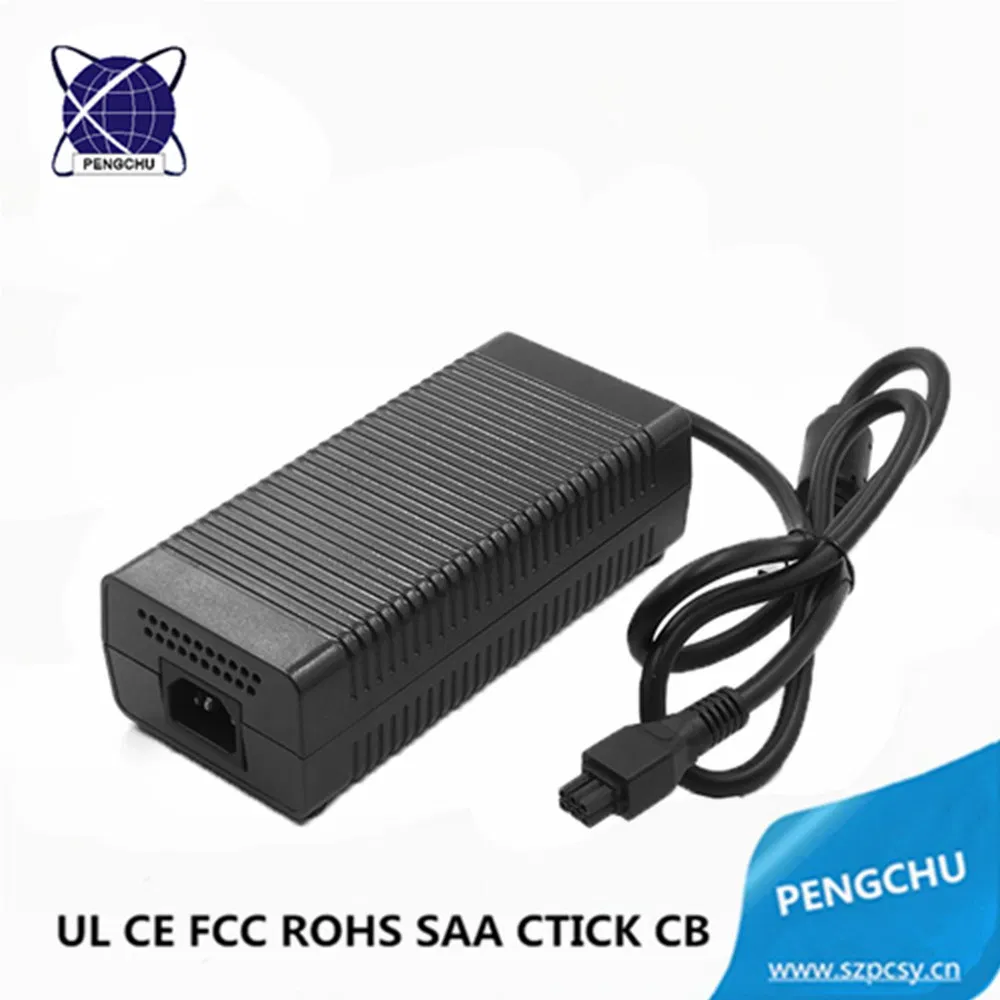

AC to DC Desktop Switch Power Supply 36V 4A 150W Battery Charger

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Specifications

Model NO.
PC-360042
Output Power
101 - 200W
Input Voltage
100-240V
Connection Mode
Series Switching
Modulation
PWM
Certification
CE, RoHS, CCC, CB, FCC
Output Voltage
36V
Output Current
4.2A
Efficiency
>88%
Size
168*75*50mm
Application
3D printer, monitor etc.
AC Plug
EU AU UK US Plug

AC to DC Desktop Switch Power Supply 36V 4.2A 150W

Key Features
  • Universal AC input / Full range (up to 264Vac)

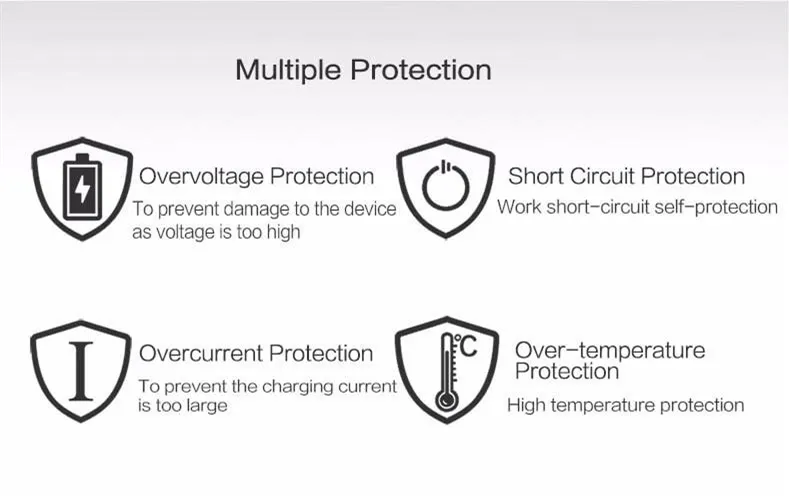

  • Comprehensive Protection: Short Circuit / Over Current / Over voltage / Over temperature
  • High efficiency, long life and high reliability
  • 100% full load burn-in test
  • Class 1 design for industrial safety
  • Multi-Certificated: UL, ETL, CE, FCC, RoHS, SAA, C-tick

Technical Parameters

Parameter Details
DC Voltage36V
Rate Current4.2A
Output Power150W
Voltage Tolerance±5%
AC Input Range100~240Vac (90~264Vac max)
Over Current Protection130%-150% auto-recovery
Operating Temperature-10 to 50ºC
Storage Temperature-40 to 80ºC
DC Connector5.5*2.5 or 5.5*2.1mm / 4pin (Customizable)

Product Showcase

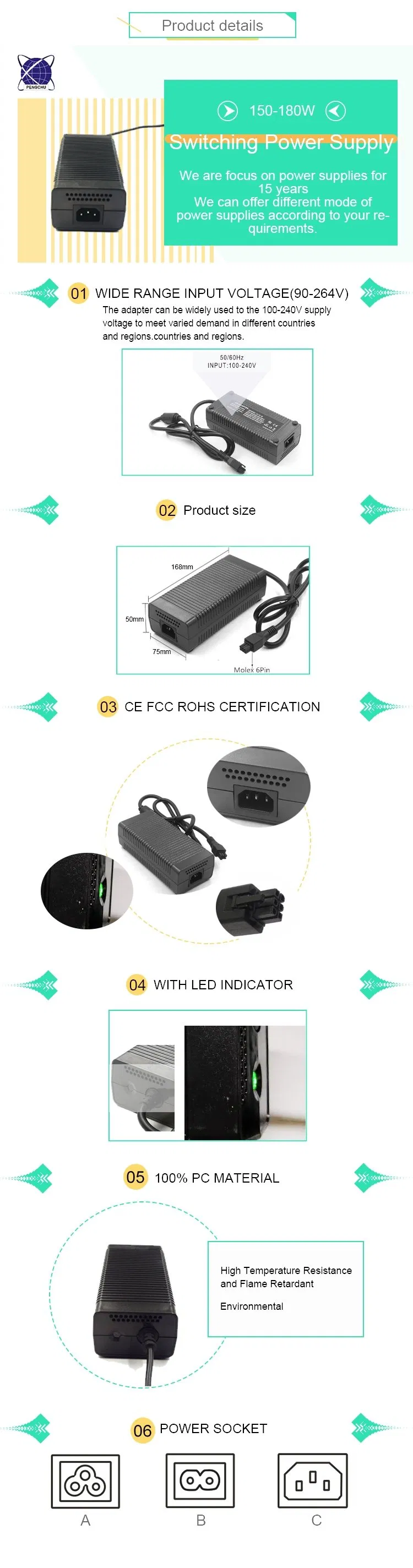

Power Supply Details

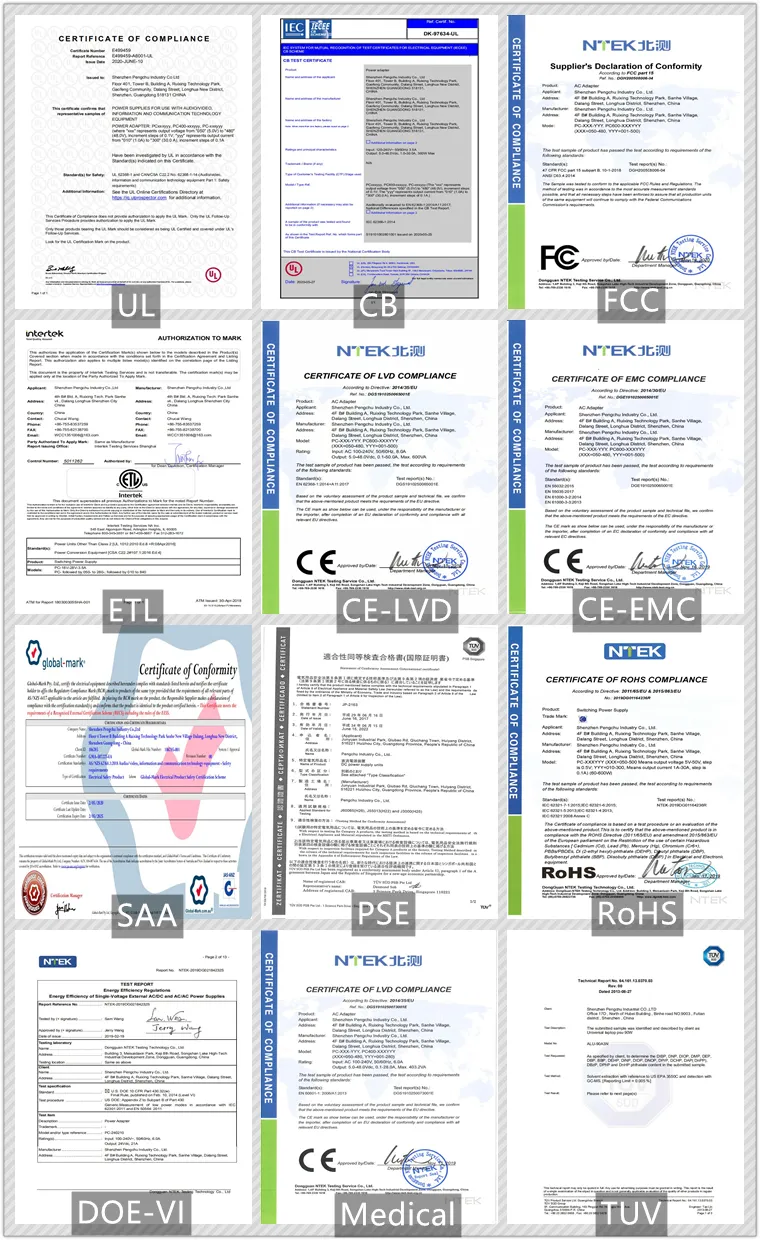

Certifications Display
Size and Dimensions

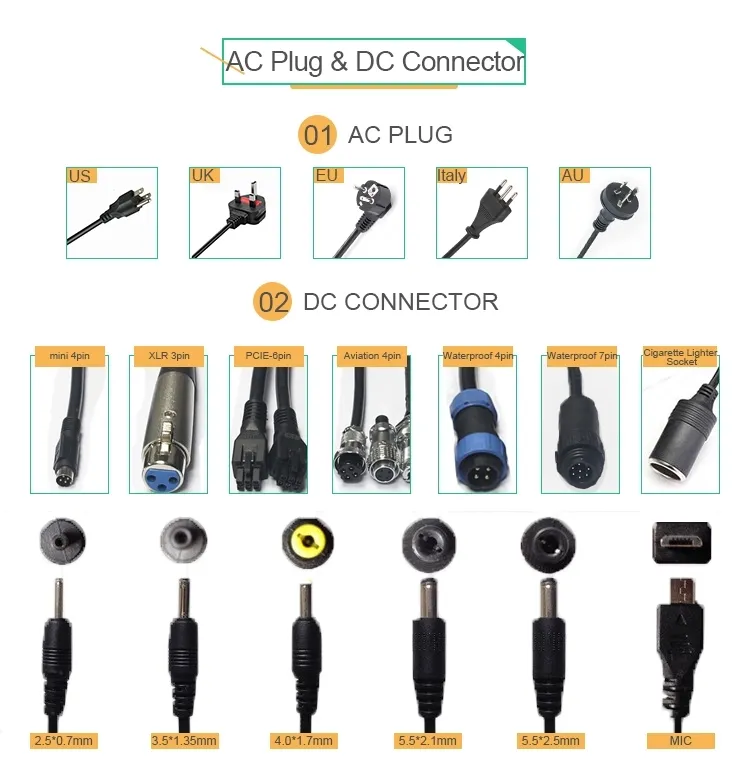

DC Connectors Reference

Optional Models Reference

Model Output Voltage Output Current Output Power Net Weight
PC-12012512V12.5A150W670g
PC-240062524V6.25A150W670g
PC-24008324V8.3A200W670g
PC-36004036V4.2A150W670g
PC-48003248V3.2A150W670g
PC-480045848V4.58A220W670g

Application & Production

Product Application

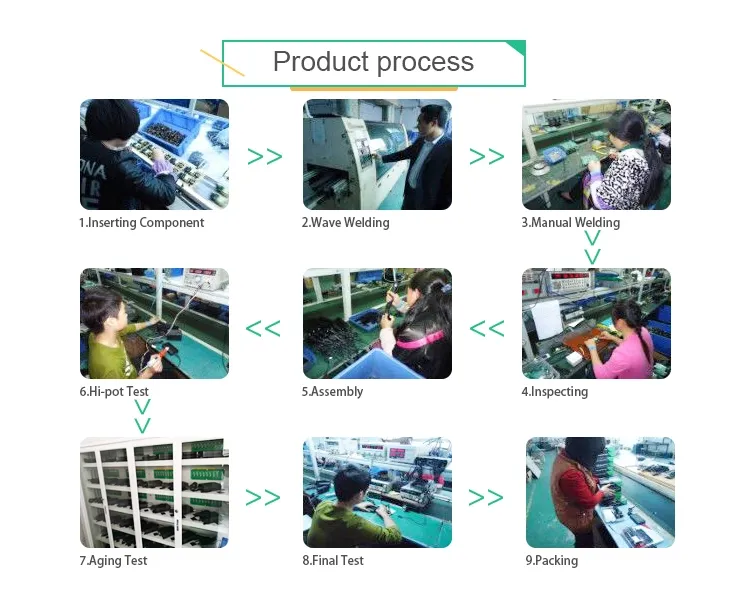

Production Process
Logistics Information

Trade Information

  • Payment Terms: PayPal, Western Union, T/T
  • Lead Time: 7-9 working days for mass production
  • Sample Lead Time: 3-5 working days
  • Certification Standard: UL 62368, IEC 62368, EN 60950

Frequently Asked Questions

Q: What is the main application for this 36V 4.2A power supply?
A: It is widely used for 3D printers, high-performance monitors, industrial equipment, and LED lighting systems requiring stable 36V power.
Q: Does this power adapter meet international safety standards?
A: Yes, it is fully certified with UL, FCC, CE, RoHS, CB, SAA, and KC, meeting global safety and environmental requirements.
Q: Can the DC connector be customized?
A: Absolutely. While the standard is 5.5*2.5mm or 4pin, we offer customization for various DC tips and cable lengths to fit your specific device.
Q: How do you ensure product reliability?
A: Each unit undergoes a 100% full load burn-in test before shipment. Our designs feature high-grade components for long-term stability.
Q: What is the typical delivery time for orders?
A: Samples are usually ready in 3 working days, while bulk orders typically take 12 working days depending on the quantity.
Q: Is OEM or ODM service available?
A: Yes, we provide full OEM and ODM services, including logo printing on the adapter and customized packaging design.
