⚡ Product Description

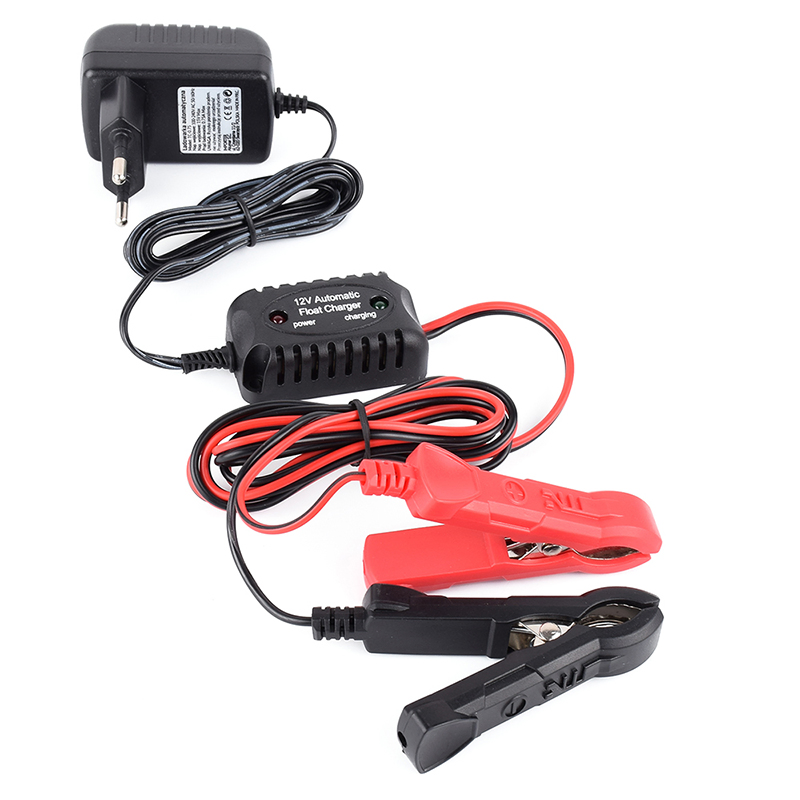

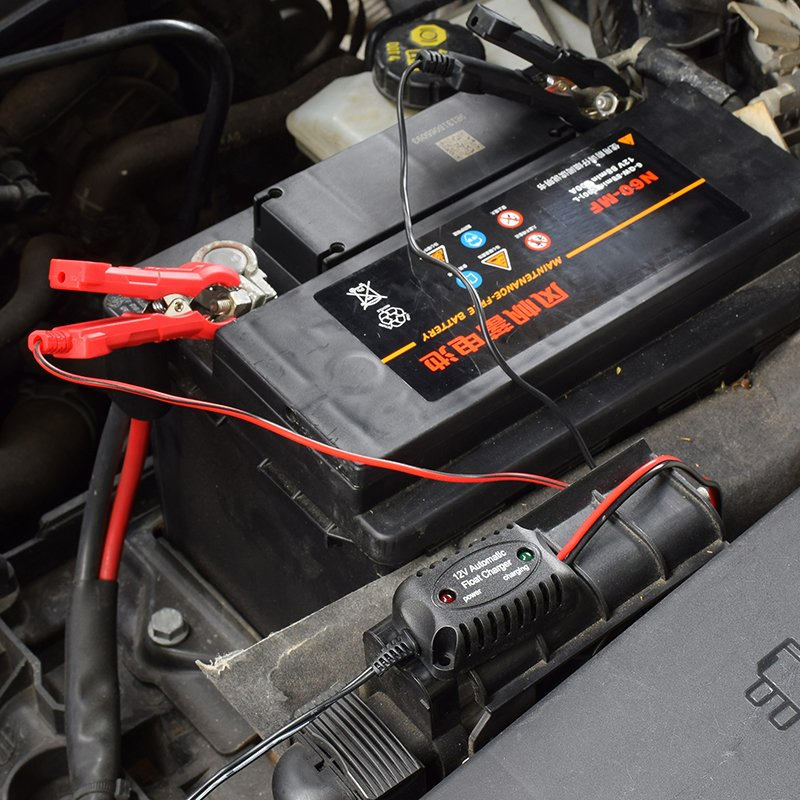

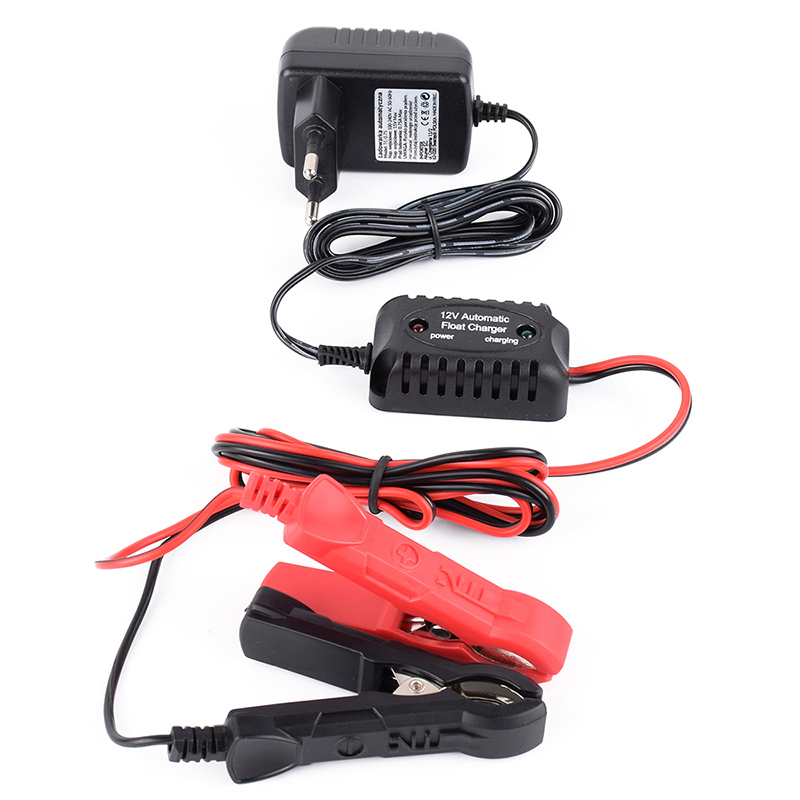

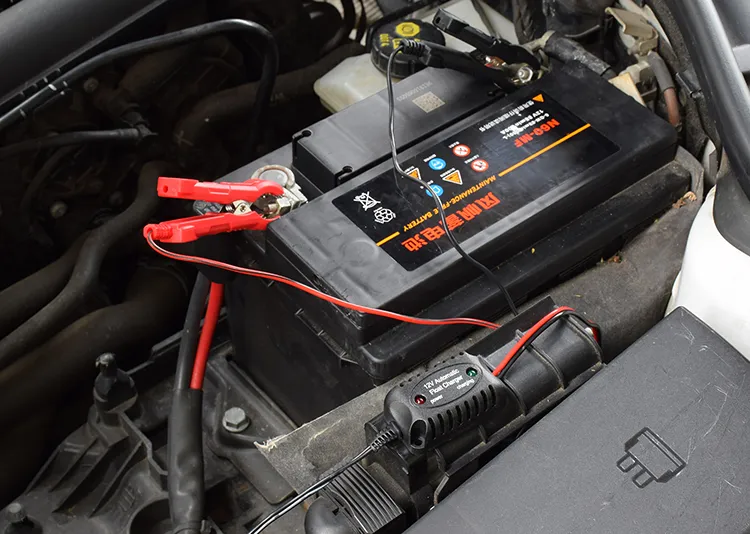

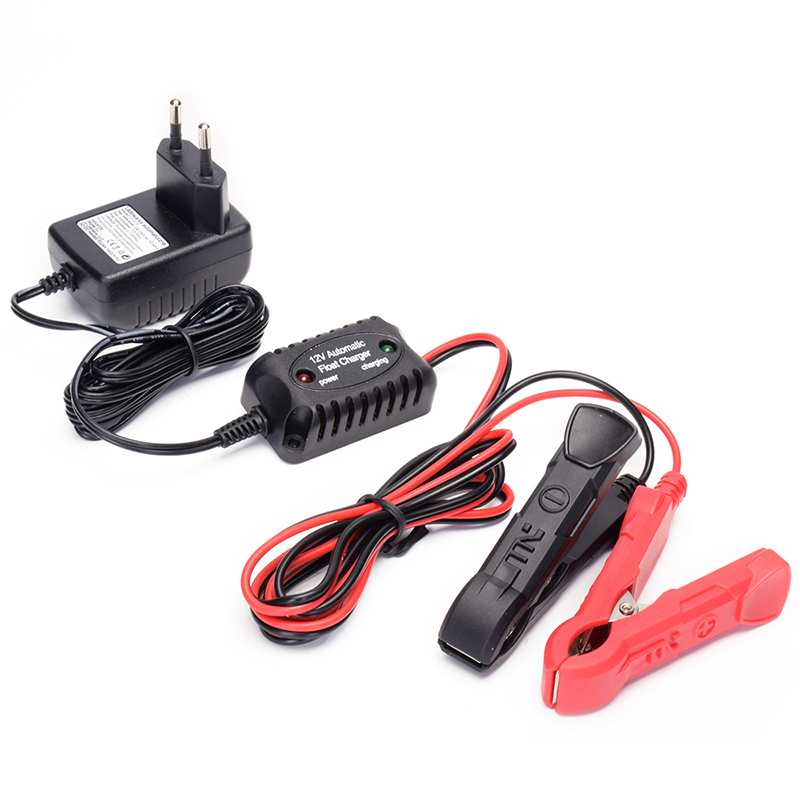

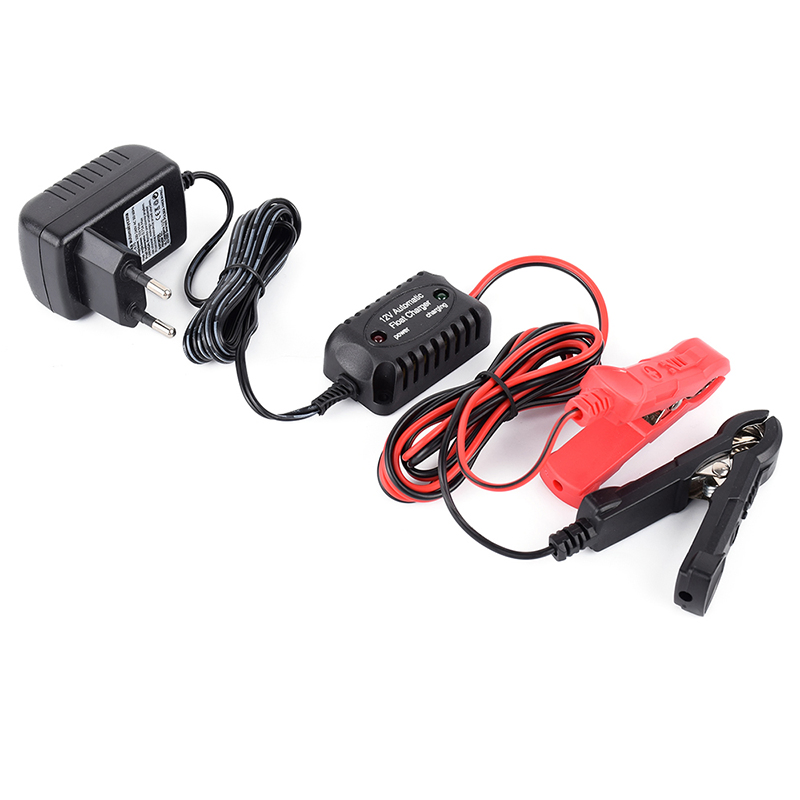

The battery float charger is used for the maintenance of wet or gel-cell batteries that are stored or used periodically in items such as boats, cars, snowmobiles, ATVs, and tractors.
The float charger prevents self-discharge of the battery while maintaining and extending the life of rechargeable 12V batteries. It maintains a battery charge for batteries rated from 5 to 125 amp hours by providing a constant (minimum current) 12.7V DC regulated output. Other types of chargers provide a strong, rapid charge but tend to boil out liquid and decay electrodes.
| Specification |
Details |
| Model | TE4-0223 |
| Battery Type | 6V or 12V STD, GEL, AGM |
| Rated AC Input Voltage | AC100 -240V 50Hz/60Hz |
| Max Output Voltage | 7.2V±0.3V or 15V±0.3V |
| Charging Current | 0.40 Amp |
| Activated Voltage | 3V for 6V batteries or 7.5V for 12V batteries |
| Protection | Short Circuit, Reverse Polarity, Overcharge |
| Housing Material | ABS (IP44 Ingress Protection) |
| Plug Standard | EU/AU/UK/US |

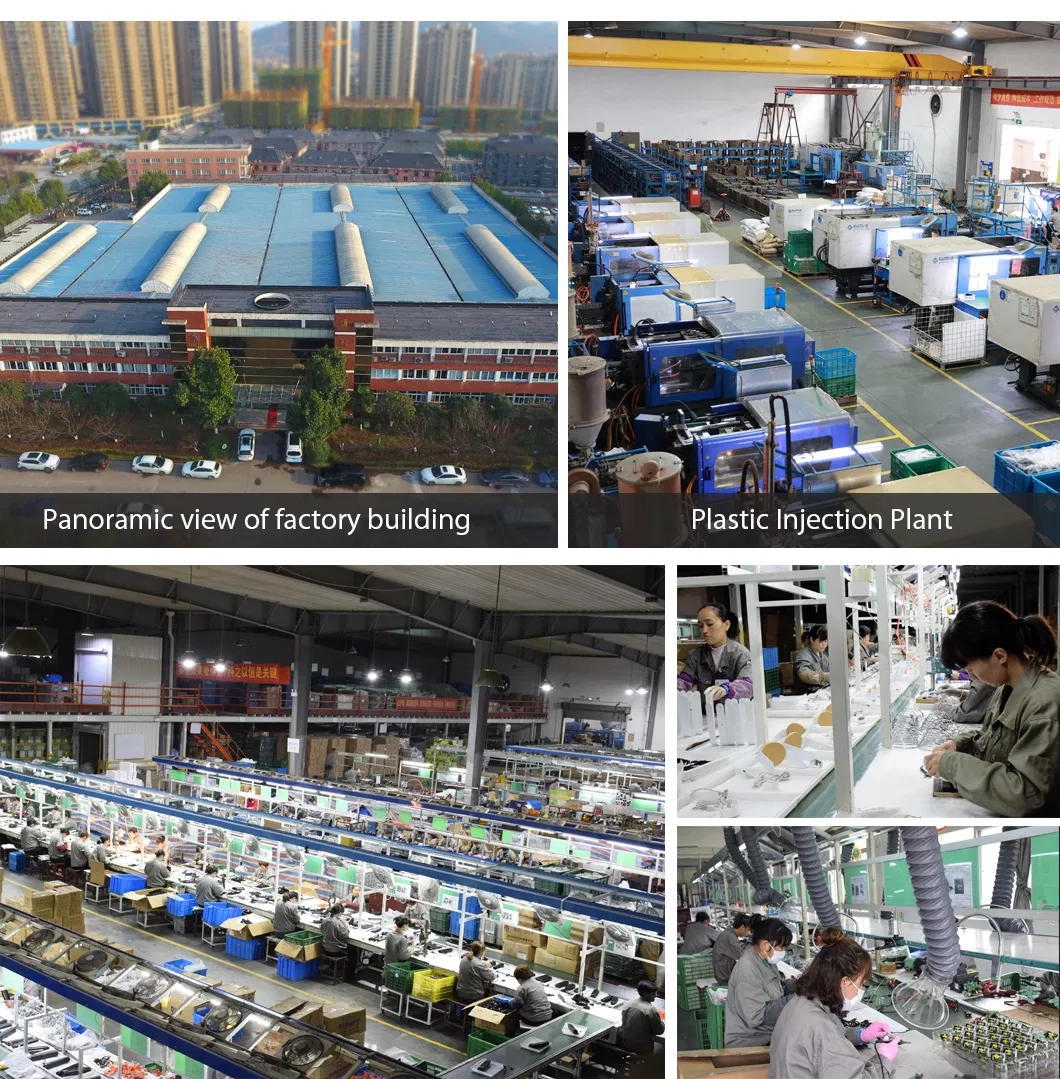

🛠️ OEM & Capabilities

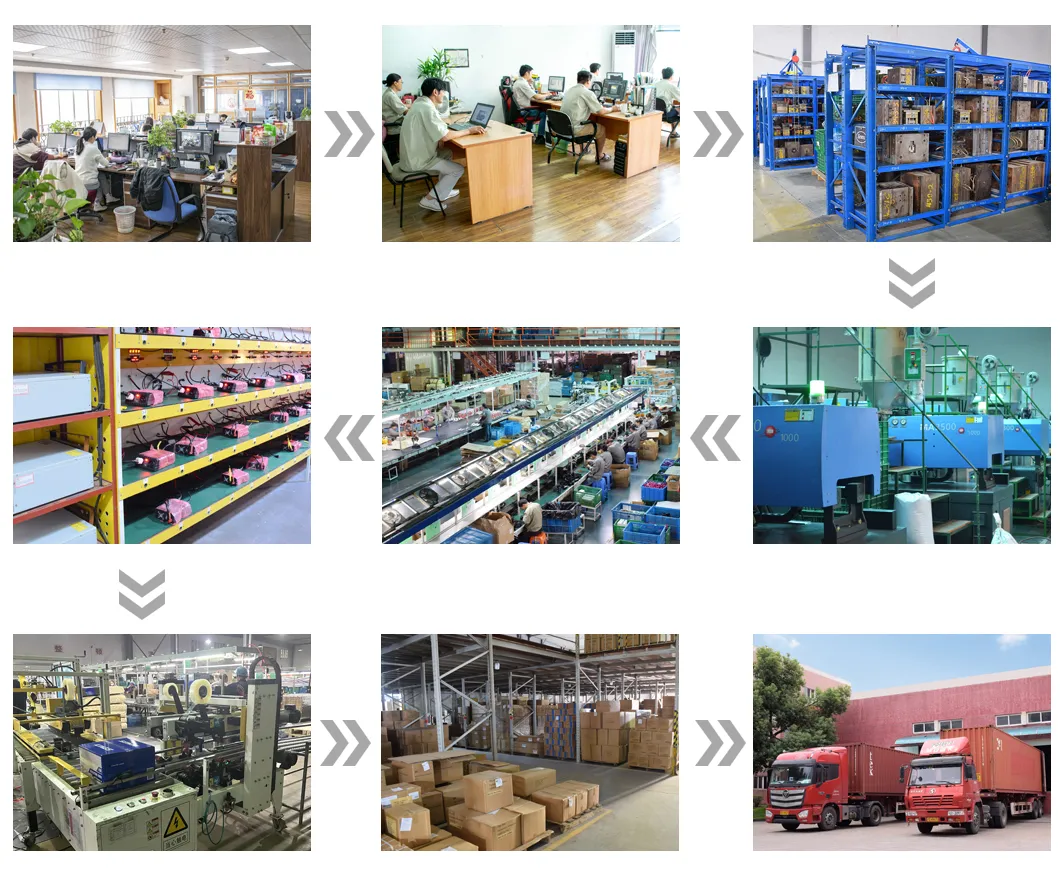

We provide Functional/Structural Design and Packaging customization, accepting small quantity orders to meet diverse market needs.
Certificates & Patents: We hold numerous certifications including cETL, PSE, GS, TUV, CE, RoHs, PAHs, and REACH. Our portfolio includes 200+ patents and over 600 high-quality products.
❓ Frequently Asked Questions
What types of batteries is this float charger compatible with?
It is designed for 6V and 12V STD, GEL, and AGM lead-acid batteries, commonly found in cars, boats, and motorcycles.
How does a float charger differ from a rapid charger?
Unlike rapid chargers that can boil out liquid or decay electrodes, this float charger provides a constant, regulated 12.7V DC output to maintain the battery safely over long periods.
Does this charger offer any safety protections?
Yes, it includes built-in protection against short circuits, reverse polarity, and overcharging to ensure safe operation.
Can I use this charger outdoors?
The unit features IP44 housing protection, making it resistant to splashes and suitable for use in various ambient environments.
What is the supported input voltage range?
It supports a wide input voltage range of AC 100V-240V at 50Hz/60Hz, making it compatible with various international power standards.
Is there a minimum battery capacity required?
This maintainer is ideal for batteries rated from 5 to 125 amp hours.
