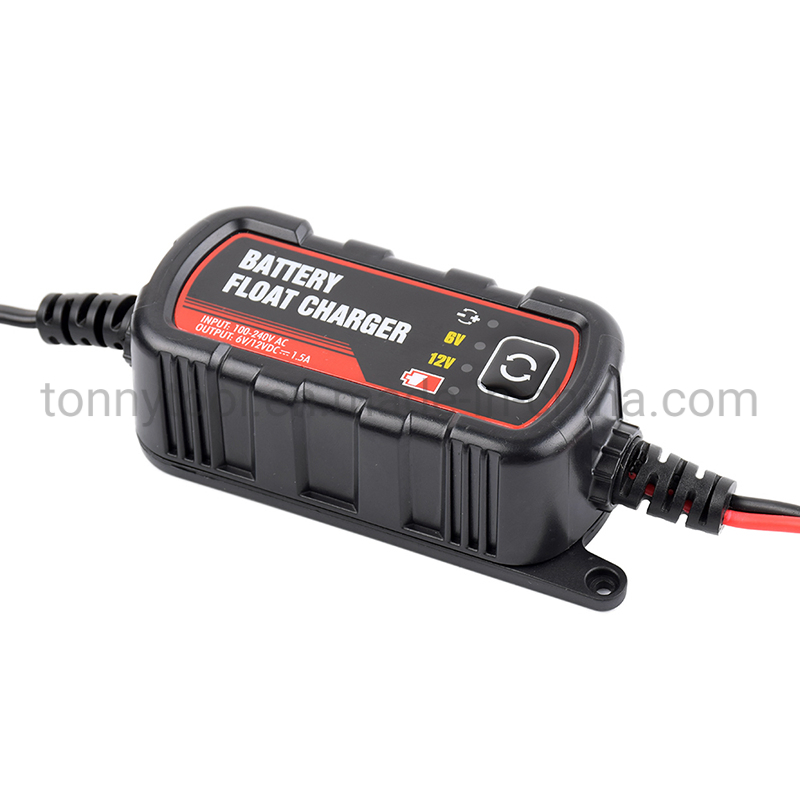

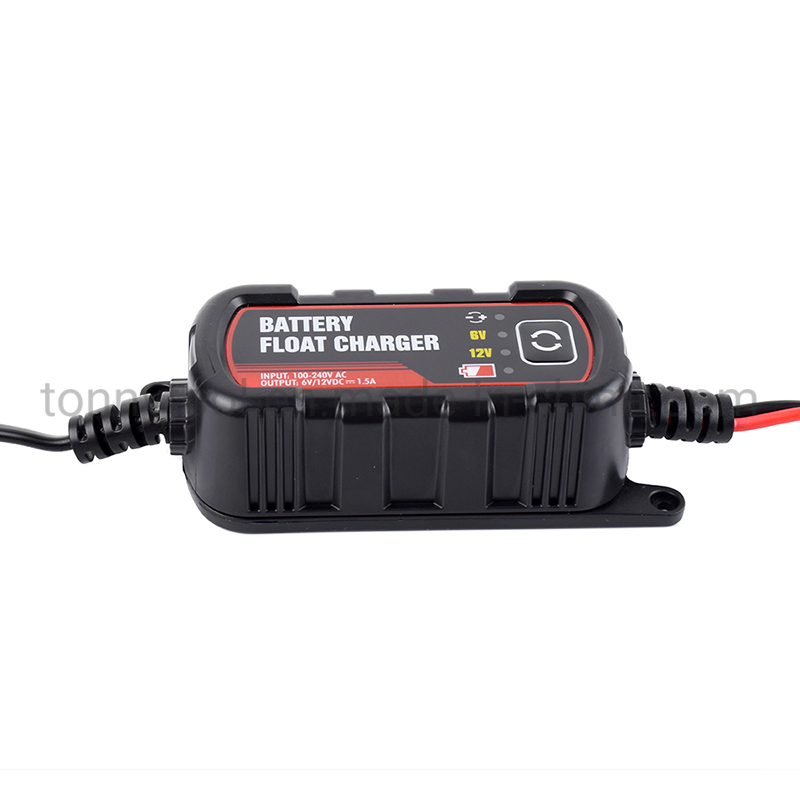

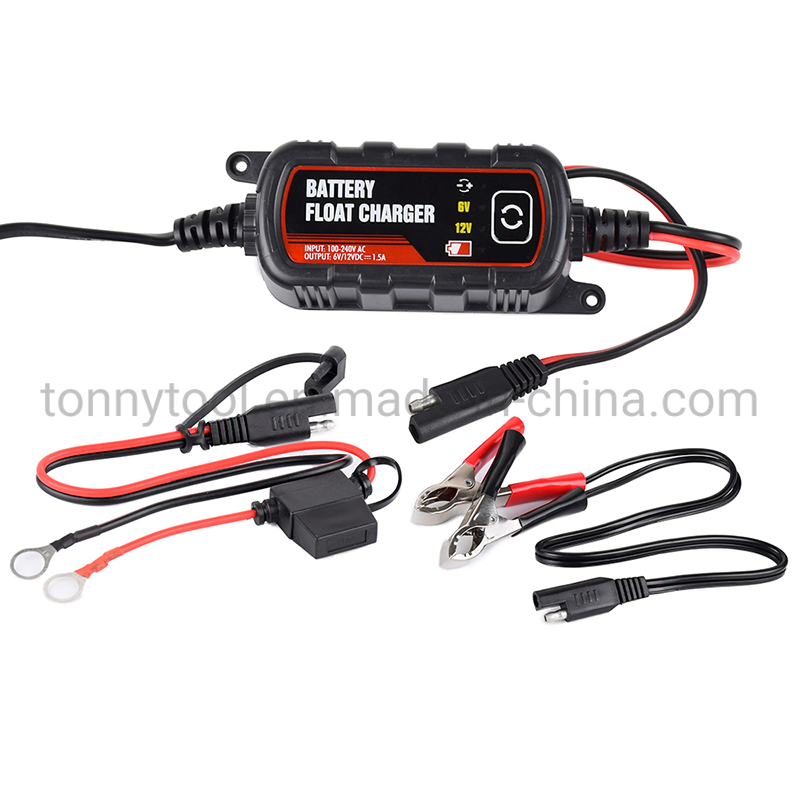

6V/12V, 1.5A Smart Battery Charger/Maintainer, Charger with Trickle and Float Charging, Ce and RoHS

Still deciding? Get samples of $ !
Order Sample

Product Description

Basic Information

Model NO. TE4-0251 Usage Car Battery Charger
Interface SAE Input Voltage 6V / 12V
Output 6V / 12V Efficient >75%
Charging Voltage 1.5A Housing Protection IP65
Protection Overtemp, Reverse Polarity, Over Charger, High/Low Voltage Warranty 1 Year
Package Size 18.50cm * 11.00cm * 5.00cm Gross Weight 2.500kg

Product Description

6V/12V, 1.5A SMART BATTERY CHARGER/MAINTAINER
✔️
Battery Maintainer for use on 6V & 12V battery systems. Charges 6 and 12 volt AGM, GEL and WET batteries.
✔️

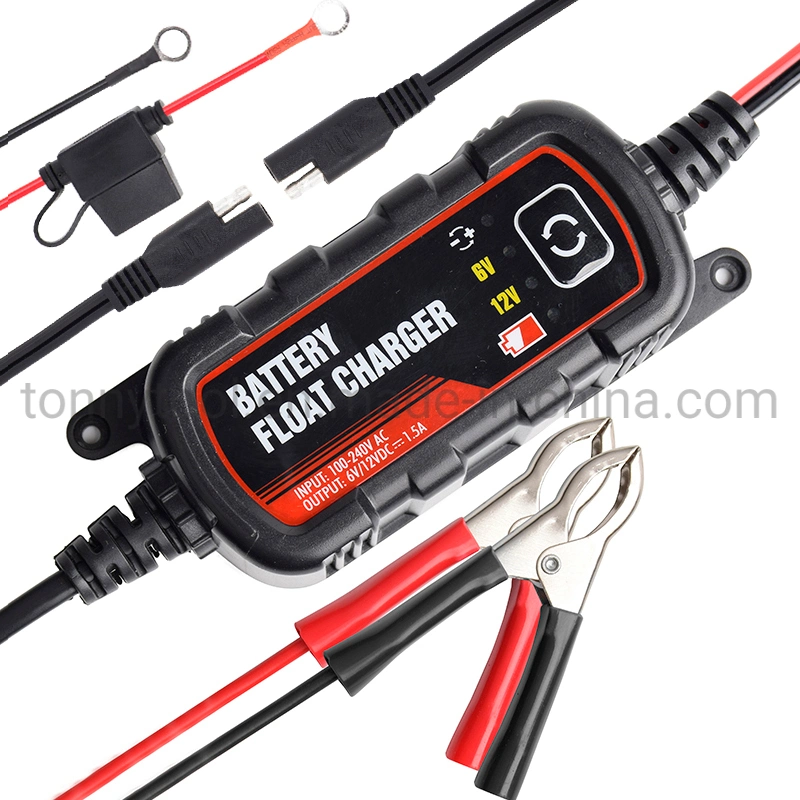

Easy connection to vehicle battery using the included battery clips, O-ring terminals or vehicle DC plug (optional).
✔️
High-frequency smart charging technology keeps batteries at optimal charge.
✔️
Automatically switches between charging mode and float mode monitoring.
✔️
Fully protection for reverse polarity, short circuit, overcharge, over-temp, etc.

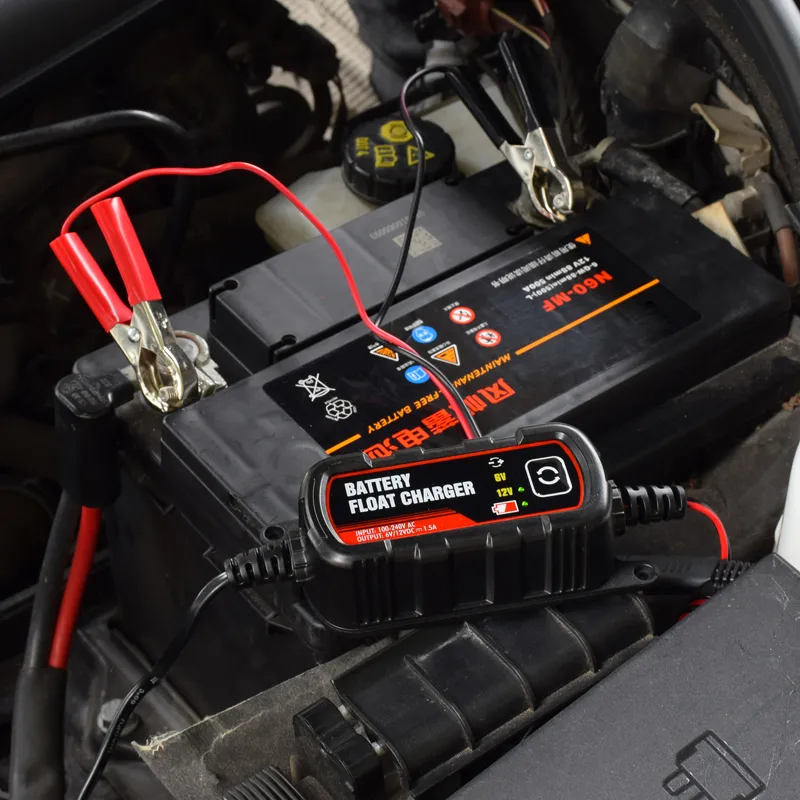

Smart Battery Charger Main Image
Battery Charger Application

Technical Specifications

Parameter Details
Model TE4-0251
Battery Type 6V/12V STD, GEL, AGM
Rated AC Input Voltage AC100-240V, 50-60Hz
Max Output Voltage 7.2V±0.3V, 13.9V±0.3V
Charging Current 1.5 Amp
Activated Voltage 3V for 6V batteries, 7.5V for 12V batteries
Protection Overheat, Short Circuit, Reverse Polarity, Overcharge
Ingress Protection IP65 Water Resistant

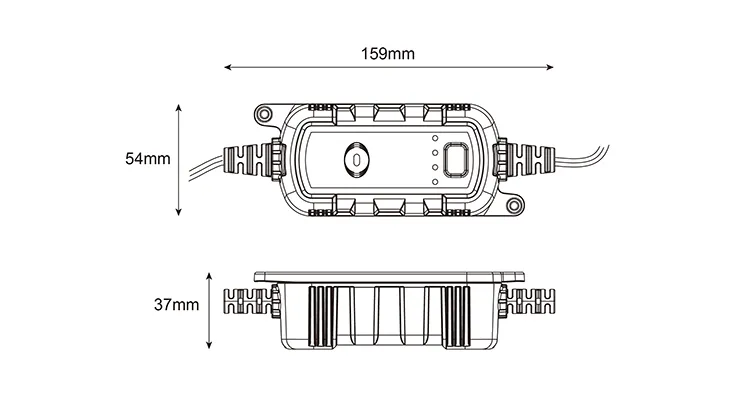

Size / Weight 159x54x37mm / 350g
Plug Standard EU / AU / UK / US

Product Showcase

Product Feature 1

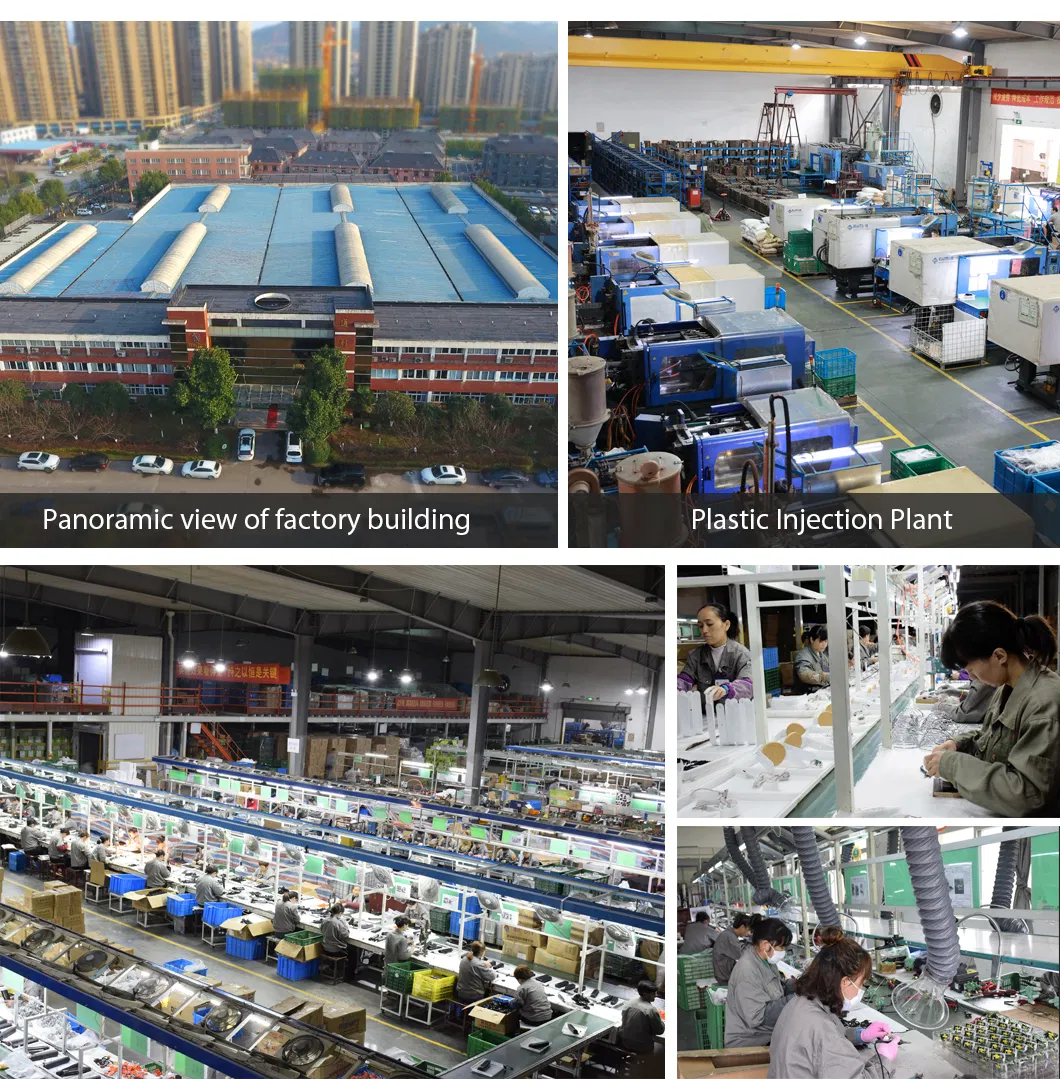

Product Feature 2

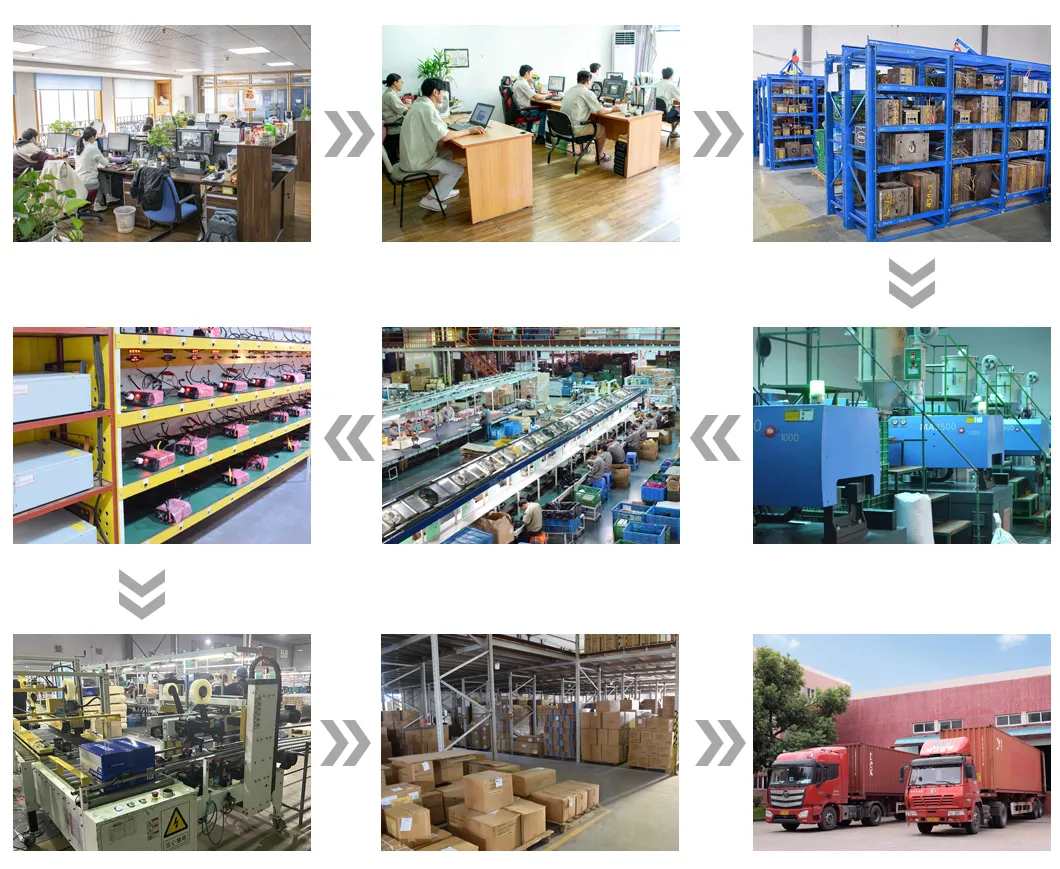

OEM Customization
Quality Certificates

Frequently Asked Questions

What types of batteries can this charger maintain?
The TE4-0251 is designed for 6V and 12V battery systems, including STD, GEL, and AGM batteries.
Is this charger waterproof for outdoor use?
Yes, the charger features an IP65 ingress protection rating, making it water-resistant and suitable for various environments.
How does the "Float Mode" work?
The smart technology automatically switches from charging mode to float mode once the battery is full, monitoring and maintaining the optimal charge without overcharging.
What safety protections are included?
It includes comprehensive protection against overheating, short circuits, reverse polarity, and overcharging to ensure user and battery safety.
What is the minimum voltage required to activate charging?
The activation voltage is 3V for 6V batteries and 7.5V for 12V batteries.
Does it support different international plug standards?
Yes, we provide EU, AU, UK, and US plug standards to meet different regional requirements.
