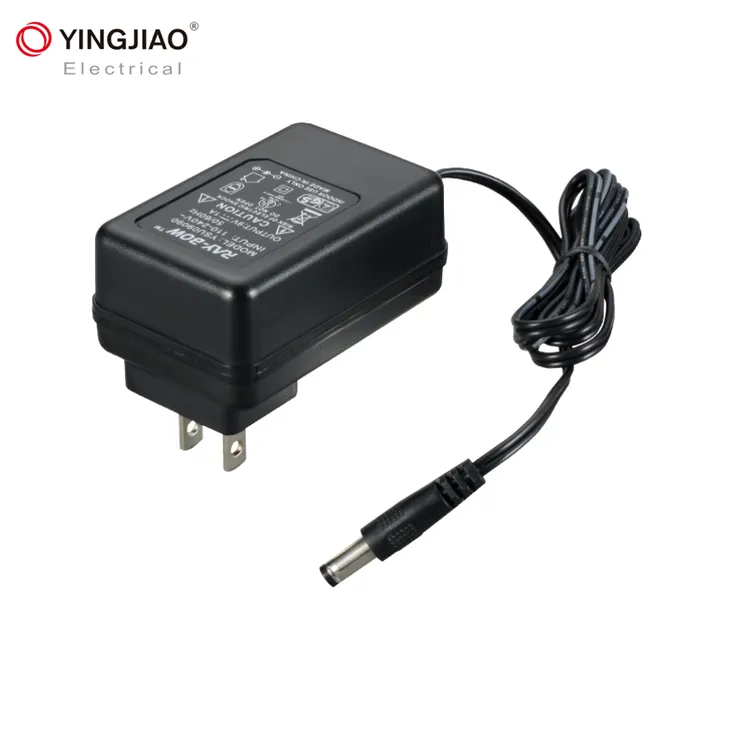

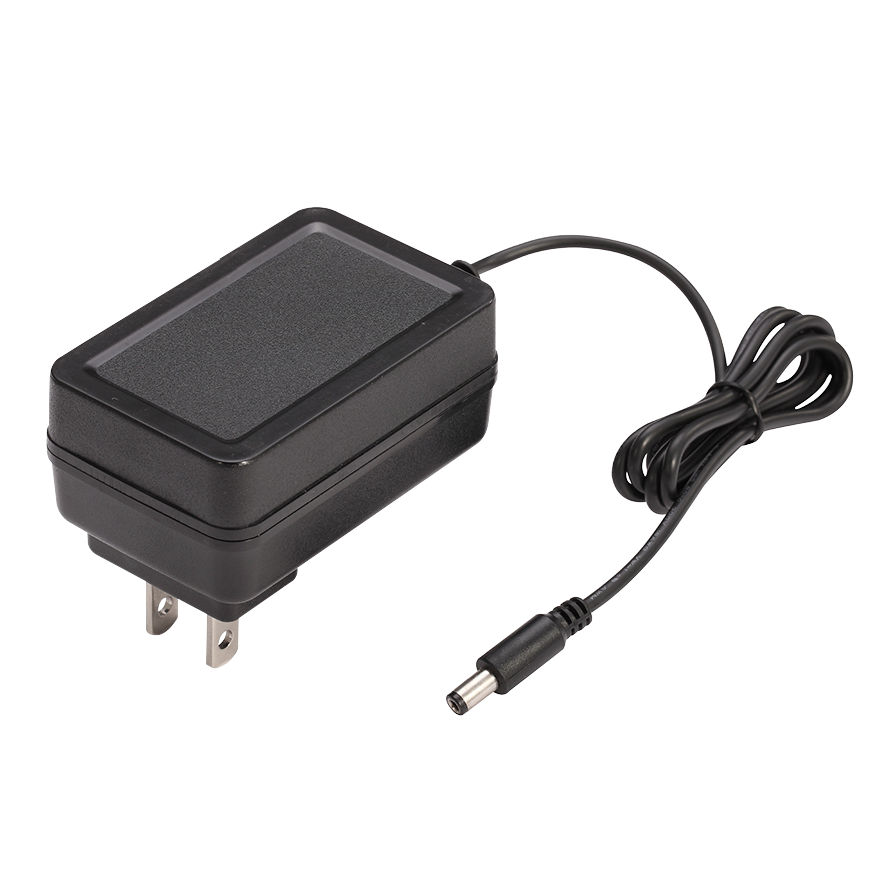

Hyper Charger
1 / 5
| Model | YS16U | Rated Power | 18W max. |
| Output Voltage | 6V - 18V Range | Output Current | 0.1-2A Constant Current |
| Inrush Current | 65A max @ 230VAC | Leakage Current | 0.25mA Max |
| No Load Power | <0.3W | Working Temp | -20°C to 50°C |
| Protections | Short Circuit (Protection to Zero Voltage), OVP (≤150%), OCP (≤150%) | ||
| Standards | LVD EN 60335-1/2-29, EMI EN55014, MTBF 100,000 hours | ||
| DC Voltage | 9V | 12V | 13.5V | 15V | 16.5V |
|---|---|---|---|---|---|
| Rated Current | 1500mA | 1500mA | 1000mA | 1000mA | 1000mA |
| Rated Power | 13.5W | 18W | 13.5W | 15W | 16.5W |
| LED Status | Red is charging, Green is idle/full. Post-charge float current: 150mA. | ||||
Our facility was established in 1995 and is dedicated to the design and development of high-quality low voltage power adapters and battery chargers. Utilizing scaled manufacturing and global quality systems, we serve the world's electronics industries with reliable power solutions.

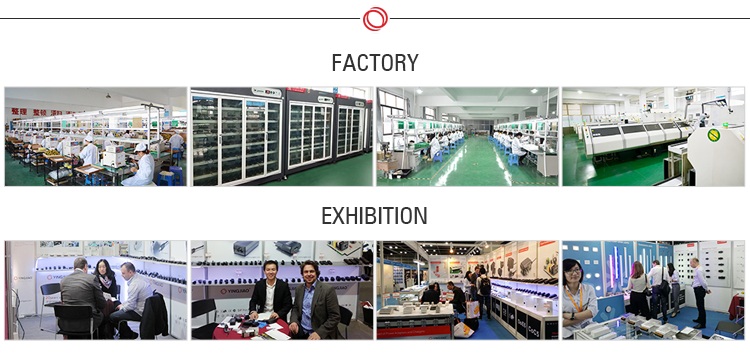

Our production lines include independent high-frequency transformer and SMT workshops. All products undergo rigorous reliability testing and MTBF procedures to ensure consistency and longevity. Our systems comply with RoHS, REACH, and international safety standards.
