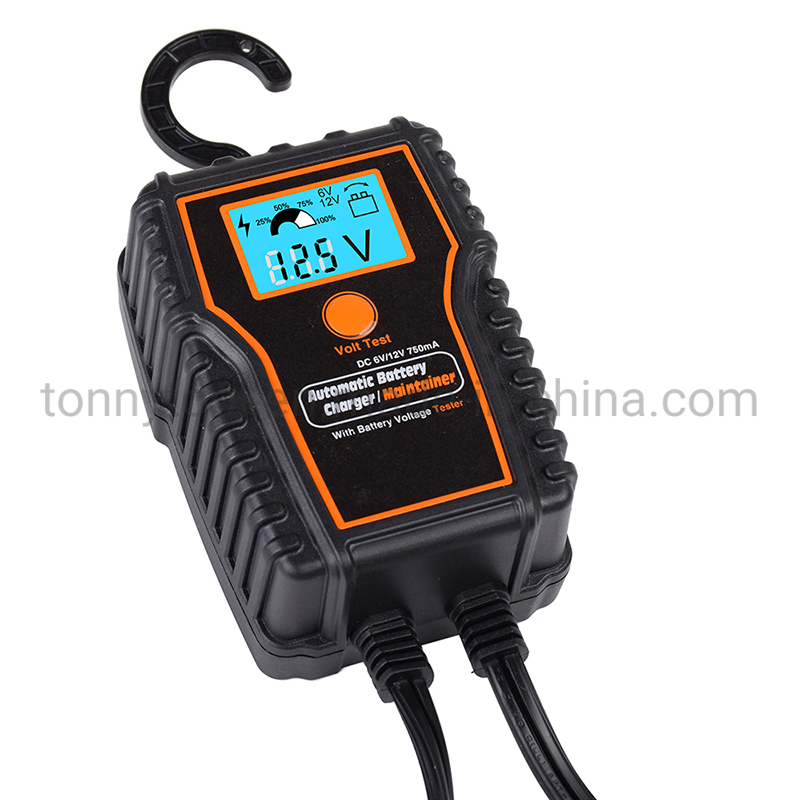

LCD Display Portable 12V 750mA Motorcycle Smart Car Battery Charger Trickle Charger Maintainer with Battery Tester Function

1 / 5

LCD Display Portable 12V 750mA Motorcycle Smart Car Battery Charger Trickle Charger Maintainer with Battery Tester Function

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

Basic Specifications

Model NO.

TE4-0275

Usage

Lead Acid Battery

Interface

Clamp

Color

Black

Input Voltage

AC 100-240V

Origin

China

HS Code

8504401990

Capacity

10000 pieces/Month

Product Description

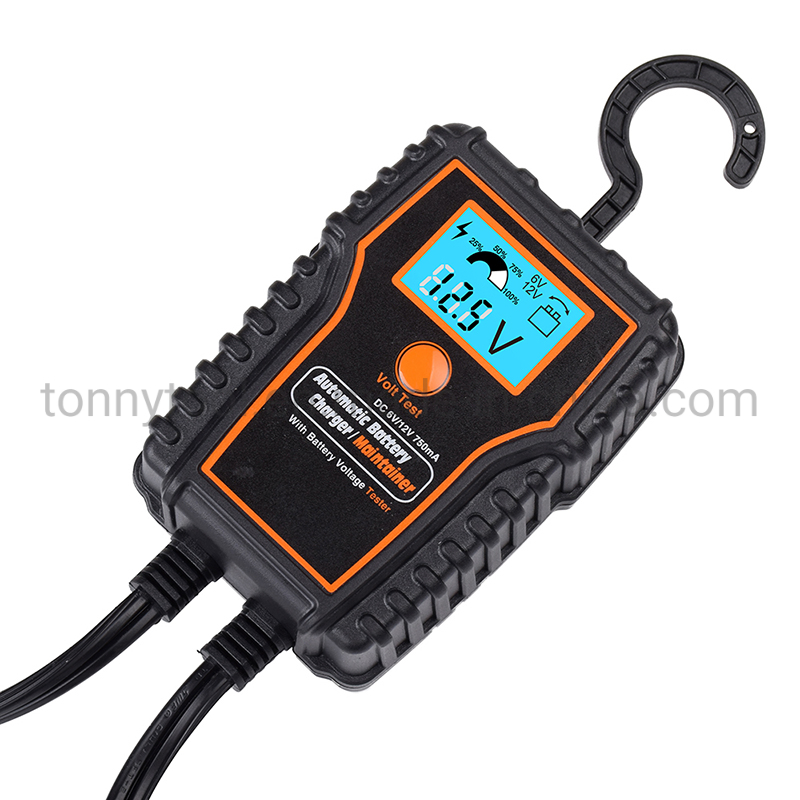

LCD Display Portable 12V 750mA Motorcycle Smart Car Battery Charger Trickle Charger Maintainer with Battery Tester Function

Designed for long-term off-season storage in all climates for boats, ATVs, PWCs, UTVs, motorcycles, cars and more.
Battery Maintainer for use on 6V & 12V battery systems. Charges 6 and 12 volt AGM, GEL and WET batteries.
Three intelligent charging modes: Bulk Charge, Absorption, and Float with LED charge indicator light.
Battery tester function: test battery voltage and capacity without connecting to AC power.

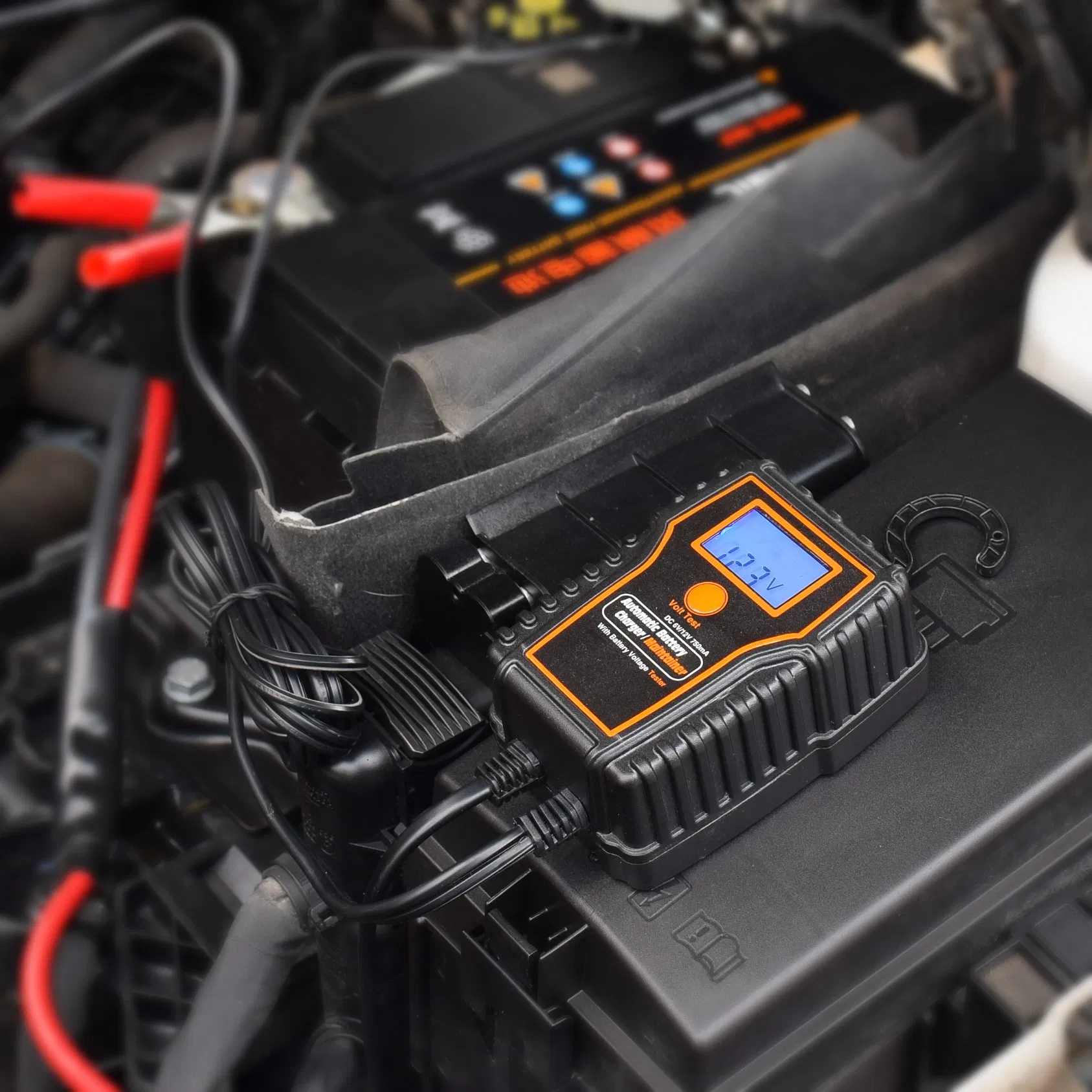

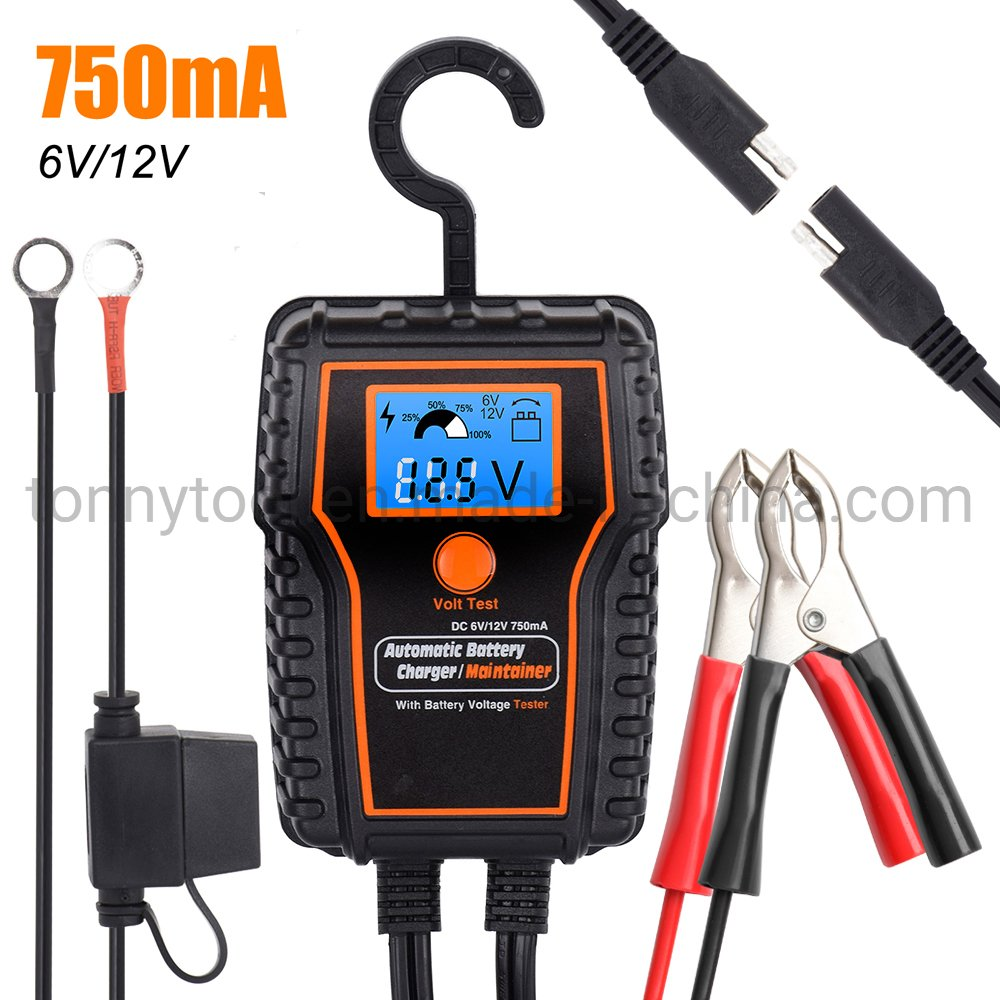

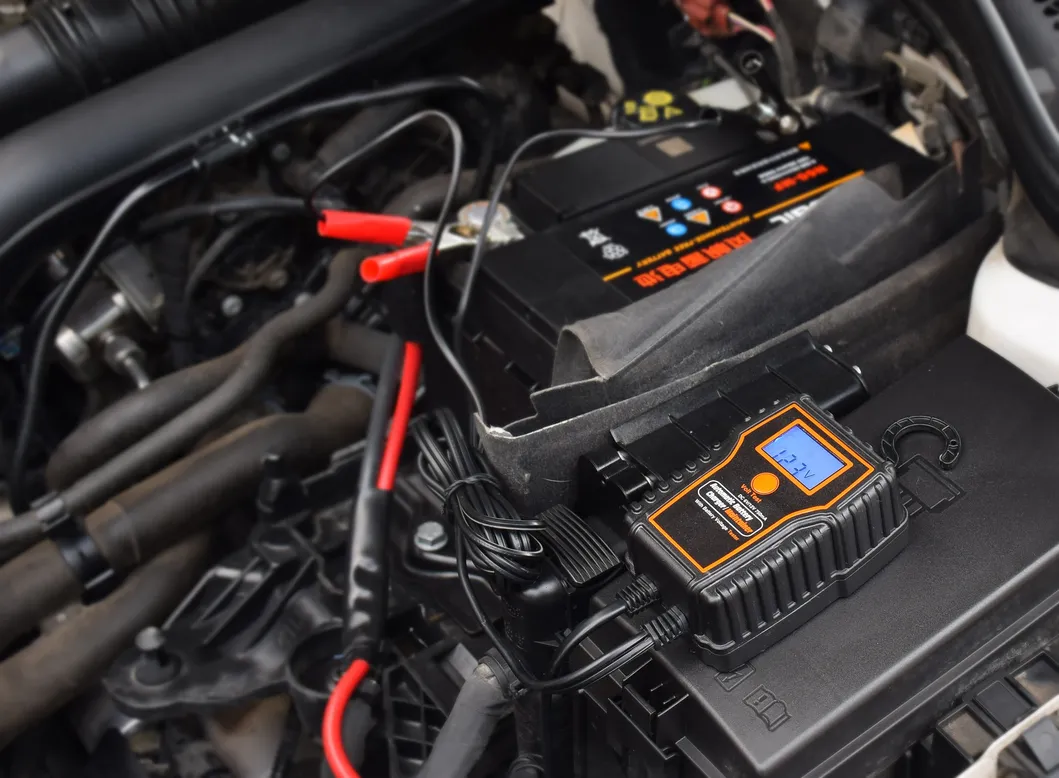

Easy connection to vehicle battery using the included battery clips or O-ring terminals.
Charges all large and small 6 and 12 Volt lead-acid and flooded or sealed maintenance-free batteries.
Fully protection for reverse polarity, short circuit, overcharge, over-temp, etc.

Technical Parameters

Parameter	Specification
Model	TE4-0275
Battery Type	6V/12V STD, GEL, AGM
Rated AC Input Voltage	AC100-240V, 50-60Hz
Max Output Voltage	7.2V±0.3V, 14.0V±0.2V
Charging Current	0.75 - 1.0 Amp
Activated Voltage	3V for 6V / 7.5V for 12V
Battery Test Range	4V-16V
Protection	Short Circuit, Reverse Polarity, Overcharge
Housing Material	ABS (IP65 Water Resistant)
Certificates	cETL, CE-EMC, CE-LVD, ROHS

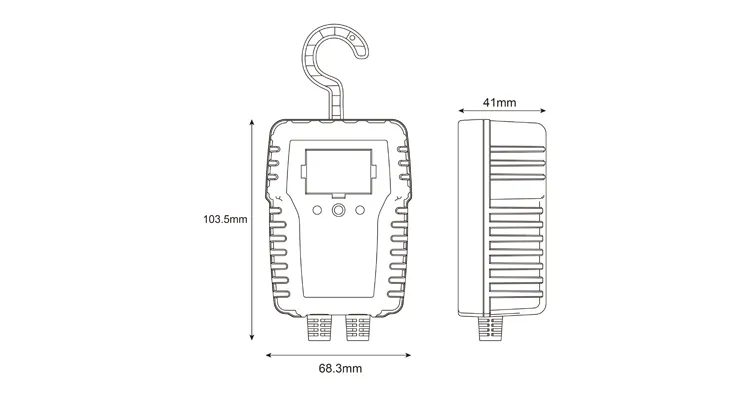

Size / Weight	70x100x44 mm / 350g

OEM & CUSTOMIZATION

Functional/Structural Design, Packaging customization, Accept small quantity orders.

CERTIFICATES & PATENTS

Equipped with cETL, PSE, GS, TUV, CE, RoHs, PAHs, REACH. Over 200+ patents and 600+ product varieties.

Frequently Asked Questions

What types of batteries can this device charge?

This charger is compatible with both 6V and 12V Lead-acid batteries, including STD, GEL, AGM, and WET types commonly found in motorcycles, cars, and boats.

How does the 3-stage charging mode work?

The charger utilizes Bulk Charge, Absorption, and Float modes to ensure the battery is charged efficiently and maintained at an optimal level without overcharging.

Can I check my battery health without plugging into an outlet?

Yes, the built-in battery tester function allows you to test the battery voltage and capacity directly by connecting to the battery, even without AC power.

Is the charger safe to leave connected for long periods?

Absolutely. It is designed as a maintainer/trickle charger for off-season storage, featuring full protection against short circuits, reverse polarity, and overheating.

What is the waterproof rating of the housing?

The charger is built with ABS material and has an Ingress Protection rating of IP65, making it resistant to dust and water splashes.

Which plug types are available for international use?

The integrated plug options include EU, AU, UK, and US standards, supporting a wide input voltage range of AC 100-240V.
