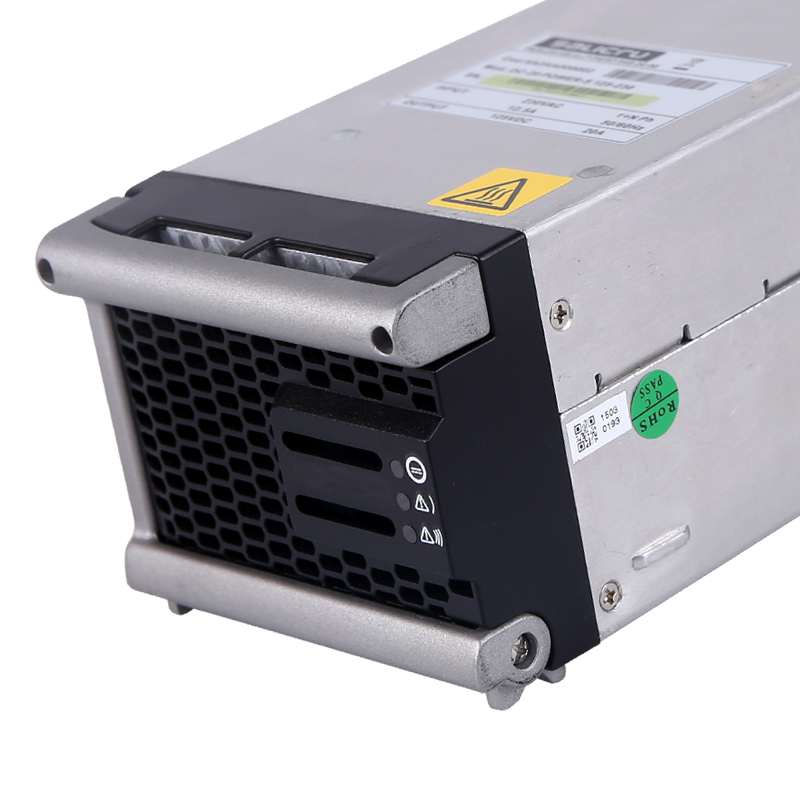

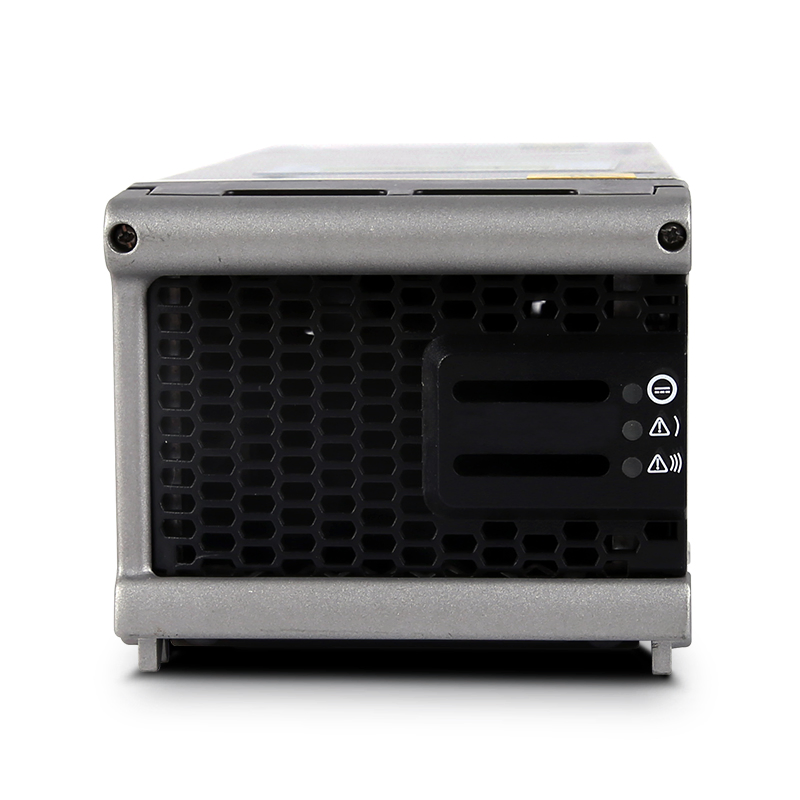

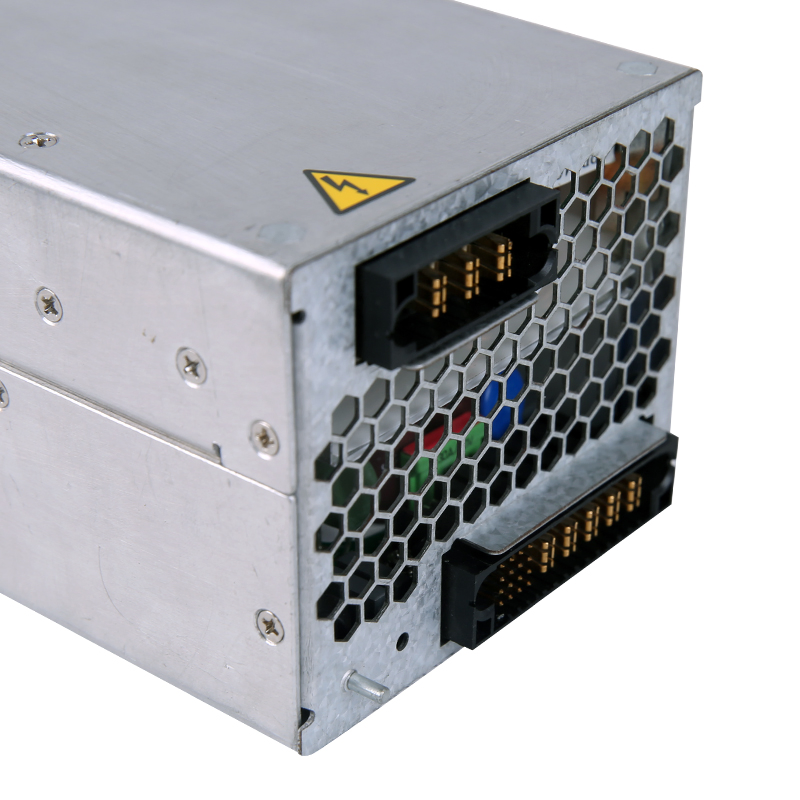

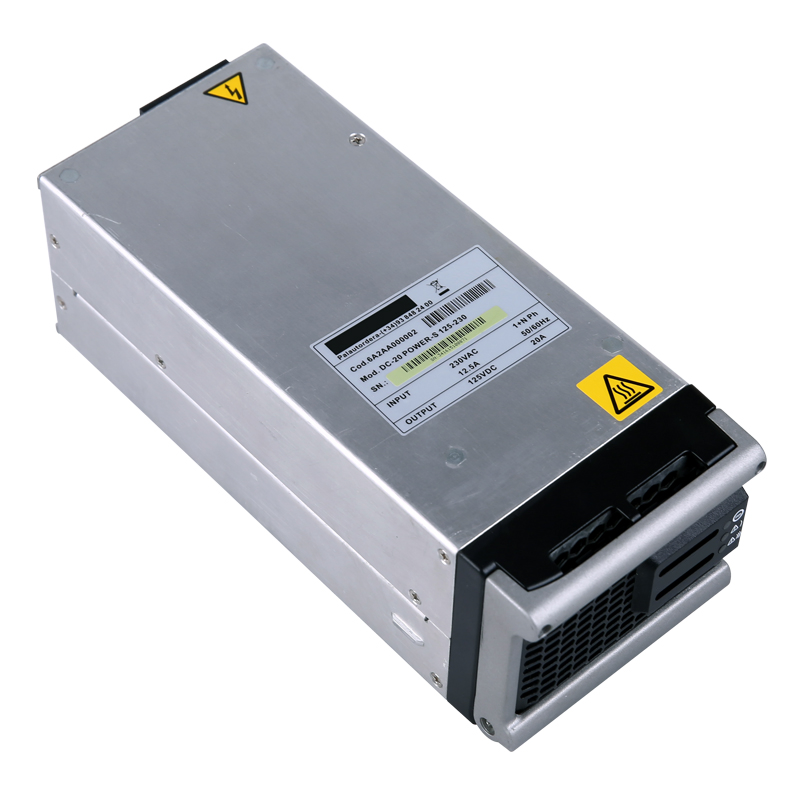

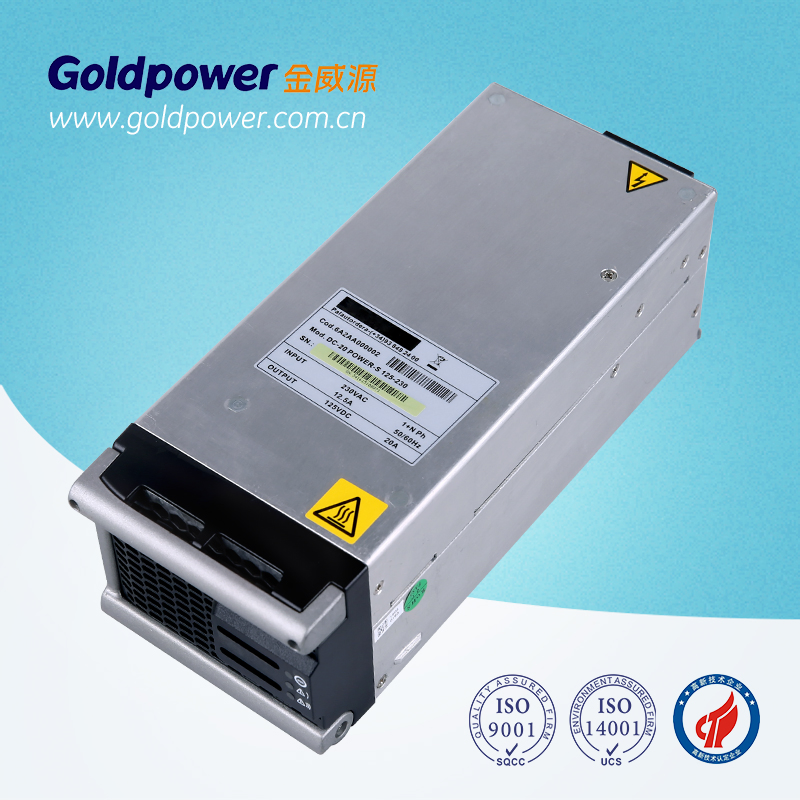

Custom Power Supply 2300W 24V AC to DC Charger for Solar Power System

Technical Parameters

Model NO.:GPR2470A-B1

Output Power:2300W

Input Voltage:90~290VAC

Connection Mode:Series Switching

Starting Mode:Self-excited

Modulation:PWM / Width Modulation

Efficiency:90%

Input Frequency:45~65Hz

Output Voltage:22~33VDC

Output Current:70A

Operating Temp:-33~55°C

Weight:≤2.8kg

Product Features

This 2300W 24V AC to DC charger for Solar power systems is a high-efficiency rectifier module designed for reliability and performance.

1

Ultra high power density with soft-switching technology for max efficiency.

2

Full digital DSP control with total harmonic current less than 5%.

3

Leading APFC (Active Power Factor Correction) technology, PF > 0.99.

4

Automatic intelligent current sharing and supports intelligent hibernation.

5

Supports hot plugging; modules can be replaced within 1 minute.

6

Complete isolation and failure protection between input and output.

Detailed Specifications

Parameter	Value / Description
Voltage Regulation	±1%
Current Sharing	±5%
Ripple (Vp-p)	200mV
Turn-on Time	8S
Humidity	5~95%
Acoustic Noise	≤55dB
MTBF	≥250,000 Hours
Cooling	Forced air cooling (Fan)
Dimensions	242.5 x 102.7 x 88.1 (mm)
Protection	Over/under voltage, short circuit, over temperature, fan failure

Applications

Solar Power System 24V Distributed Power Ethernet & Exchange LAN / MAN Server Stations Telecom Equipment Bus & Electric Vehicles

Product Gallery

Frequently Asked Questions

What is the peak efficiency of this rectifier?

The GPR2470A-B1 features a high-efficiency design reaching over 90% using advanced soft-switching technology.

Can this unit be replaced while the system is live?

Yes, it supports hot-plugging without damage, allowing a module to be replaced within 1 minute for zero-downtime maintenance.

What kind of protection does the charger offer?

The charger includes input over/under voltage protection, output over voltage protection, current limiting, short circuit protection, over-temperature protection, and fan failure alarms.

Is this charger compatible with solar power systems?

Absolutely. It is specifically designed as a high-efficiency AC to DC charger for solar power systems and 24V distributed power systems.

What is the operating temperature range?

The unit is built for durability, operating reliably in temperatures ranging from -33°C to 55°C.

Does it support remote monitoring or current sharing?

Yes, it features automatic intelligent current sharing and supports intelligent hibernation modes for energy saving.
