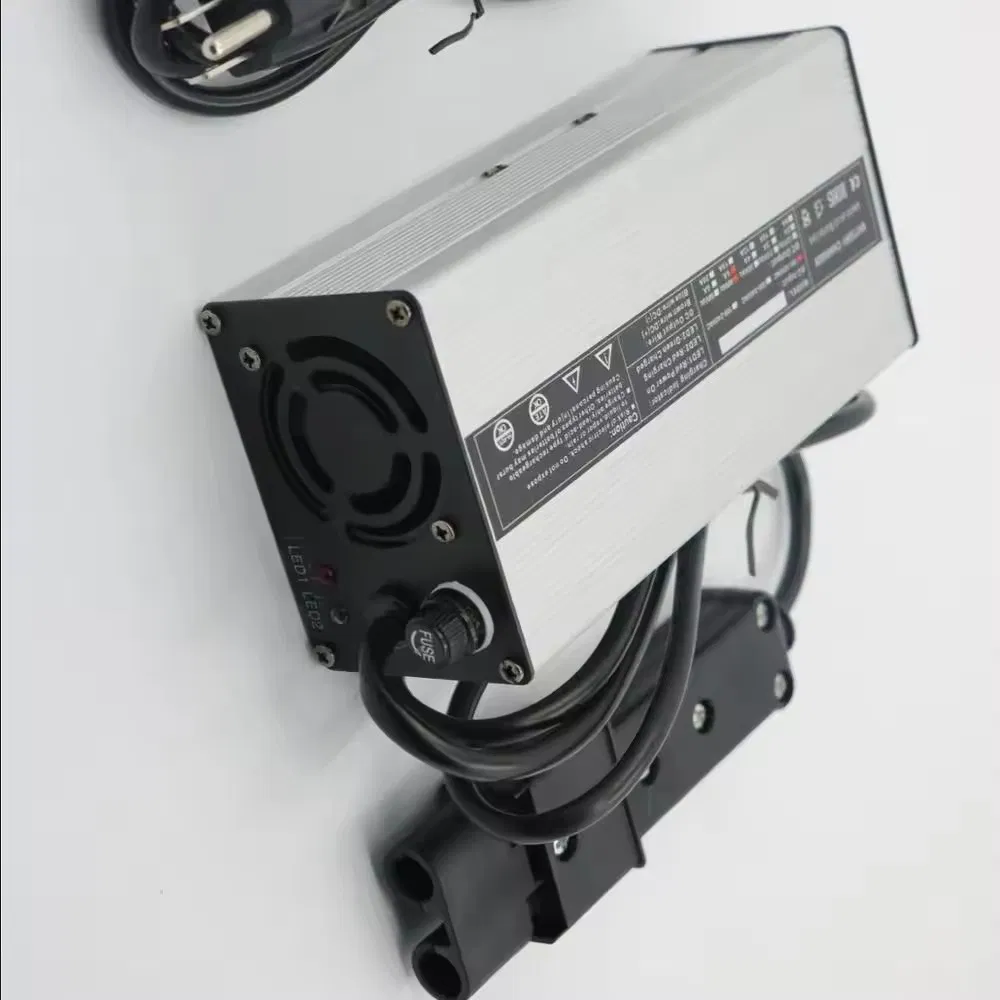

Customized 360W Series of 72V 4A 60V 5A 48V 6A 36V 8A 24V 12A 12V 20A Battery Charger for Lead Acid or Lithium or LiFePO4 Battery

1 / 5

Customized 360W Series of 72V 4A 60V 5A 48V 6A 36V 8A 24V 12A 12V 20A Battery Charger for Lead Acid or Lithium or LiFePO4 Battery

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📊 Basic Specification

Model NO.

SYK09

Rechargeable

Yes

Lead Time

20 Work Days

Life Time

5 Years

Product Size

About 18 X 9 X 6.3 cm

Protection

Over-Charge & Over-Discharge

Specification

12V / 24V / 36V / 48V / 60V / 72V

Material

Aluminum Shell

HS Code

8507600090

Production Capacity

200 PCS / Day

💡 Product Overview

Customized 360W series battery charger designed for high performance with Lead acid, Lithium, or LiFePO4 batteries. This series offers various configurations including 72V 4A, 60V 5A, 48V 6A, 36V 8A, 24V 12A, and 12V 20A.

Full automatic transition of CC, CV (Lithium-ion/LiFePO4) and Float/Cut-off (Lead acid).
Precise voltage and current limiting to ensure full charge and prevent overcharging.
Comprehensive Protections: Over current, over voltage, short circuit, and reverse polarity.
High Efficiency > 88%, eco-friendly design.
Two LED indicators for clear status monitoring.
Aluminum housing, elegant and reliable.
CE & ROHS certified for safety and quality assurance.

⚙️ Technical Specifications

Spec	Constant Voltage			Max Current	Cut-off Point		Size (mm)
Spec	LA	Li-Mn	LiFePo4	(A)	LA (A)	Li (A)	(mm)
12V 20A	14.7V	16.8V	14.6V	20	4.0	2.0	1809063
24V 12A	29.4V	29.4V	29.2V	12	2.4	1.2
36V 8A	44.1V	42.0V	43.8V	8	1.6	0.8
48V 6A	58.8V	54.6V	58.4V	6	1.2	0.6
60V 5A	73.5V	75.6V	73.0V	5	1.0	0.5
72V 4A	88.2V	84V	87.6V	4	0.8	0.4

* Cut-off point for Lithium batteries is 5% of CC (adjustable between 3%-10%). Functions like BMS communication and PFC can be customized.

🚲 Applications

Perfectly suited for: Electric bicycles, Electric motorcycles, Electric forklifts, and Golf cars.

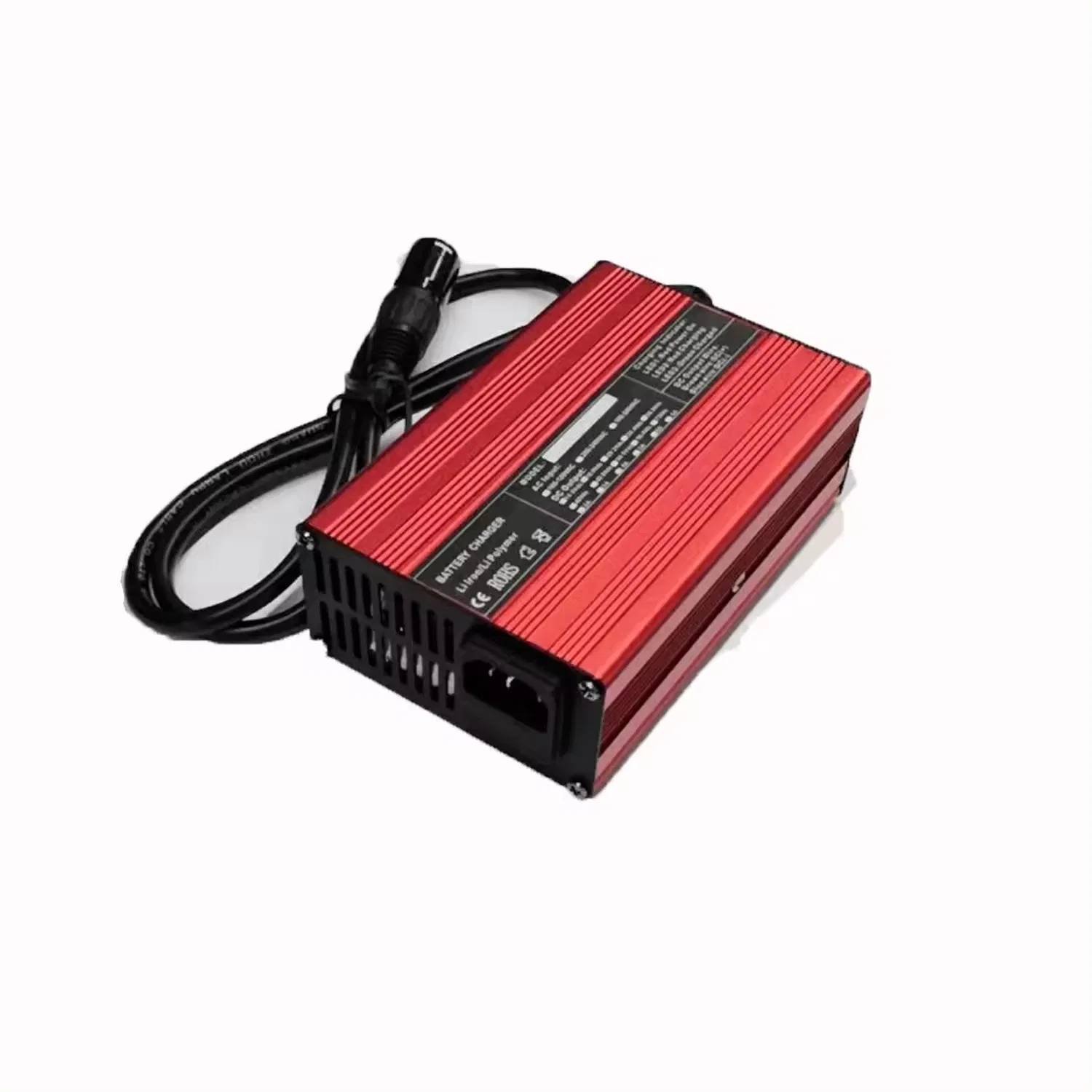

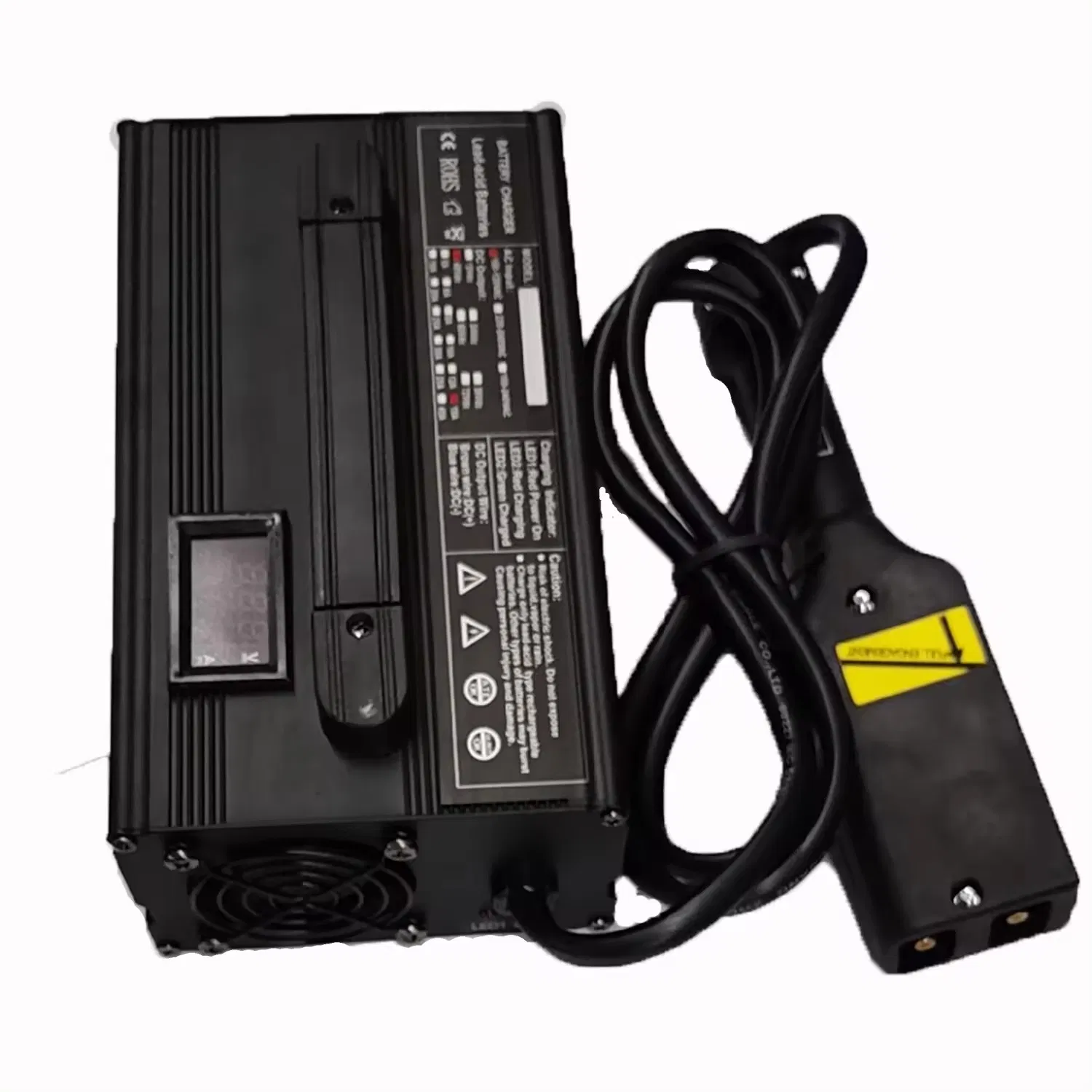

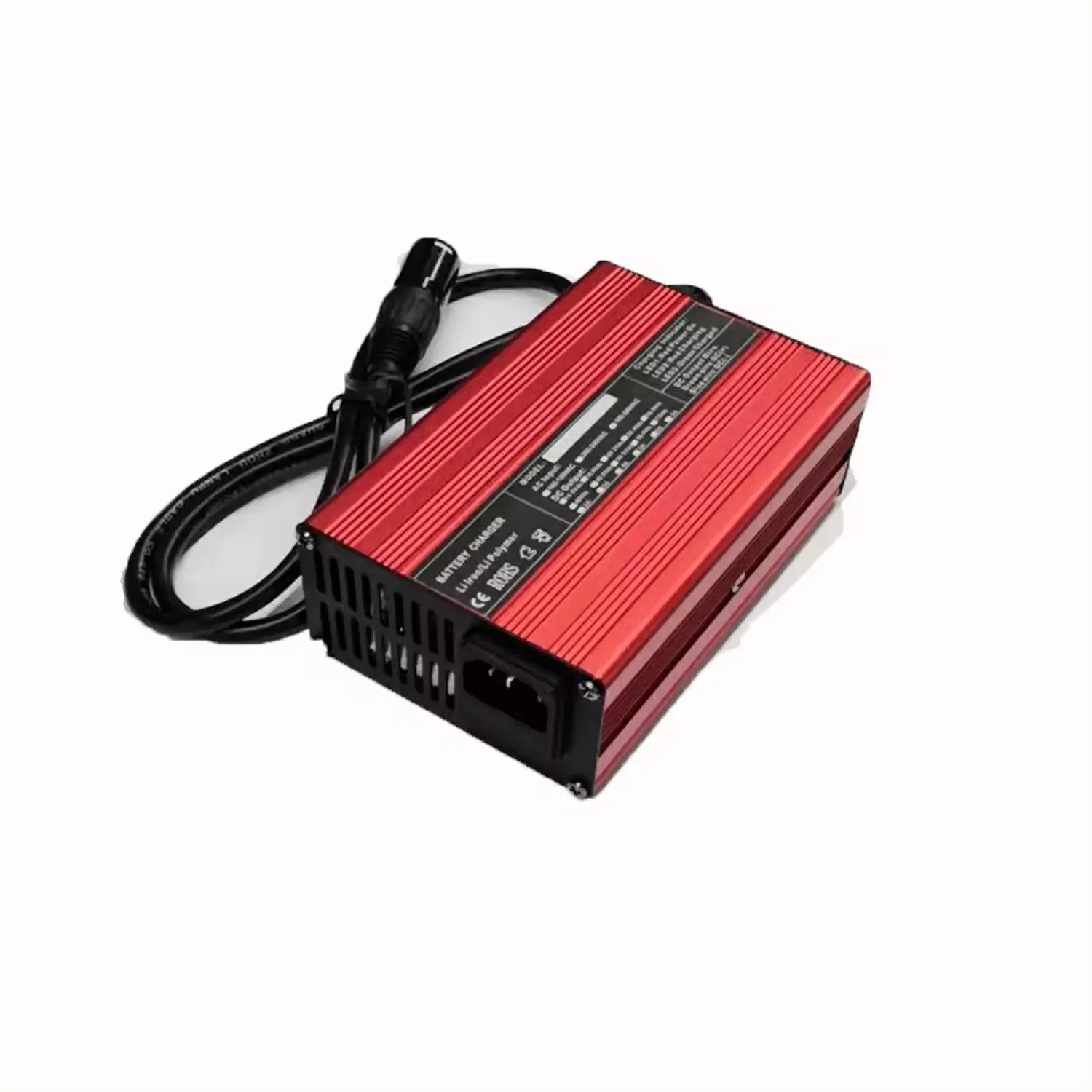

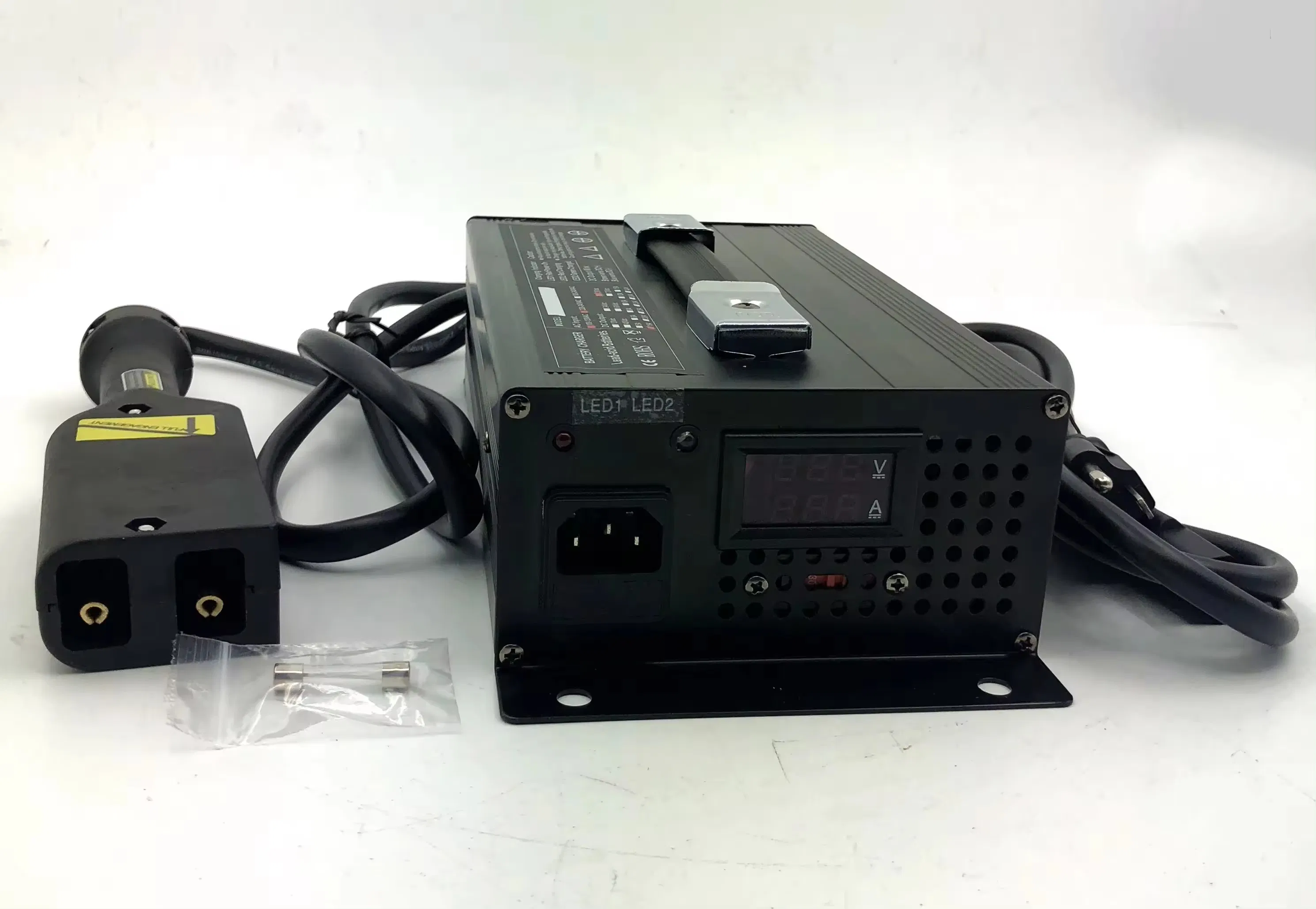

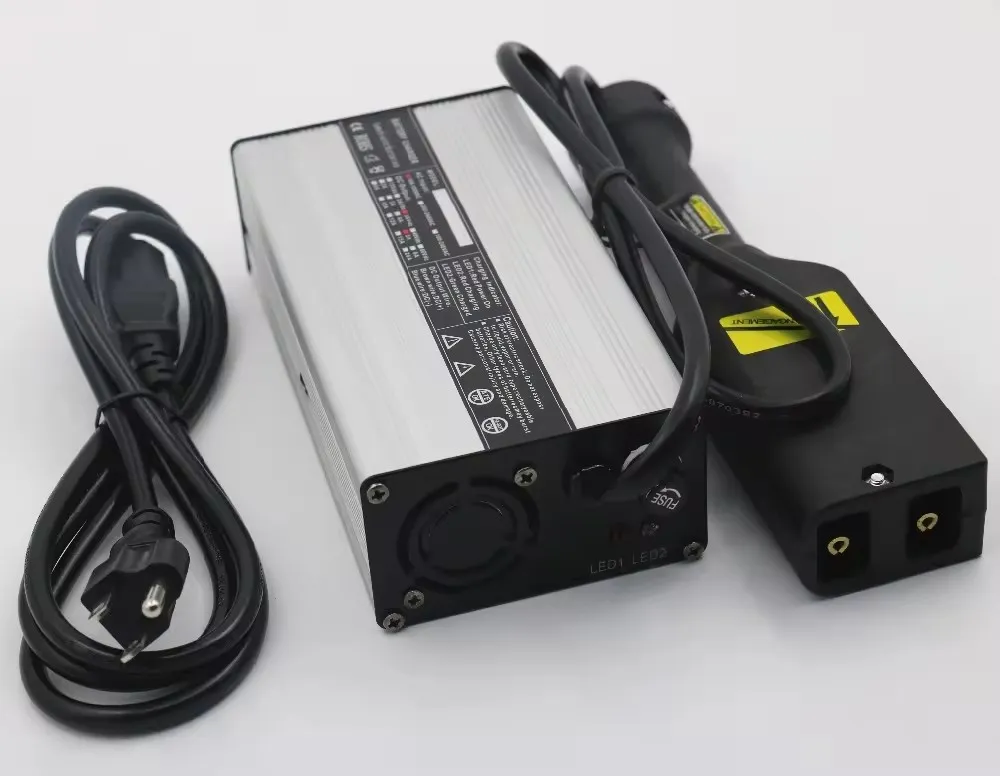

🖼️ Product Gallery

❓ Frequently Asked Questions

Q1: Which battery types can this charger support? A: It is compatible with Lead-acid, Lithium-ion (Li-Mn), and LiFePO4 batteries. The charging parameters are adjusted based on the battery type selected.

Q2: Is the charging process automatic? A: Yes, it features full automatic transition between Constant Current (CC), Constant Voltage (CV), and Float or Cut-off stages to ensure optimal battery health.

Q3: What safety features are included? A: The charger includes multiple protection layers: over-current, over-voltage, short circuit, and reverse polarity protection.

Q4: How do I know the charging status? A: The unit is equipped with two LED indicators that provide a clear visual signal of the current charging status.

Q5: Can I request customized functions? A: Yes, we offer customized production for features such as BMS communication, predicted charging, regular recharging, and Active Power Factor Correction (PFC).

Q6: What is the efficiency and material of the charger? A: The charger has an efficiency rating of over 88% and is housed in a durable, elegant aluminum alloy shell.
