Hyper Charger
1 / 5
Our rectifiers bring advanced technology to the DC power industry. Innovative engineering combines the best in efficiency and reliability to meet the power requirements for a variety of system applications. This rectifier is specifically designed to recharge all types of stationary batteries for large utility, petrochemical and industrial uses.

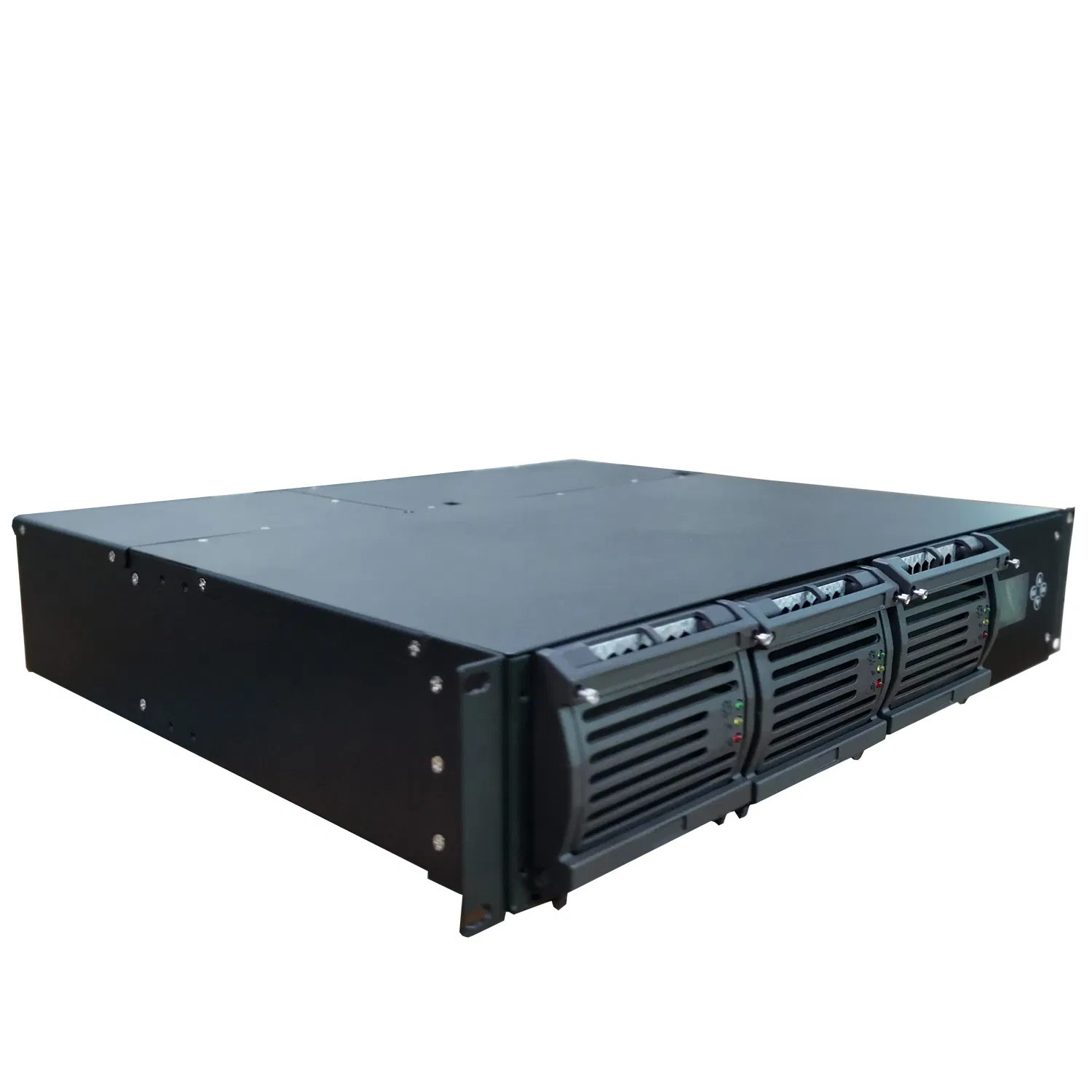

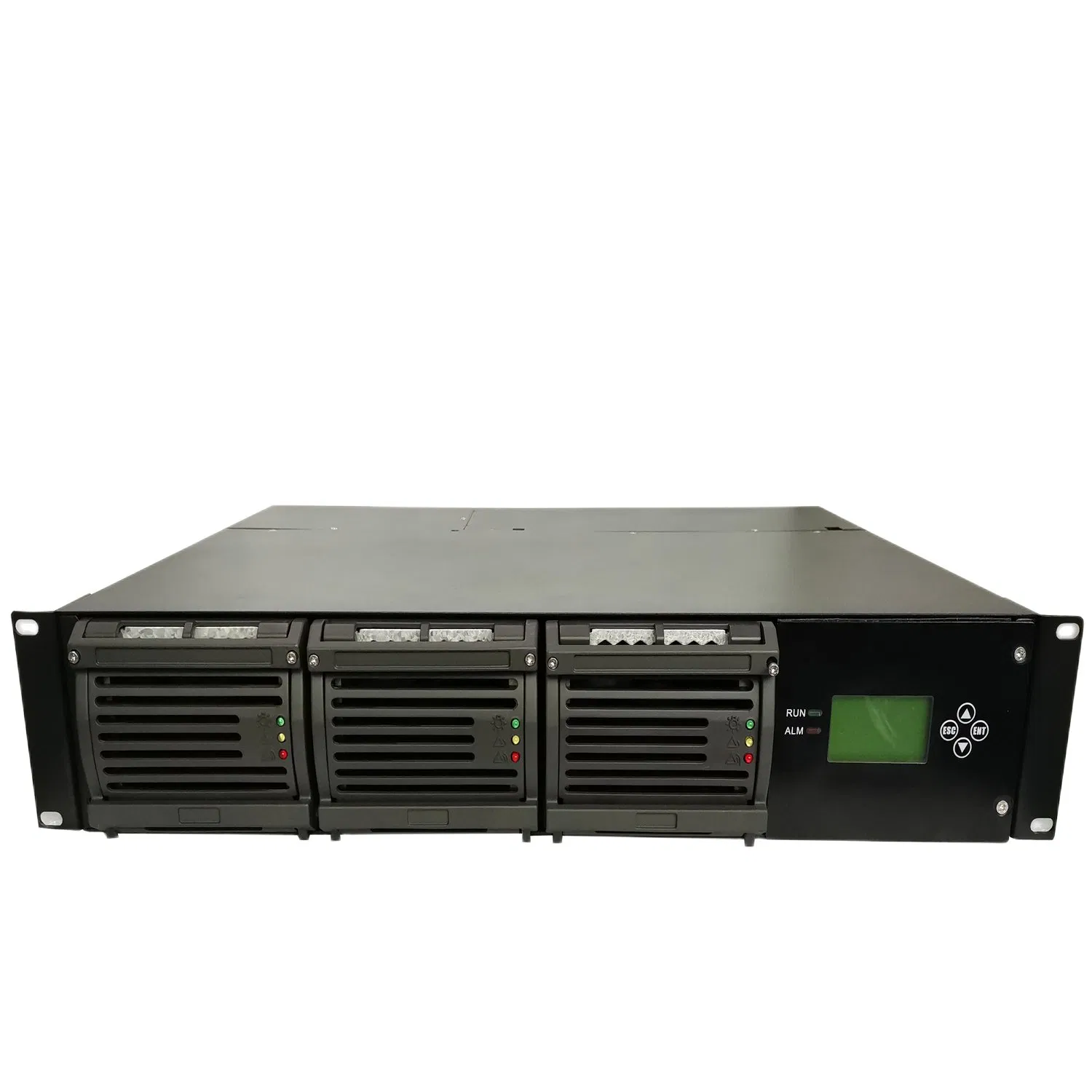

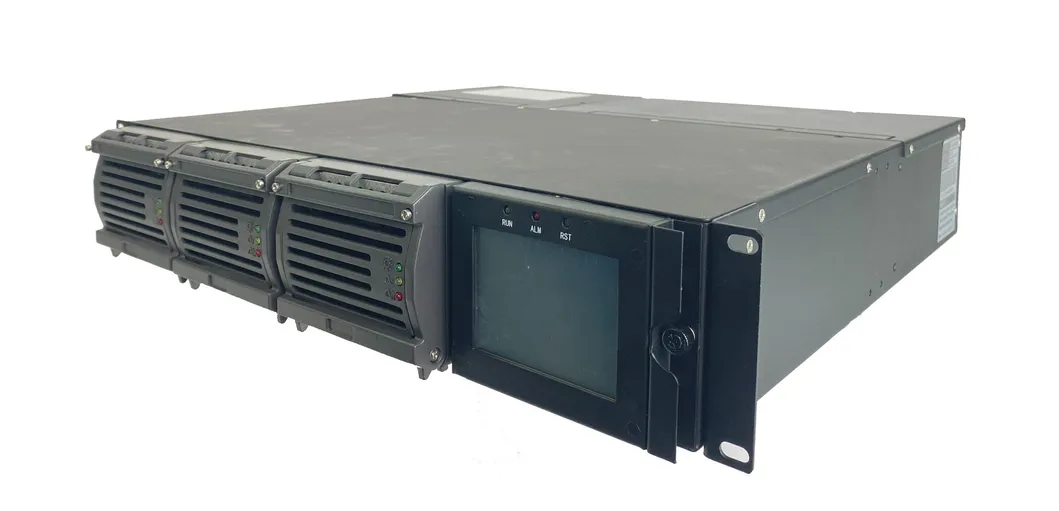

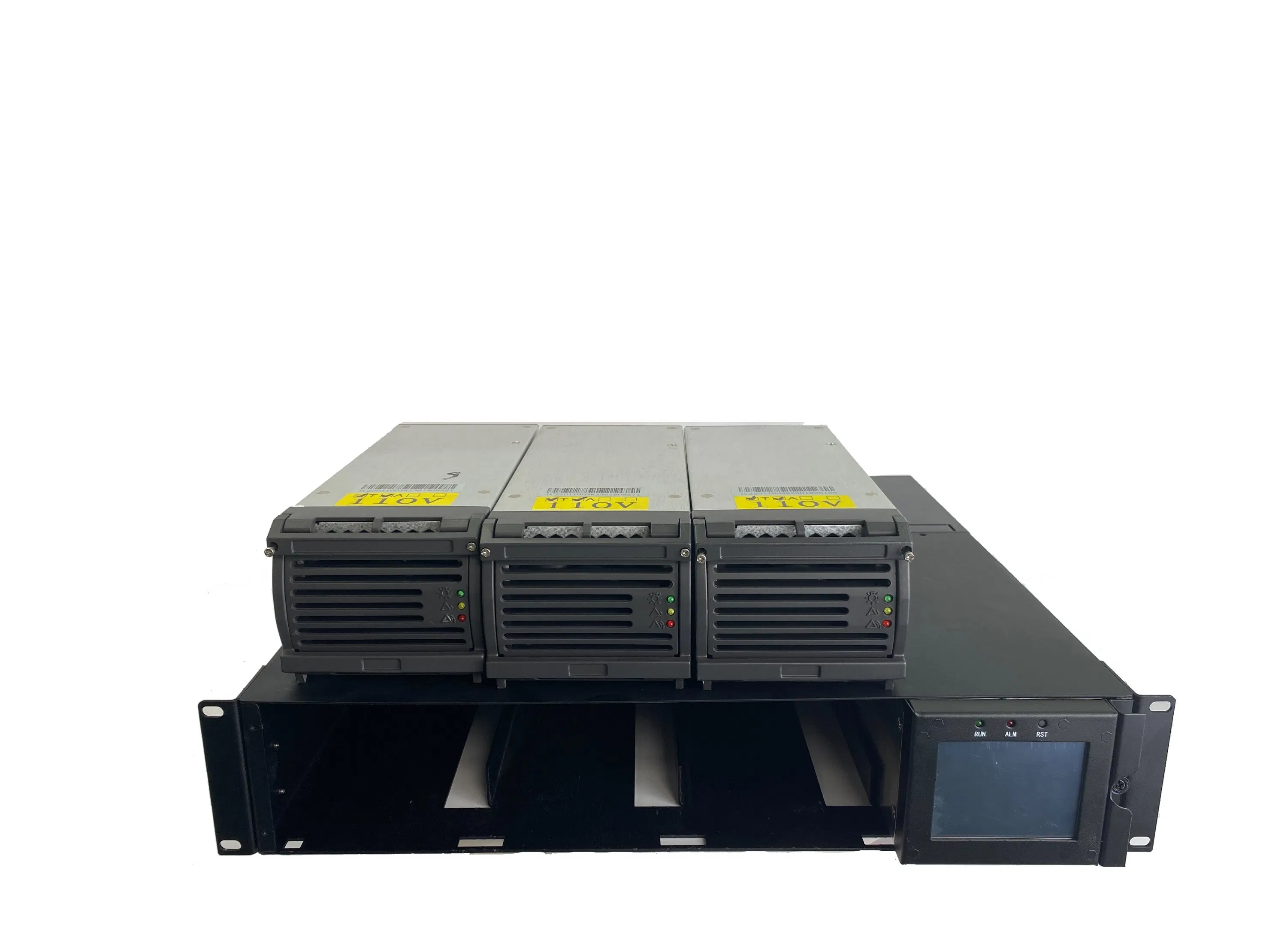

The fan cooled rectifier module has extremely high density providing the most power in the least amount of space. A compact shelf accommodates four rectifiers per 19in 2U shelf and can be paralleled up to 5*2U 19in shelf.

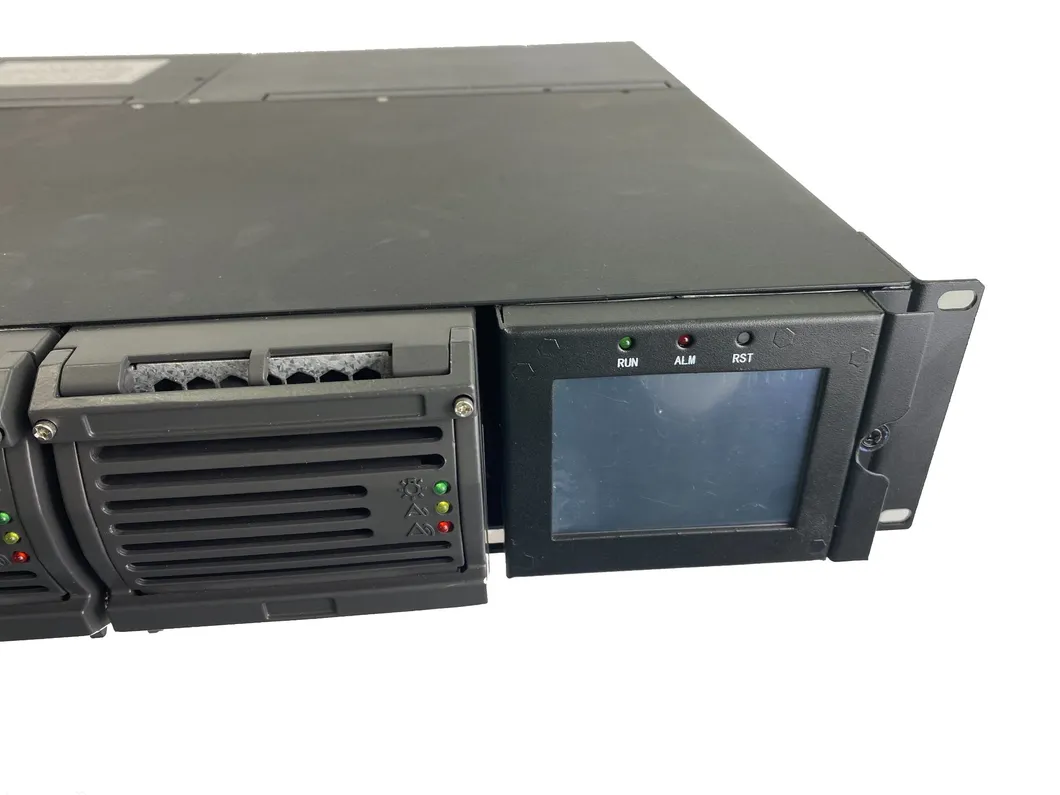

Local and remote setup, adjustment and control is a simple, single-step process with the rectifier System Controller. By utilizing TCP/IP technology, complete configuration and monitoring of power equipment is possible through a standard web browser.
| MODEL | 22030-1P | 22070-3P | 220110-3P | |
|---|---|---|---|---|
| Environmental | Operating Temp | -40°C ~ 55°C | ||
| Relative Humidity | ≤ 90%RH (30°C) | |||
| Altitude | ≤ 2000m | |||
| AC Input | Input System | 220Vac (L+N+PE) | 380Vac (L1+L2+L3+N) | |
| Voltage Range | 90VAC ~ 280VAC | 323-437VAC | ||
| Power Factor | ≥ 0.99 | |||
| DC Output | Nominal Voltage | 220VDC | ||
| Rated Capacity | 7.5kW | 17.5kW | 27.5kW | |
| Output Current | 30A | 70A | 110A | |
| Efficiency | ≥ 93.2% | |||
Technical Note: The SMPS based CONVERTER utilizes High Frequency (20 KHz and above) Switch Mode techniques. Resettable Fuses are provided to protect the module against failure of control or sensing circuits.
The design features automatic temperature-controlled DC fans. In case of fan failure, the module automatically switches off above 70°C and restores operation once the temperature drops, preventing fire hazards.

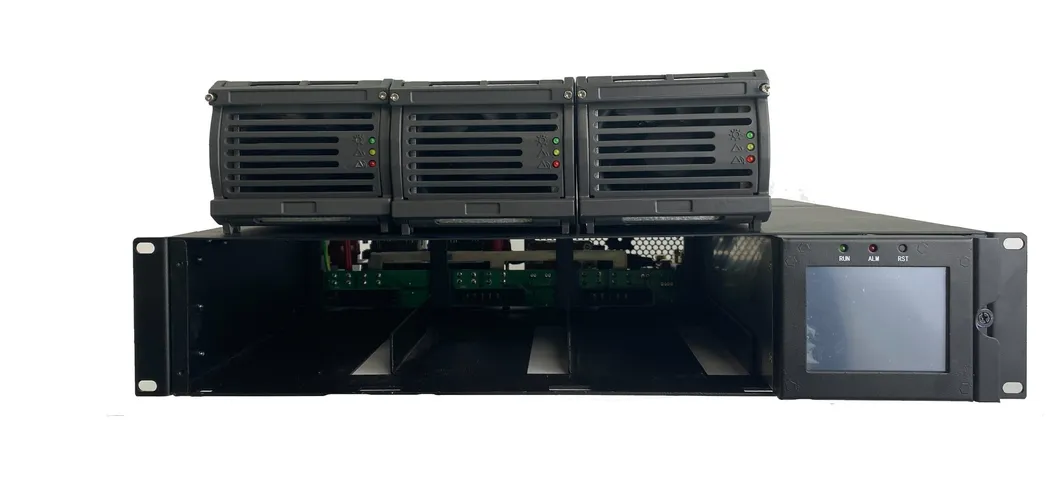

• Rack Mounted 220VDC Rectifier with Parallel Charging Converter
• Switch Mode Power Supply 110VDC Rectifier System

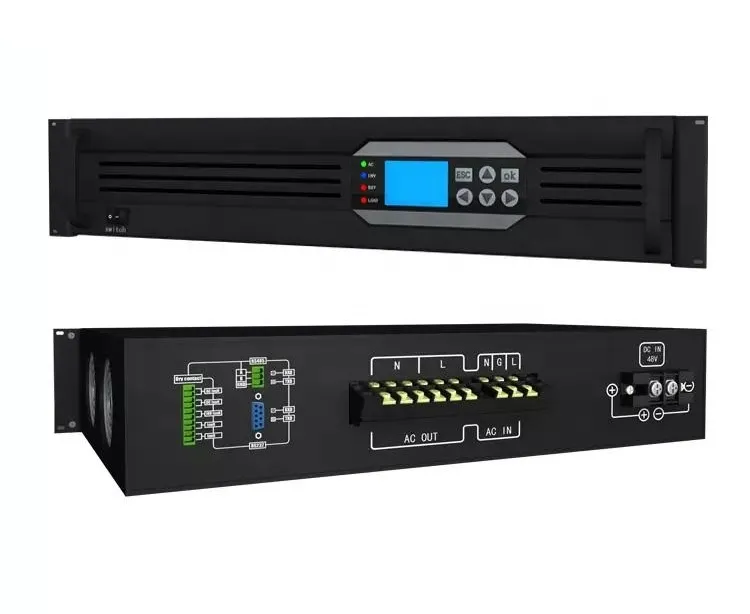

• Telecom DC-AC Inverters 48V DC
