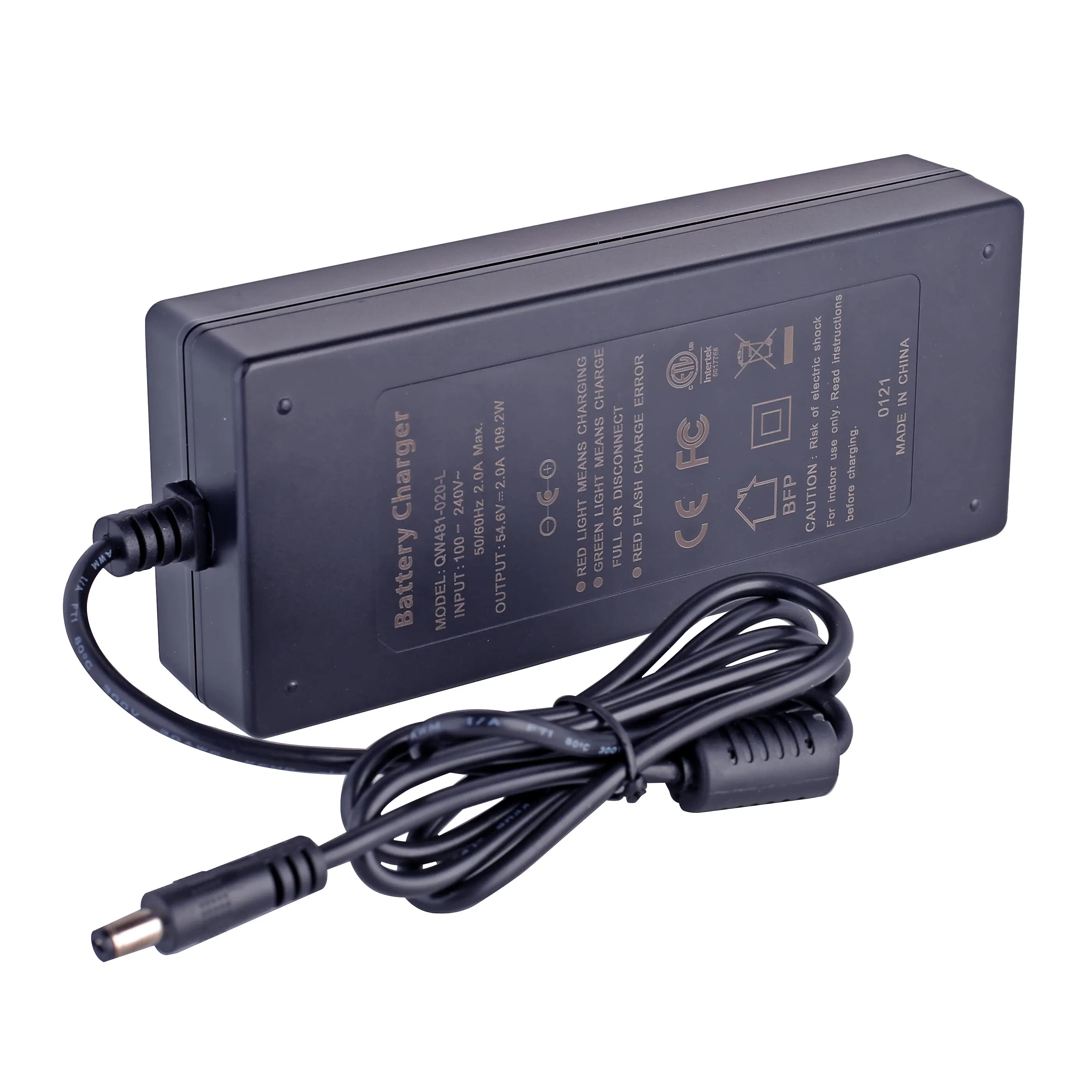

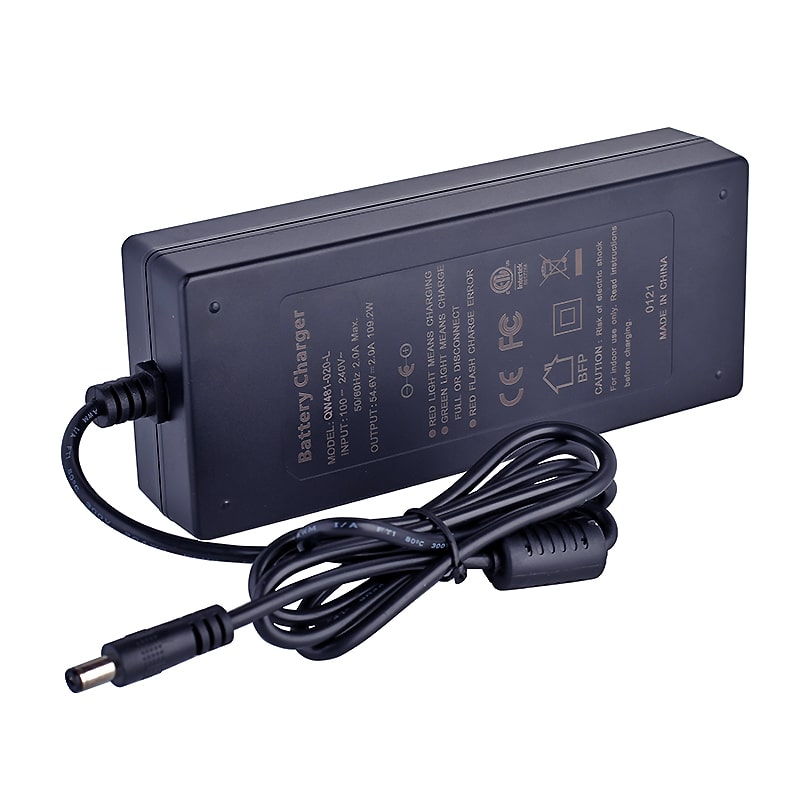

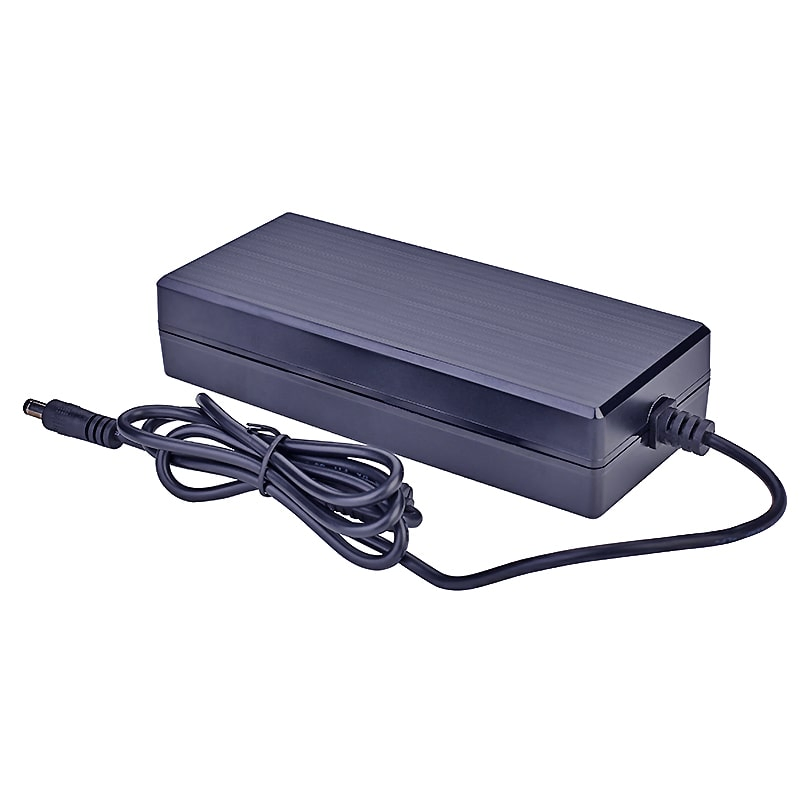

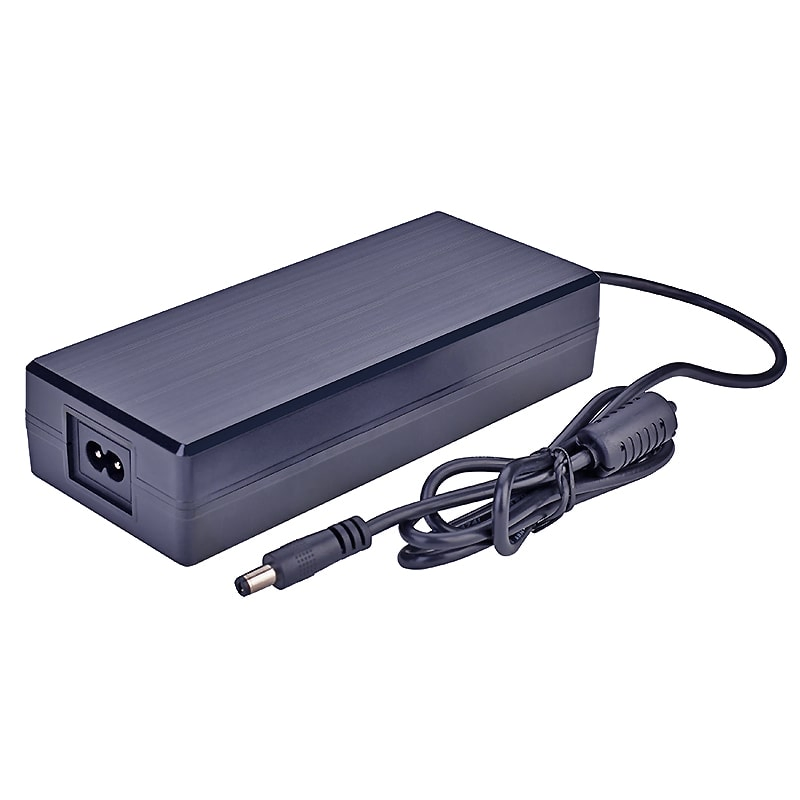

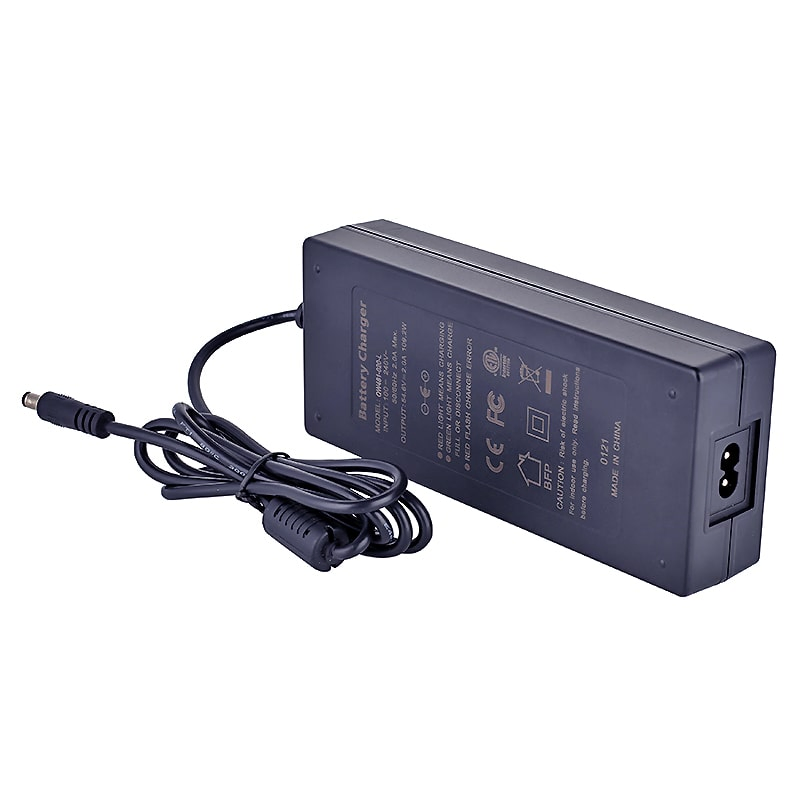

120W Battery Charger 18V/18.25V 6A Smart Charger for 5s 15V 16V 6A LiFePO4 LiFePO 4 Battery Pack Bmsi CB CCC CE ETL FCC GS Kc PSE Rcm SAA UL

1 / 5

120W Battery Charger 18V/18.25V 6A Smart Charger for 5s 15V 16V 6A LiFePO4 LiFePO 4 Battery Pack Bmsi CB CCC CE ETL FCC GS Kc PSE Rcm SAA UL

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Specification

Model NO.

QW160-060-F

Charger Application

Tablet, Laptop, Video Game Player, MP3/MP4 Player, Camera, Standard Battery

Nominal Voltage

18.25V

Charger Style

Intelligent Charger

Compatible Battery

16-Volt / 5S Lifepo4

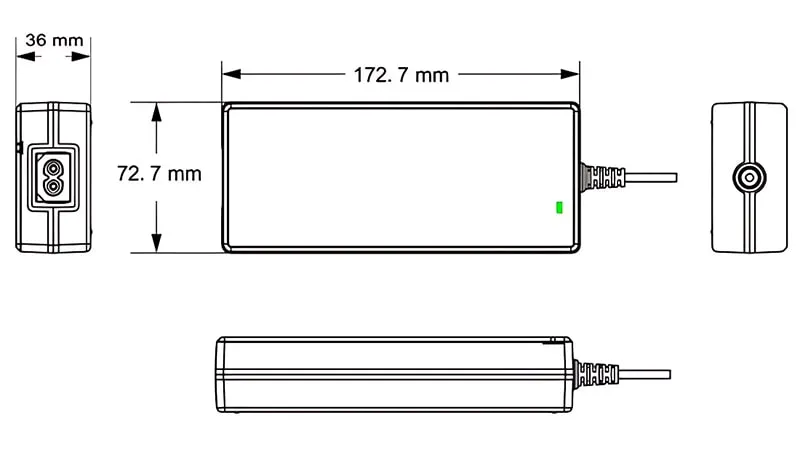

Size

172.7*72.7*36mm

Certification

KC, PSE, RoHS, CB, CE, Bmsi CCC ETL FCC GS Rcm SAA UL

Input Voltage

90-264VAC 47/63Hz

Output Power

109.5W

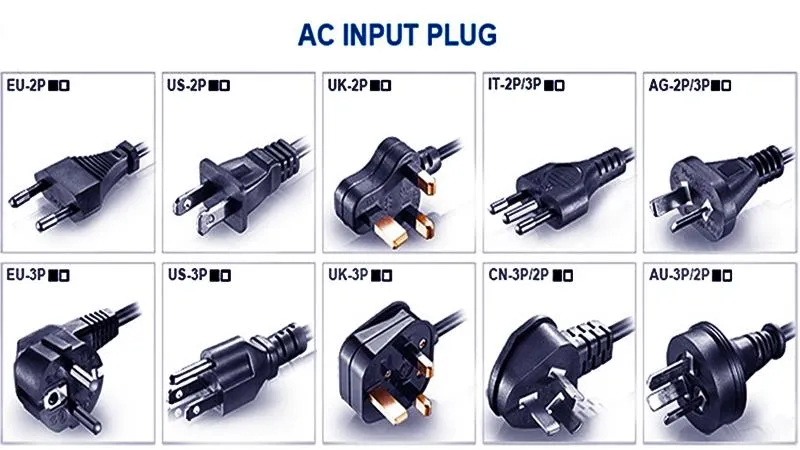

Socket Type

AU/EU/UK/US Plug

Product Description

Quick Detail • Use: 5S 15V/16V Lifepo4 battery pack
• Type: Electric Automatic Charger
• Shell: Plastic ABS+PC
• Charge Mode: CC-CV (Constant Current-Constant Voltage)

Features • Fully auto CC +CV(H)+CV(L) process
• Constant big current for faster charging
• Automatic cut-off output when full
• Quiet fanless design, quiet and durable

Safety Protections • Over current protection
• Over voltage protection
• Short circuit protection
• Anti-revert current protection

LED Indicator Instructions:
• Red LED: Charging in progress
• Green LED: Battery Full (Trickle-off mode)
• Red Flashing: Error detected

Typical Product Models

Model	Battery Type	Input Voltage	Battery Voltage (V)	Charging Voltage (V)	Charging Current (A)
QW128-070-F	LiFePO4	AC 100~264V	12.8(4S)	14.6	7
QW256-040-F	LiFePO4		25.6(8S)	29.2	4
QW384-025-F	LiFePO4		38.4(12S)	43.8	2.5
QW148-070-L	Lithium		14.8(4S)	16.8	7
QW370-025-L	Lithium		37(10S)	42	2.5
QW120-070-S	Lead Acid		12(1S)	14.7	7

Product Visuals

Frequently Asked Questions

What battery types is the QW160-060-F compatible with?

This charger is primarily designed for 5S 15V/16V LiFePO4 battery packs, but the series also includes models compatible with standard Lithium and Lead Acid batteries.

Does the charger support global input voltages?

Yes, it supports a wide input voltage range of 90-264VAC at 47/63Hz, making it suitable for use in most countries.

How does the automatic charging process work?

The charger uses a CC-CV (Constant Current-Constant Voltage) mode. It provides a constant big current for fast charging and automatically ends the process with a cut-off output when the battery is full.

What safety protections are built into the device?

The charger includes comprehensive safety features: over-current protection, over-voltage protection, short-circuit protection, and anti-revert current protection.

How can I identify the charging status via the LED?

A Red LED indicates the unit is charging. A Green LED indicates the battery is full. A Flashing Red light indicates an error in the charging process.

Is the charger noisy during operation?

No, the charger features a fully enclosed fanless design, ensuring quiet operation and enhanced durability by preventing dust ingress.
