Hyper Charger
1 / 5

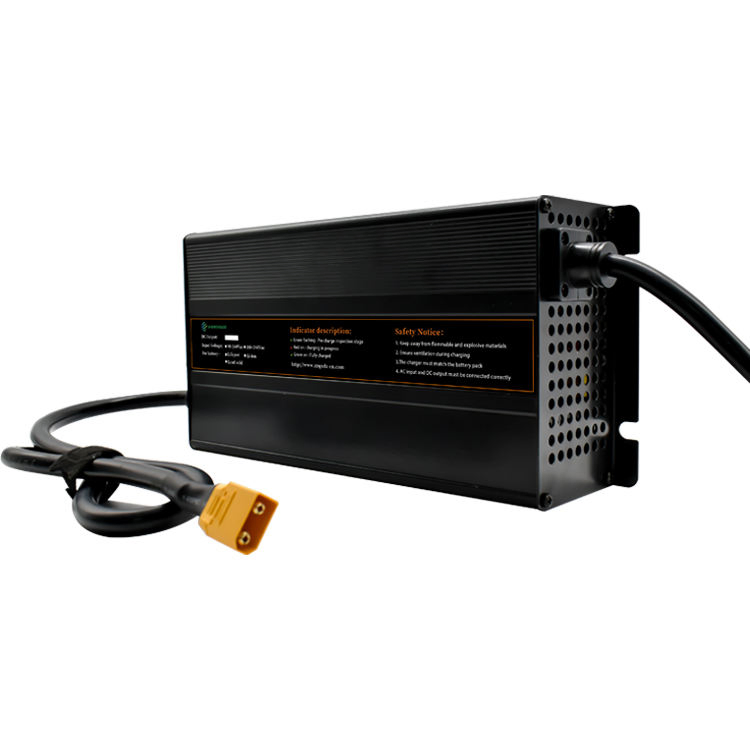

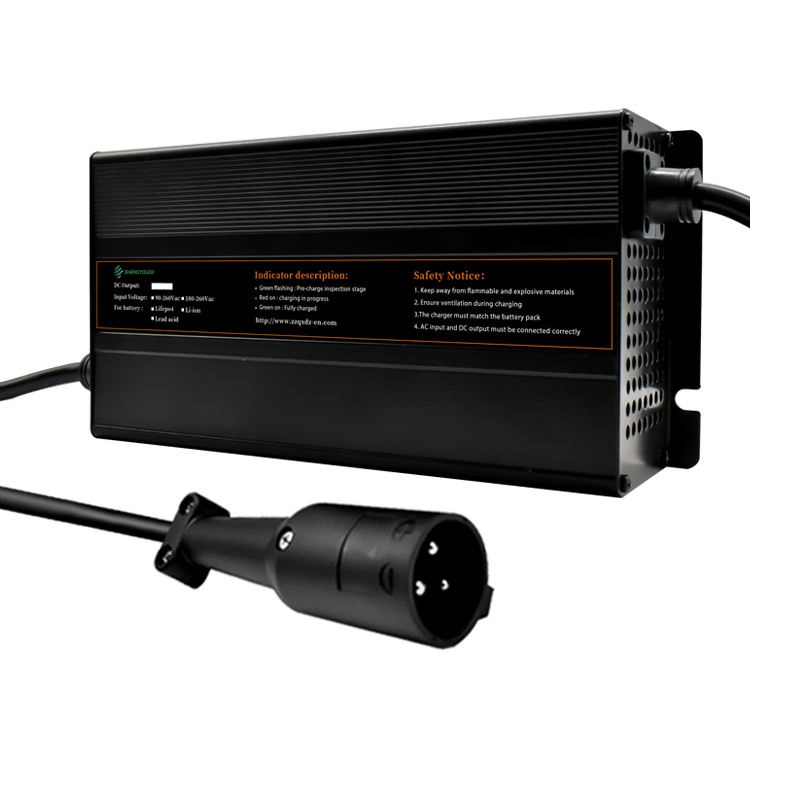

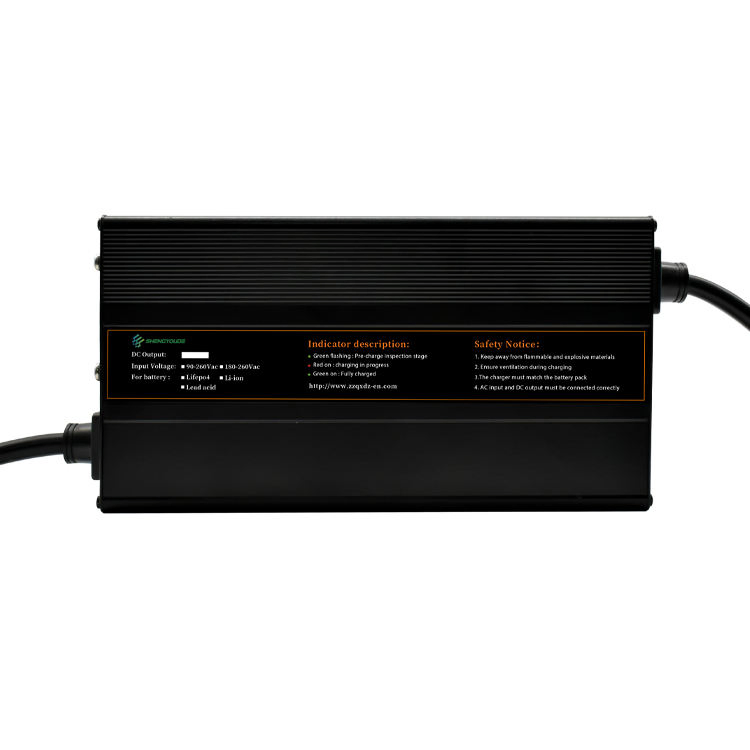

Intelligent Battery Chargers: These smart chargers are designed for lead-acid, LiFePO4, and lithium batteries. They are ideal for electric cars, forklifts, sightseeing cars, patrol cars, golf carts, and electric dining vehicles.

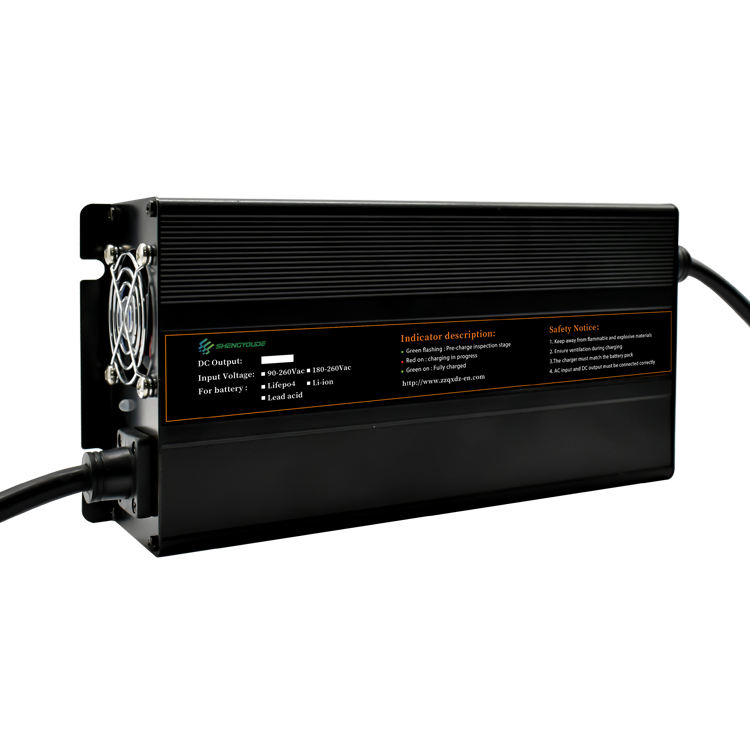

The fully enclosed aluminum alloy shell provides faster heat dissipation, while the intelligent temperature control fan ensures long-term stable operation. With an IP34 rating, it is splash-proof and rain-proof, making outdoor use reliable and safe.

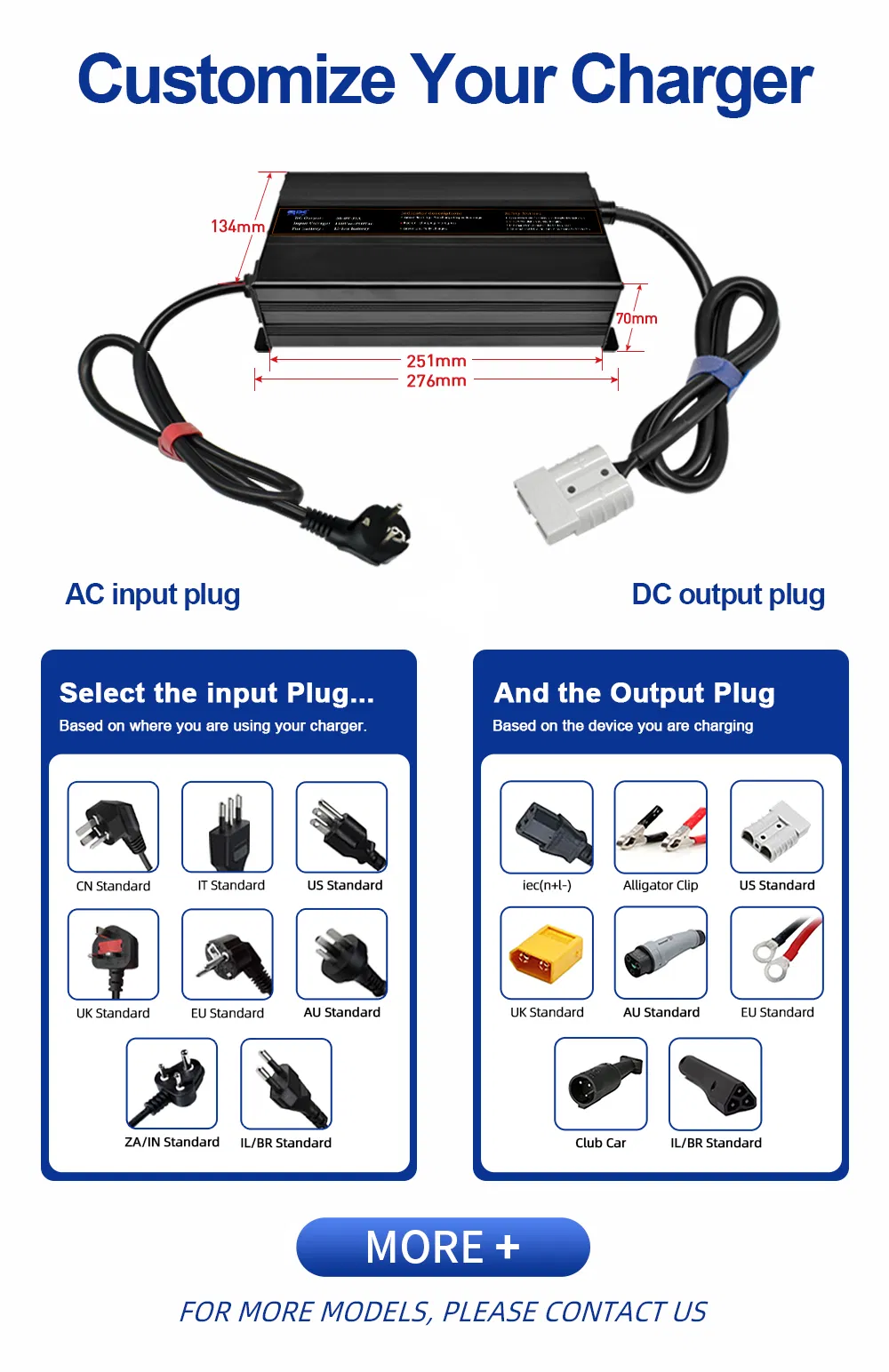

| Rated Voltage | Lead Acid (CV) | Li-ion (CV) | LiFePO4 (CV) | CC @220Vac | Size (mm) |
|---|---|---|---|---|---|
| 12V | 14.7V | 16.8V | 14.6V | 50A | 251*134*70 |
| 24V | 29.4V | 33.6V | 29.2V | 50A | 251*134*70 |
| 36V | 44.1V | 42V | 43.8V | 35A | 251*134*70 |
| 48V | 58.8V | 54.6V | 58.4V | 35A | 251*134*70 |
| 60V | 73.5V | 71.4V | 73V | 30A | 251*134*70 |
| 72V | 88.2V | 84V | 87.6V | 25A | 251*134*70 |
* Note: Cut-off point for Li battery is 5% of CC (adjustable between 3-10%).

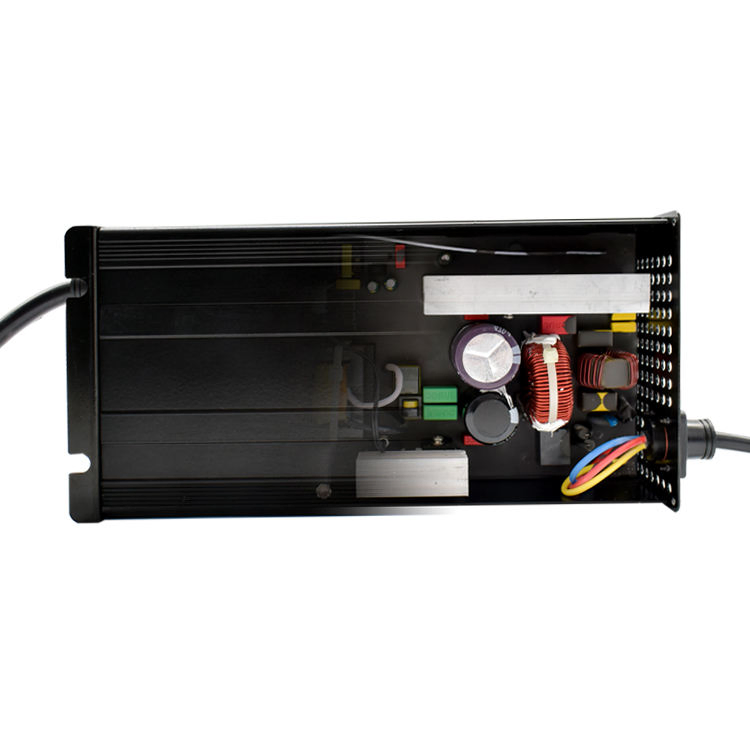

Precise mounting of electronic components on PCB.
Firm electrical connections for plug-in components.
Initial functional circuit performance testing.
Sealing for waterproof and shockproof performance.
Continuous power-on test for long-term reliability.
