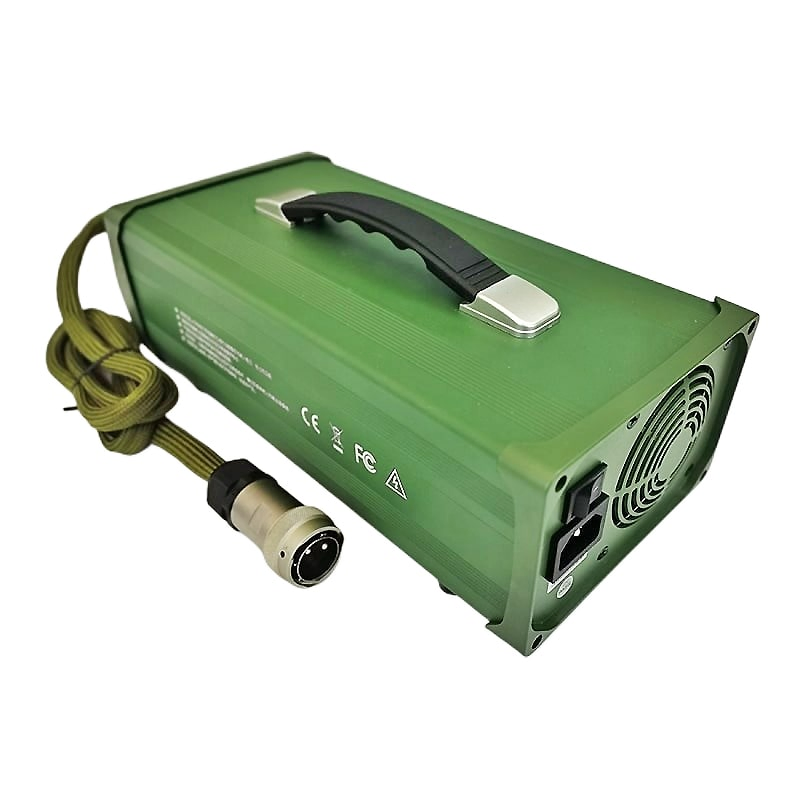

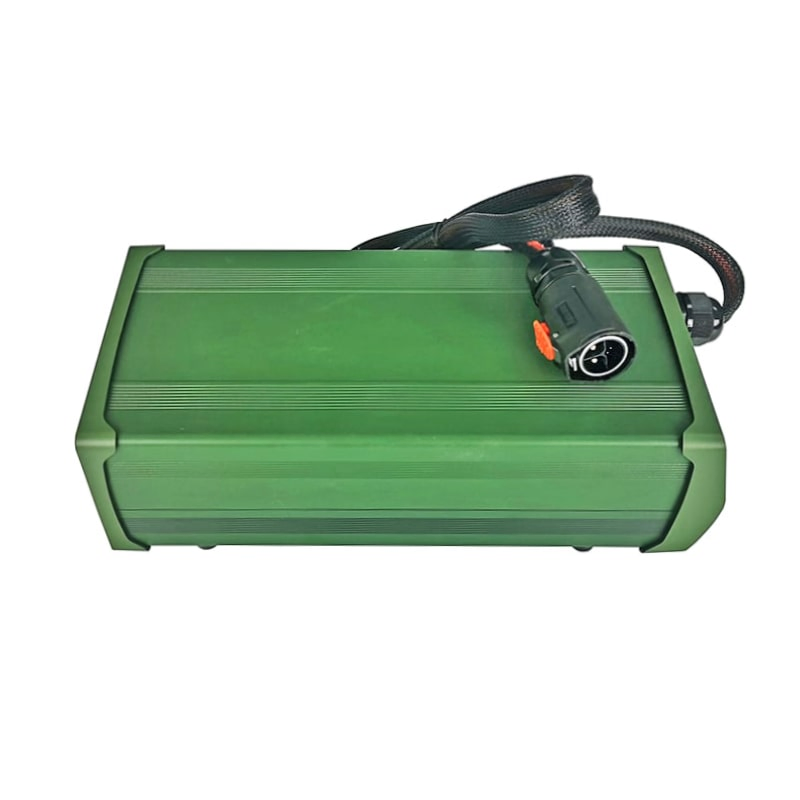

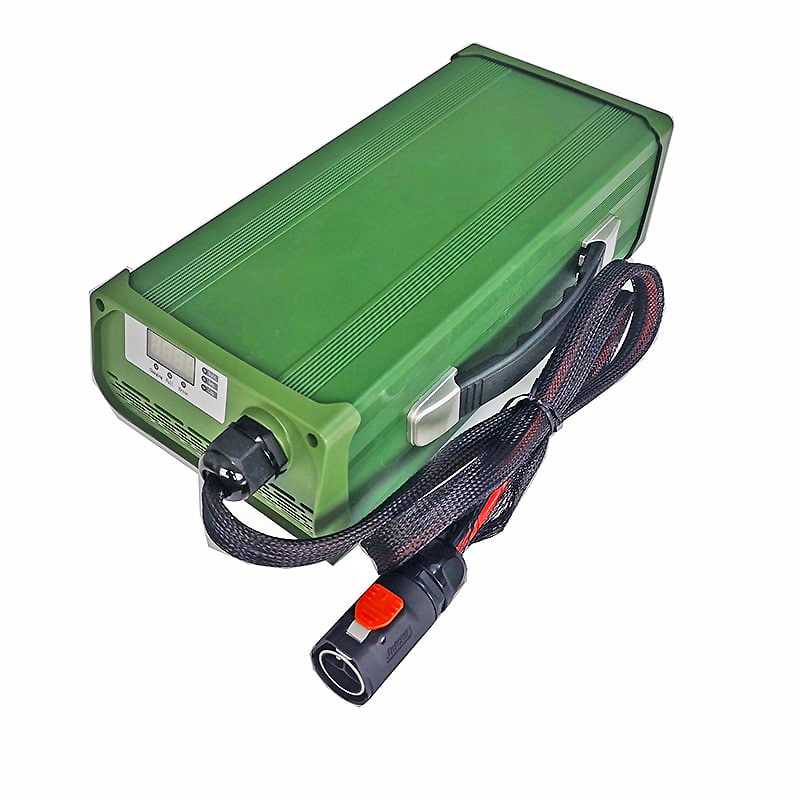

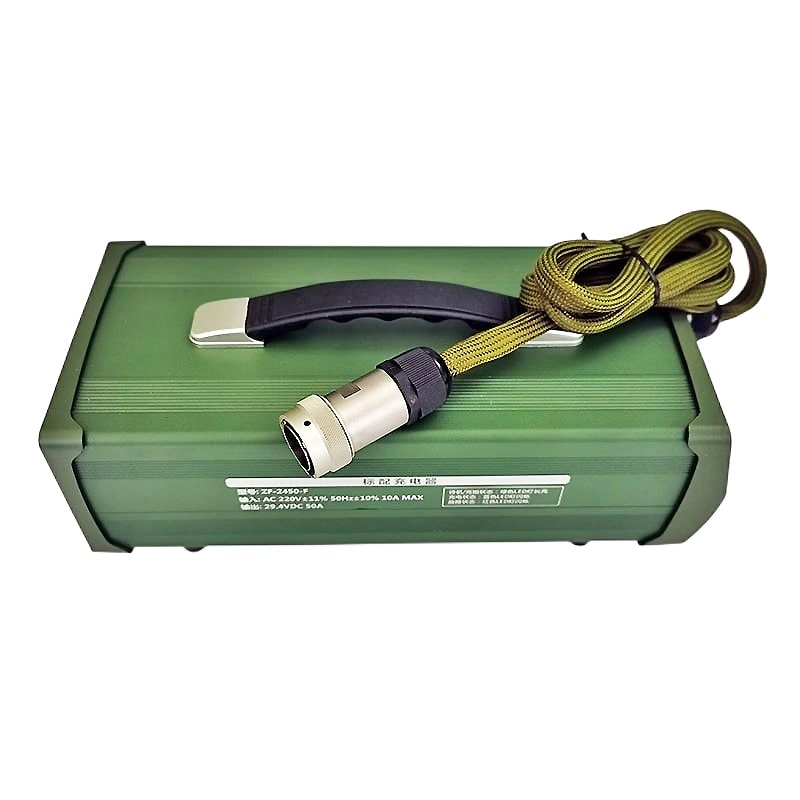

DC 72V 73V 15A 1200W Low Temperature Charger for 20s 60V 64V LiFePO4 Battery Pack with Pfc with CE for Electric Golf Cart Garden Tools with CE

1 / 5

DC 72V 73V 15A 1200W Low Temperature Charger for 20s 60V 64V LiFePO4 Battery Pack with Pfc with CE for Electric Golf Cart Garden Tools with CE

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

QW640-150-FM

Application

Standard Battery

Nominal Voltage

73V

Charger Style

Intelligent Charger

Compatible Battery

60V

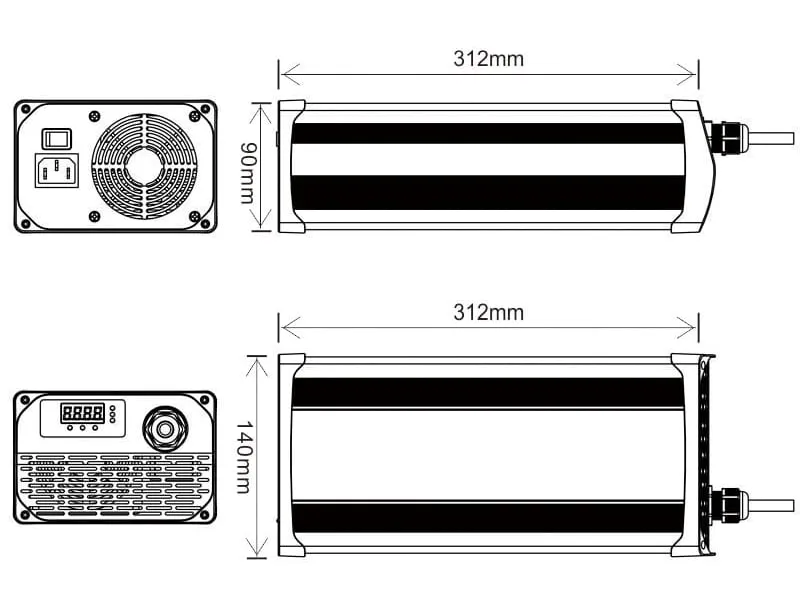

Size

312*140*90mm

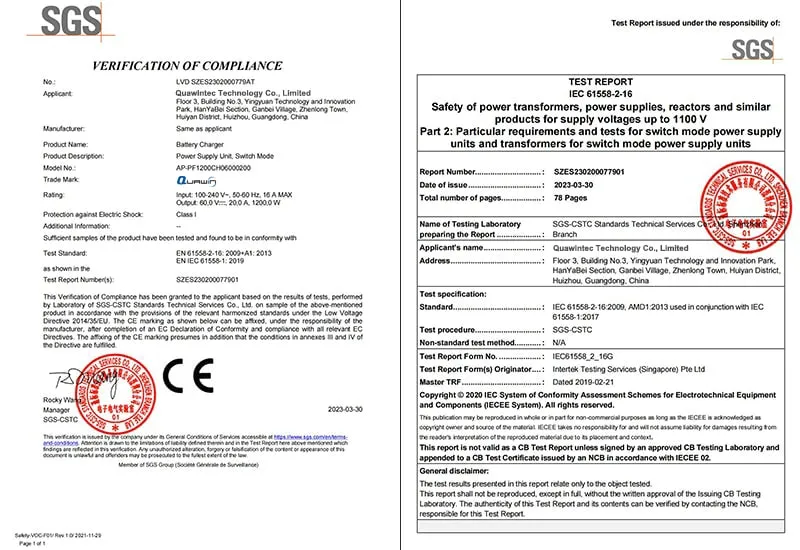

Certification

RoHS, CE

Input Voltage

100-240VAC 50/60Hz

Color

Black/Armygreen

Specification

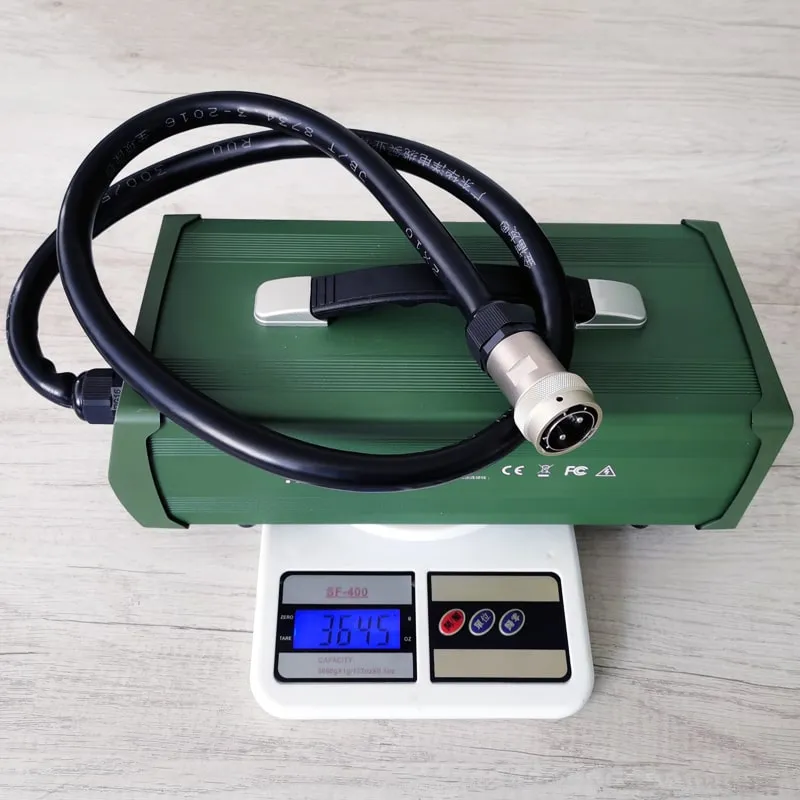

Weight: 3650g (body only)

Product Description

📋Quick Details

Model: QW640-150-FM
Use: 20S 60V/64V Lifepo4 battery pack
Output Power: 1095W
Max Output Current: 15A
Charge Mode: CC-CV (Constant Current-Constant Voltage)
Efficiency: ≥90% (at 100% load)
Shell Material: Aluminum alloy

🛡️Safety Protections

Over Voltage Protection
Short Circuit Protection
Polarity Error Protection
Over Power Protection

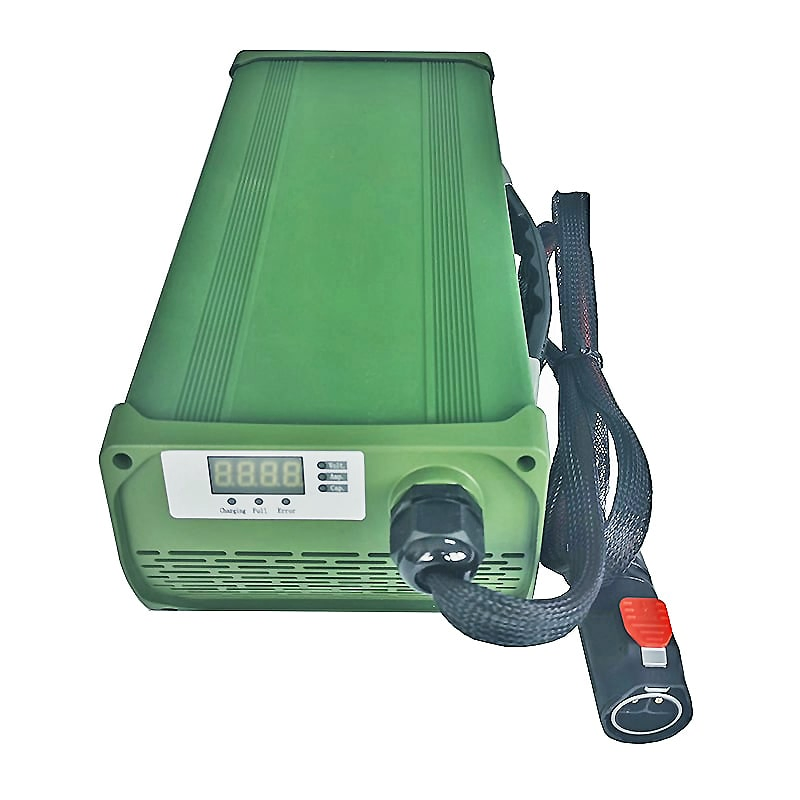

💡LED Indicators

Waiting: Green ON

Charging: Blue FLASH

Full Charged: Green ON

Error: Red FLASH

Typical Model Specifications

Model	Battery Type	Input Voltage	Battery Voltage(V)	Charging Voltage(V)	Charging Current(A)
QW128-600-FM	LiFePO4	AC 100~264V	12.8(4S)	14.6	60
QW256-400-FM			25.6(8S)	29.2	40
QW512-200-FM			51.2(16S)	58.4	20
QW640-150-FM			64(20S)	73	15
QW148-600-LM	Lithium		14.8(4S)	16.8	60
QW259-400-LM			25.9(7S)	29.4	40
QW481-200-LM			48.1(13S)	54.6	20
QW740-130-LM			74(20S)	84	13
QW120-600-SM	Lead Acid		12(1S)	14.7	60
QW240-400-SM			24(2S)	29.4	40
QW480-200-SM			48(4S)	58.8	20
QW720-130-SM			72(6S)	88.2	13

Product Gallery

Frequently Asked Questions

What battery types can this charger support?

This series is highly versatile and supports LiFePO4, Lithium-ion, and Lead Acid battery packs by choosing the corresponding model (FM, LM, or SM series).

Does the charger work in extreme temperature conditions?

Yes, it is designed for durability with an operating temperature range of -40ºC to 70ºC, making it suitable for low-temperature environments.

How do I know the charging status?

The charger features a multi-color LED indicator: Blue flashing for charging, Green for waiting or full charge, and Red flashing for any charge errors.

What safety features are built into the device?

It includes multiple protection layers: Over Voltage, Short Circuit, Polarity Error, and Over Power protection to ensure the safety of both the battery and the user.

Is the input voltage compatible globally?

Yes, it supports a wide input voltage range of 100-240VAC 50/60Hz with PFC (Power Factor Correction), allowing it to be used in most countries.

What is the charging method used?

The charger utilizes the CC-CV (Constant Current-Constant Voltage) charging mode, which is optimal for maintaining battery health and efficiency.
