Basic Specifications
Type
Lead-Acid / Lithium Battery Charger
Charging Type
Automatic CC CV Charging
Charging Steps
CC, CV, Float, Cut-off
Product Overview

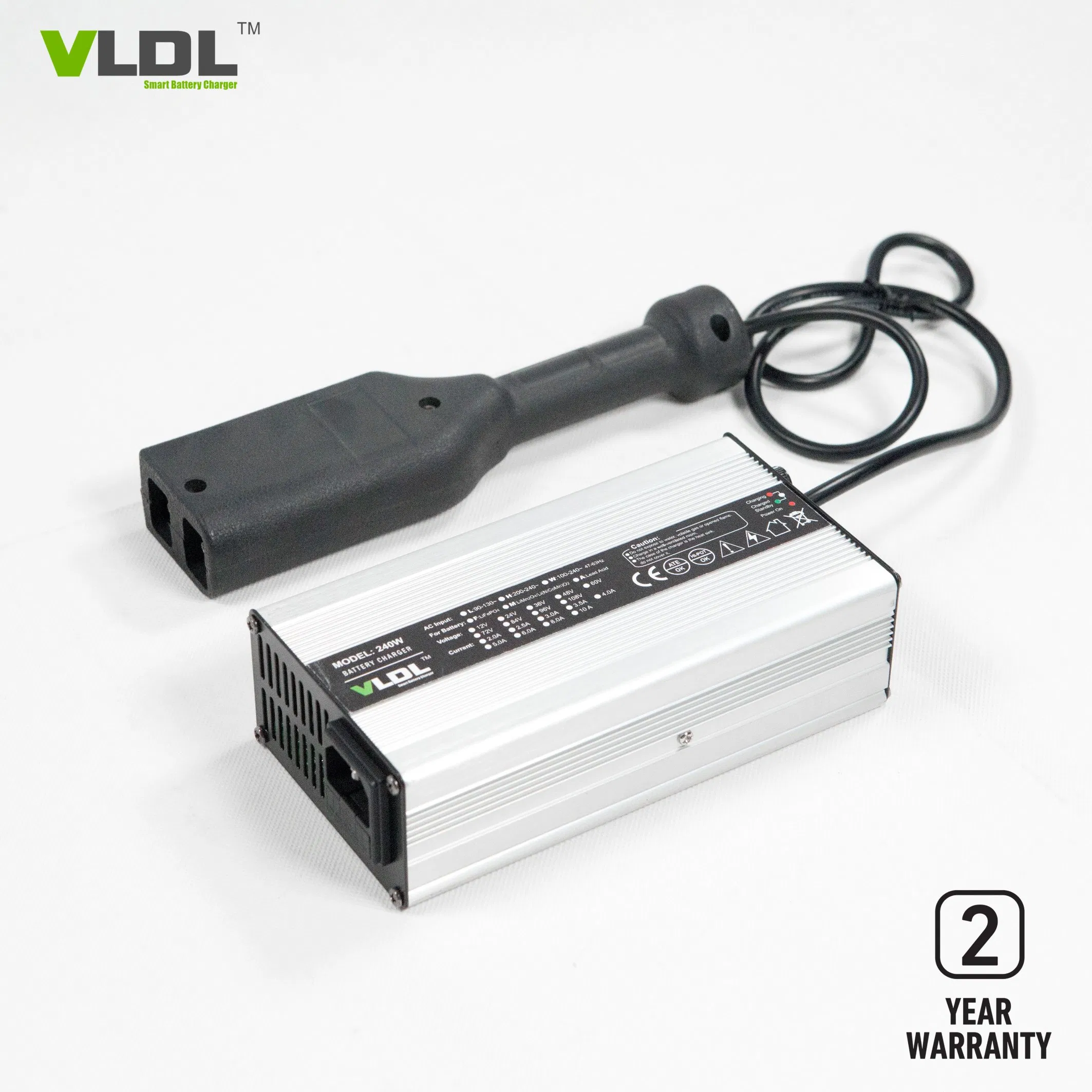

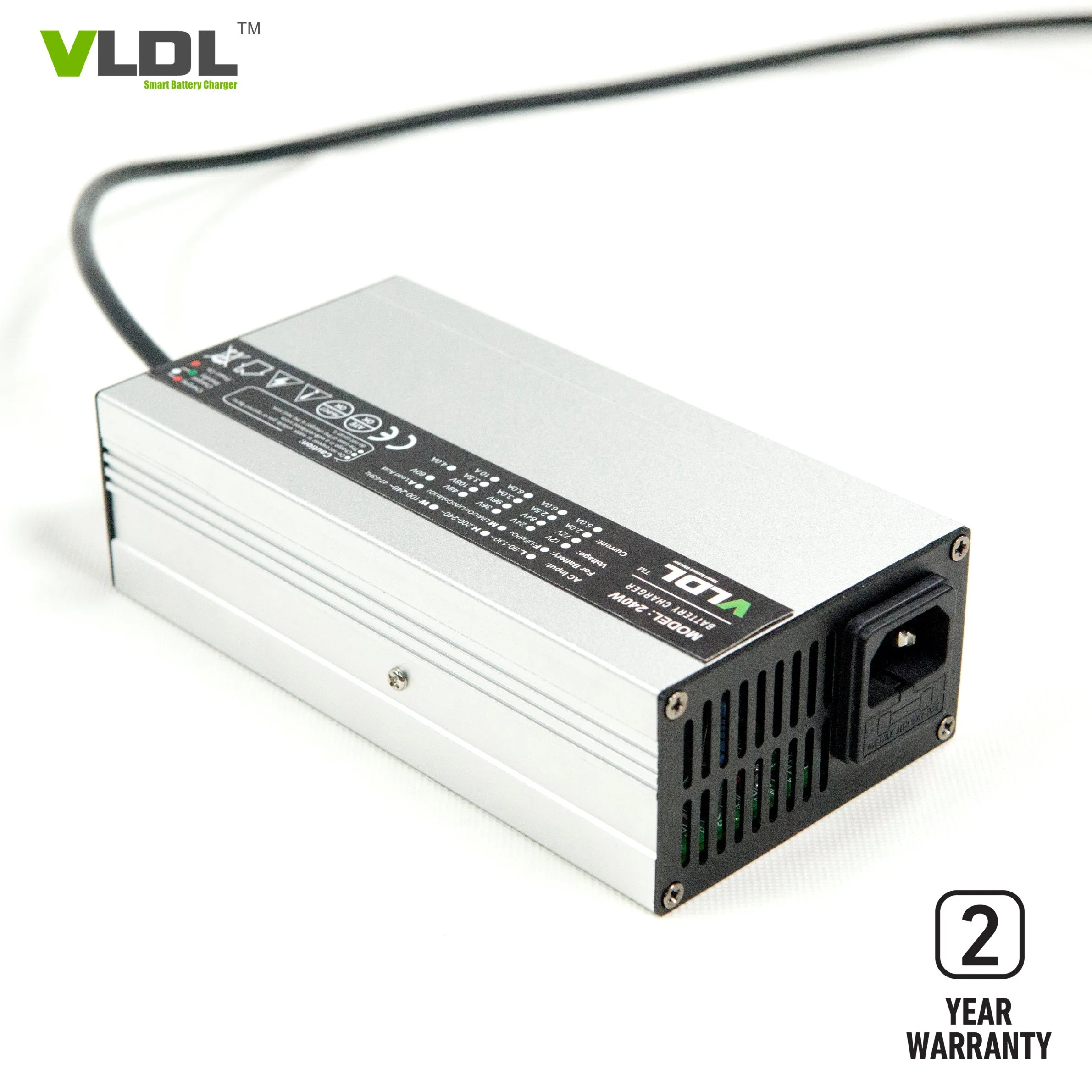

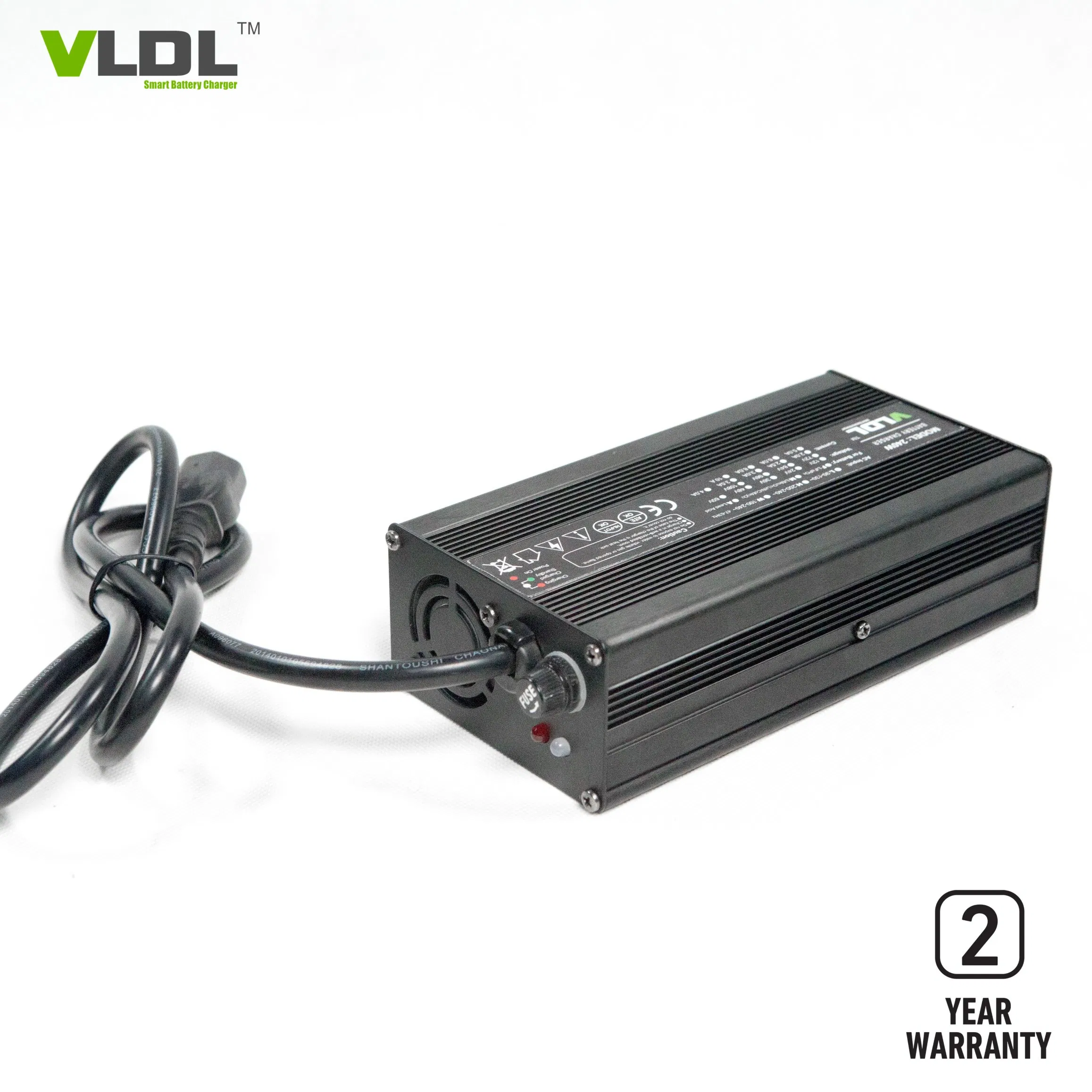

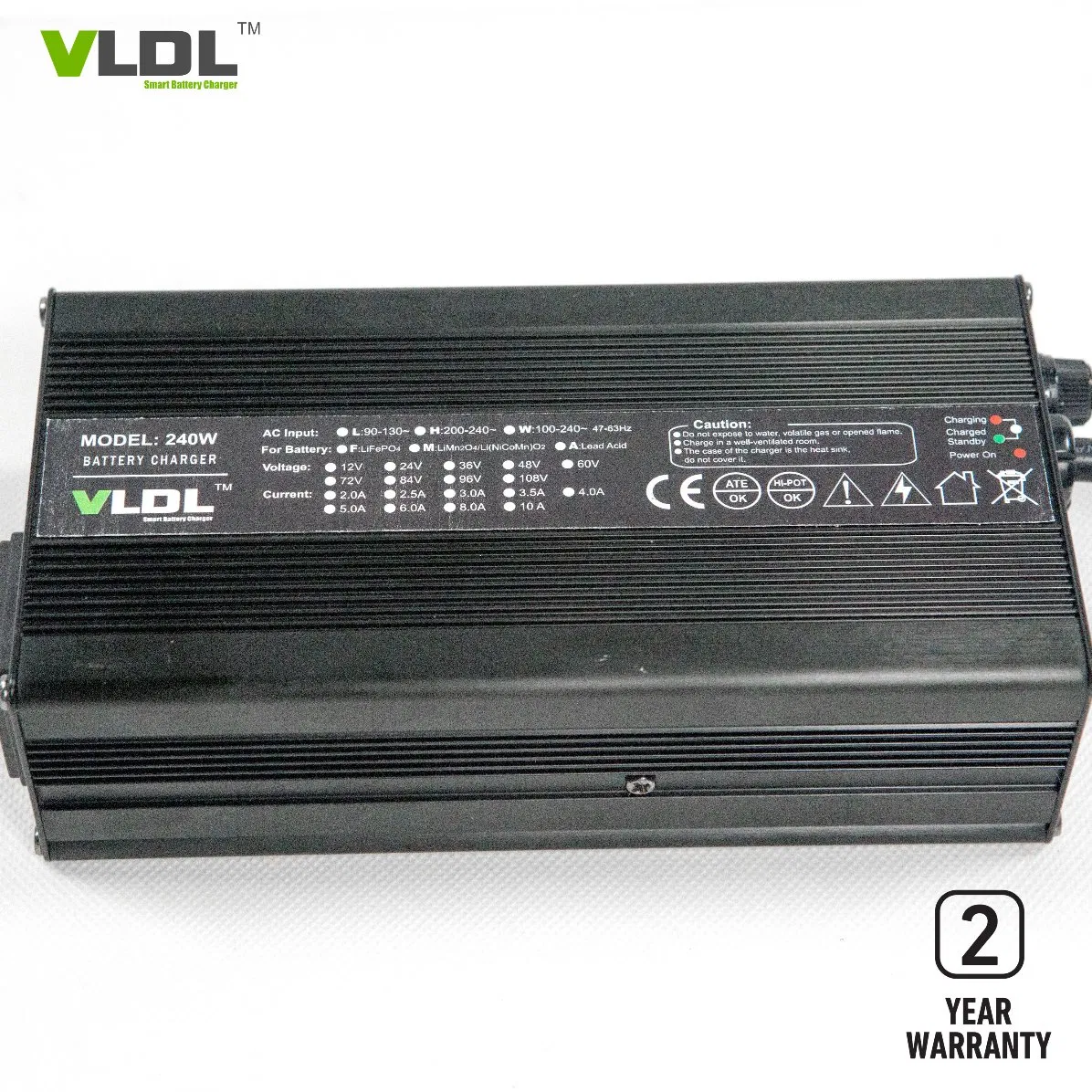

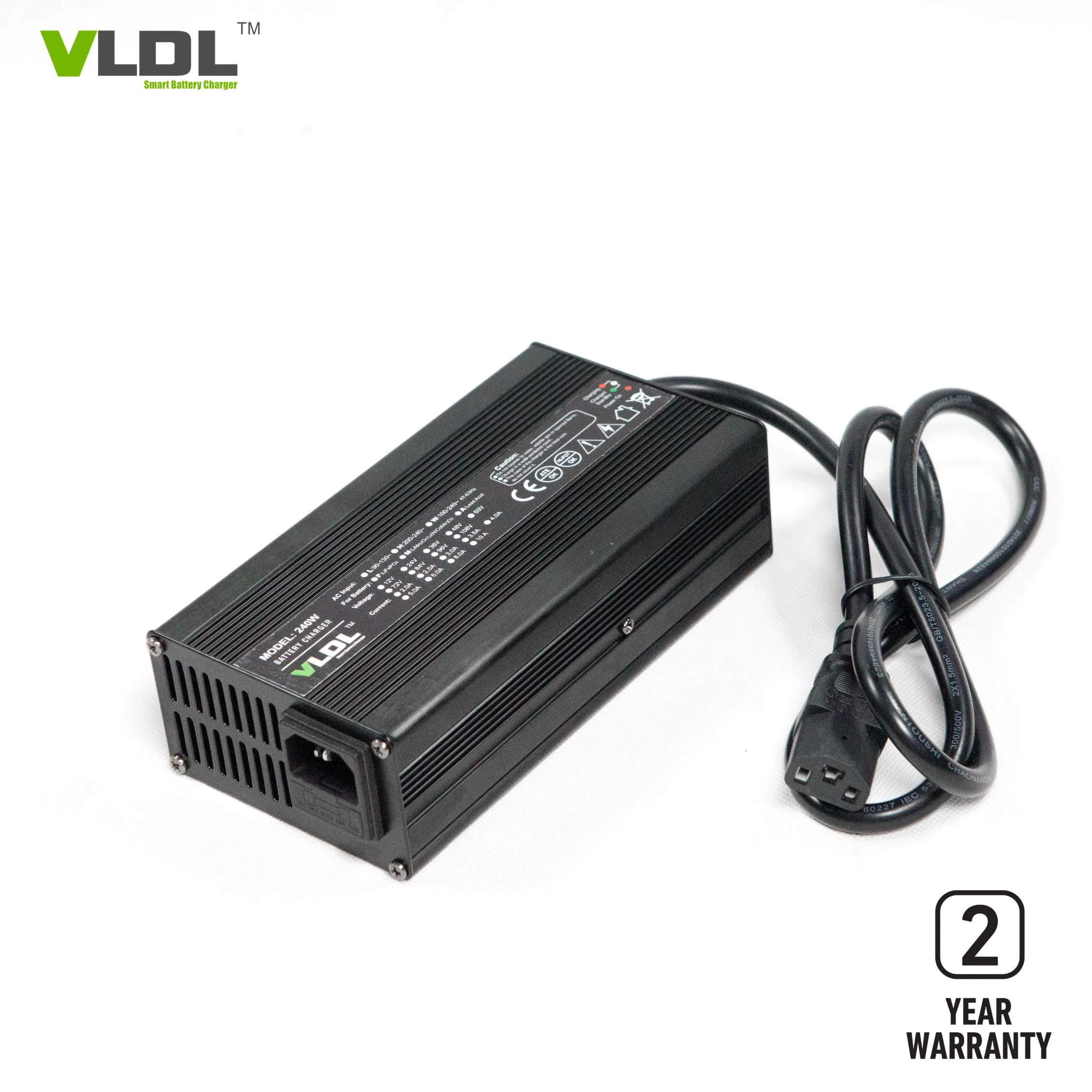

12V 10A Li-ion/LiFePO4/LiMoN2 Battery Charger
Automatic and Fast Charging: This 12V 10Amps intelligent battery charger is designed for lithium or lead-acid batteries, with a worldwide 110 to 230Vac input. It features smart charging voltages: 14.7V for lead-acid and 14.6V for LiFePO4 batteries. Utilizing an intelligent 4-step charging process (pre-charge, CC, CV, and floating or automatic cut-off), it ensures high efficiency, fast speeds, and maximum protection for your battery life. The aluminum housing makes it both lightweight and portable.
Key Features
✔Advanced high frequency switching mode power supply technology.
✔DC output isolated from AC input for safety.
✔Auto worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz~60Hz.
✔Charging parameters insensitive to AC input line voltage variations.
✔2 LEDs Indicator: LED1 Red (Power On), LED2 Red/Green (Charging/Full).
✔Multiple Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
✔High Efficiency > 92%.
✔Forced ventilation with built-in cooling fans.
Technical Parameters
| Input Range |
Model |
Battery Types |
Floating V |
CV (V) |
CC (A) |
Switching |
AC 85~264V
47~63HZ |
VL1210L |
12V LiFePO4 Battery |
- |
14.6V |
10A |
CC 5~8% |
| VL1210 |
12V Lead-acid Battery |
13.5V |
14.7V |
10A |
CC 20% |
| VL2407L |
24V LiFePO4 Battery |
- |
29.2V |
7A |
CC 5~8% |
| VL3605L |
36V LiFePO4 Battery |
- |
43.8V |
5A |
CC 5~8% |
| VL4804 |
48V Lead-acid Battery |
55.2V |
58.8V |
4A |
CC 20% |
Product Gallery
Frequently Asked Questions
What do the abbreviations MF, GEL and AGM mean?
Gel, AGM, Vlies, MF, Calcium/Calcium and Hybrid are abbreviations for different types of lead-acid batteries.
What do the abbreviations LiFePO4, Li-ion, and Li-MnO2 mean?
These are abbreviations for different types of lithium batteries using different cathode materials. Each type requires specific charging voltages for optimal performance and safety.
How do I choose the right charger?
Selection depends on the battery type, capacity, application, and specific requirements. Our engineers can recommend the most suitable or customized charger based on your battery information.
Can I charge several batteries in parallel?
Yes, the charger can charge or maintain multiple batteries connected in parallel, as it recognizes them as one large battery. Ensure the total capacity is within recommended limits and use high-quality wiring.
Is it safe to leave the charger connected indefinitely?
Lead-acid chargers feature a maintenance (float) mode, allowing them to be left connected for short periods. For lithium batteries without a BMS system, we recommend not leaving the charger unattended for extended periods.
What safety protections are integrated into the charger?
The chargers are equipped with comprehensive protection systems, including short circuit, over-voltage, over-temperature, and reverse polarity protection, with an efficiency rating of over 92%.
