Automatic Smart Vehicle Charger Dual Input DC & Solar Battery Charger

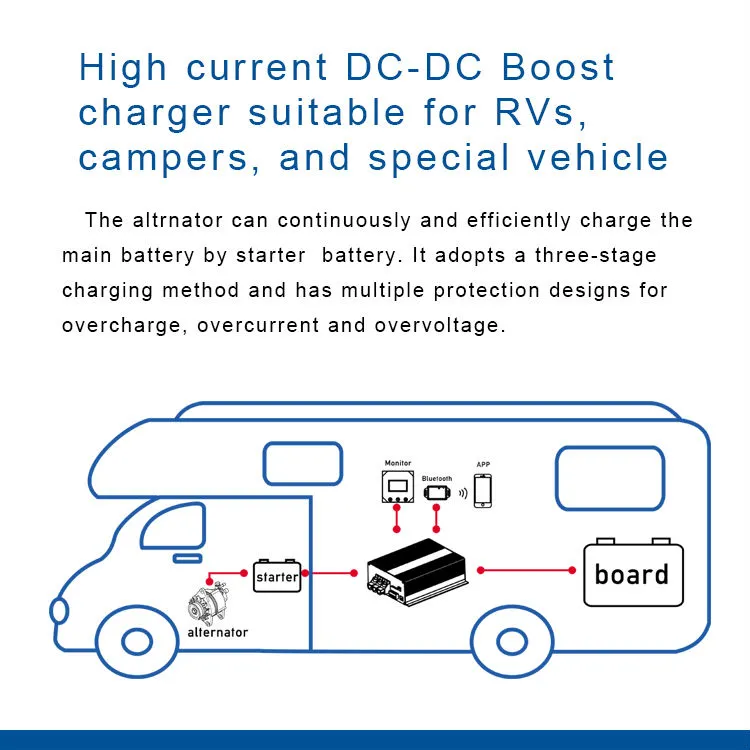

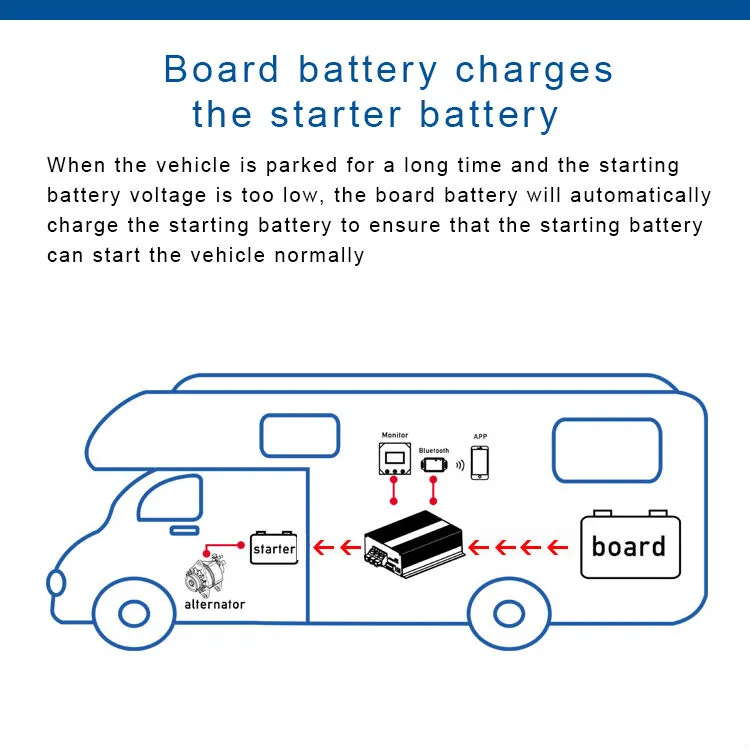

This is a all-automatic charger with 2 charging sources, you can use the battery (12V) to charge the battery (12V) (B2B), or you can use the solar panel to charge the battery, which can automatically intelligent switching charging method, specially designed for RVs, exposed cars, campers, ships, etc.
BS126030: B2B: 12V-12V/60A, MPPT solar charger: 12V/30A, 430W
BS123020: B2B: 12V-12V/30A, MPPT solar charger: 12V/20A, 250W

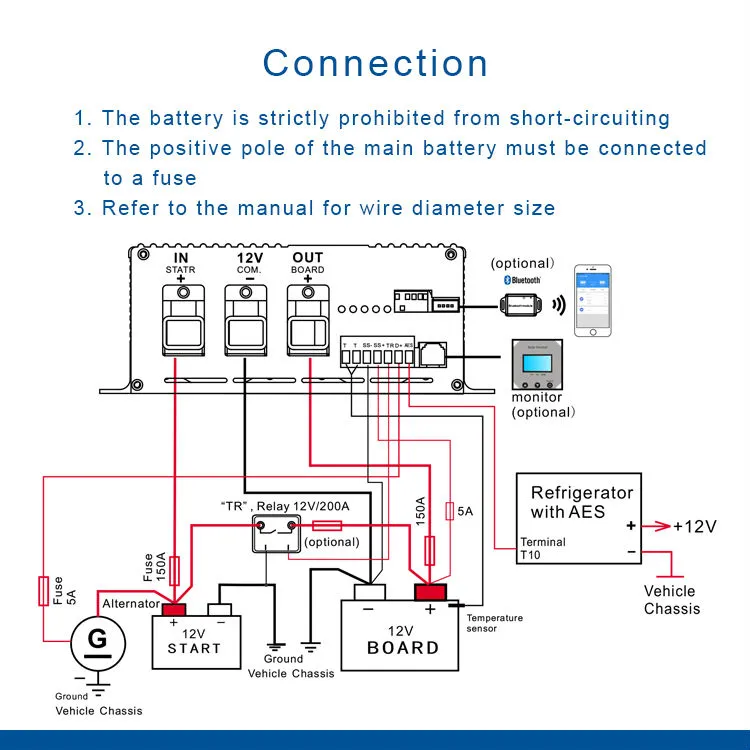

| Cable Cross Section | Cable length "+ Start II" | Cable length "- Batt." | "Fuse II" Protection | Cable length "- Com." to "- Board I" | Cable length "+ Board I" | "Fuse I" Protection | Solar Panel Cables |
|---|---|---|---|---|---|---|---|
| 4mm2 | _ | _ | _ | _ | _ | _ | up to 4m |
| 6mm2 | _ | _ | _ | _ | _ | _ | up to 6m |
| 10mm2 | _ | _ | _ | 0.5-2.0m | 0.5-2.0m | 80A | up to 10m |
| 16mm2 | up to 7m | up to 7m | 100A | 1.5-3.0m | 1.5-3.0m | 80A | up to 16m |
| 25mm2 | up to 10m | up to 10m | 100A | 2.5-5.0m | 2.5-5.0m | 80A | _ |
| Cable Cross Section | Cable length "+ Start II" | Cable length "- Batt." | "Fuse II" Protection | Cable length "- Com." to "- Board I" | Cable length "+ Board I" | "Fuse I" Protection | Solar Panel Cables |
|---|---|---|---|---|---|---|---|
| 2.5mm2 | _ | _ | _ | _ | _ | _ | up to 4.5m |
| 4mm2 | _ | _ | _ | 0.5-1.5m | 0.5-1.5m | 40A | up to 7m |
| 6mm2 | up to 5m | up to 5m | 50A | 1.0-2.5m | 1.0-2.5m | 40A | up to 10m |
| 10mm2 | up to 8m | up to 8m | 50A | 2.0-4.0m | 2.0-4.0m | 40A | up to 16m |

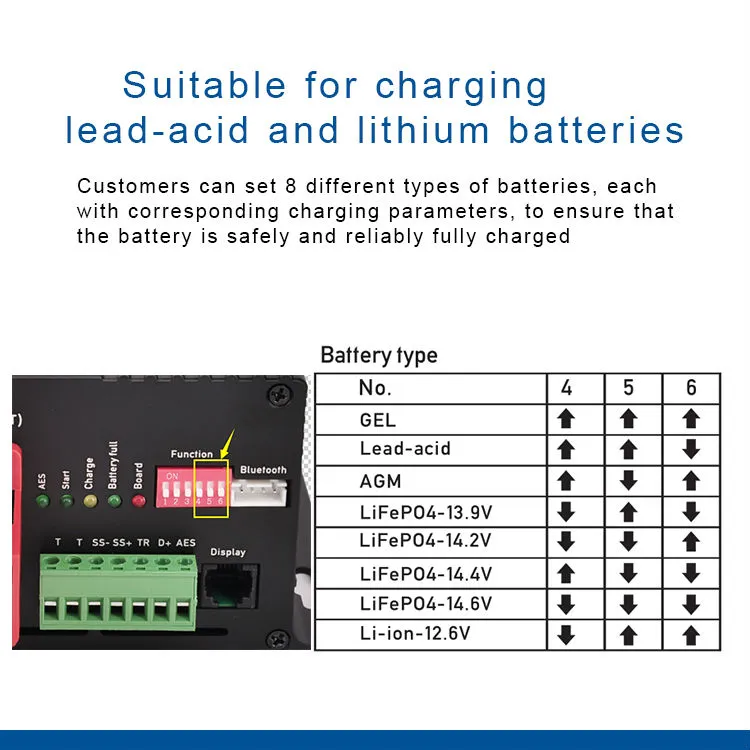

Charge according to the maximum current until the battery voltage reaches the constant voltage charging voltage. Different battery boost charging voltages refer to the battery charging parameters.
When the battery voltage rises to a boost charging voltage, the current begins to fall and enters constant voltage charging. The constant voltage charging time is 2 hours.
When the battery voltage is > 12.6V, the constant voltage charging is cancelled and the floating charging is directly charged.
After the constant voltage charging is completed, the floating charging starts, the current decreases, and the battery voltage maintains the floating charging voltage.
