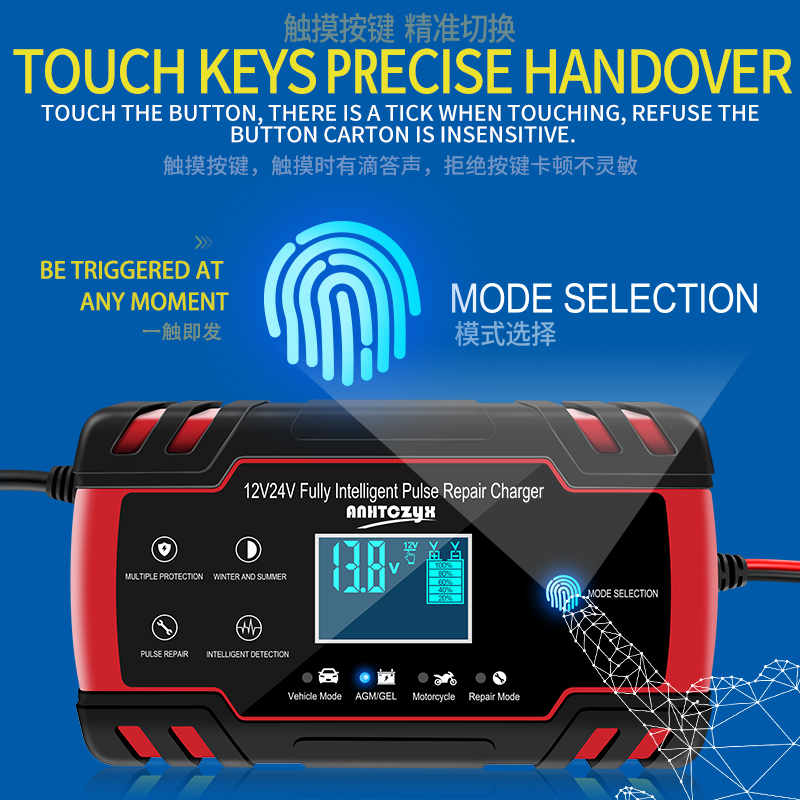

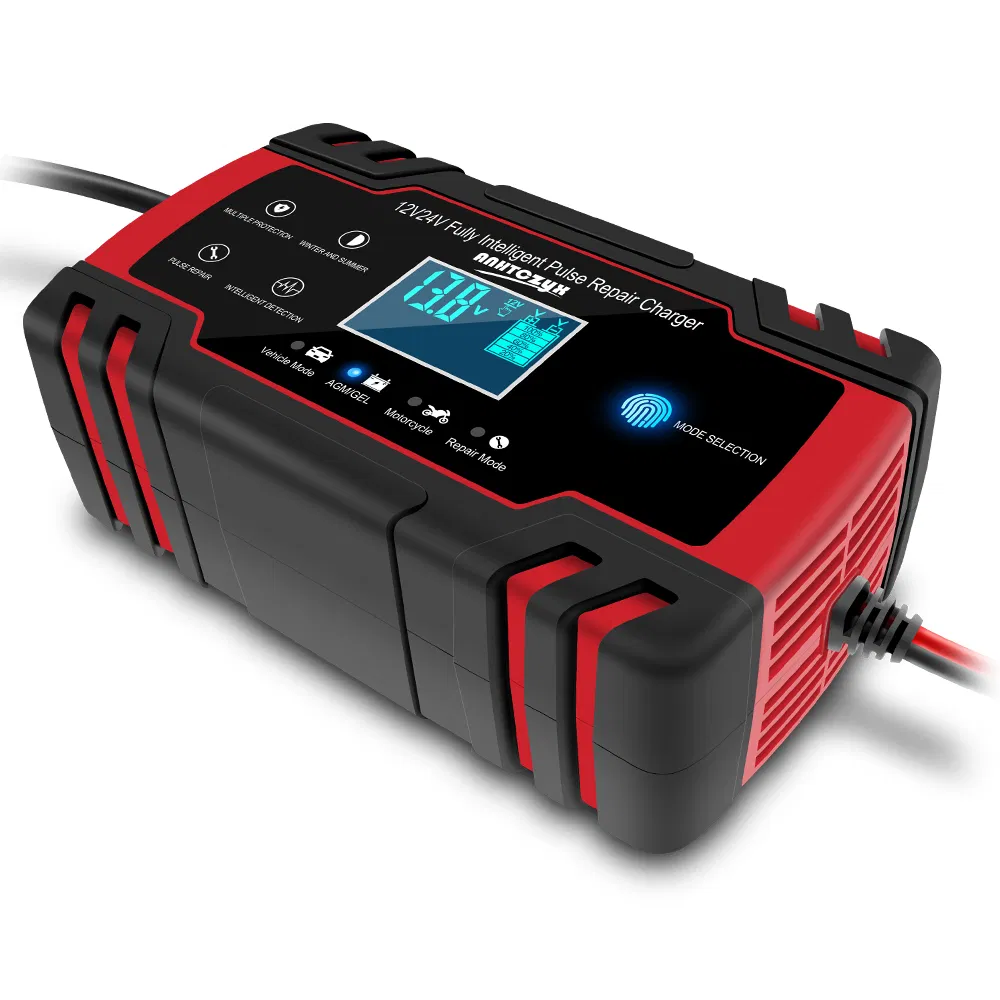

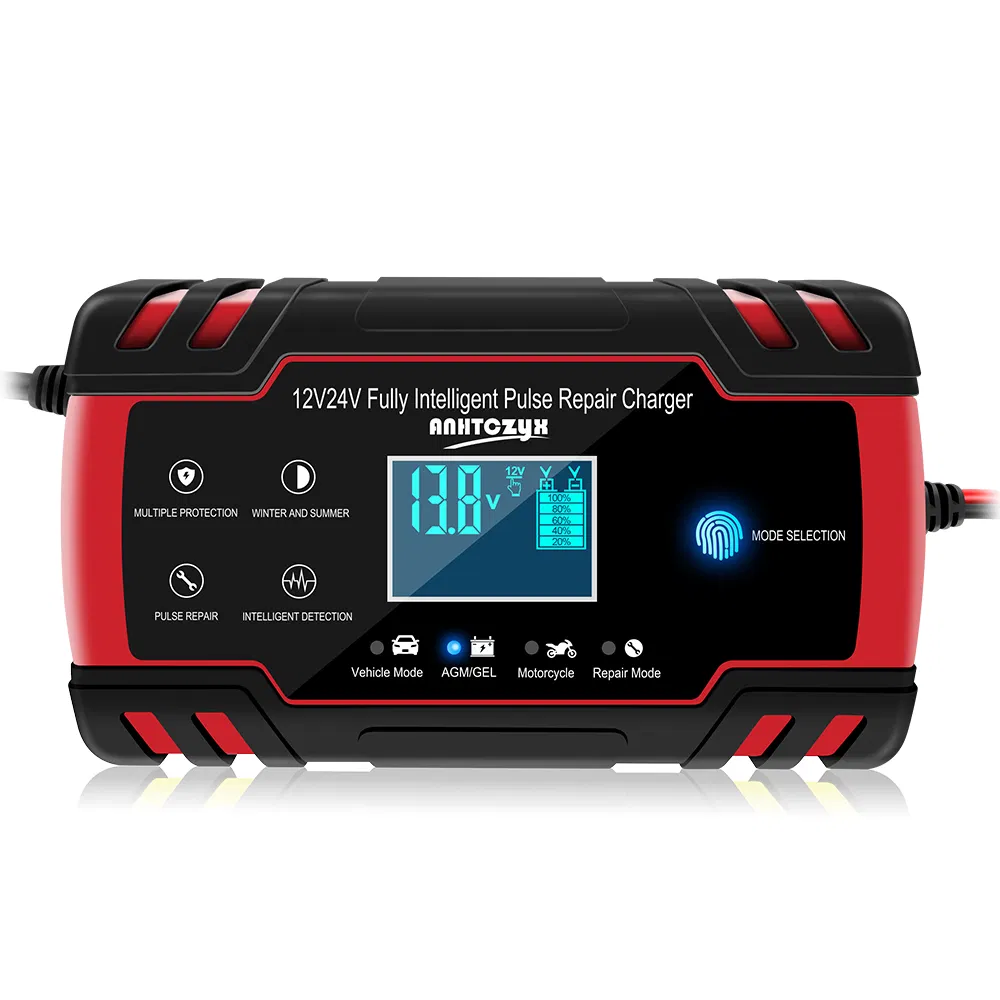

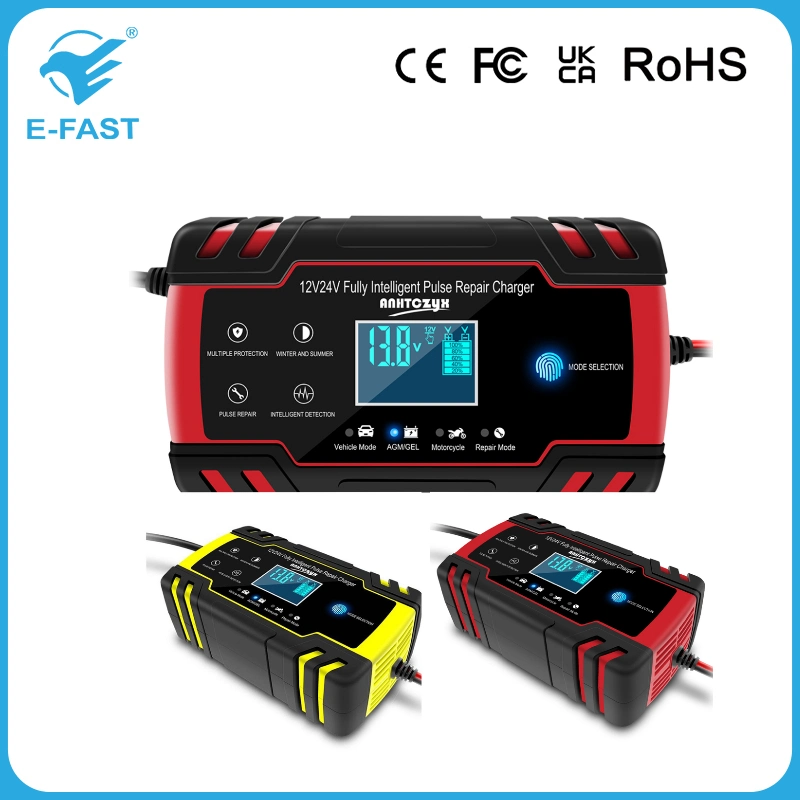

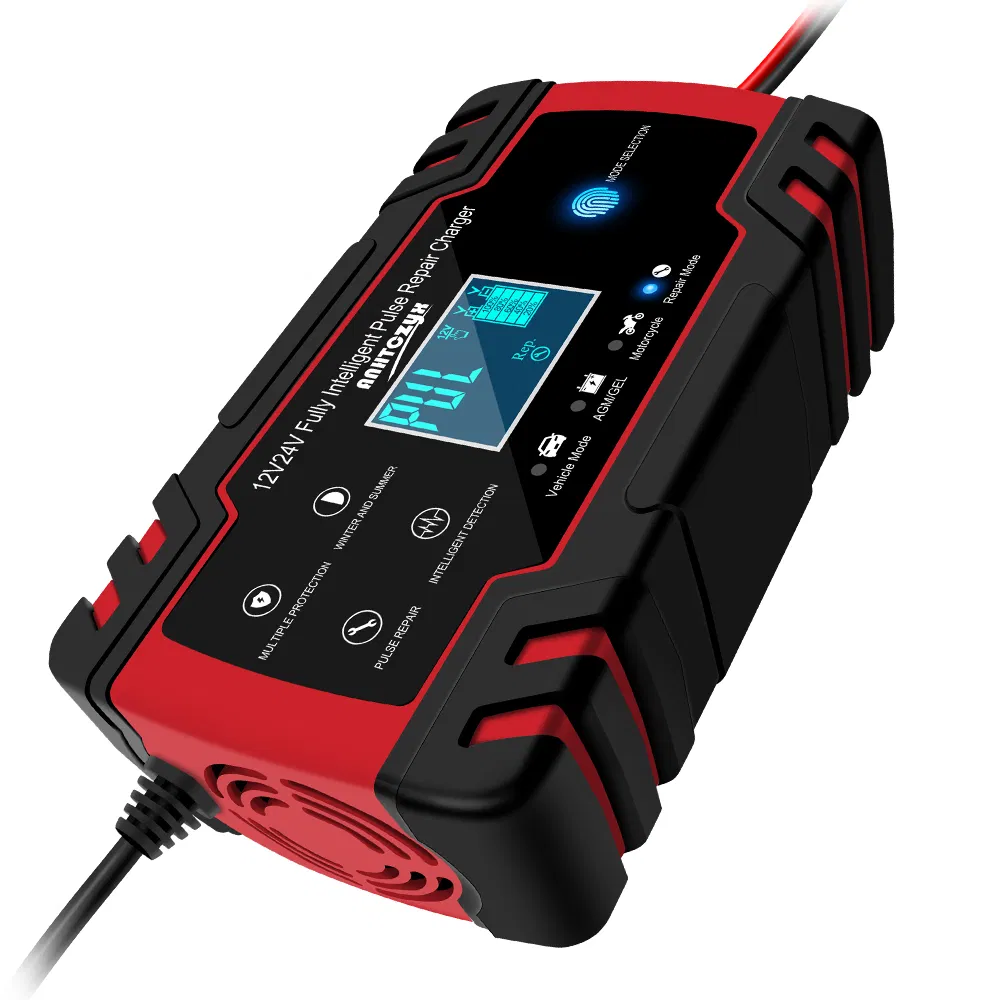

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display

Still deciding? Get samples of $ !
Order Sample

Product Description

Technical Specifications
Model
ZYX-J30
Input Voltage
100-240VAC, 50-60Hz
Output
12V 8A / 24V 4A
Power
140W
Battery Range
2-150Ah
Material
High-quality ABS
Efficiency
Approx. 85%
Certifications
CE, PSE, RoHS, FCC, UKCA
Product Description

Portable 12V/24V Car AGM Lead-Acid Battery Charger with LCD Display

Battery Compatibility12V/24V Standard, Lead-acid, AGM, GEL, START-STOP batteries
ApplicationsCars, Motorcycles, Boats, Trucks, Vans, and more
Safety FeaturesPolarity, Output Short, Overvoltage, Overcurrent, Overheating, Reverse Connection protections
Dimensions170(L) * 98(W) * 58(H) mm
Weight0.632kg
Key Smart Functions
  • Battery Power DetectionDisplays current voltage and temperature automatically when clips are connected (no AC needed).
  • Winter & Summer ModeSmartly detects ambient temperature and adjusts the charging state to protect battery life.
  • Overcharge ProtectionAutomated charging duration control (default 20H) to enhance battery safety and reliability.
  • Pulse Repair ModeUtilizes positive pulse voltage technology to restore and repair lead-acid batteries.

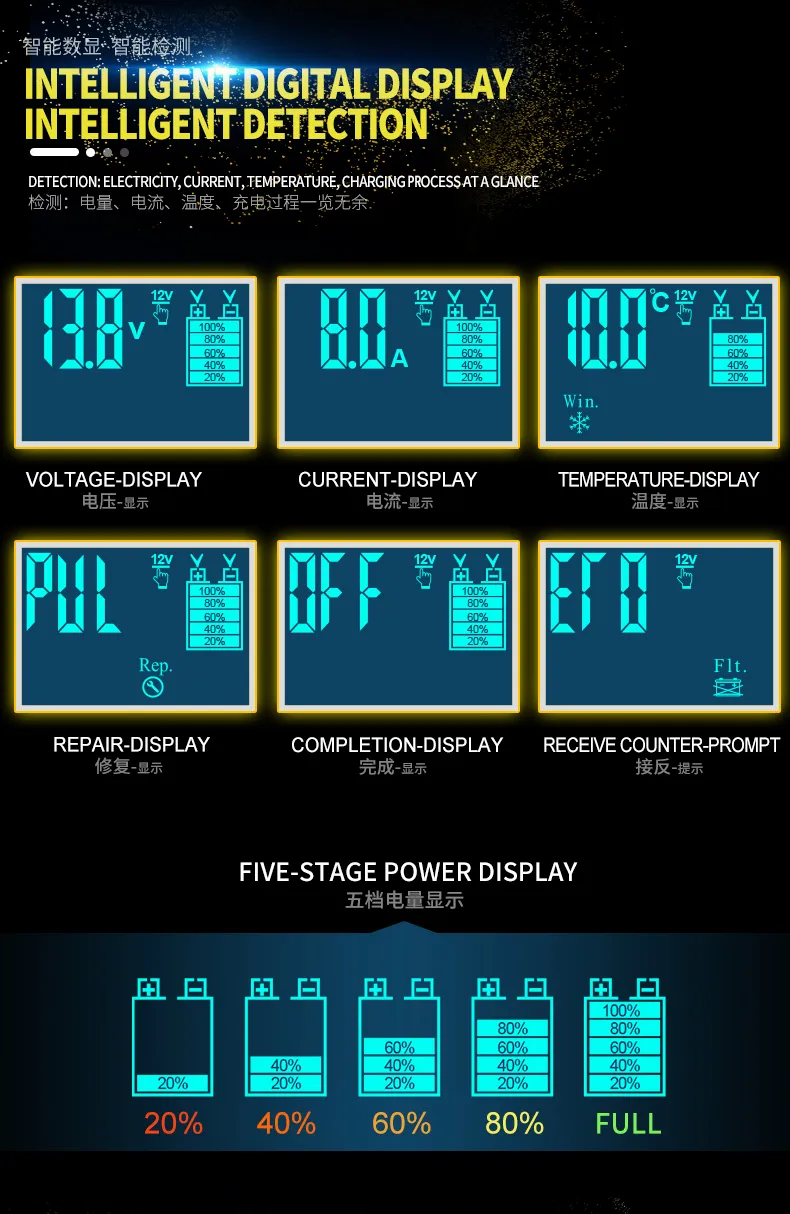

  • Intelligent LCD DisplayReal-time cycle display of voltage, current, temperature, and charging status.
Function Modes
Car Battery Mode 12V Lead-acid charging with intelligent voltage control (14.6V - 15.5V depending on season). Max current 8A.
AGM Battery Mode Specialized mode for AGM batteries, charging at 13.5V constant. Optimized for 10-150Ah capacities.
Motorcycle Mode Low current mode for small 12V lead-acid batteries (2-15Ah). Optimized for safety.
Repair Mode Dedicated 20-hour pulse repair cycle specifically restricted for lead-acid type batteries.
Product Gallery
Battery Charger Display
Safety Features

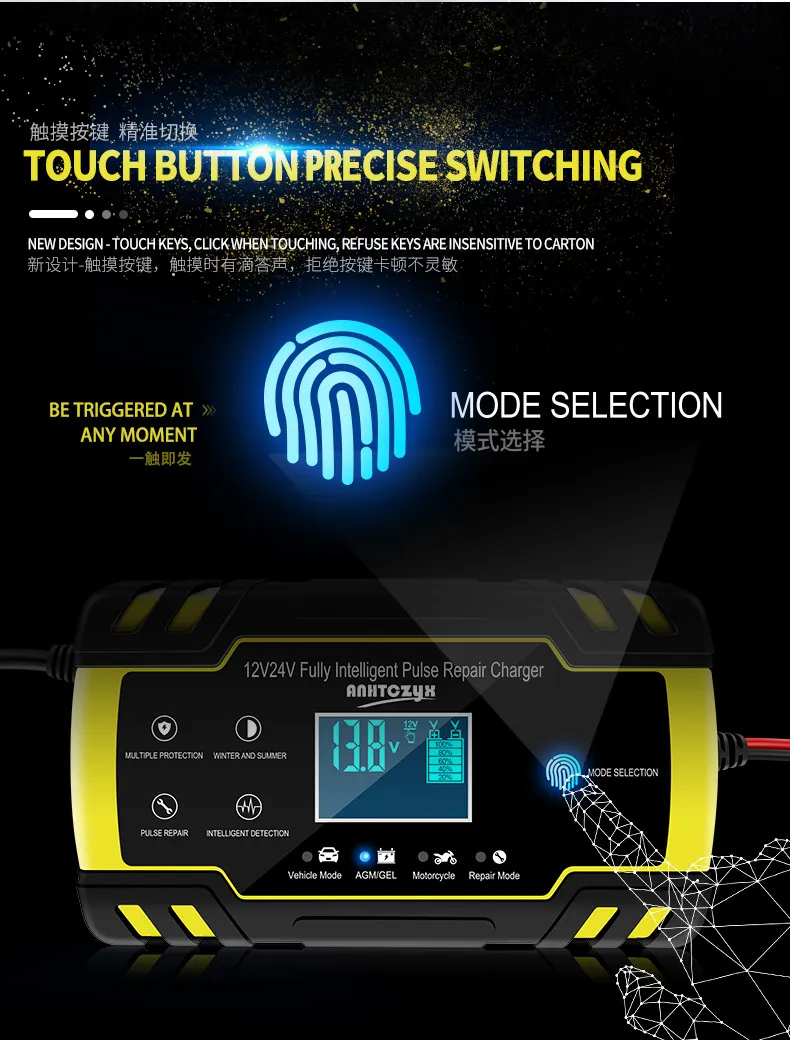

Mode Selection
Internal Components
Charger Usage
Simple Charging Steps
1
Connect alligator clips to battery (Red +, Black -) without AC power to check current battery status.
2
Plug the charger into an AC power outlet and switch it on.
3
Select the appropriate charging mode using the interface button.
4
Wait for "FUL" or "End" display. Disconnect AC power first, then remove the clips.
Professional Manufacturing

Specializing in high-tech research and development, we produce a wide range of battery chargers suitable for lithium, lead-acid, AGM, and GEL batteries. Our products cover various specifications from 6V to 96V, catering to electric vehicles, motorcycles, and automotive needs. We offer extensive customization services for wholesale clients, including appearance, color, and logo branding.

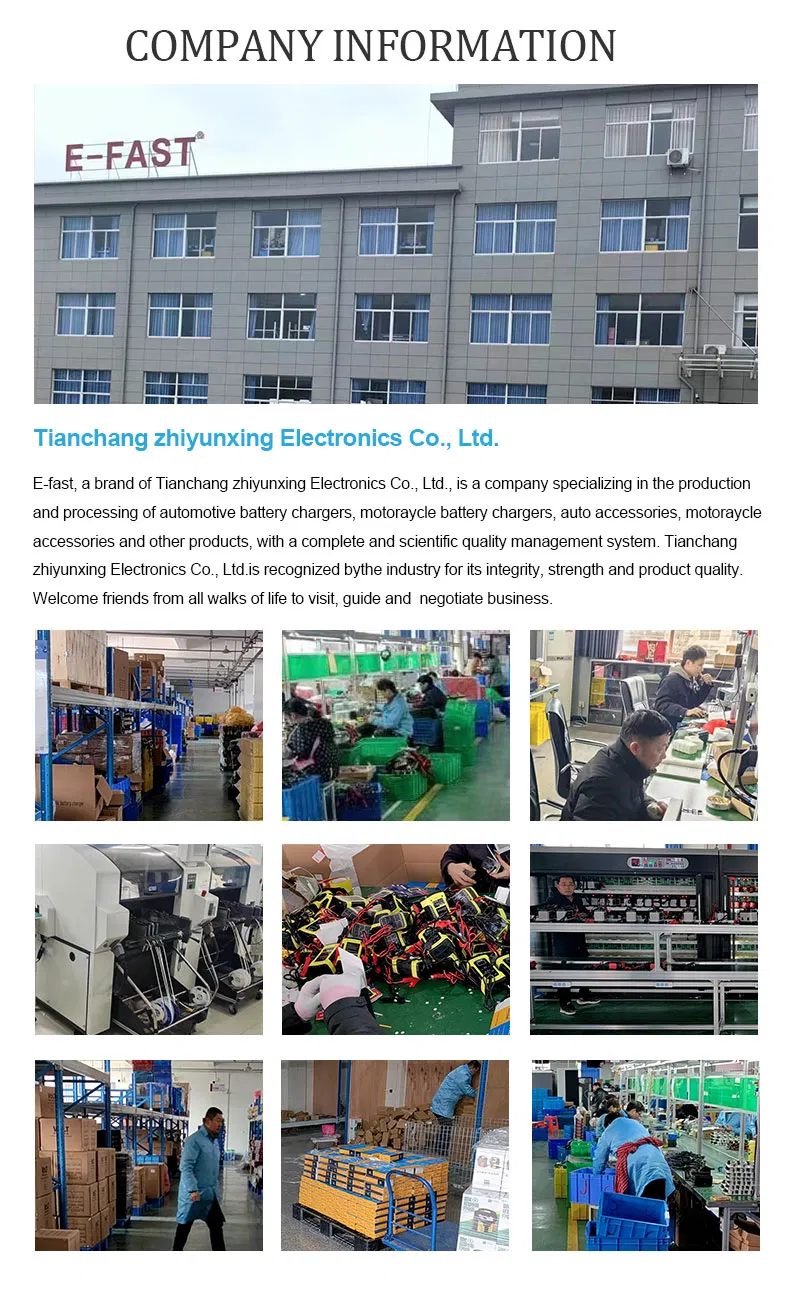

Production Line
Frequently Asked Questions
What types of batteries can this charger handle?
It is compatible with 12V and 24V standard lead-acid batteries, AGM, GEL, and Start-Stop batteries ranging from 2Ah to 150Ah.
How does the Winter and Summer mode work?
The charger automatically detects the ambient temperature. In winter (colder), it increases the charging voltage; in summer (hotter), it decreases it to prevent overcharging.
Is it safe to leave the battery charging overnight?
Yes, the charger includes multiple safety protections including overcharge, over-temperature, and short-circuit protection. It defaults to a maximum single charge duration of 20 hours for safety.
Can this charger repair a completely dead battery?
It features a Pulse Repair Mode for lead-acid batteries that can help restore batteries with minor sulfation, but it may not repair batteries with physical damage or internal short circuits.
Does the charger show real-time charging data?
Yes, the LCD screen provides a cyclic display of the current voltage, charging current, and ambient temperature throughout the process.
What should I do if the screen displays "ERO"?
"ERO" usually indicates a fault mode, such as a short circuit or reverse connection. Please check the polarity of your clips and ensure the battery is healthy.
