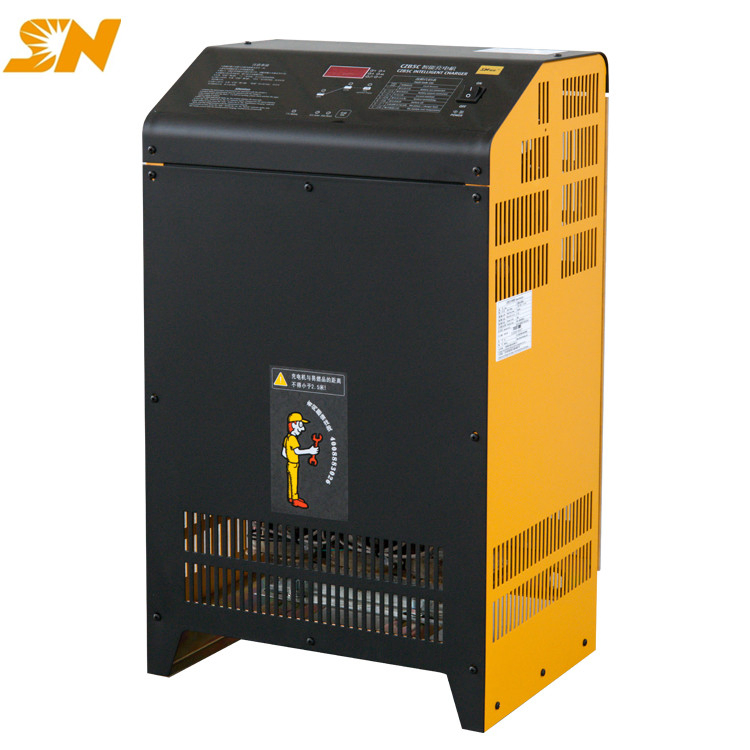

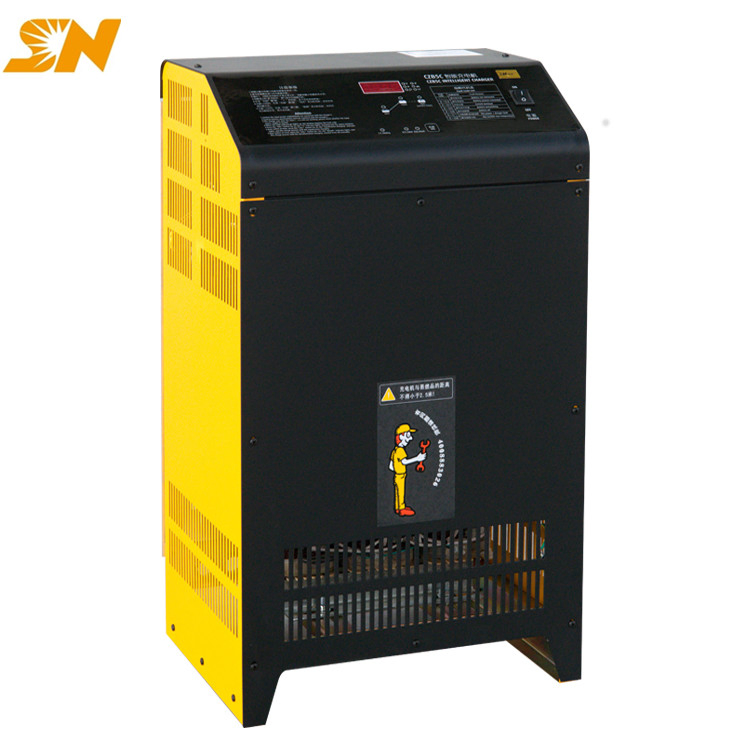

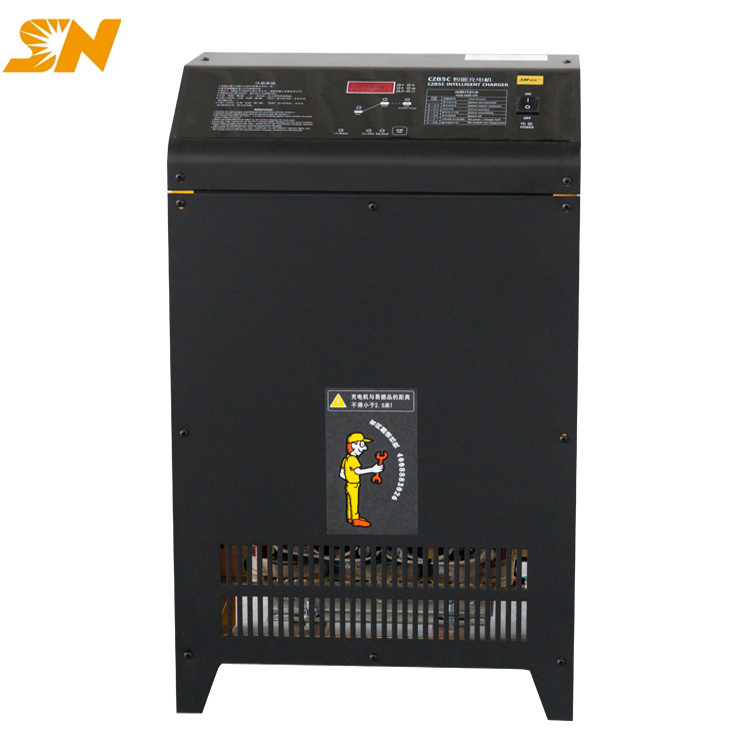

Shineng Czb5c 48V 100A AGM Forklift Battery Charger for Electric Pallet Truck Boat Stacker

1 / 5

Shineng Czb5c 48V 100A AGM Forklift Battery Charger for Electric Pallet Truck Boat Stacker

Customization:	Available
Rated Power:	4.8kw
Charging Current:	100A

Send Inquiry

Product Description

Basic Info.

Model NO.

CZB5C

Input Voltage

100-400V

Type

Electric

Charging Type

Electric Charger

Principle

Transformer/ Rectifier

Battery Parameters

48V/580~800ah(7.5h~10h)

Warranty

1 Year

Keywords

Forklift Charger

Input Power

7.5kVA

Size

52.6*360*883mm

Output Current

100A

Main Power

380V

Input Current

11.4A

Weight

86kg

Certificate

Origin

China

Product Introduction

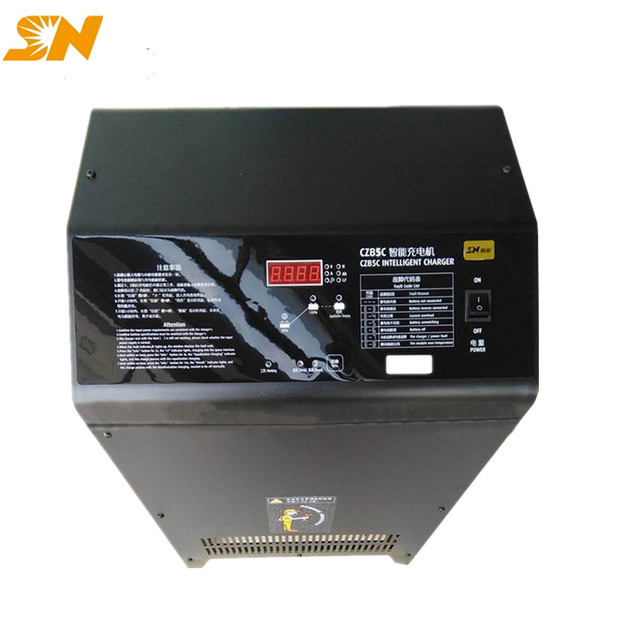

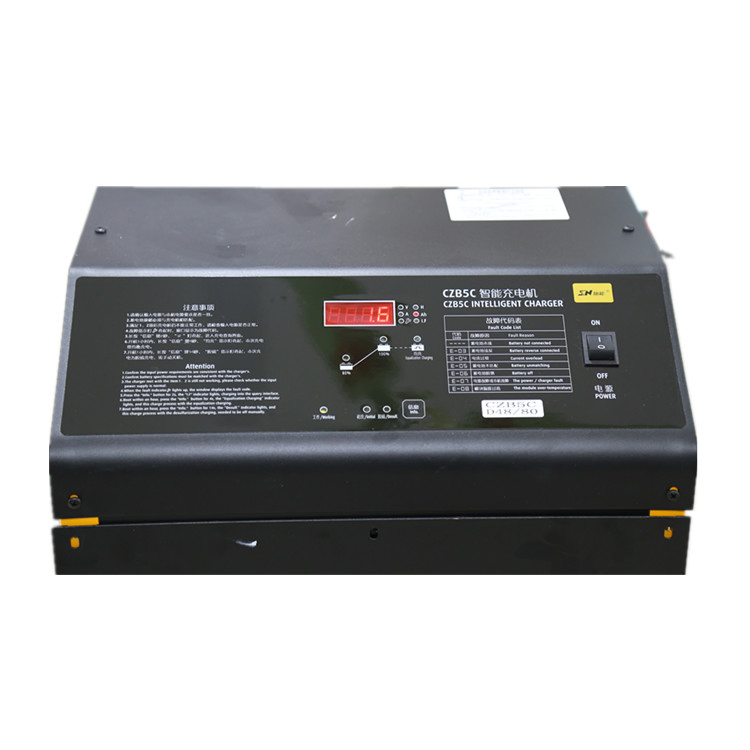

CZB5C 48V 100A AGM Forklift Battery Charger for electric pallet trucks, boats, and stackers.

✓

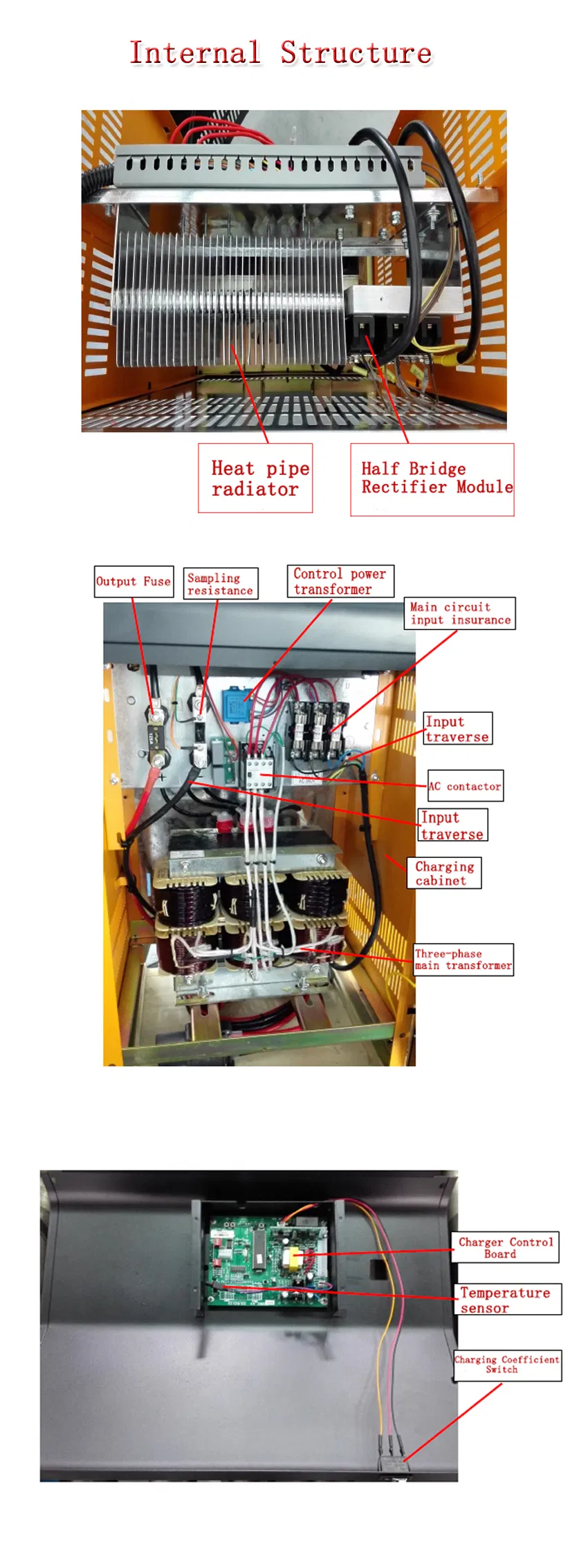

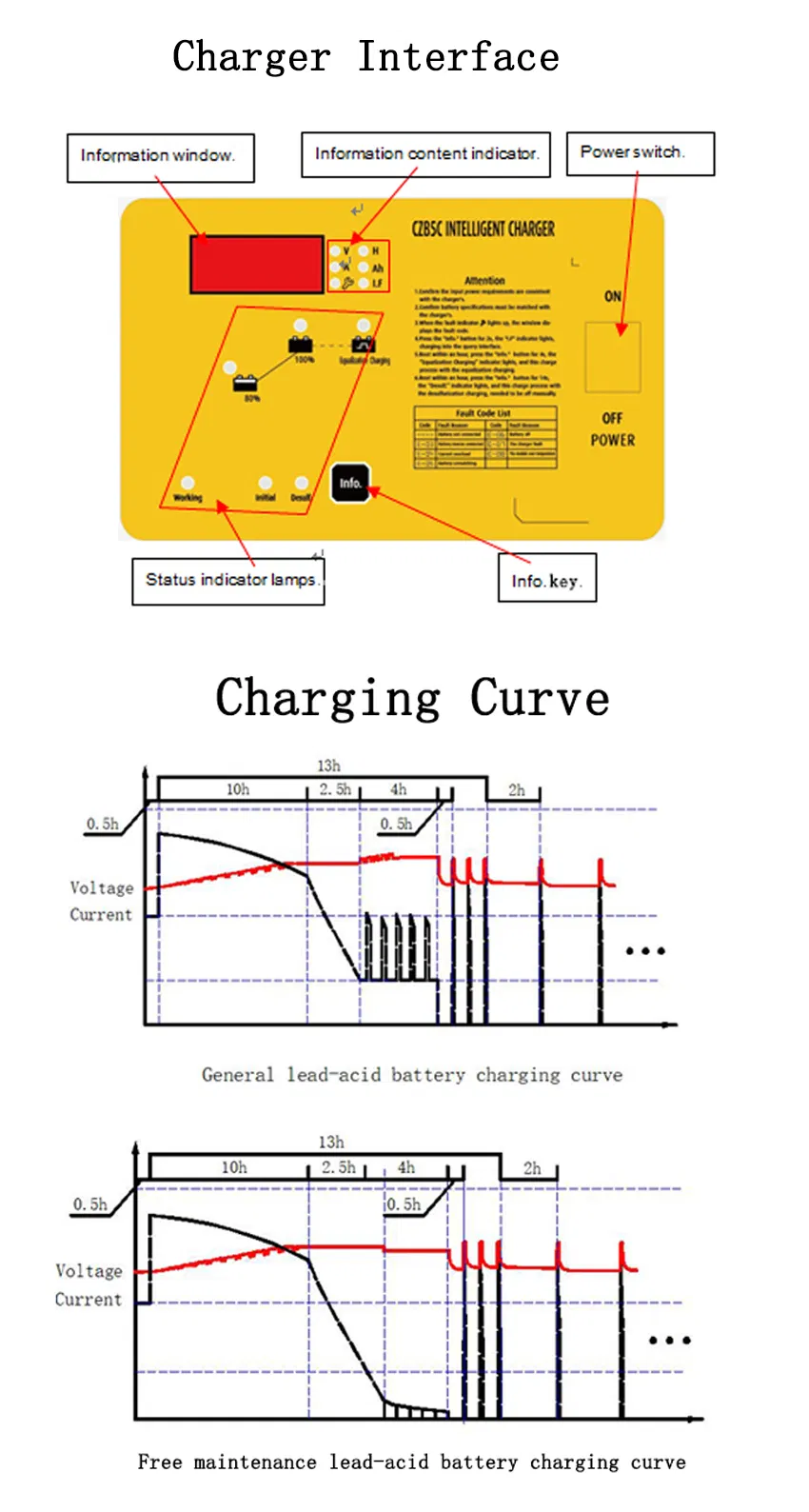

Combines leakage transformer, silicon-controlled rectifier technology, and Micro-computer to improve the Wsa+Pulse charging characteristic curve.

✓

Greatly prolongs battery working life via pulse charging before gas emissions and in the late recharge stage.

✓

Dynamic tracking and auto-adjusting of charging parameters through PID control technology.

✓

Automatic detection, delaying, and soft-start. Temperature compensation occurs when voltage reaches the gas emission tipping point.

✓

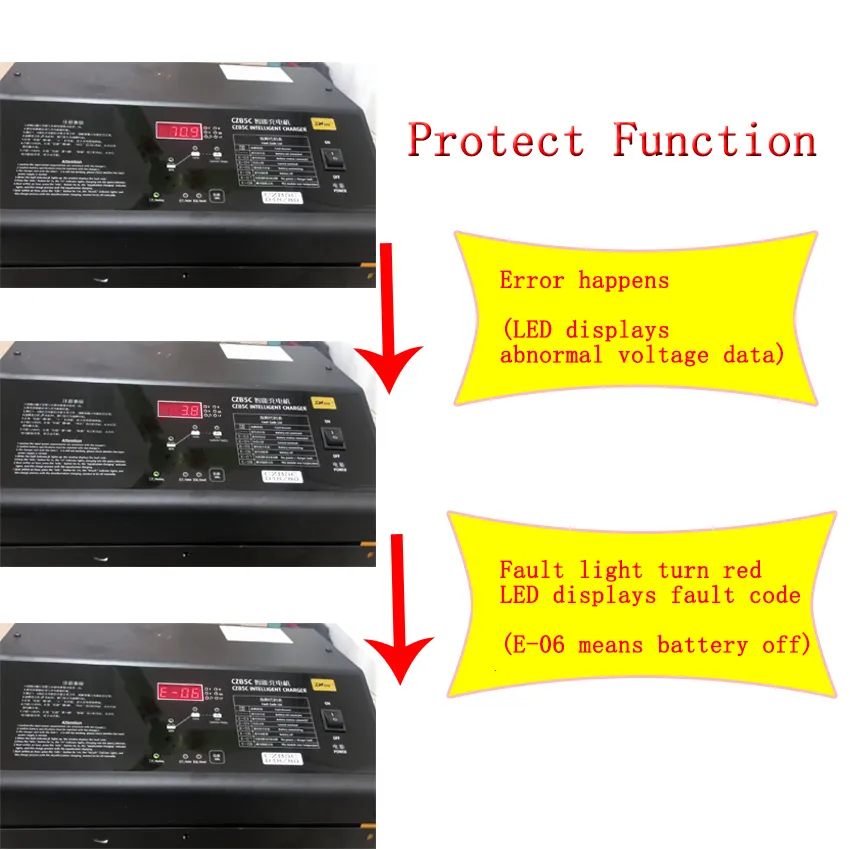

Complete protection and alarm functions: open circuit, reverse connection, overload, and short circuit.

✓

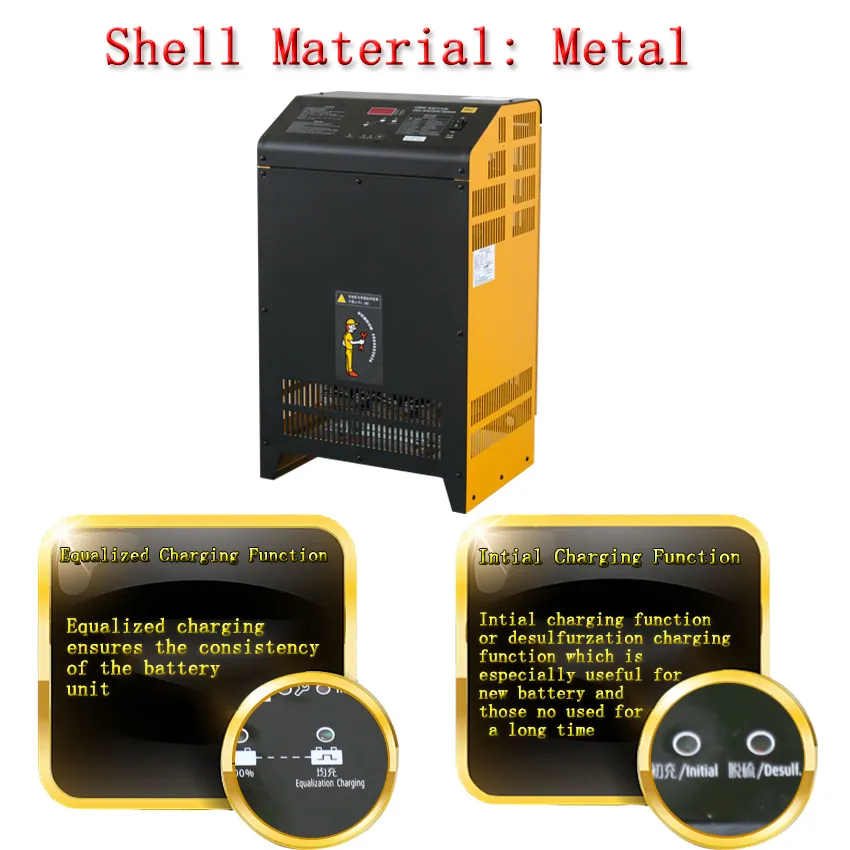

Initial charging and desulfuration charging function for new or long-dormant batteries.

✓

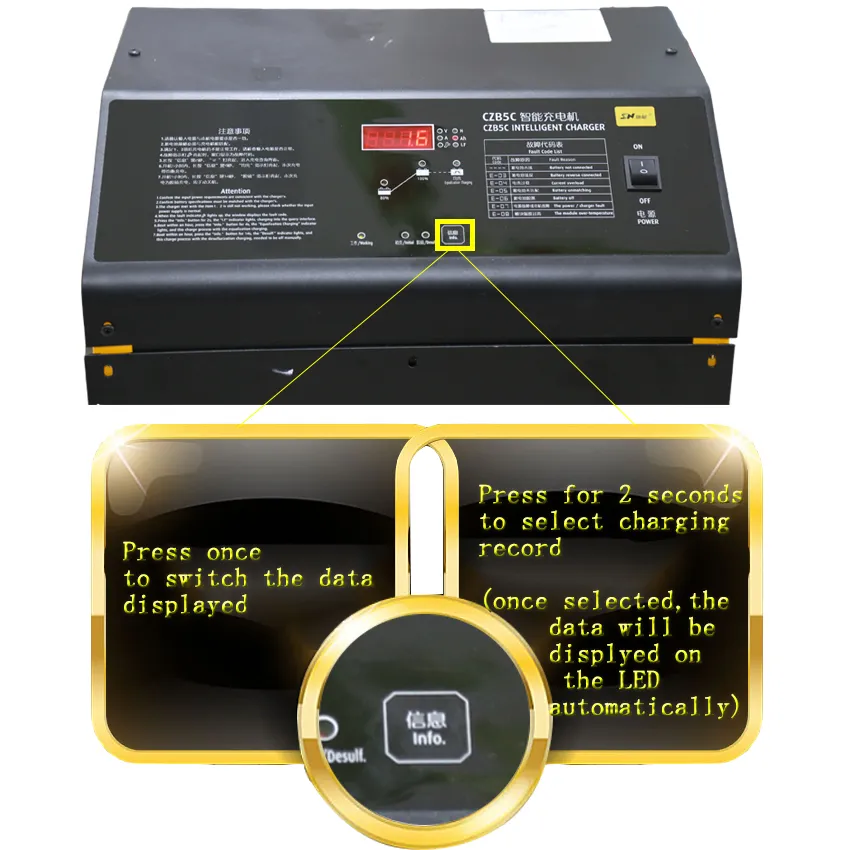

Data recording for the past 30 charging cycles.

Technical Parameters

Type(V/A)	Main Power(V)	Input Power (KVA)	Input Current(A)	Output Current(A)	Battery parameters V/AH	Size(mm)	Weight(Kg)
CZB5C-E24V/20A	Single Phase	0.75	3.4	20	24V/115-160AH	240350260	21.0
CZB5C-E24V/50A	Single Phase	1.9	8.5	50	24V/290-400AH	240350260	25.5
CZB5C-E48V/30A	Single Phase	2.3	10.2	30	48V/175-240AH	240350260	28.0
CZB5C-D48V/100A	Three Phase	7.5	11.4	100	48V/580-800AH	526360883	86.0
CZB5C-D80V/100A	Three Phase	12.5	19.0	100	80V/580-800AH	526360883	95.0
CZB5C-D80V/120A	Three Phase	15.0	22.8	120	80V/700-960AH	526360883	107.0

Product Showcase

Frequently Asked Questions

Q1: What types of batteries is this charger compatible with?

The charger is designed for various types of batteries, including lead-acid, AGM, and lithium batteries commonly used in forklifts and electric pallet trucks.

Q2: Does the product come with a warranty?

Yes, all units come with a one-year warranty. We also provide ongoing technical support to ensure optimal performance.

Q3: How does the pulse charging technology benefit my battery?

Pulse charging reduces gas emissions during the recharge cycle, which significantly prolongs the overall working life and health of the battery.

Q4: Are these chargers certified for international use?

Our chargers are CE and ISO certified, meeting stringent safety and quality standards for global distribution.

Q5: Can this charger handle a "deeply discharged" or sulfated battery?

Yes, the charger includes a desulfuration charging function specifically designed for new batteries or those that have been unused for long periods.

Q6: How is the quality of each unit ensured before shipping?

Every charger undergoes rigorous stability testing and a final inspection process before delivery to ensure it meets all technical specifications.
