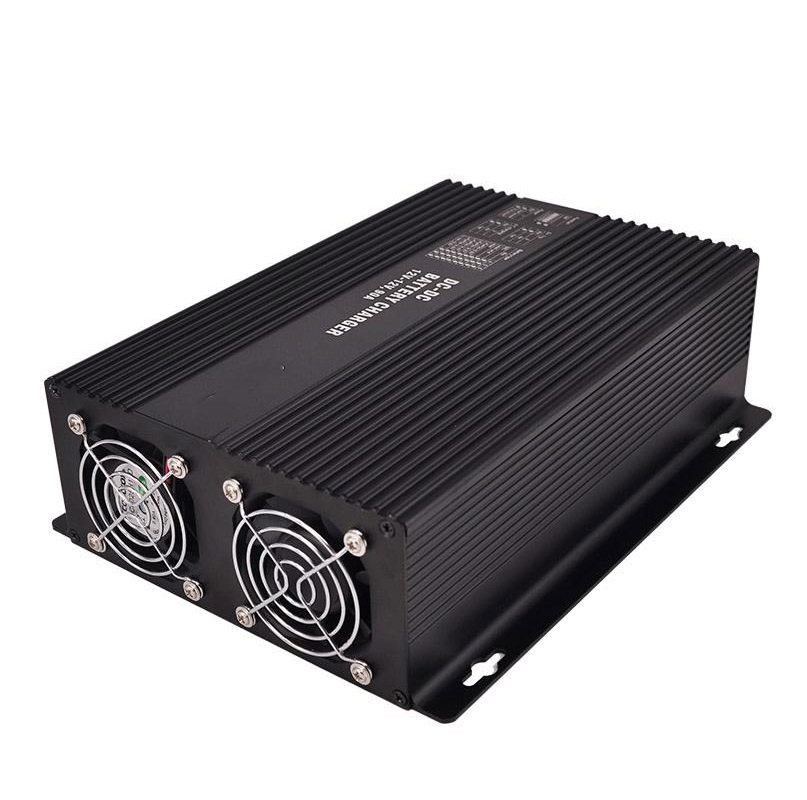

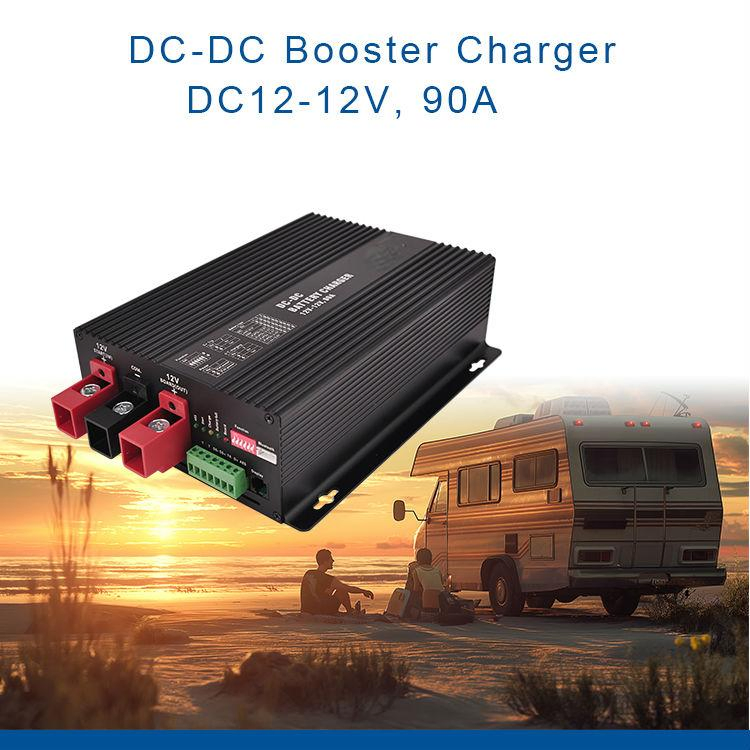

12V 90A DC to DC Battery Charger on-Board Battery for Gel AGM Flooded Lithium Multi-Stage Charging

1 / 5

12V 90A DC to DC Battery Charger on-Board Battery for Gel AGM Flooded Lithium Multi-Stage Charging

Still deciding? Get samples of $ !

Order Sample

Send Inquiry

Product Description

📋 Basic Info.

Model NO.

B2B1290

Application

Standard Battery, RV, Vehicle

Nominal Voltage

12V

Charger Style

Solar Charger

Battery Type

12-Volt

Certification

RoHS, CE, E-MARK

Socket Type

US, EU

Product Name

DC & MPPT Solar Charger

DC Output

30A

Feature

Dual Input

Compatible With

Gel, Sealed, Flooded, LiFePO4, Lithium-Ion

Bluetooth

Support and Optional

Temperature Sensor

Support and Optional

Usage

Mobile Charger, RV, Vehicle

Specification

19*19.4*7cm

Capacity

10000PCS Per Month

📦 Packaging & Delivery

Package Size

35.00cm * 25.00cm * 10.00cm

Gross Weight

1.000kg

💡 Product Description

Automatic Smart Vehicle Charger Dual Input DC & Solar Battery Charger

Features

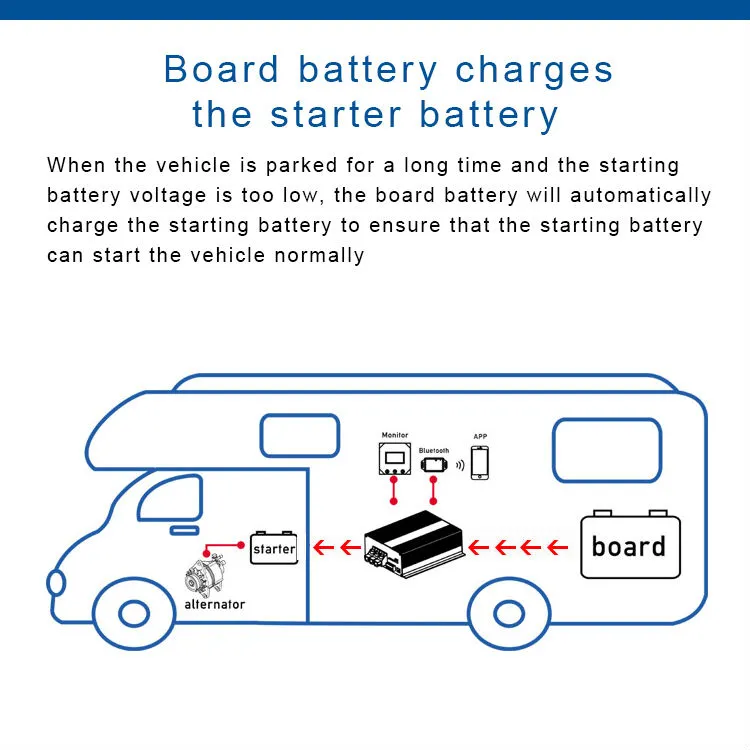

This is a all-automatic charger with 2 charging sources, you can use the battery (12V) to charge the battery (12V) (B2B), or you can use the solar panel to charge the battery, which can automatically Intelligent switching charging method, specially designed for RVs, exposed cars, campers, ships, etc.

BS126030: B2B: 12V-12V/60A, MPPT solar charger: 12V/30A, 430W
BS123020: B2B: 12V-12V/30A, MPPT solar charger: 12V/20A, 250W

Technical Data: BS126030

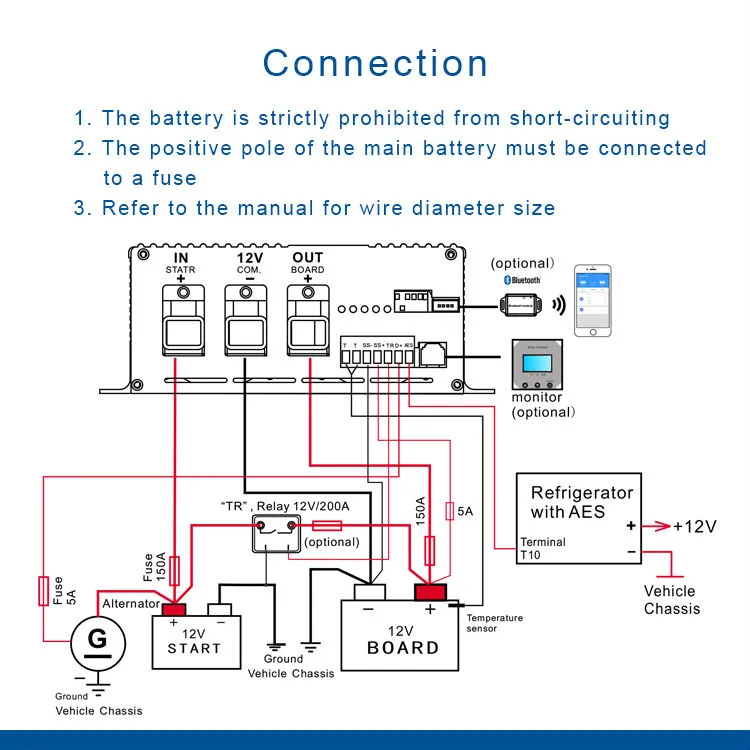

Cable cross section	Length "+ Start II"	Length "- Batt."	"Fuse II" Protection	Length "- Com." to "- Board I"	Length "+ Board I"	"Fuse I" Protection	Solar Panels Lengths
4mm2	-	-	-	-	-	-	up to 4m
6mm2	-	-	-	-	-	-	up to 6m
10mm2	-	-	-	0.5-2.0m	0.5-2.0m	80A	up to 10m
16mm2	up to 7m	up to 7m	100A	1.5-3.0m	1.5-3.0m	80A	up to 16m
25mm2	up to 10m	up to 10m	100A	2.5-5.0m	2.5-5.0m	80A	-

Technical Data: BS123020

Cable cross section	Length "+ Start II"	Length "- Batt."	"Fuse II" Protection	Length "- Com." to "- Board I"	Length "+ Board I"	"Fuse I" Protection	Solar Panels Lengths
2.5mm2	-	-	-	-	-	-	up to 4.5m
4mm2	-	-	-	0.5-1.5m	0.5-1.5m	40A	up to 7m
6mm2	up to 5m	up to 5m	50A	1.0-2.5m	1.0-2.5m	40A	up to 10m
10mm2	up to 8m	up to 8m	50A	2.0-4.0m	2.0-4.0m	40A	up to 16m

Product Image

Charging Process

Boost charge: Charge according to the maximum current until the battery voltage reaches the constant voltage charging voltage.
Constant voltage charging: When the battery voltage rises to a boost charging voltage, the current begins to fall and enters constant voltage charging for 2 hours.
Voltage Adjustment: When the battery voltage is > 12.6V, the constant voltage charging is cancelled and the floating charging is directly charged.
Floating charge: After constant voltage charging is completed, the floating charging starts, the current decreases, and the battery maintains the floating charging voltage.

❓ Frequently Asked Questions

What types of batteries can this charger handle?

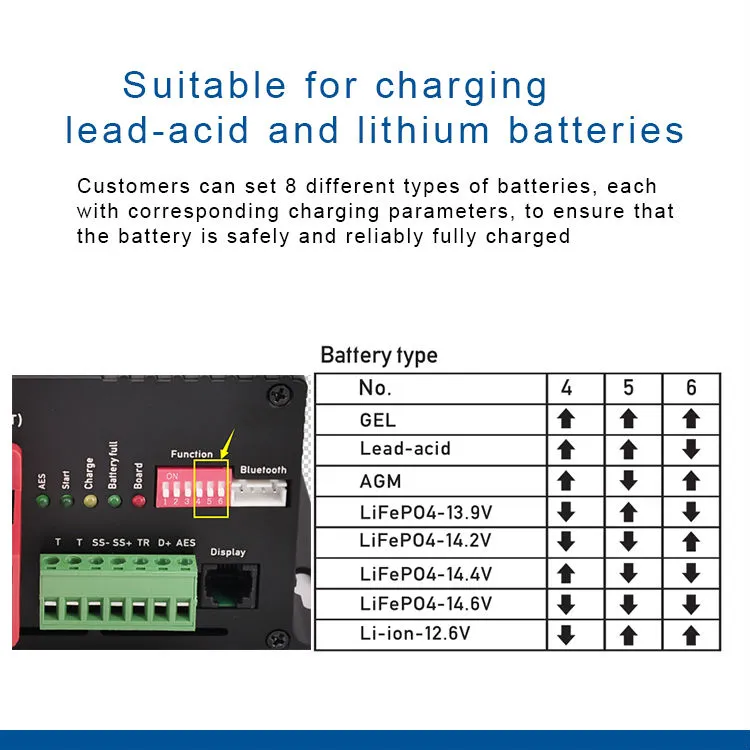

This charger is compatible with a wide range of 12V batteries, including Gel, Sealed, Flooded, LiFePO4, and Lithium-Ion batteries.

Does it support both vehicle and solar charging simultaneously?

Yes, it features a dual input design (DC to DC and MPPT Solar), allowing for intelligent switching between charging sources.

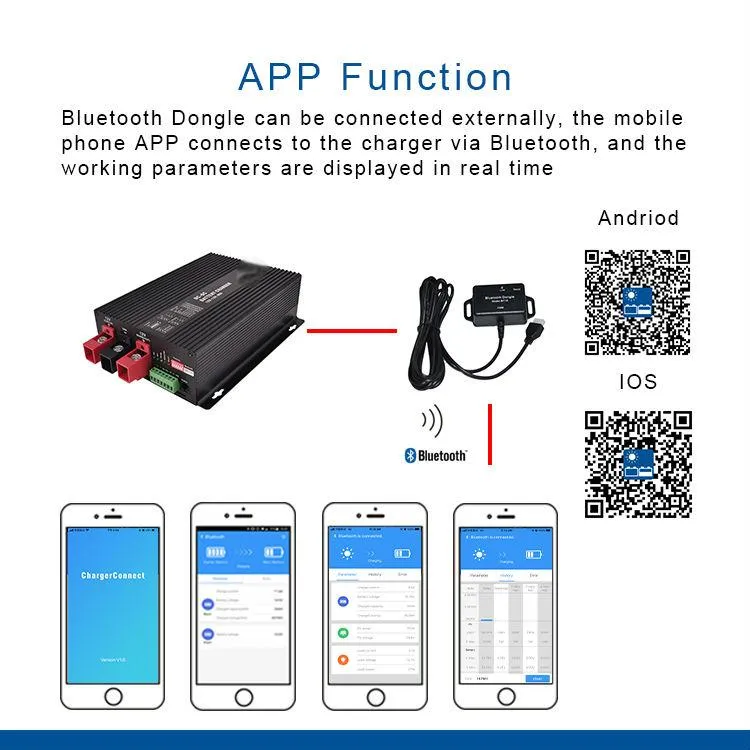

Can I monitor the charging status via my phone?

Yes, the charger supports Bluetooth connectivity (optional) and is compatible with a free APP for easy monitoring.

What is the benefit of the MPPT solar controller?

The built-in MPPT (Maximum Power Point Tracking) technology ensures maximum efficiency when charging from solar panels, even in changing weather conditions.

Is there a temperature sensor included?

Temperature sensor support is available and optional, helping to optimize charging based on the battery's environmental conditions.

What applications is this charger best suited for?

It is specifically designed for RVs, campers, marine vessels, and specialty vehicles that require reliable off-grid power management.
