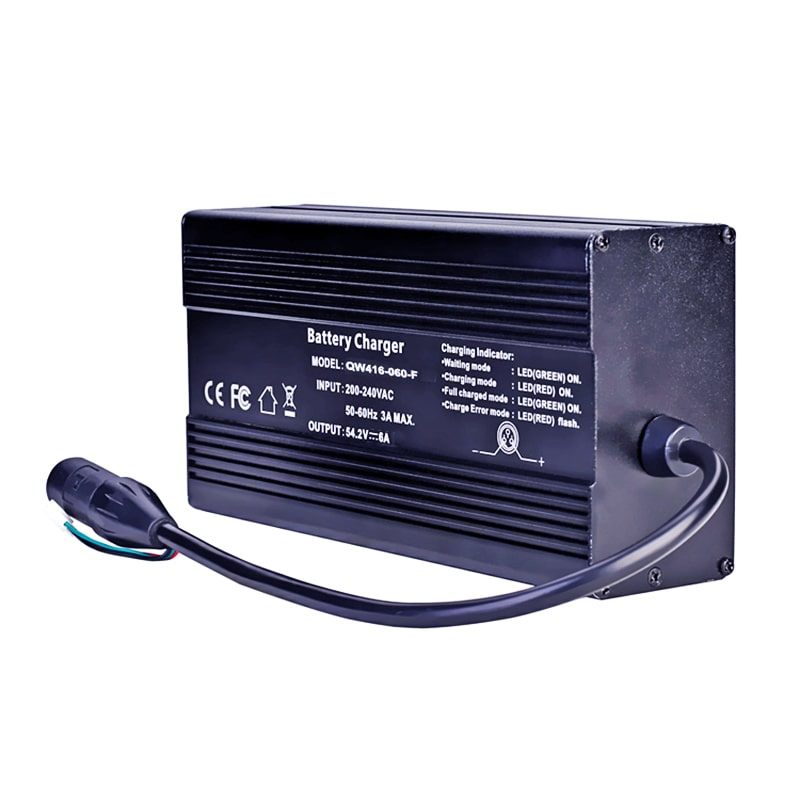

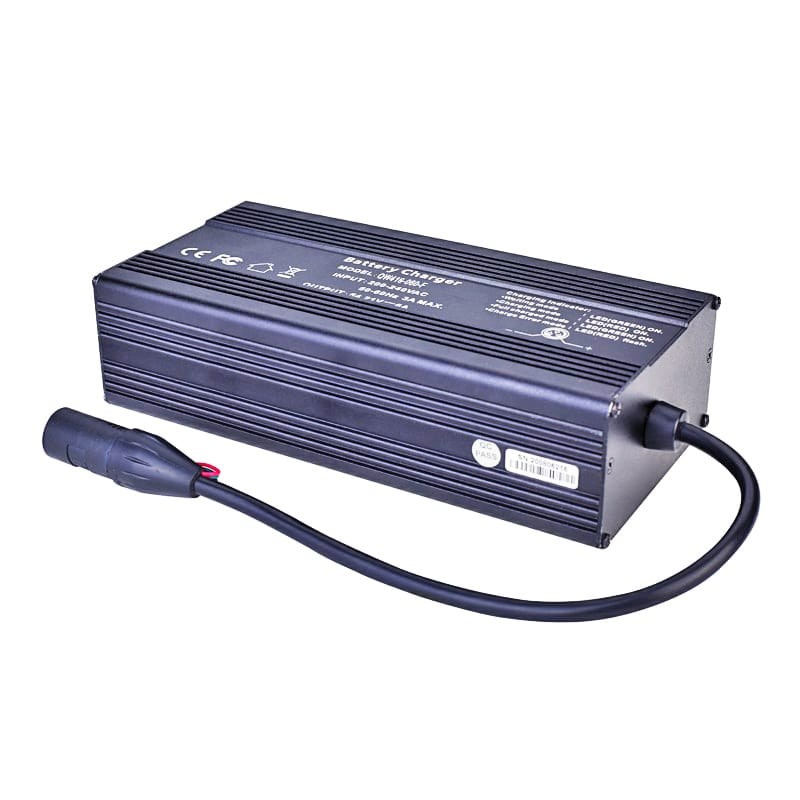

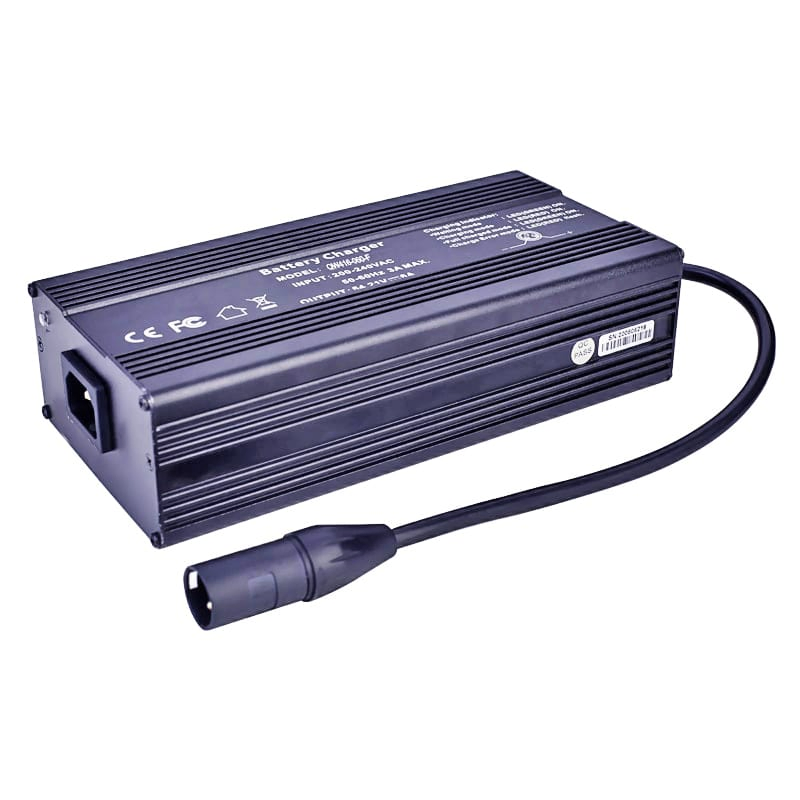

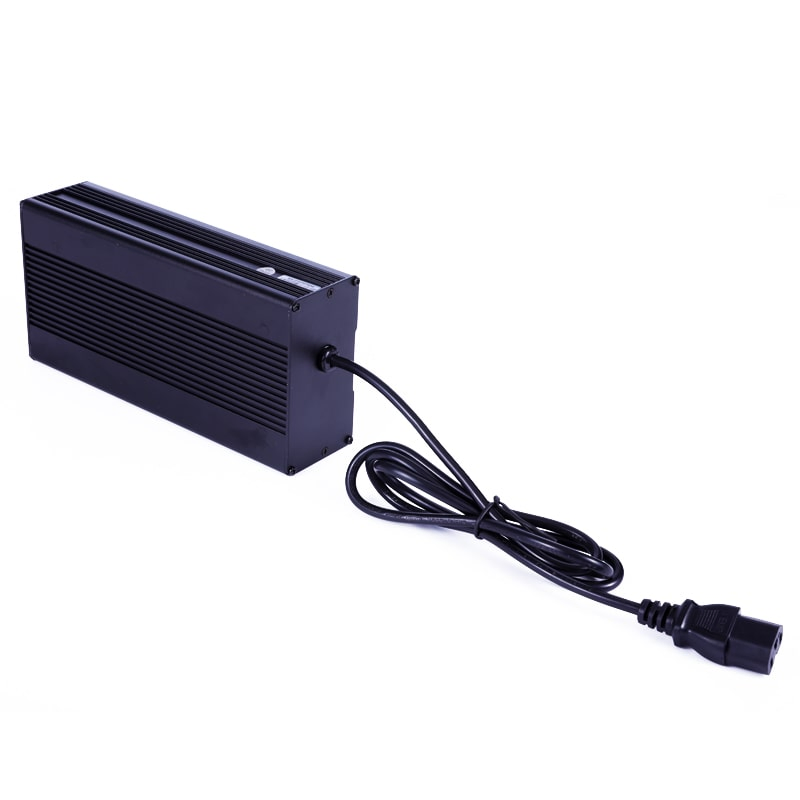

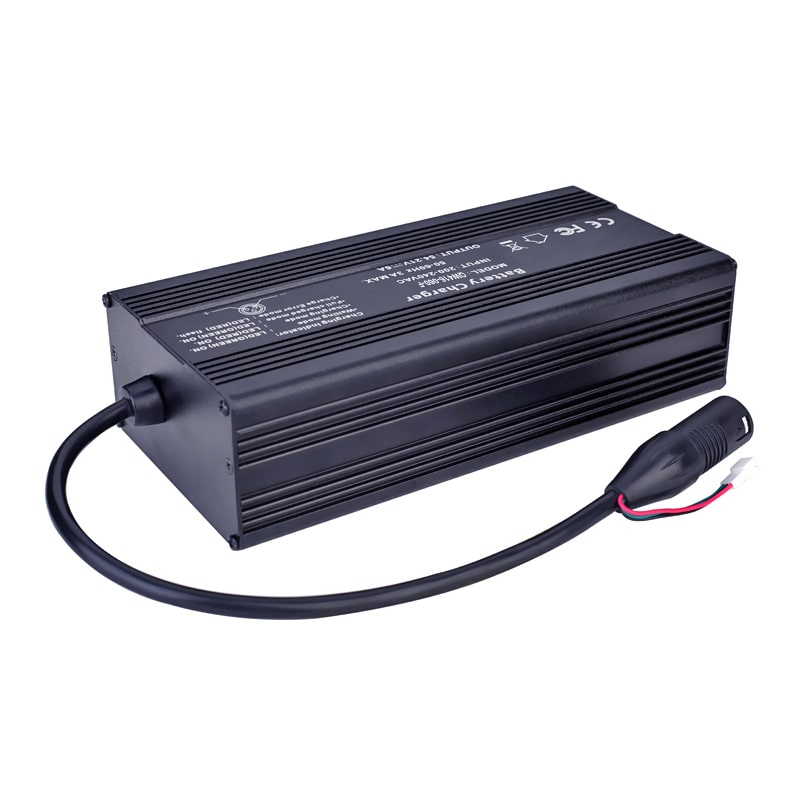

360W Battery Chargers 16s 48V 51.2V 5A 6A LiFePO4 LiFePO 4 Outdoor Charger DC 57.6V/58.4V 5A 6A IP54 IP56 Waterproof Chargers SAA Rcm Ukca UL

Basic Specifications

Model NO.

QW512-060-FA

Application

Standard Battery

Nominal Voltage

58.4V

Charger Style

Intelligent Charger

Battery Type

48V

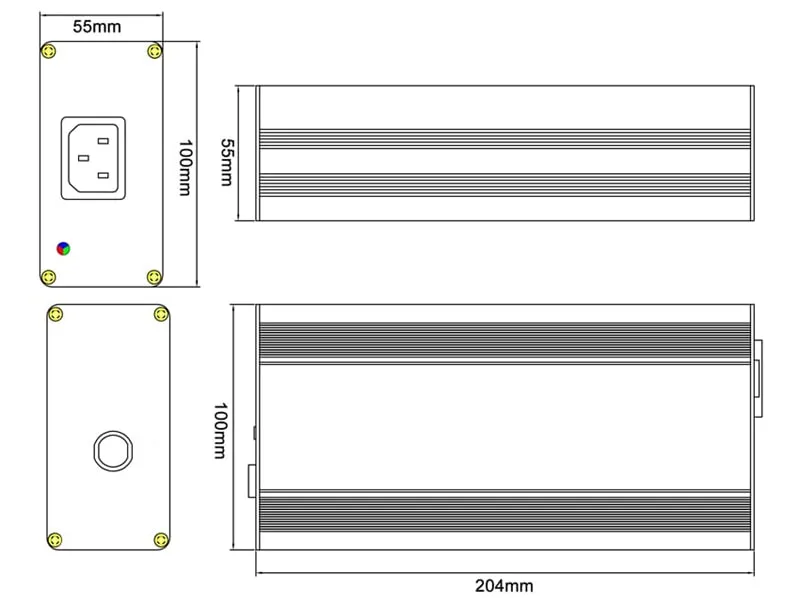

Size

204*100*55mm

Input Voltage

100-240VAC 50/60Hz

Output Current

6A (Max)

Material

Aluminium alloy

Protection Grade

IP54/IP56

Core Features

✔

Charging Mode
CC-CV (Constant Current-Constant Voltage) for optimal battery health.

✔

High Efficiency
Energy-saving design with efficiency ≥ 90% at full load.

✔

Robust Cooling

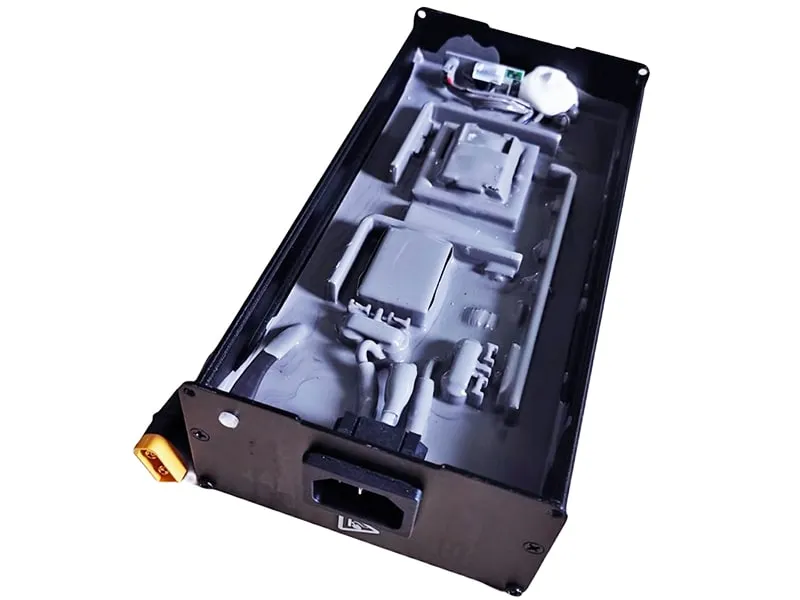

Glue pouring process combined with a metal shell cooling design.

✔

Wide Temperature
Reliable operation from -20ºC to 45ºC.

Safety Protections

🛡️Over Voltage Protection

🛡️Short Circuit Protection

🛡️Polarity Error Protection

🛡️Over Power Protection

🛡️Overheating Protection

Intelligent LED Indicators

Waiting: Green LED ON

Charging: Blue LED FLASH

Full Charged: Green LED ON

Error: Red LED FLASH

Typical Product Models

Model	Battery Type	Input Voltage	Battery Volts	Charge Volts	Charge Current
QW128-200-FA	LiFePO4	AC 100~264V	12.8V (4S)	14.6V	20A
QW256-120-FA	LiFePO4	AC 100~264V	25.6V (8S)	29.2V	12A
QW512-060-FA	LiFePO4	AC 100~264V	51.2V (16S)	58.4V	6A
QW481-060-LA	Lithium	AC 100~264V	48.1V (13S)	54.6V	6A

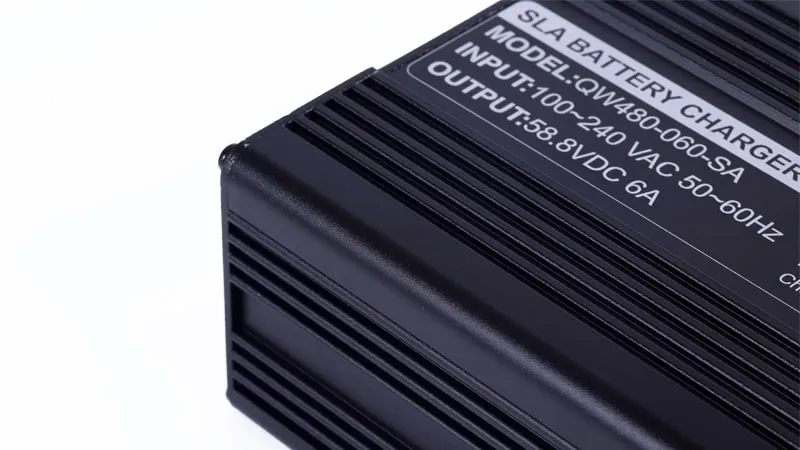

QW480-060-SA	Lead Acid	AC 100~264V	48V (4S)	58.8V	6A

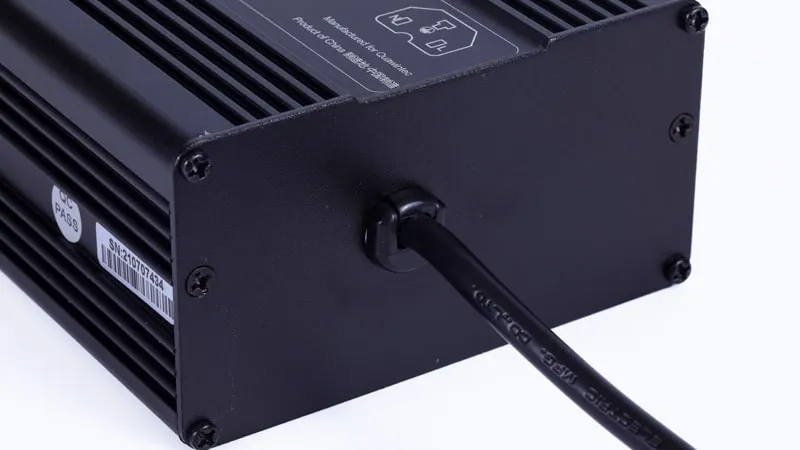

Product Presentation

Frequently Asked Questions

Q1: Which battery types can this charger be used for?

It is compatible with 16S 48V/51.2V LiFePO4 battery packs, as well as Lithium and Lead Acid batteries depending on the specific model configuration.

Q2: Is this charger suitable for outdoor use?

Yes, the charger features a protection grade of IP54/IP56, making it suitable for outdoor environments.

Q3: What charging technology does it employ?

It uses CC-CV (Constant Current-Constant Voltage) mode to ensure efficient and safe charging.

Q4: What safety certifications does the charger have?

The charger is certified by KC, PSE, RoHS, CB, CE, C-Tick, FCC, GS, ICES, SAA, RCM, UKCA, and UL.

Q5: What are the input voltage requirements?

It supports a wide input range of 100-240VAC at 50/60Hz, equipped with PFC (Power Factor Correction).

Q6: What connector types are available?

Output connectors include Waterproof plugs, Crocodile Clips, Aviation Connectors, XLR, Ring terminals, SAE Plugs, and Anderson Connectors.
