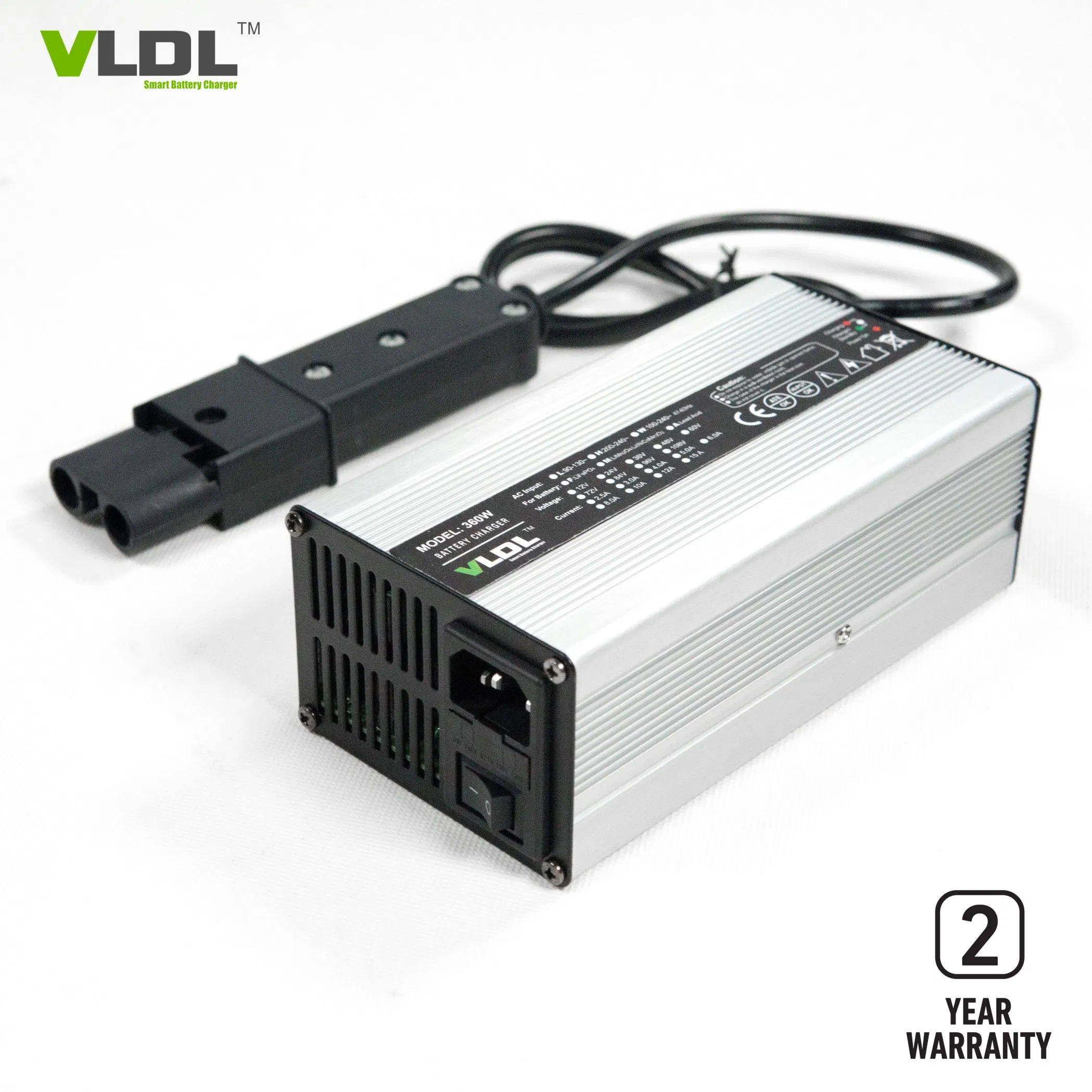

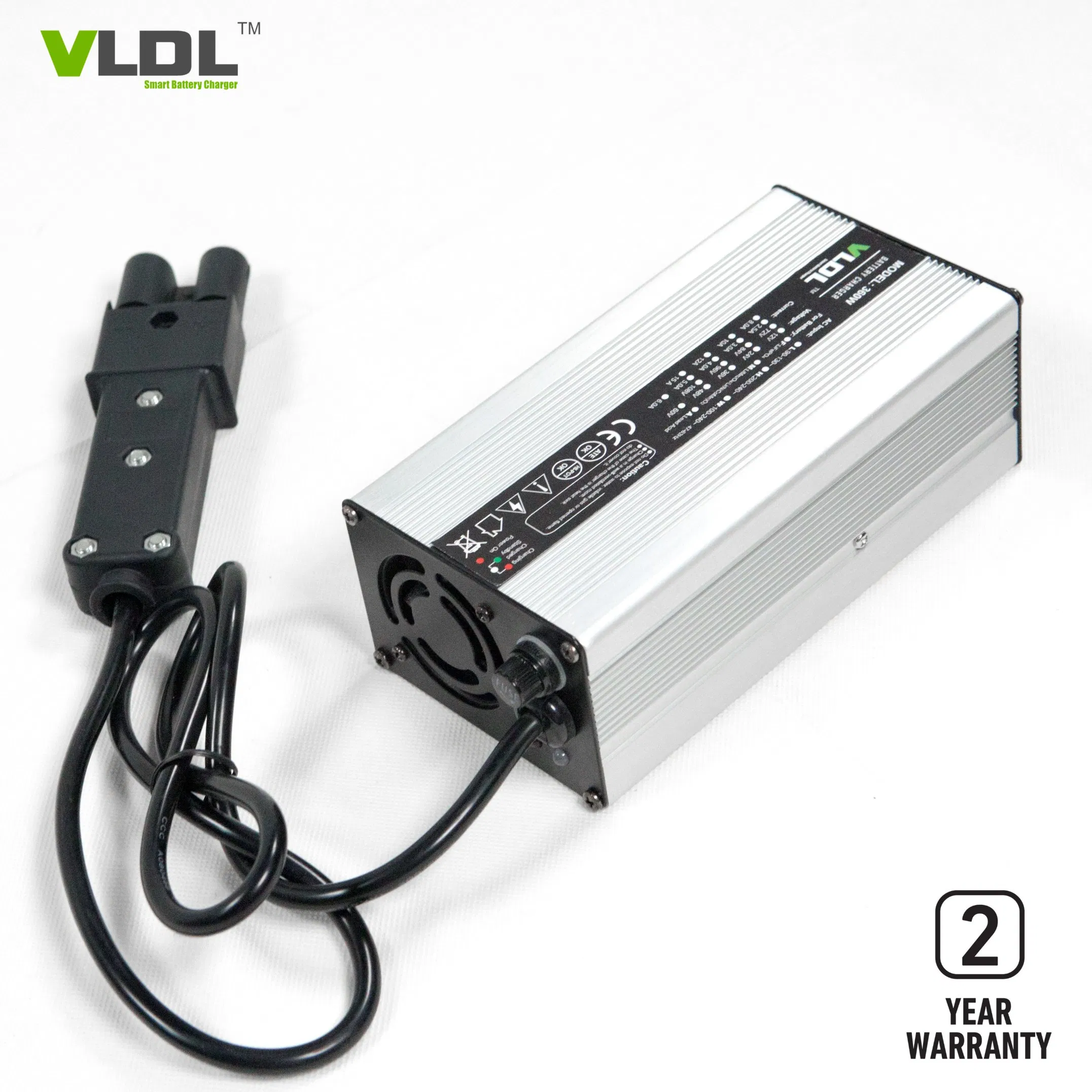

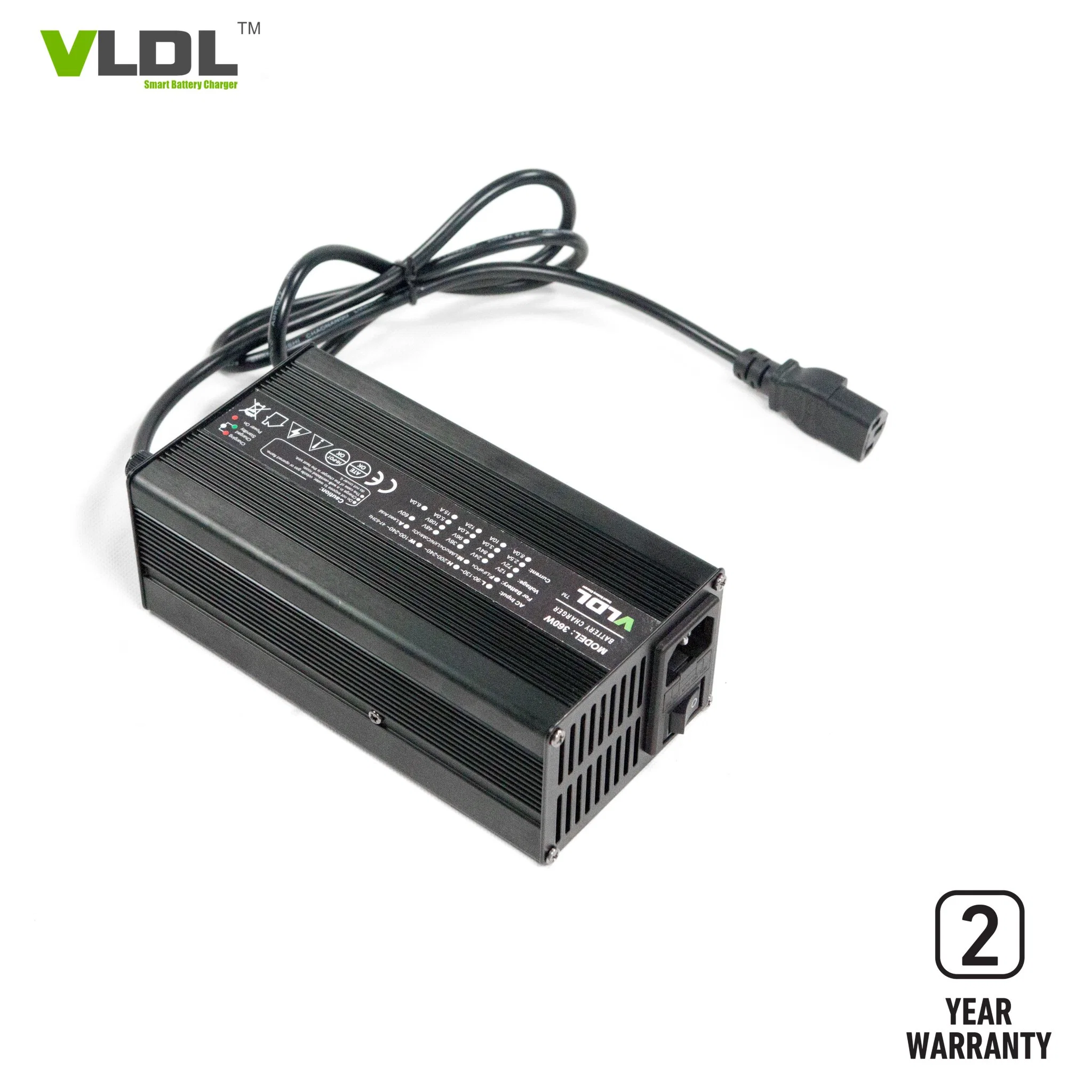

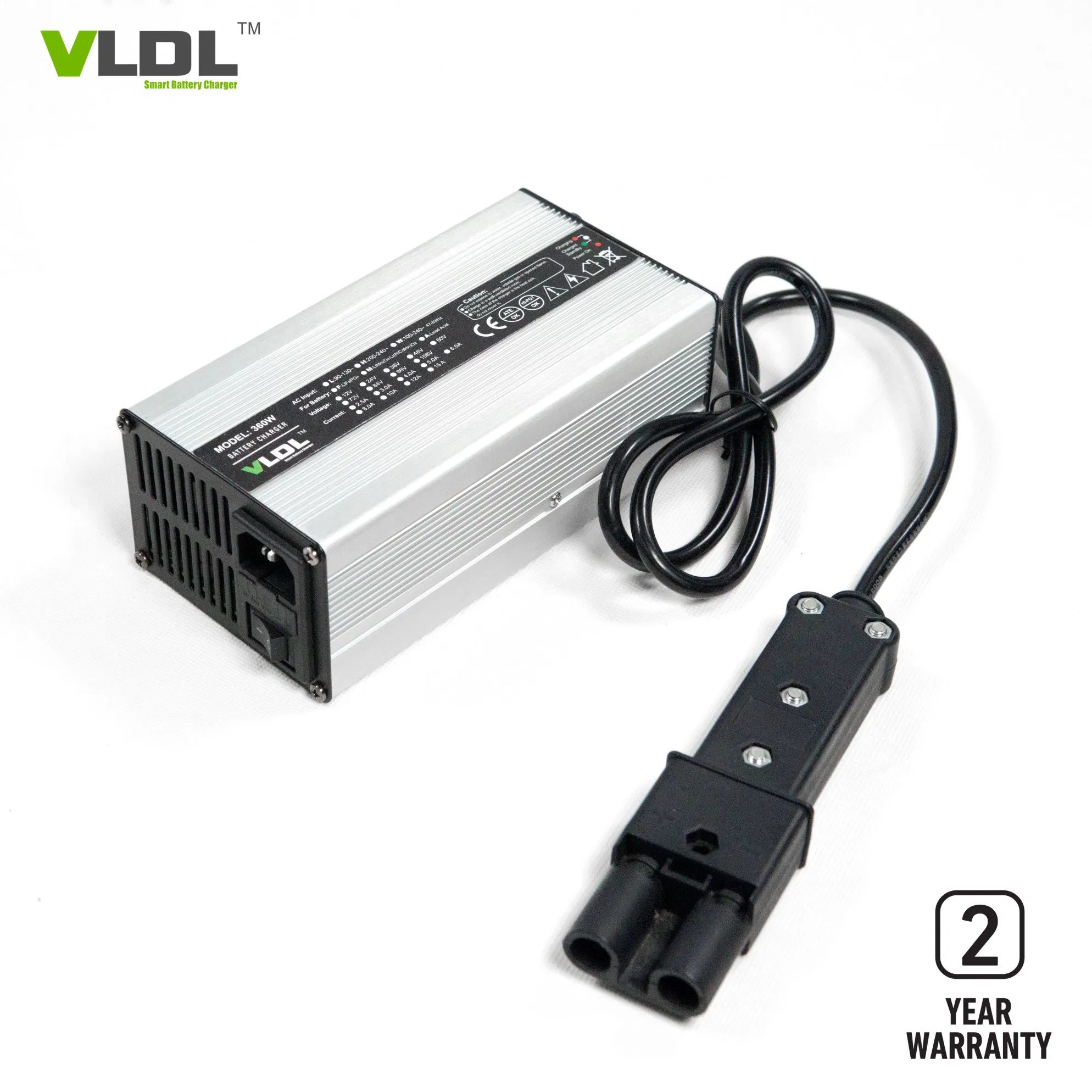

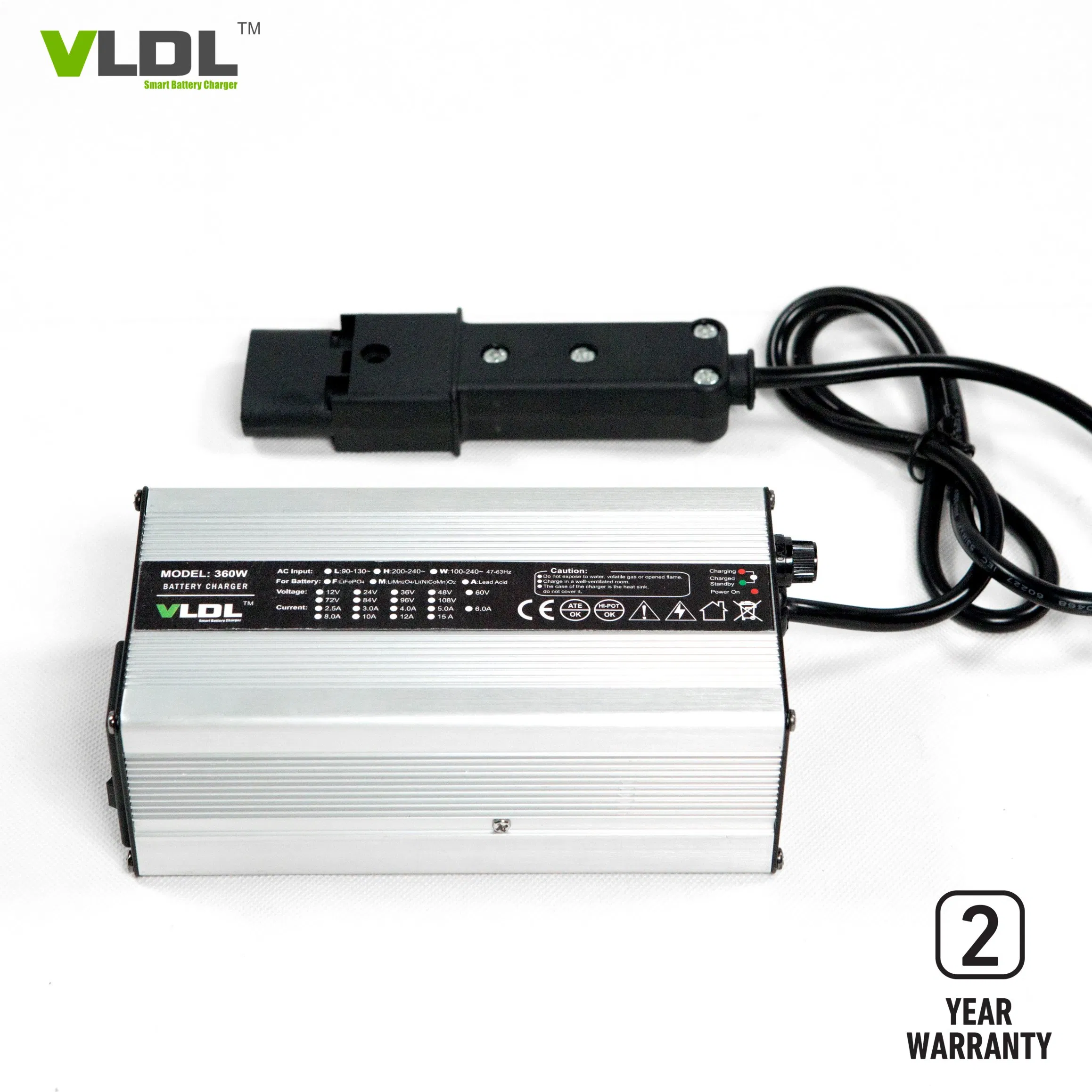

48V 5A Smart Battery Charger for Lithium-Ion/LiFePO4 Battery, Max 54.6V 58.4V

48V 5A Smart Battery Charger For Lithium-ion/LiFePO4 Battery, Max 54.6V, 58.4V

Brief Description:
This 48V 5Amps intelligent battery charger is designed for lithium or lead acid battery, supporting worldwide 110 to 230Vac input. It features intelligent 4-step charging: pre-charge, CC, CV, and floating or automatic cut-off. Designed for high efficiency and battery life protection, the charger is housed in a lightweight, portable aluminum casing.

Main Features

• Advanced high frequency switching mode power supply technology.
• DC output isolated from AC input.
• Auto worldwide Input 110 / 230Vac (90 ~ 264Vac), 50Hz~60Hz.
• Completely automatic battery charging: Pre-charging, CC, CV, Absorption, Float or Cut-off.
• 2 LED Indicators: LED1 Red (power on), LED2 Red/Green (charging/full).
• Safety Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
• High efficiency > 90% with forced ventilation fans.

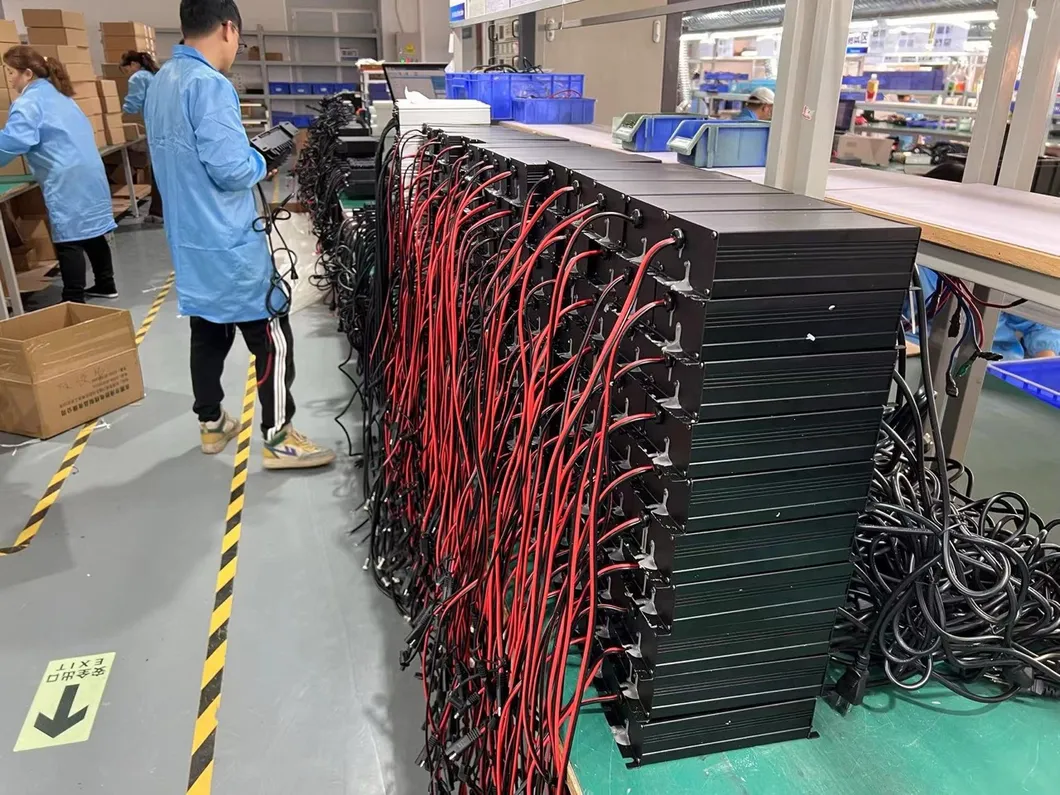

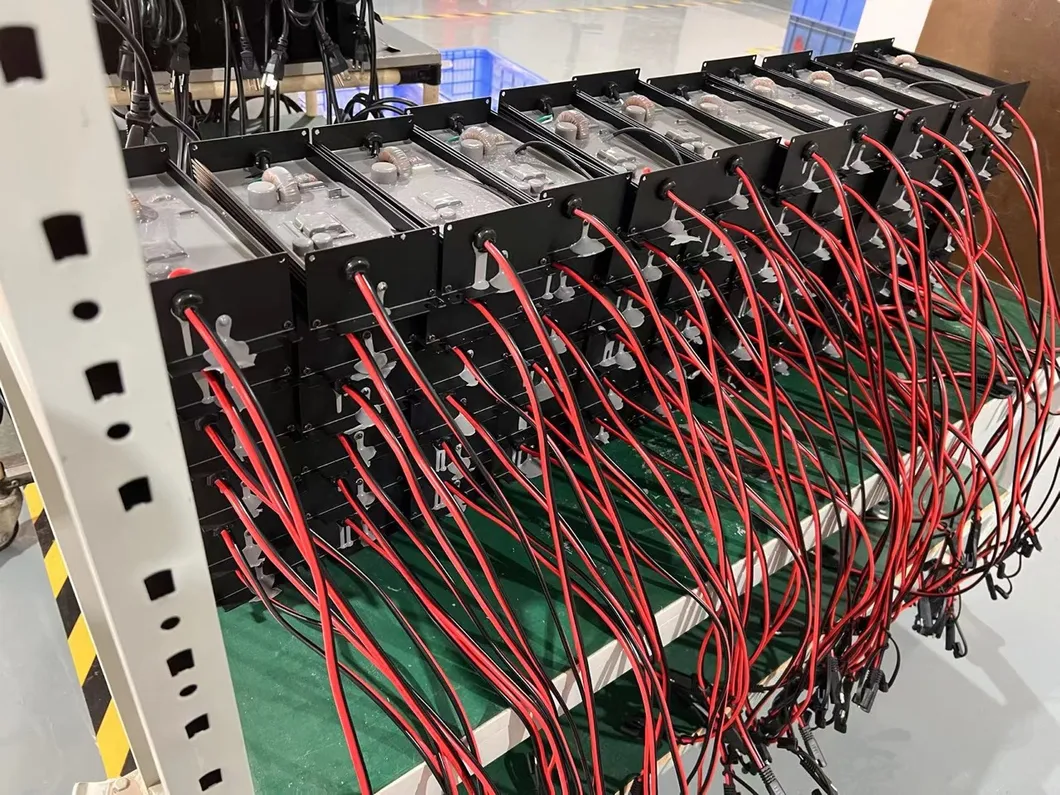

• 100% full load burn-in test.

Technical Specifications

• Dimensions: 170 x 90 x 60 mm
• Net weight: 1.5 KG
• Max charging voltage (CV): 54.6 / 58.4 volts
• Max output current (CC): 5 amps
• Charging method: Pre-charge, CC, CV, floating / trickle or shut off
• Enclosure: Aluminum
