900W Lead Acid / Gel AGM 220V Car Battery Charger 12V 24V

1 / 5

900W Lead Acid / Gel AGM 220V Car Battery Charger 12V 24V

Customization:	Available
Type:	Li-ion Battery, Lithium Battery
Cathode Material:	Other

Send Inquiry

Product Description

Basic Information

Model NO.

YX-900

Rechargeable

Yes

Size

230*135*70cm

Charger Type

Electric Charger

Nominal Voltage

12V

Power

900W

Efficiency

≥ 87% (Full Loading)

Case Material

Aluminium

Certification

RoHS, CE

Net Weight

3.5kg

Product Description

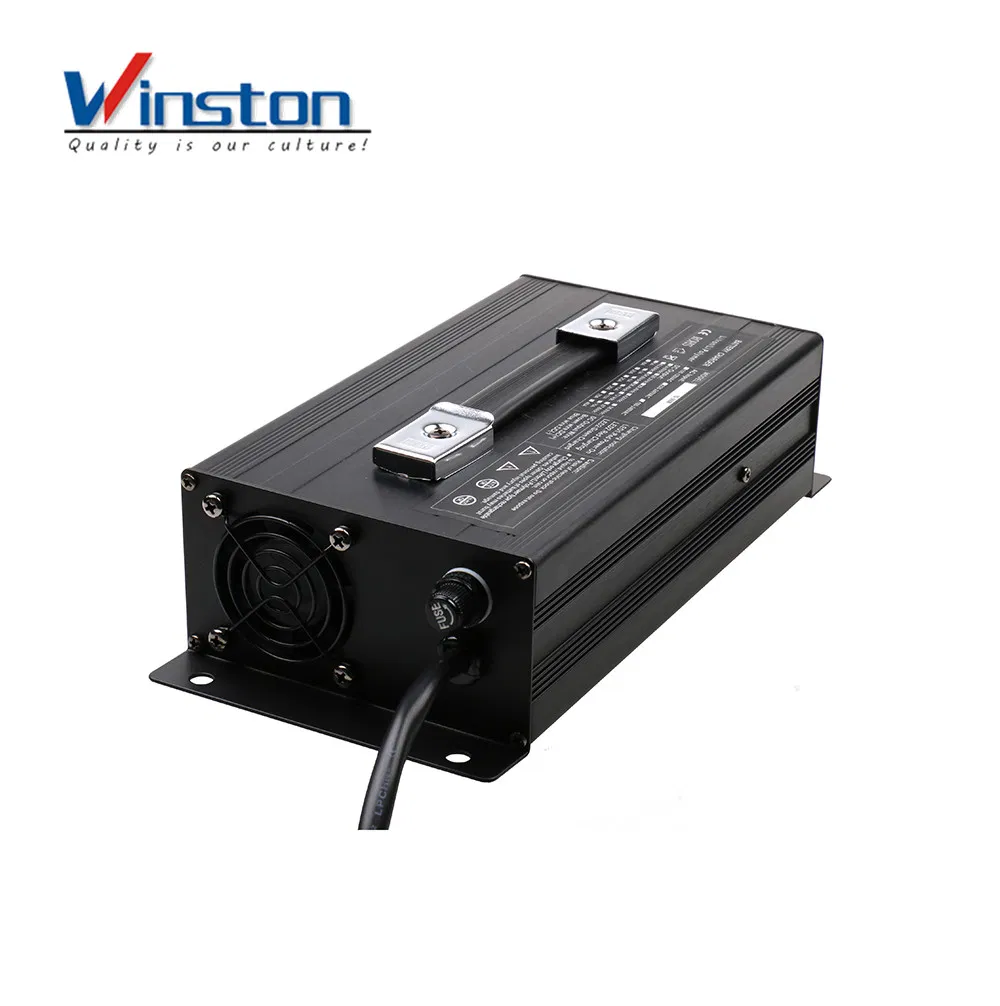

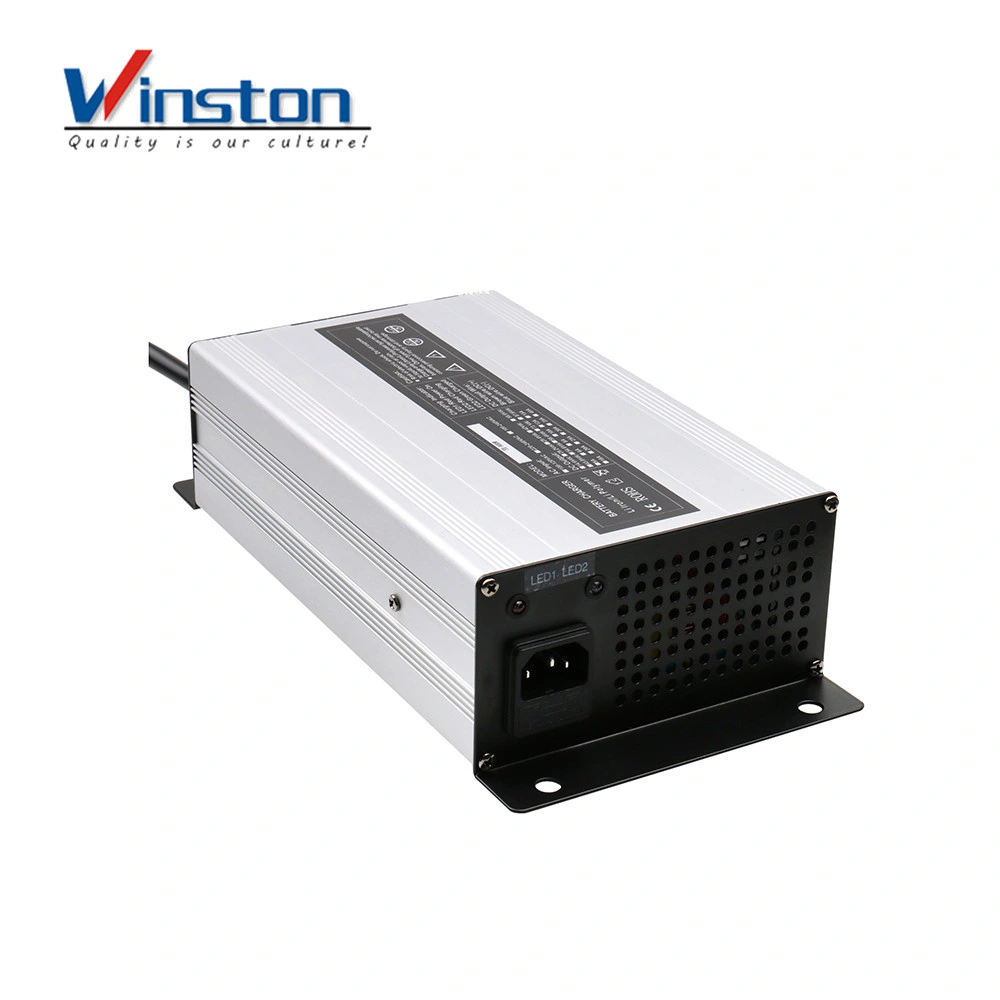

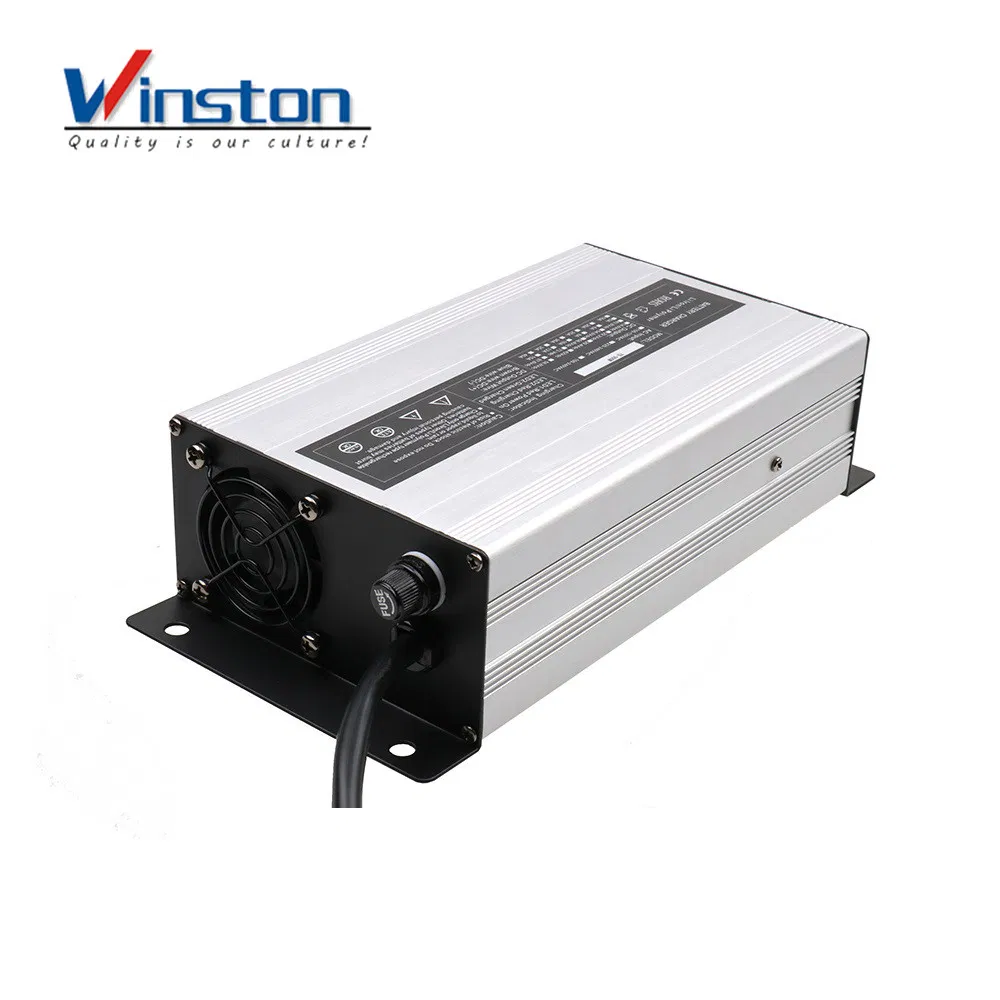

Industrial Grade 900W Lead Acid / Gel AGM Battery Charger (12V/24V/36V/48V/60V/72V)

This high-performance battery charger is designed for Lead Acid, Gel, and AGM batteries. Featuring a robust aluminium housing and an intelligent 3-stage charging mode, it ensures safety, high efficiency, and battery longevity.

✔Housing: Available in Black or Silver aluminium case for superior heat dissipation.

✔Charging Mode: 3-stage CC-CV-Floating charging technology.

✔Versatile Input: Compatible with EU, US, UK, AU, and Italy plugs.

✔Output Options: DC Jack, XLR, Cigar Lighter, Alligator clips, and more.

Technical Parameters

YX-900W Battery Charger Parameter Details
Input Voltage	100VAC - 240VAC 50HZ/60HZ				CV	Cut-off Current		Weight	Size	Package
Voltage	Lead Acid	Li-MnO2	LiFePO4	CC (Amp)	A	LA (A)	Li (A)	(kg)	(mm)	(pcs/ctn)
12V	14.7V	16.8V	14.6V	40A	-	8.0	2.0	3.5	23013570	4pcs/ctn
24V	29.4V	29.4V	29.2V	20A/25A	-	4.0/5.0	1.0/1.25
48V	58.8V	54.8V	58.4V	12A/15A	-	2.4/3.0	0.6/0.75
72V	88.2V	84.0V	87.6V	8A/10A	-	1.6/2.0	0.4/0.5

*Note: Cut-off point for Li battery is 5% of CC (settable between 3-10%).

Our Advantages

★Full automatic transition between CC, CV, and Float/Cut-off modes.

★High efficiency ≥ 90% with stable and durable performance.

★Dual LED indicators: Red for charging/power on, Green for fully charged.

★Certified quality: All products have passed CE and RoHS certifications.

★Multi-protection: Short circuit, over-voltage, over-temperature, and reverse polarity protection.

★Smart and Portable: Lightweight aluminium housing, easy to carry and use.

Frequently Asked Questions

Q1: What types of batteries is the YX-900 compatible with? A: It is specifically designed for 12V-72V Lead-Acid, Gel, and AGM batteries.

Q2: How does the 3-stage charging mode benefit my battery? A: The CC-CV-Floating mode ensures the battery is charged intelligently and safely, reaching high saturation while maintaining low heat, which extends battery life.

Q3: Does the charger have safety certifications? A: Yes, all our YX-900 series chargers are CE and RoHS certified.

Q4: Can I customize the input and output plugs? A: Yes, we provide various input plugs (EU, US, UK, AU, etc.) and output connectors (Alligator clips, XLR, DC Jack, etc.) based on your requirements.

Q5: What do the LED lights indicate? A: LED 1 Red means power is on or charging. LED 2 Green indicates the battery is fully charged.

Q6: What built-in protections does the charger include? A: It includes protection against short circuits, over-voltage, over-temperature, and reverse polarity to prevent damage to the battery and charger.
