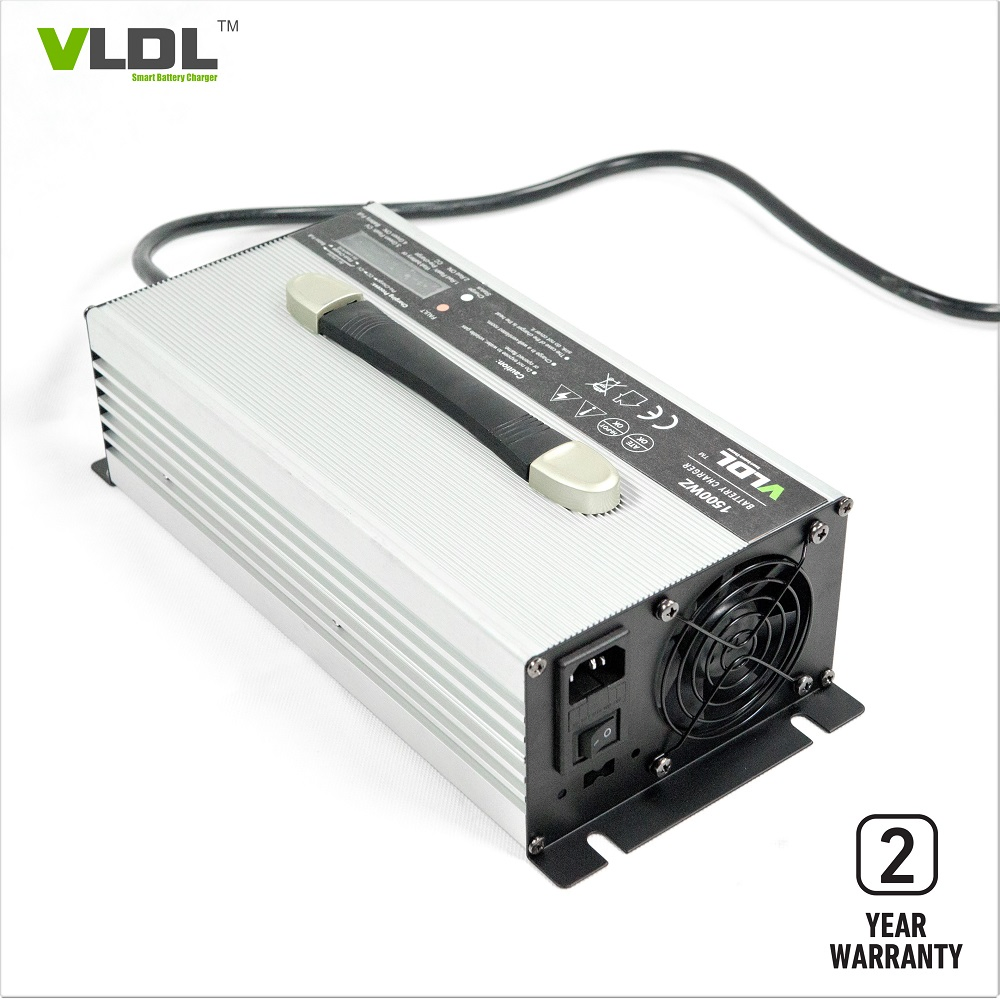

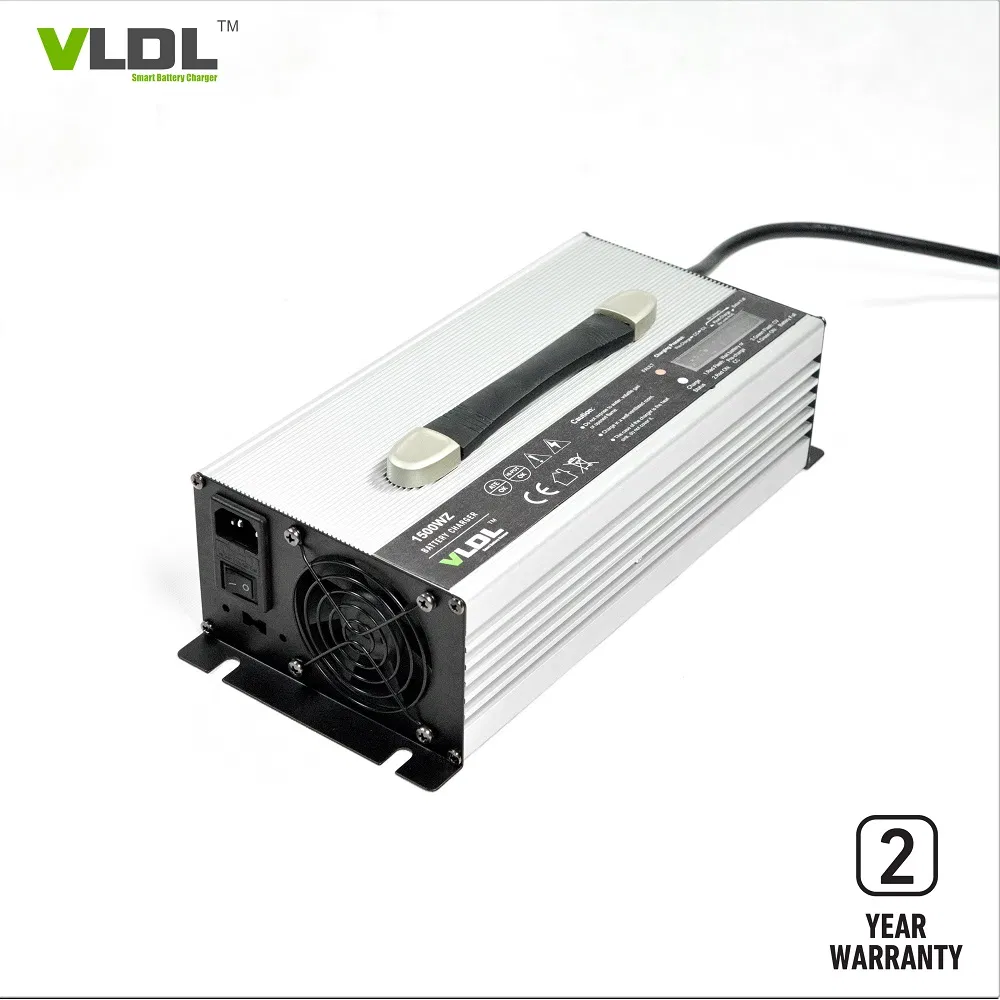

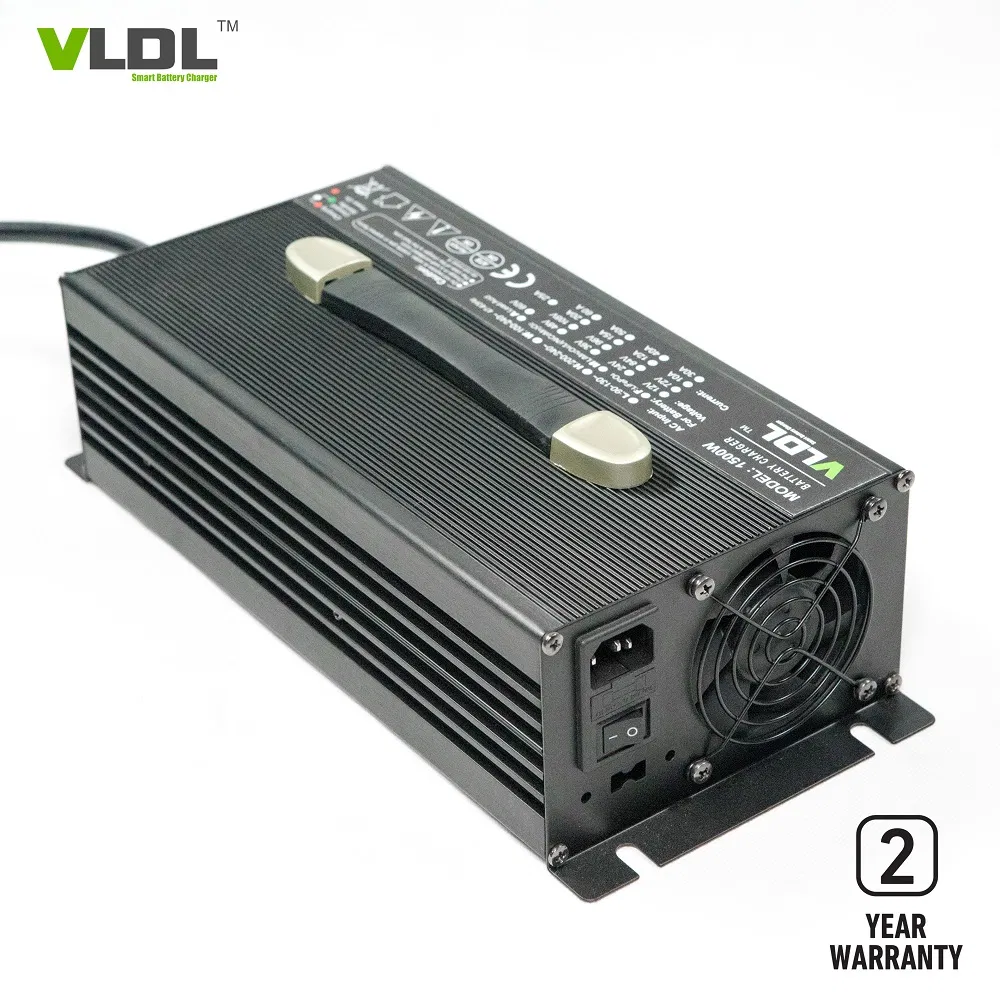

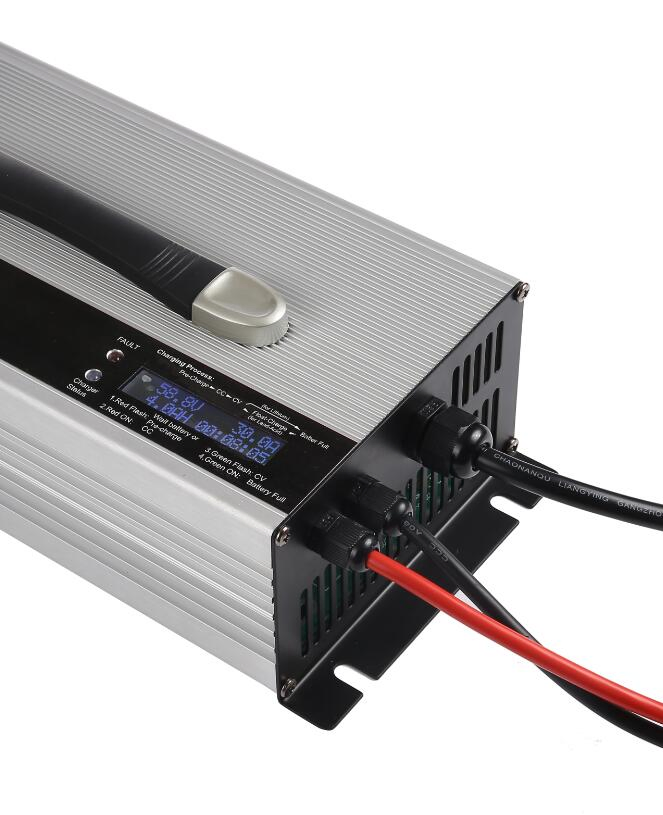

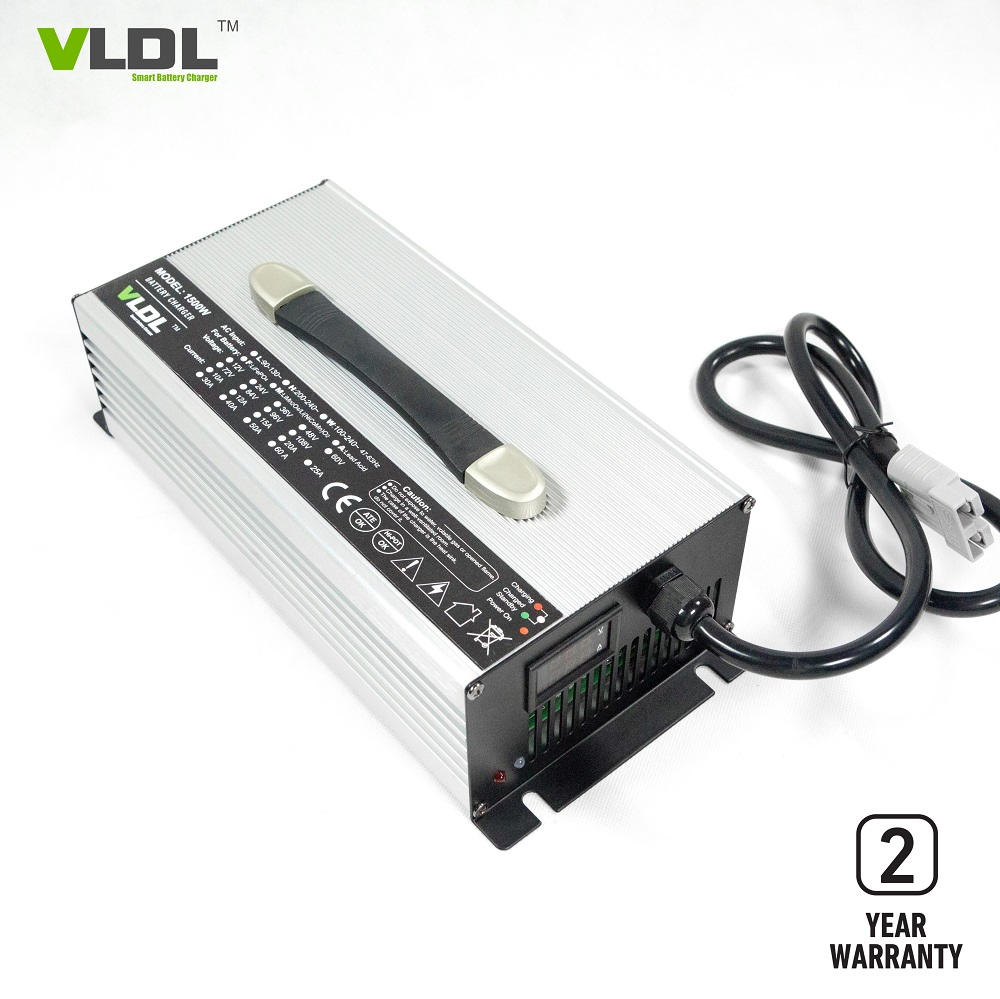

Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge
Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge
Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge
Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge
Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge
1 / 5
Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge
Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge
Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge
Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge
Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge

Automatic 12V 80A AGM Battery Charger, Smart Cc CV Floating Charge

Still deciding? Get samples of $ !
Request Sample
Send Inquiry

Product Description

Basic Information

Model NO.VL1280
Input Voltage110V or 230VAC
TypeLead-Acid Battery Charger
Charging TypeAutomatic CC CV Float Charging
PrincipleSMPS
ColorSilver / Black
Housing MaterialAluminum
Max Output Voltage14.4V / 14.7V Customized
Charging MethodCC CV Floating
Charging TimeAbout 10 Hours
Net Weight5.0 Kg
Warranty2 Years
Specification330*150*90 mm
TrademarkVLDL

Product Description

Automatic 12V 80A AGM Battery Charger

Smart CC CV Floating Charge technology designed for high reliability and efficiency.

  • 📍 110V or 230Vac input voltage
  • 📍 12V 80A rated output
  • 📍 14.4V / 14.7V customized max charging voltage
  • 📍 Aluminum case for durability

Key Features

Advanced high frequency switching mode power supply technology.
DC output isolated from AC input.
Charging parameters are insensitive to AC input line voltage variations.
Completely automatic: Pre-charging, CC, CV, Absorption, Float or Cut-off.
2 LEDs indicator: LED1 Red (power on), LED2 Red/Green (charging/full).
Protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity.
High efficiency > 90% with forced ventilation fans.
100% full load burn-in test.

Technical Specifications

Dimensions:330 x 150 x 90 mm
Net weight:5.0 KG
Max voltage (CV):14.4 / 14.7Vdc customized
Max current (CC):80 Amps
AC Input:110V or 230Vac, 50/60 Hz
Enclosure:Aluminum
Output series: 2000W | Size: 330×150×90 mm | Net weight: 5.0 KG
Input Model Battery Types Floating V CV (V) CC (A) Switching
AC 230V
47~63HZ		VL1280L12V LiFePO4-14.6V80ACC5~8%
VL128012V Lead-acid13.5V14.7V80ACC20%
VL148014V AGM13.5V14.4V80ACC20%
VL244524V Lead-acid27.6V29.4V45ACC20%

Product Showcase

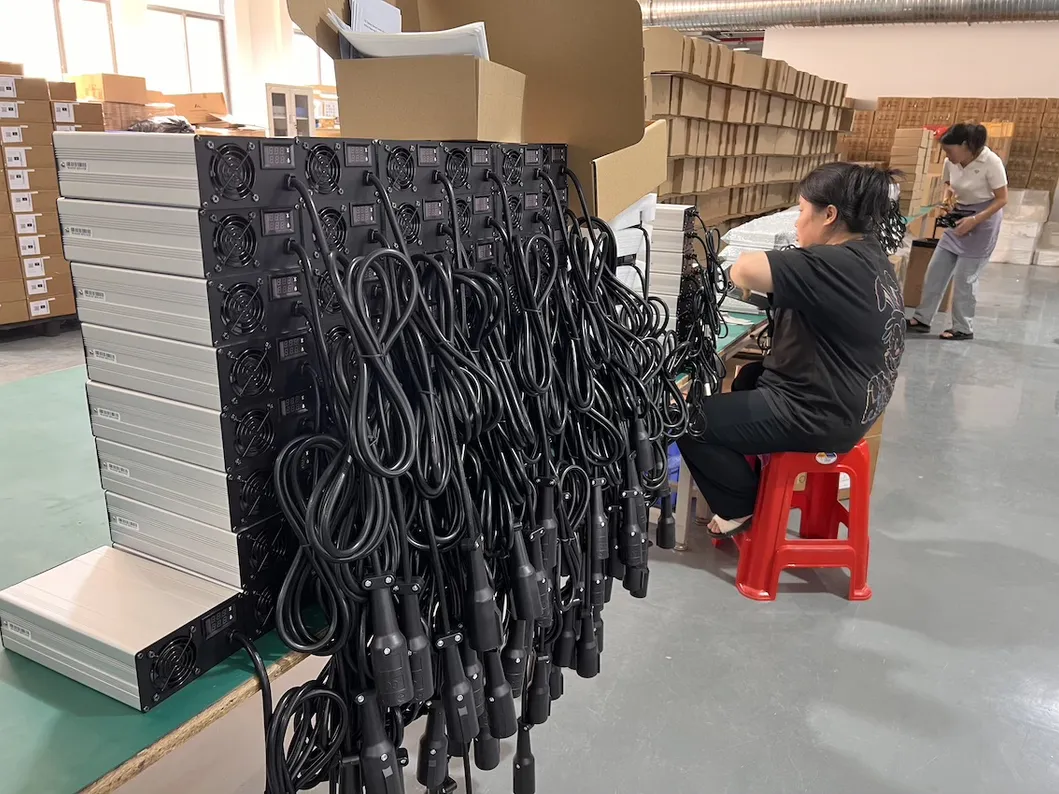

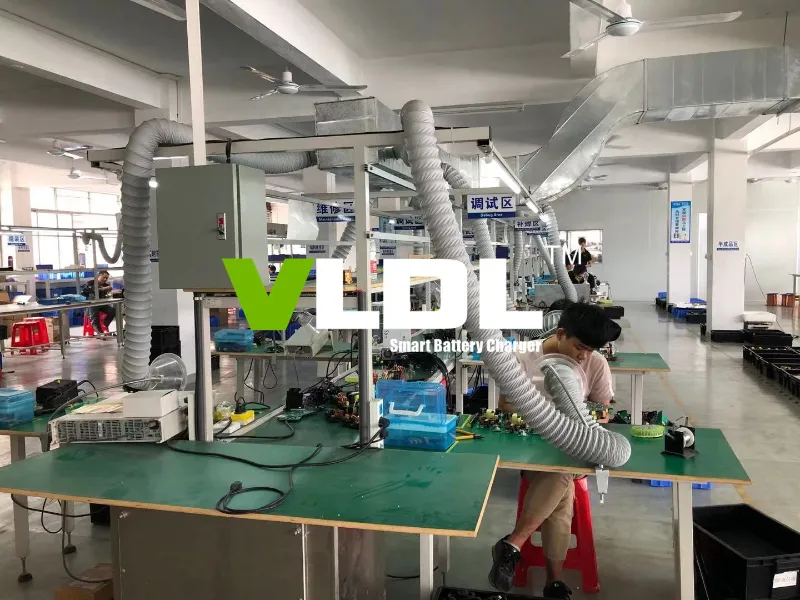

Battery Charger Factory

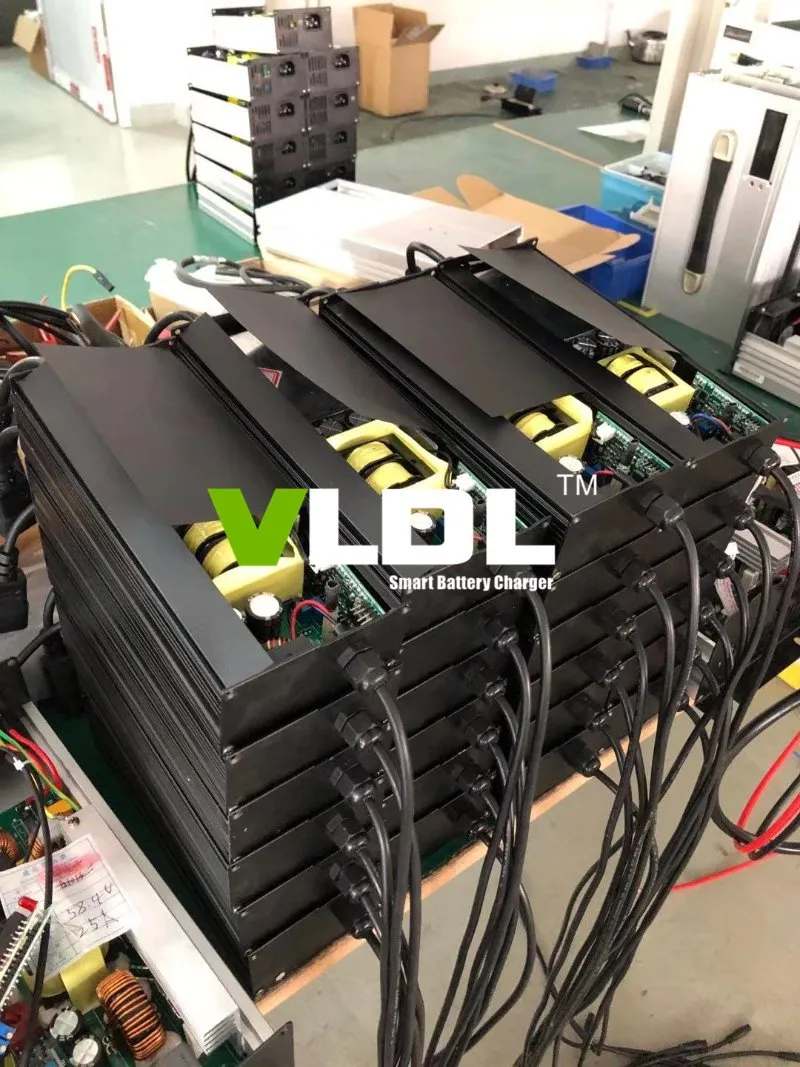

Automatic 12V 80A Charger

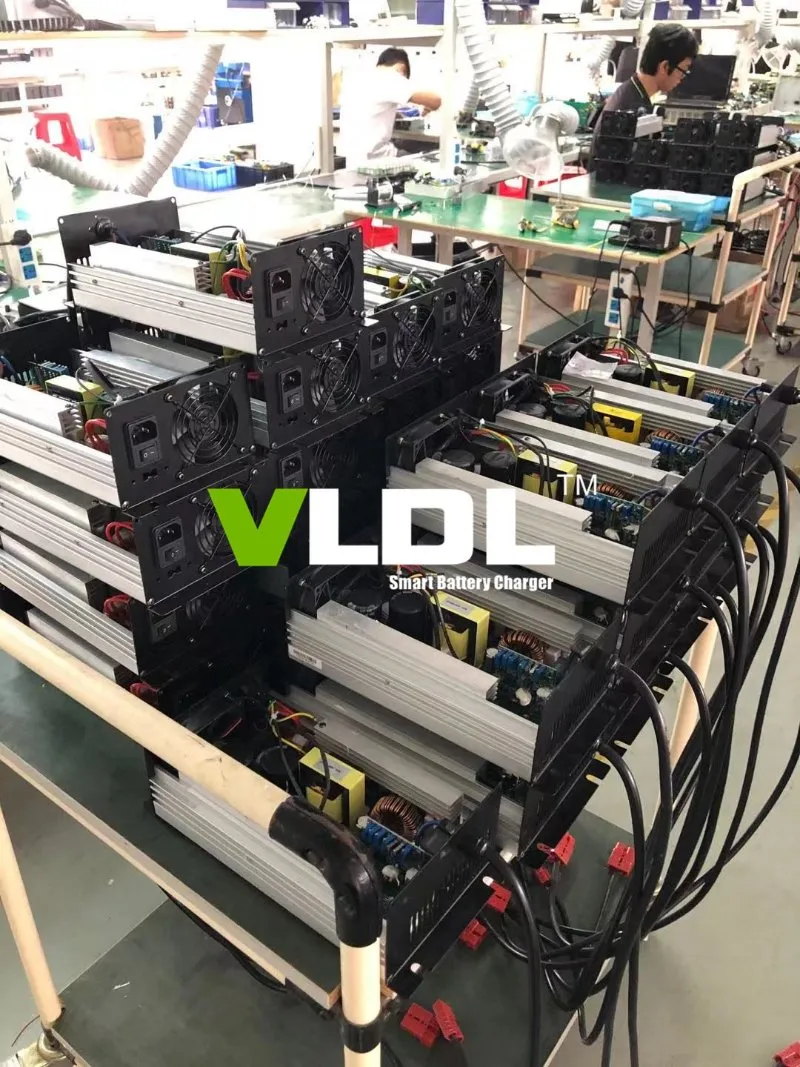

Smart CC CV Charging

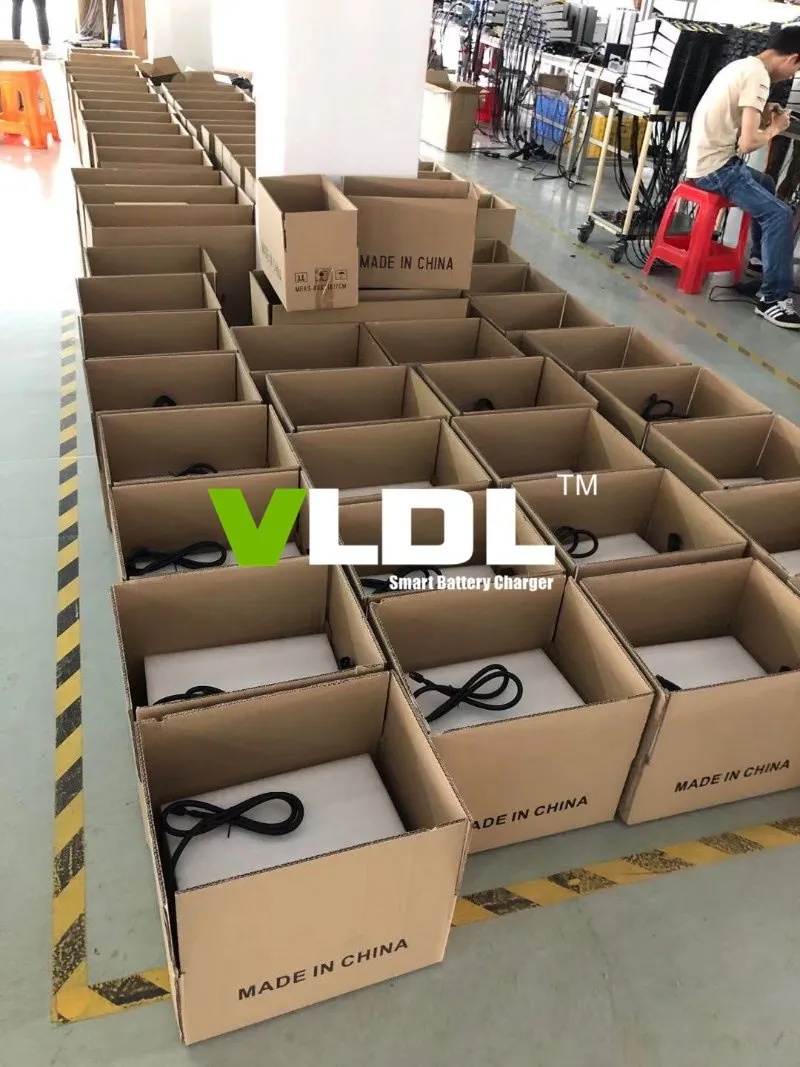

Aluminum Battery Charger

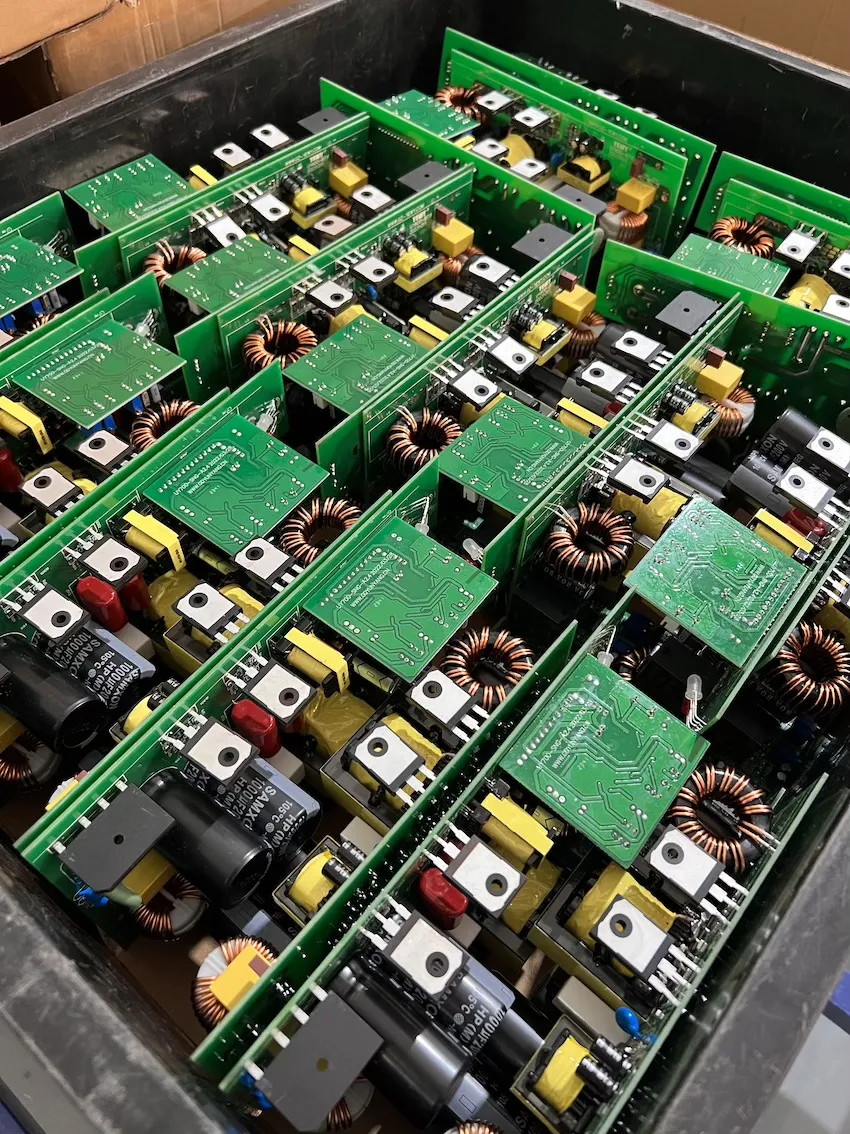

12V 80A AGM Charger

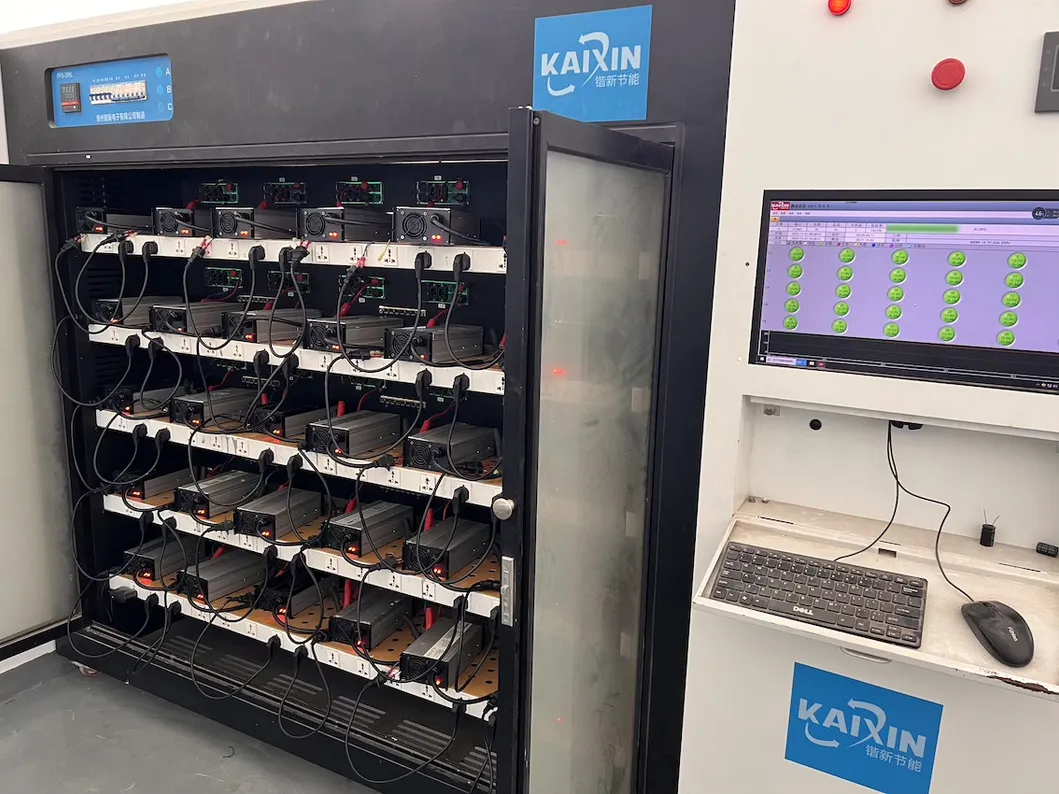

Technical Design
Charger Interior

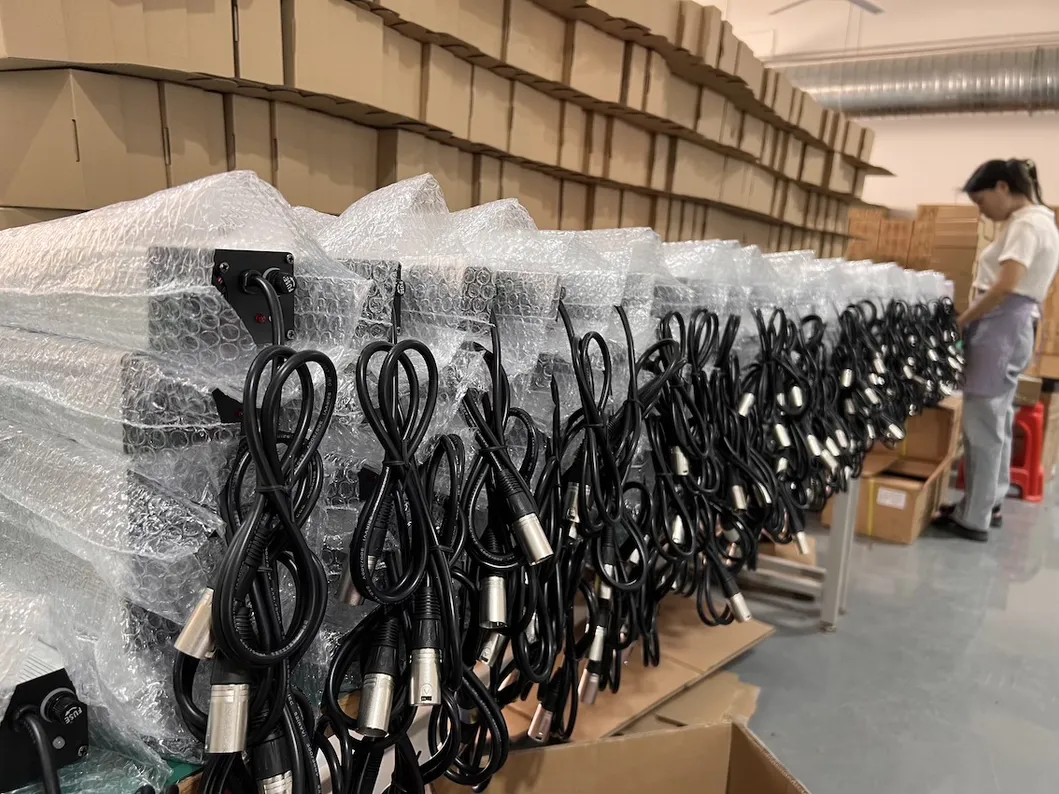

Cooling System

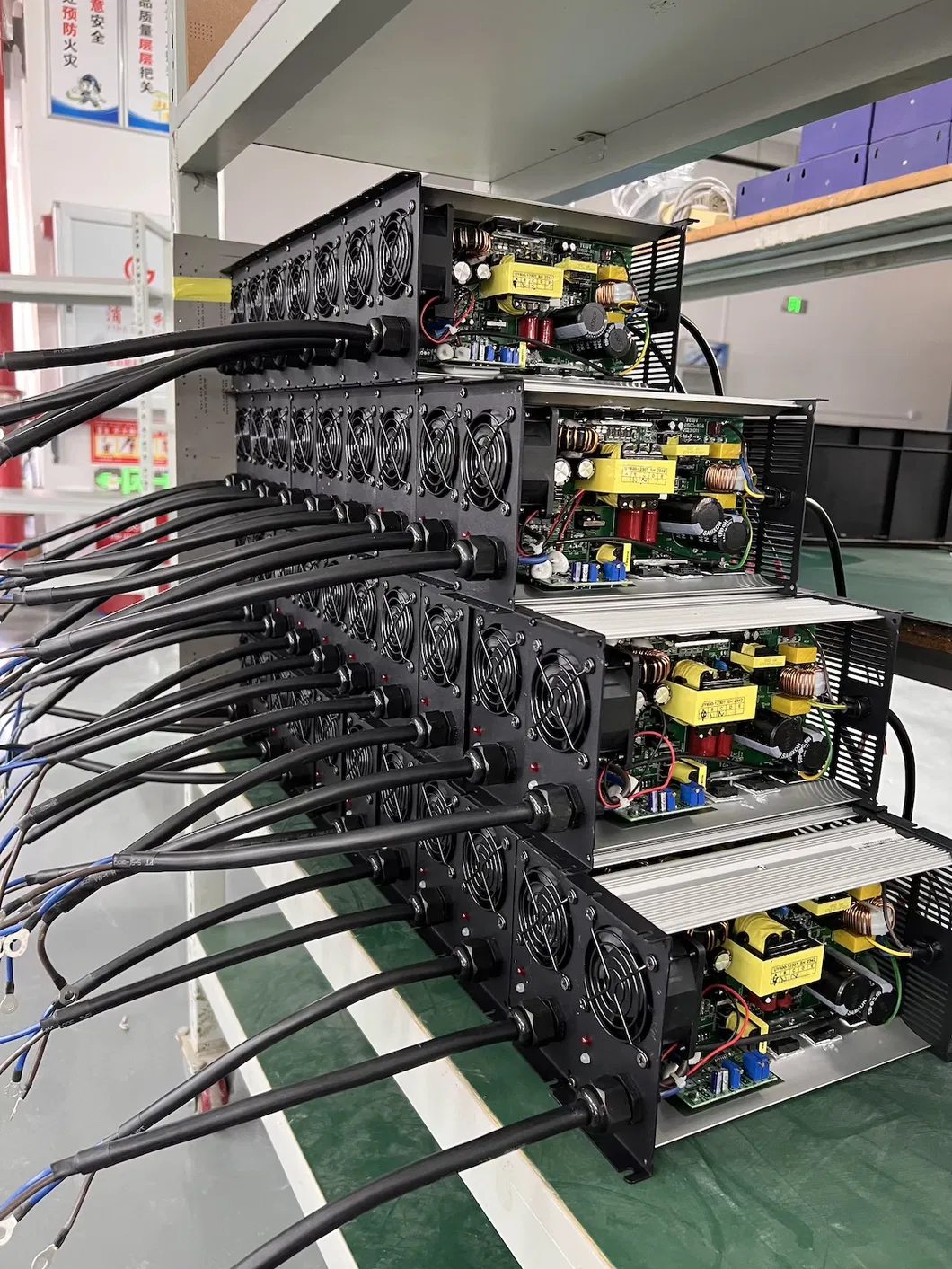

Quality Test

Frequently Asked Questions (FAQ)

What charging method does the VL1280 use?
The VL1280 uses a fully automatic 3-stage charging process: Constant Current (CC), Constant Voltage (CV), and Floating charge to ensure the battery is charged safely and efficiently.
Can I use this charger for LiFePO4 batteries?
While the VL1280 is optimized for Lead-acid batteries, we offer specific models like the VL1280L and VL1680L specifically designed for LiFePO4 battery charging curves.
What safety protections are built into the device?
The charger includes comprehensive protection features: Short circuit protection, Over-voltage protection, Over-temperature protection, and Reverse Polarity protection.
Is the input voltage compatible with my country?
Yes, the charger supports either 110V or 230Vac input voltage (50/60Hz), and we provide customized AC plugs for US, UK, EU, AU, and India.
How long is the warranty period?
We provide a 2-year warranty for this high-reliability aluminum casing battery charger, reflecting our confidence in the SMPS technology and build quality.
How do I know the charging status?
The unit features dual LED indicators: LED1 (Red) indicates the power is on, and LED2 changes from Red to Green to indicate the transition from charging to a full charge status.

Related Products

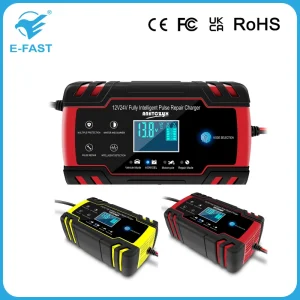

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display

Portable 12V 24V Car AGM Lead Acid Battery Charger with LCD Display

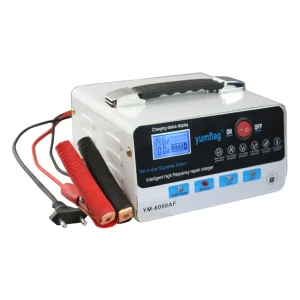

Intelligent Repair of 12V and 24V on-Board AGM Lead-Acid Battery Chargers

Intelligent Repair of 12V and 24V on-Board AGM Lead-Acid Battery Chargers

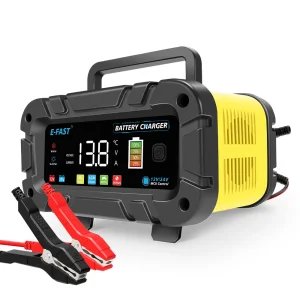

Car Battery Charger 12V/24V 20A Touch Screen Automatic Pulse Repair Charger for Motorcycle Lead Acid AGM Gel Lithium Batteries

Car Battery Charger 12V/24V 20A Touch Screen Automatic Pulse Repair Charger for Motorcycle Lead Acid AGM Gel Lithium Batteries

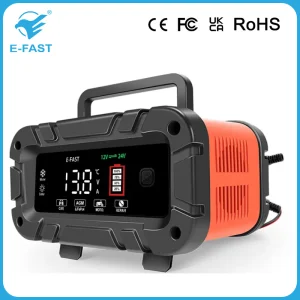

Portable 24V 5A 7-Stage Lead Acid AGM LiFePO4 Motorcycle Car Battery Charger 12V 10A Smart LCD Display Automatic Charger

Portable 24V 5A 7-Stage Lead Acid AGM LiFePO4 Motorcycle Car Battery Charger 12V 10A Smart LCD Display Automatic Charger

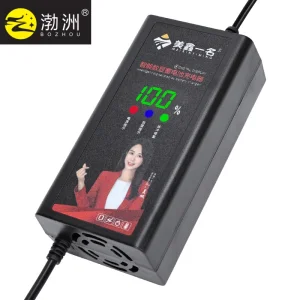

60V 20ah Smart Electric Car Charger for Rechargeable AGM Gel Lead Acid Battery 12ah 14ah DC 74V 3A T Connector

60V 20ah Smart Electric Car Charger for Rechargeable AGM Gel Lead Acid Battery 12ah 14ah DC 74V 3A T Connector

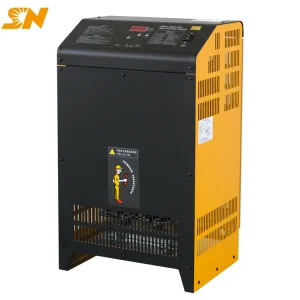

Shineng Czb5c 48V 100A AGM Forklift Battery Charger for Electric Pallet Truck Boat Stacker

Shineng Czb5c 48V 100A AGM Forklift Battery Charger for Electric Pallet Truck Boat Stacker

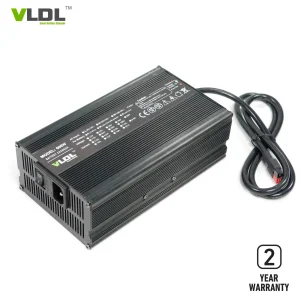

72V 6A Smart Battery Charger for SLA / AGM / Gel Battery

72V 6A Smart Battery Charger for SLA / AGM / Gel Battery

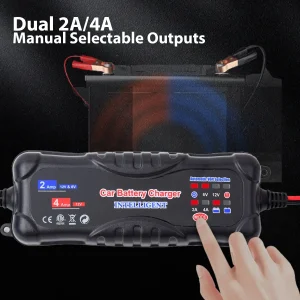

Smart 12V/4A Battery Charger for 6V/12V Lead Acid (STD, GEL, AGM)

Smart 12V/4A Battery Charger for 6V/12V Lead Acid (STD, GEL, AGM)
12V 90A DC to DC on-Board Battery Charger for Flooded Gel AGM Lithium Rvs Vehicles Boats Yacht

12V 90A DC to DC on-Board Battery Charger for Flooded Gel AGM Lithium Rvs Vehicles Boats Yacht

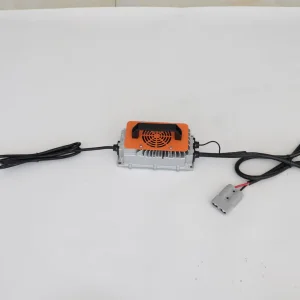

60V 15A Input 110V AGM Battery Charger for Lvtong Golf Cart
