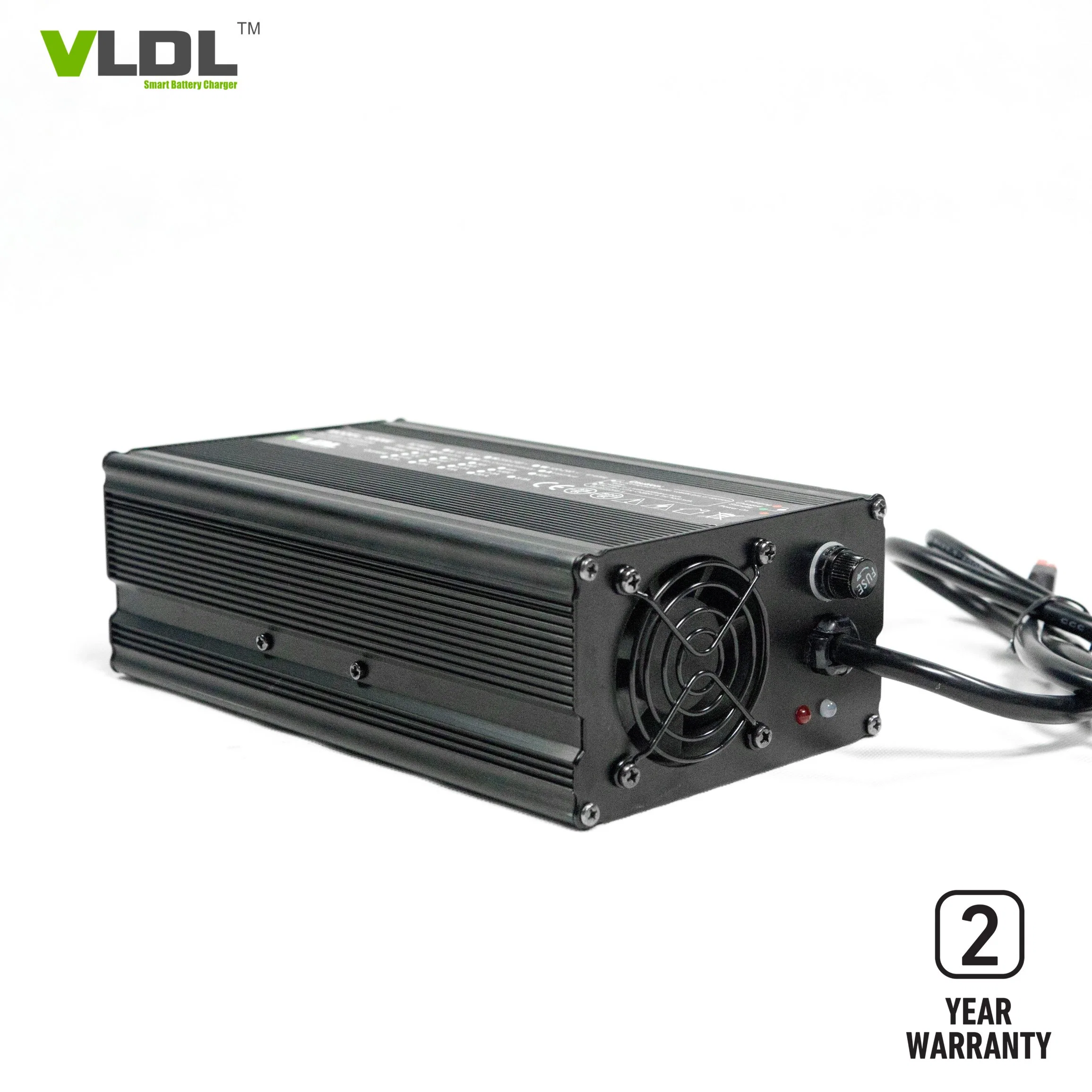

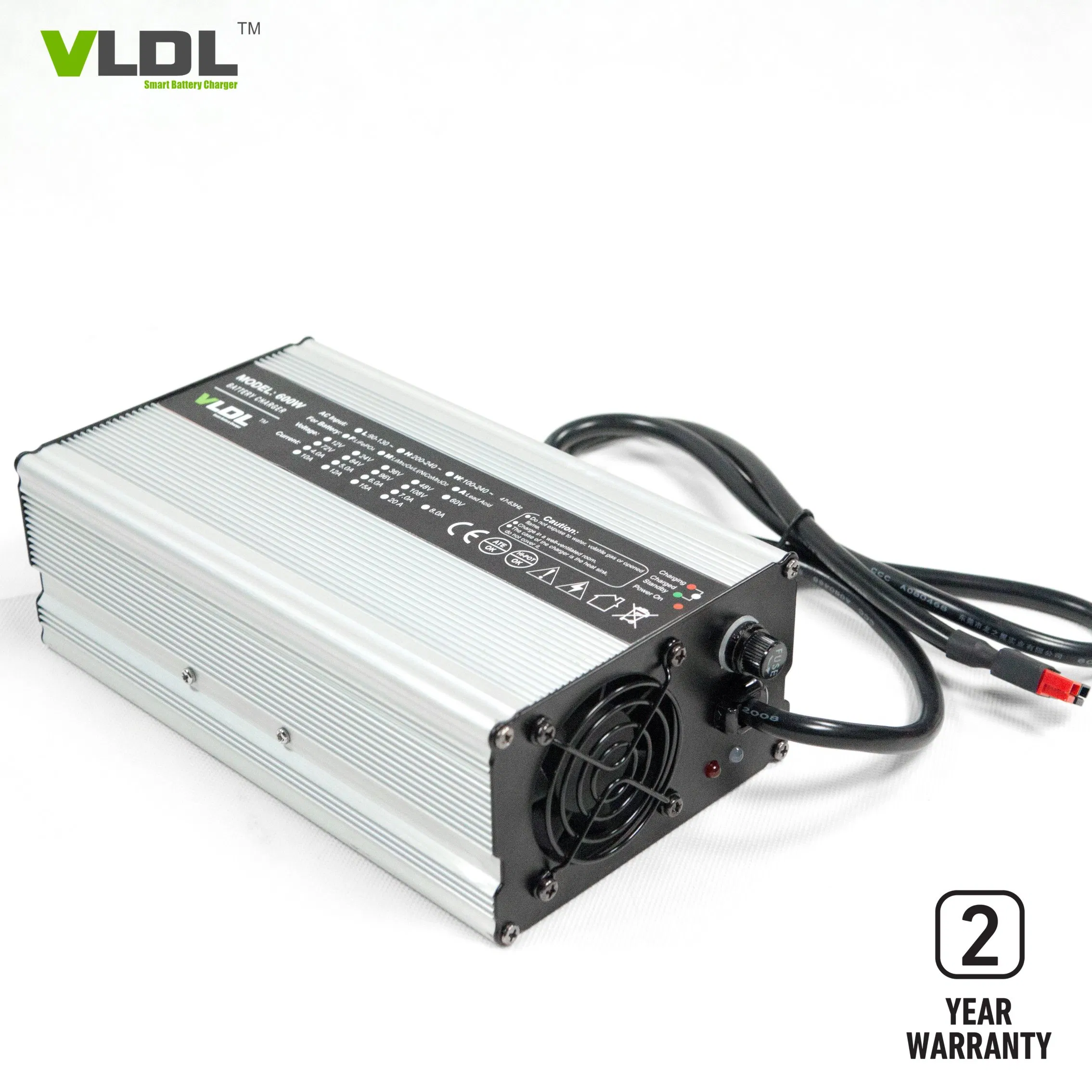

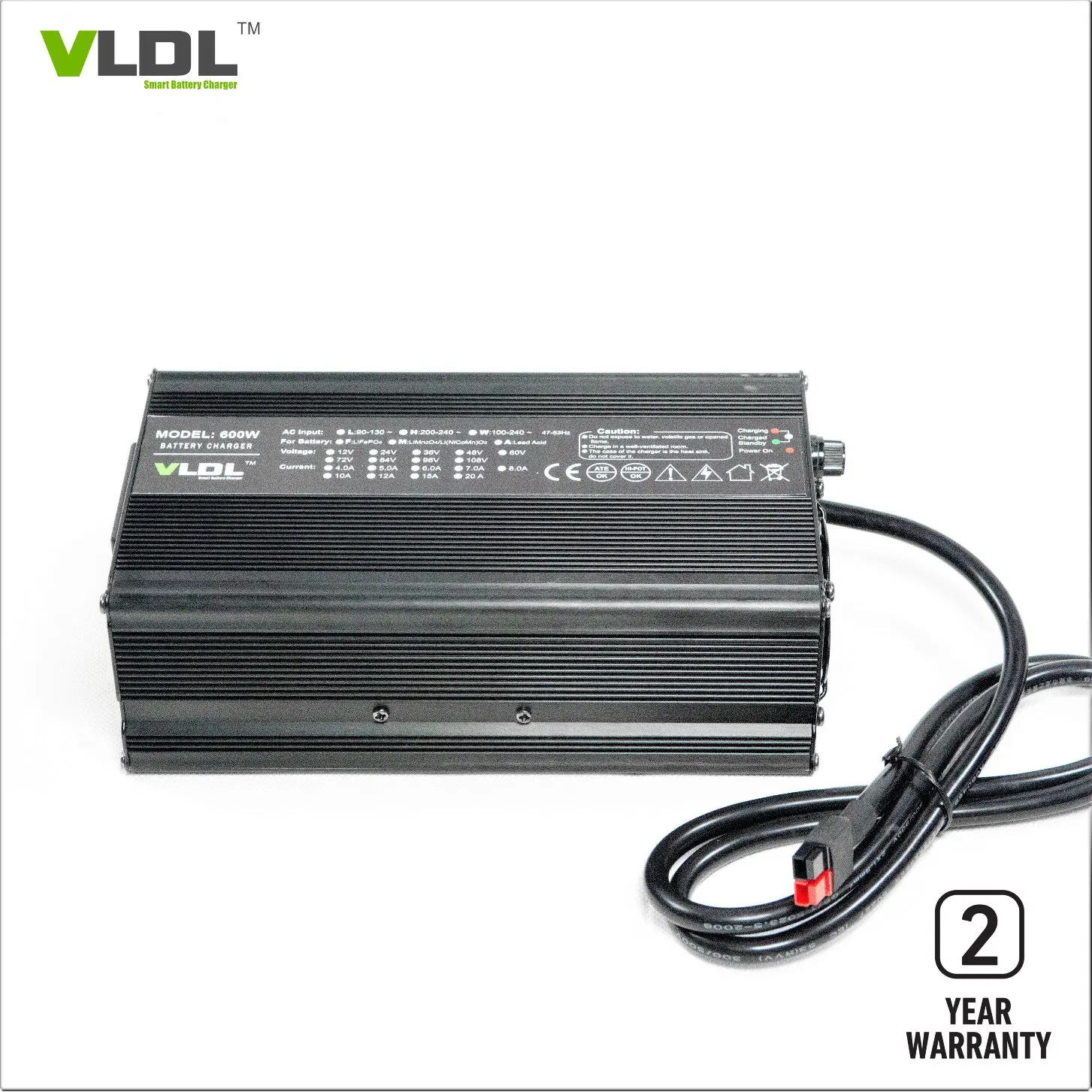

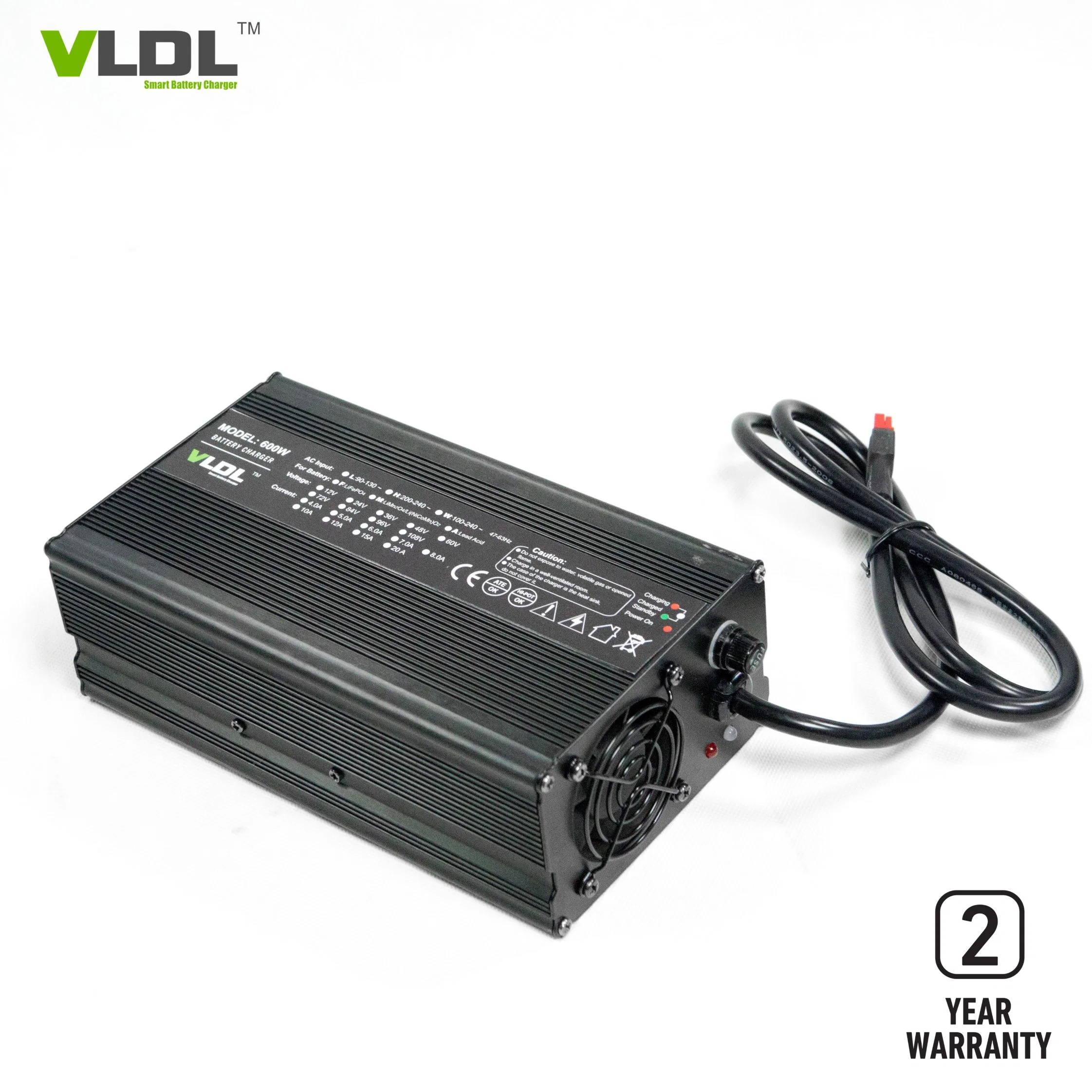

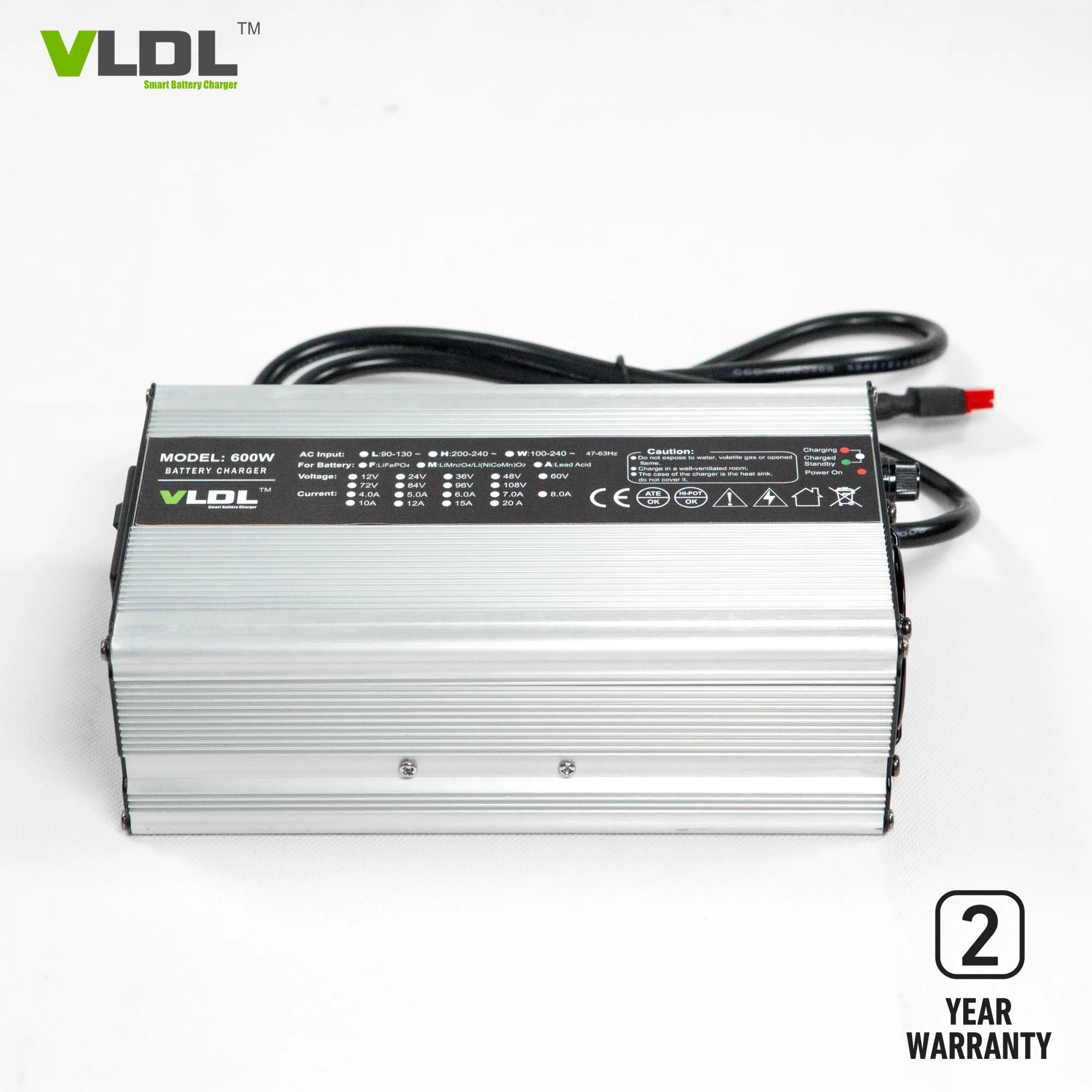

Automatic 84V 5A Lead Acid Battery Charger, Suit for SLA/Gel/AGM Type Battery

Basic Specifications

Model NO.VL8405

Input Voltage110 or 230VAC

TypeLead-Acid Battery Charger

Charging TypeElectric Charger

PrincipleMCU Controlled Smart Charger

ColorSilver / Black

Max Output Voltage84V / 102.9V

Net Weight2.5 Kg

Specification220*120*70 mm

OriginChina

Product Description

Automatic 84V 5A Lead Acid Battery Charger, Suit For SLA/GEL/AGM type battery

The 84V 5Amps intelligent battery charger is designed for lithium or lead acid batteries, compatible with 110 or 230Vac input. Smart max charging voltage reaches 102.9V for lead acid and 102.2V for Lithium batteries. Utilizing a 4-step intelligent charging process (pre-charge, CC, CV, and floating/automatic cut-off), this high-efficiency charger protects battery life while providing rapid charging speeds in a lightweight aluminum housing.

Key Features

Advanced high frequency switching mode power technology
DC output isolated from AC input
Smart 4-step charging: Pre-charge, CC, CV, Absorption, Float
Dual LED indicators for power and charging status
Comprehensive protections: Short circuit, Over-voltage, Over-temperature, Reverse Polarity
High efficiency > 90% with forced fan cooling
100% full load burn-in tested
Portable and durable aluminum casing

Technical Specifications

Dimensions220 x 120 x 70 mm

Max Charging Volts84 / 102.9 Volts

Max Output Current5 Amps

AC Input Range110 / 230Vac, 50/60 Hz

Enclosure MaterialAluminum

Warranty2-year Full Warranty

Related 600W Charger Models

Output Series: 600W \| Size: 220×120×70 mm \| Weight: 2.3 KG
Model	Battery Type	Float V	CV (V)	CC (A)	Switching
VL1225	12V Lead-acid	13.5V	14.7V	25A	CC20%
VL2418	24V Lead-acid	27.6V	29.4V	18A	CC20%
VL3612	36V Lead-acid	41.4V	44.1V	12A	CC20%
VL4810	48V Lead-acid	55.2V	58.8V	10A	CC20%
VL6008	60V Lead-acid	67.5V	73.5V	8A	CC20%
VL7206	72V Lead-acid	81V	88.2V	6A	CC20%
VL8405	84V Lead-acid	94.5V	102.9V	5A	CC20%

Certifications & Packaging

Frequently Asked Questions

Which battery types are compatible with this charger?

This charger is designed for 84V Lead-acid batteries, including SLA, GEL, and AGM types. We also offer versions specifically for Lithium (LiFePO4, Li-ion) batteries.

What do MF, GEL, and AGM stand for?

These are abbreviations for different lead-acid battery technologies: Gel, AGM (Absorbent Glass Mat), and MF (Maintenance-Free).

Can I charge multiple batteries in parallel?

Yes, the charger can handle batteries connected in parallel as long as the total capacity is within the recommended range. Ensure high-quality wiring is used to handle current between batteries.

Is it safe to leave the charger connected after charging is complete?

For lead-acid batteries, the charger enters a maintenance (floating) mode with a small current. While it is designed for this, we recommend not exceeding 24 hours of connection after full charge. For lithium batteries without a BMS, do not leave the charger unattended.

What safety protections are included?

The charger features integrated protection against short circuits, over-voltage, over-temperature, and reverse polarity to ensure maximum safety for your battery.
