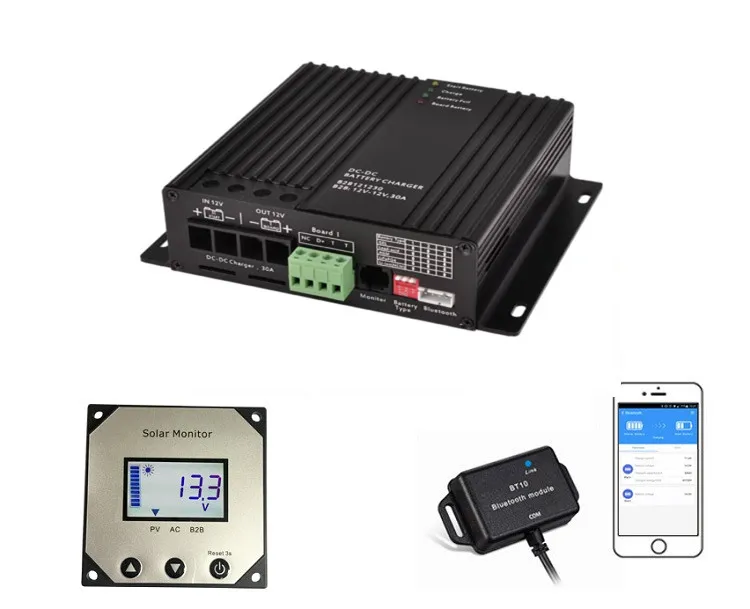

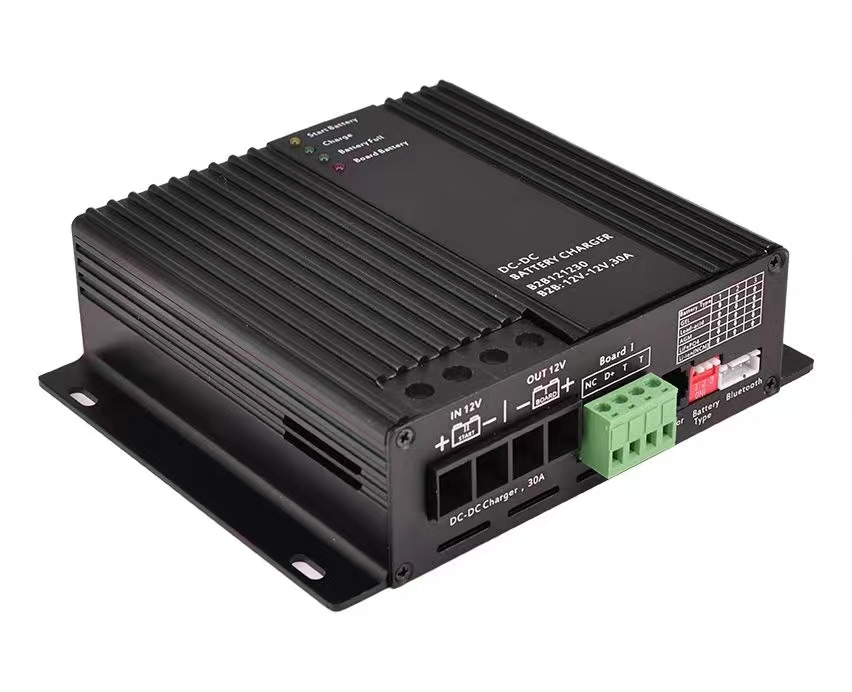

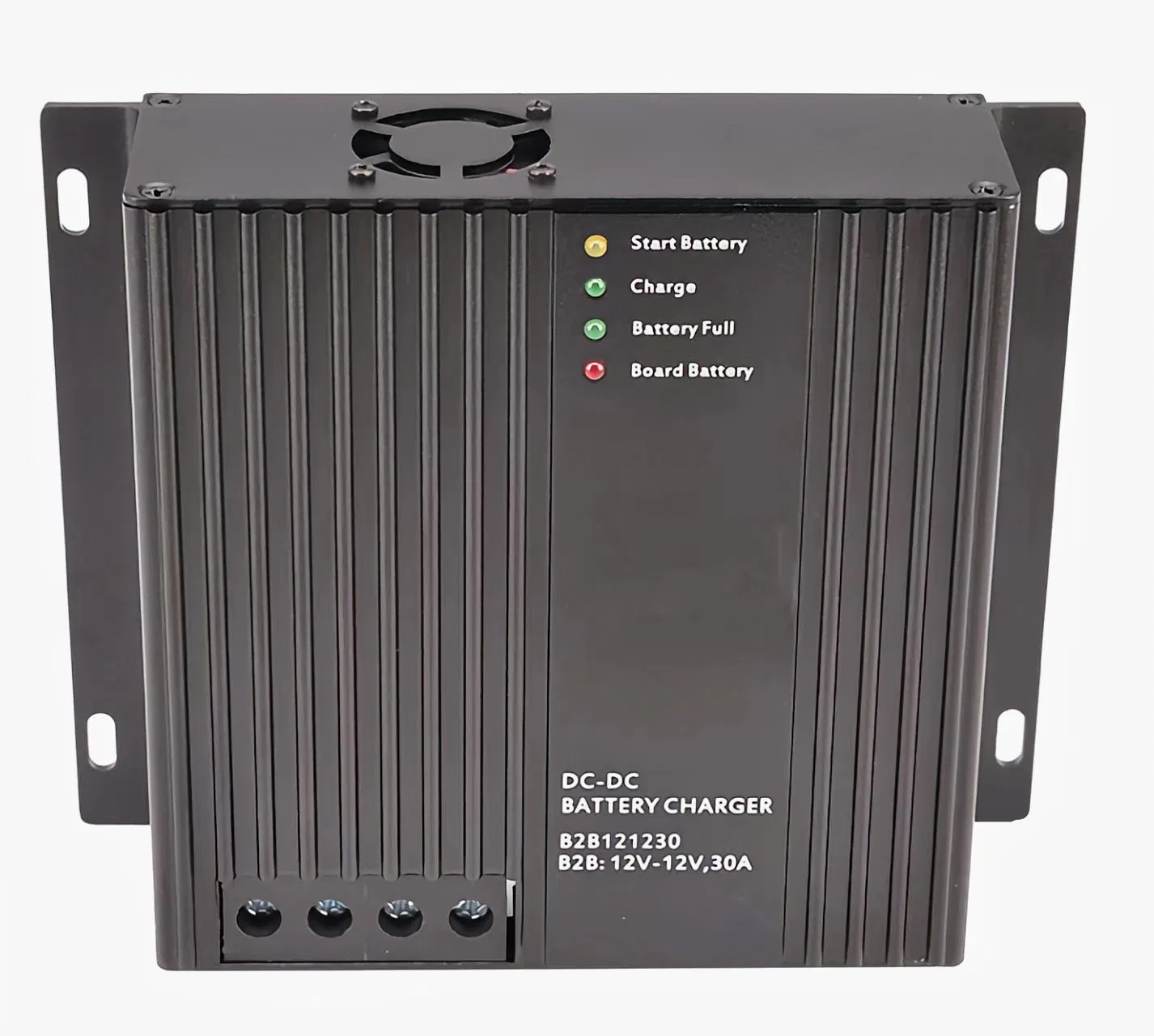

Hyper Charger
1 / 5

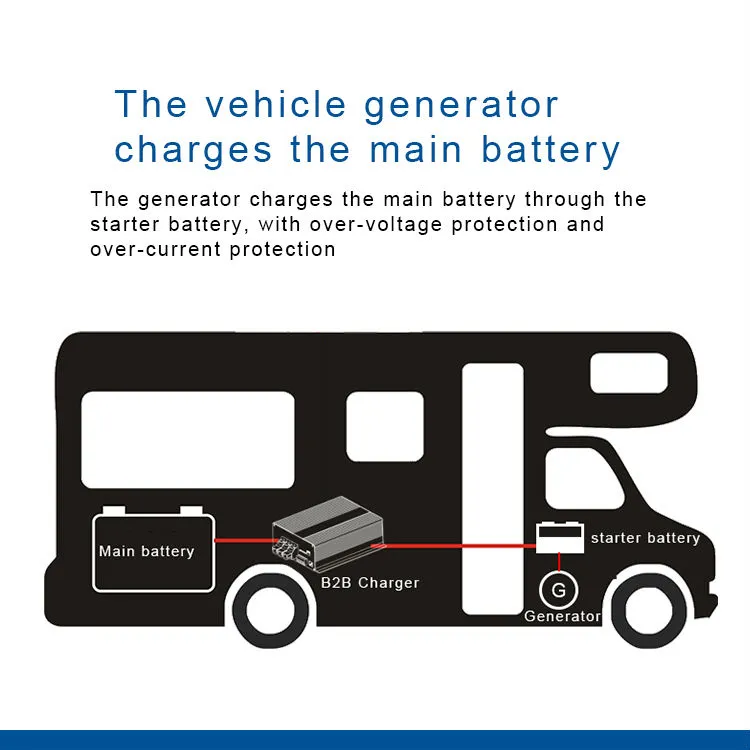

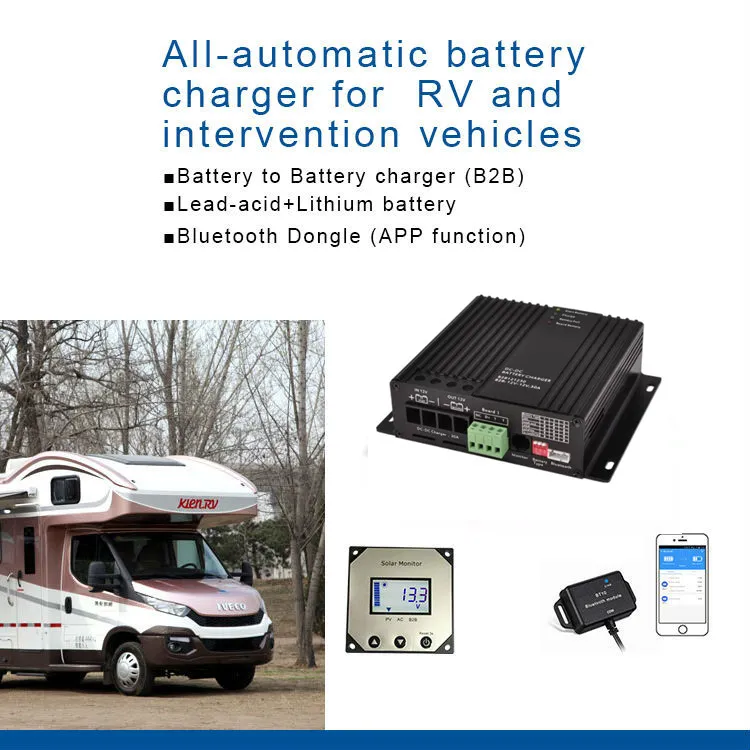

This is an all-automatic charger with 2 charging sources. You can use the battery (12V) to charge the battery (12V) (B2B), or you can use the solar panel to charge the battery. It features intelligent switching charging methods, specially designed for RVs, exposed cars, campers, ships, etc.

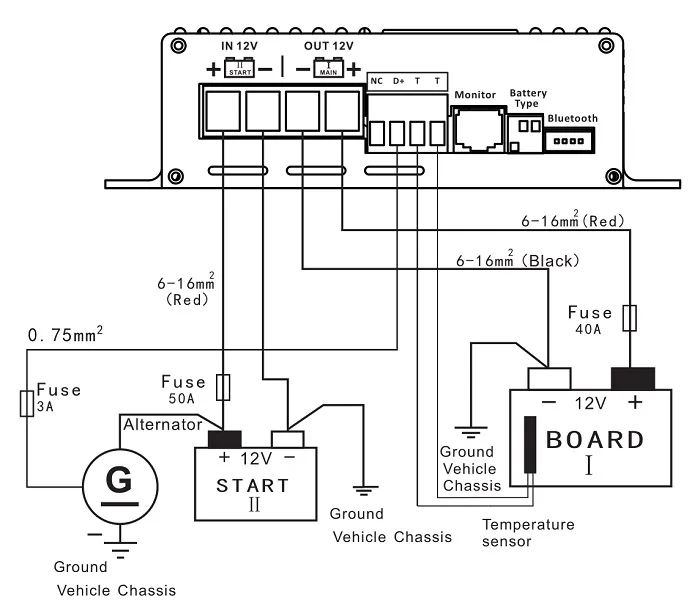

| Cable Cross Section | Length "+ Start II" | "- Batt." Insulated | "Fuse II" Protection | "- Com." to "- Board I" | "+ Board I" Length | "Fuse I" Protection | Solar Panel Lengths |
|---|---|---|---|---|---|---|---|
| 10mm² | _ | _ | _ | 0.5-2.0m | 0.5-2.0m | 80A | up to 10m |
| 16mm² | up to 7m | up to 7m | 100A | 1.5-3.0m | 1.5-3.0m | 80A | up to 16m |
| 25mm² | up to 10m | up to 10m | 100A | 2.5-5.0m | 2.5-5.0m | 80A | _ |
| Cable Cross Section | Length "+ Start II" | "- Batt." Insulated | "Fuse II" Protection | "- Com." to "- Board I" | "+ Board I" Length | "Fuse I" Protection | Solar Panel Lengths |
|---|---|---|---|---|---|---|---|
| 4mm² | _ | _ | _ | 0.5-1.5m | 0.5-1.5m | 40A | up to 7m |
| 6mm² | up to 5m | up to 5m | 50A | 1.0-2.5m | 1.0-2.5m | 40A | up to 10m |
| 10mm² | up to 8m | up to 8m | 50A | 2.0-4.0m | 2.0-4.0m | 40A | up to 16m |
