14.6V10A 20A 30A 40A LiFePO4 Battery Charger 12V100ah Lead Acid Battery Charger

1 / 5

14.6V10A 20A 30A 40A LiFePO4 Battery Charger 12V100ah Lead Acid Battery Charger

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

FY1469900

Charger Application

Standard Battery

Nominal Voltage

12V

Charger Style

Simple Charger

Compatible Battery

12-Volt LiFePO4

Certification

UL, CE, GS, CB, FCC, PSE, SAA, RoHS

Socket Type

US, EU, UK, AU

Inrush Current

15A for a Cold Start

Protections

Short Circuit, Overload, Overvoltage

Efficiency

>92%

Dimension

154*60*36mm

Production Capacity

500,000 PCS Per Month

Product Description

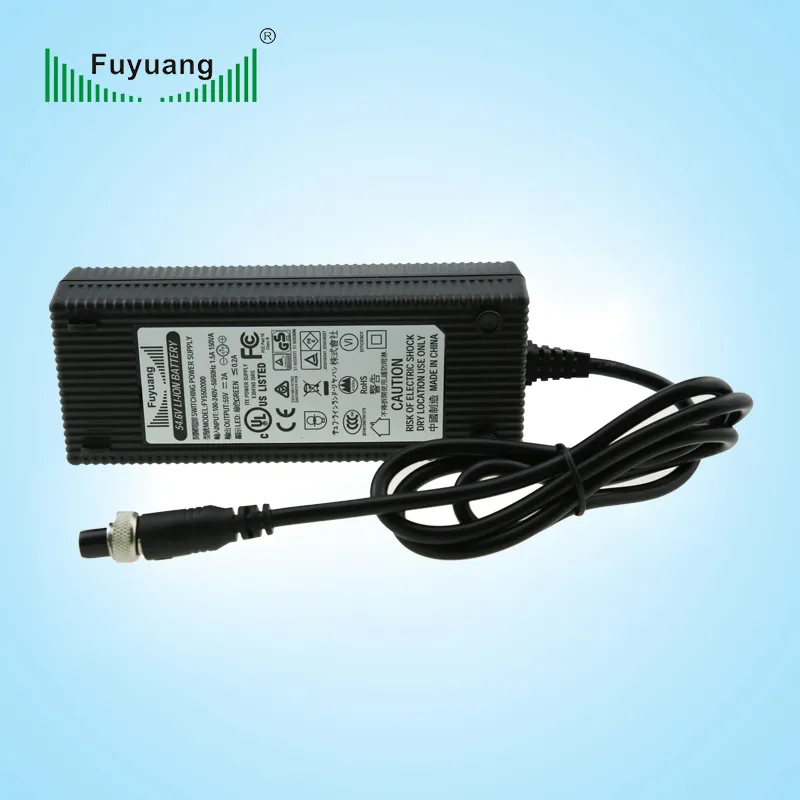

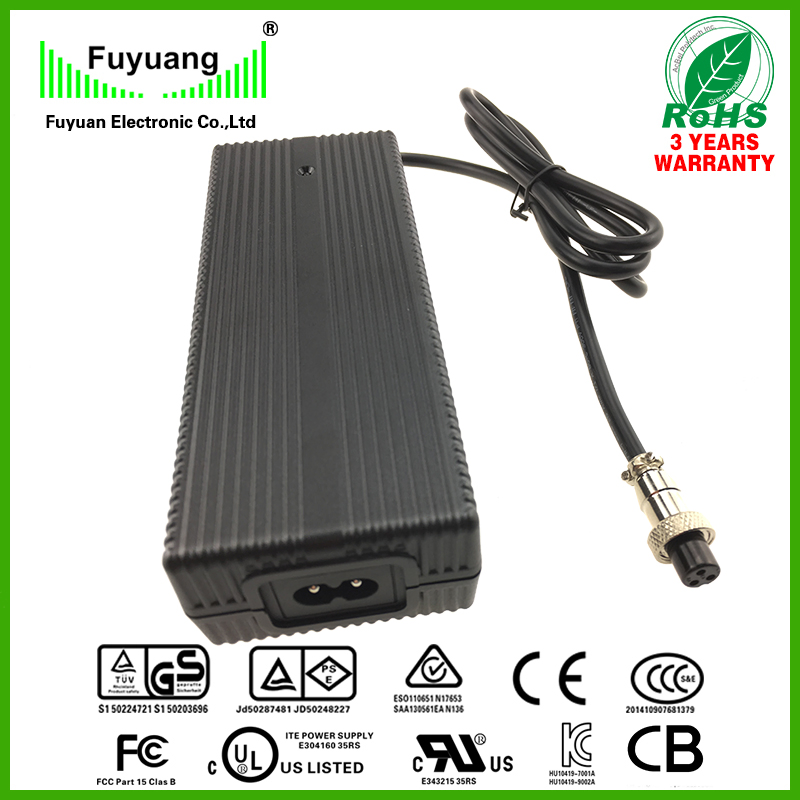

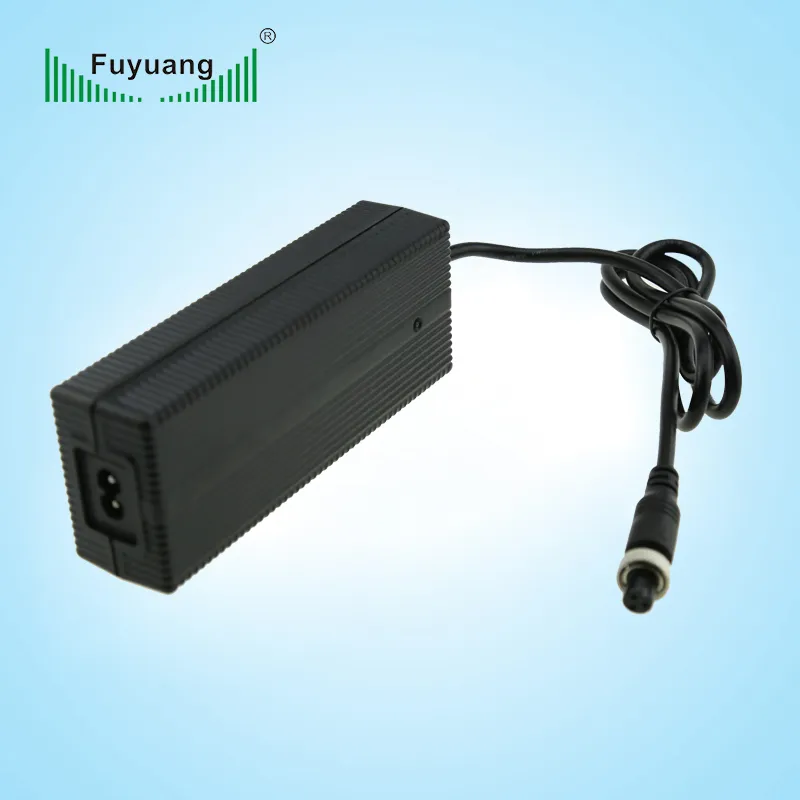

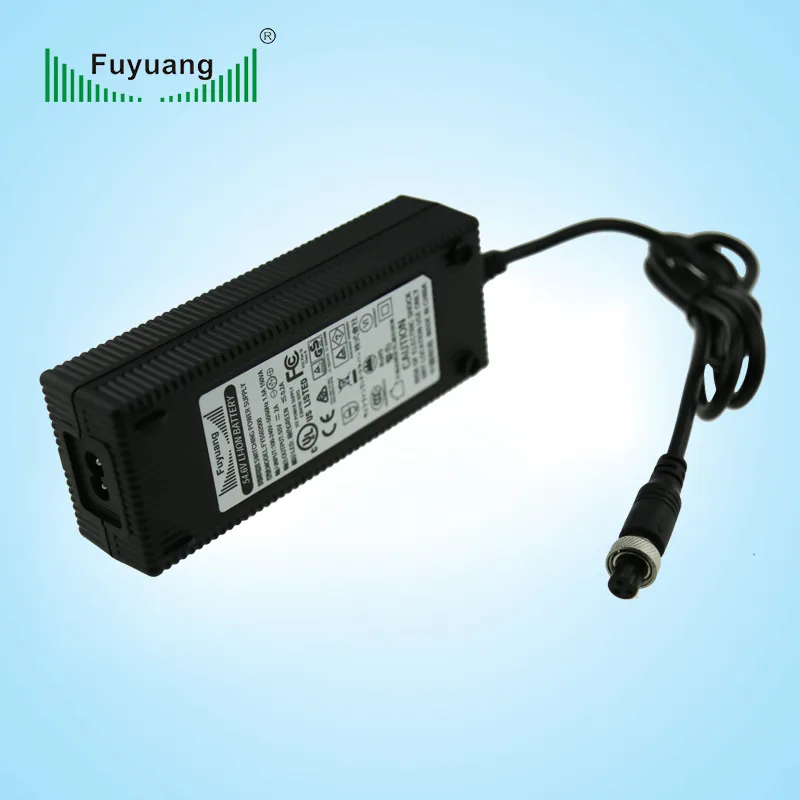

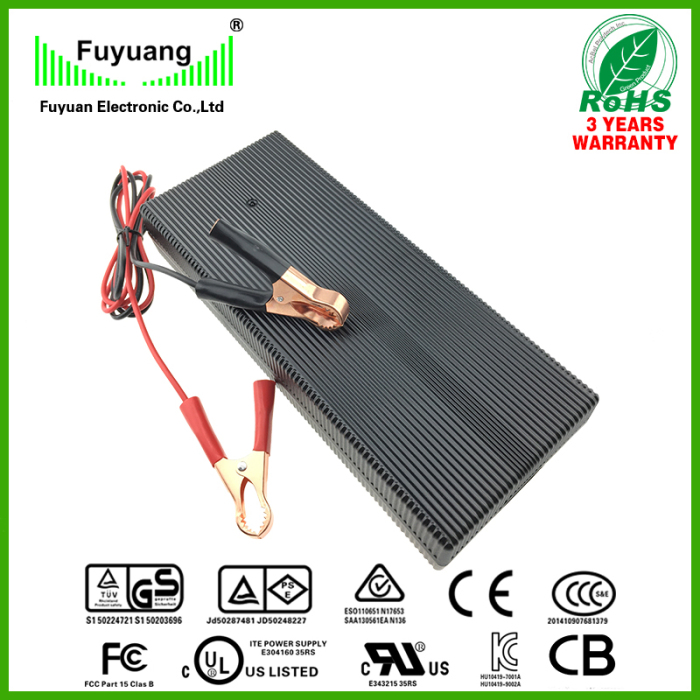

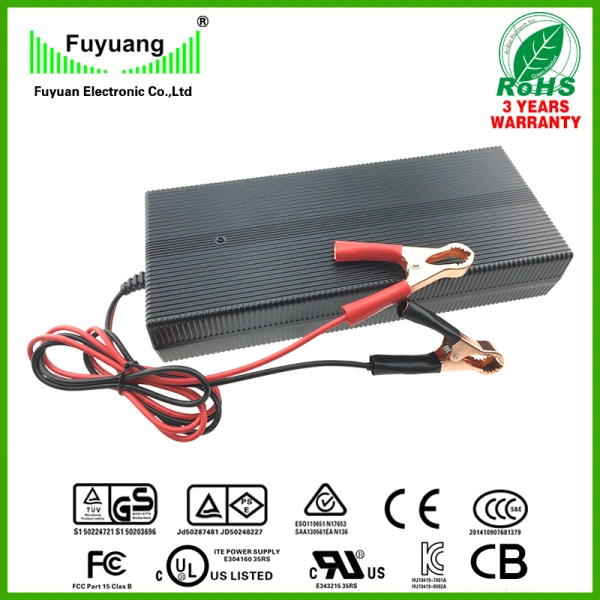

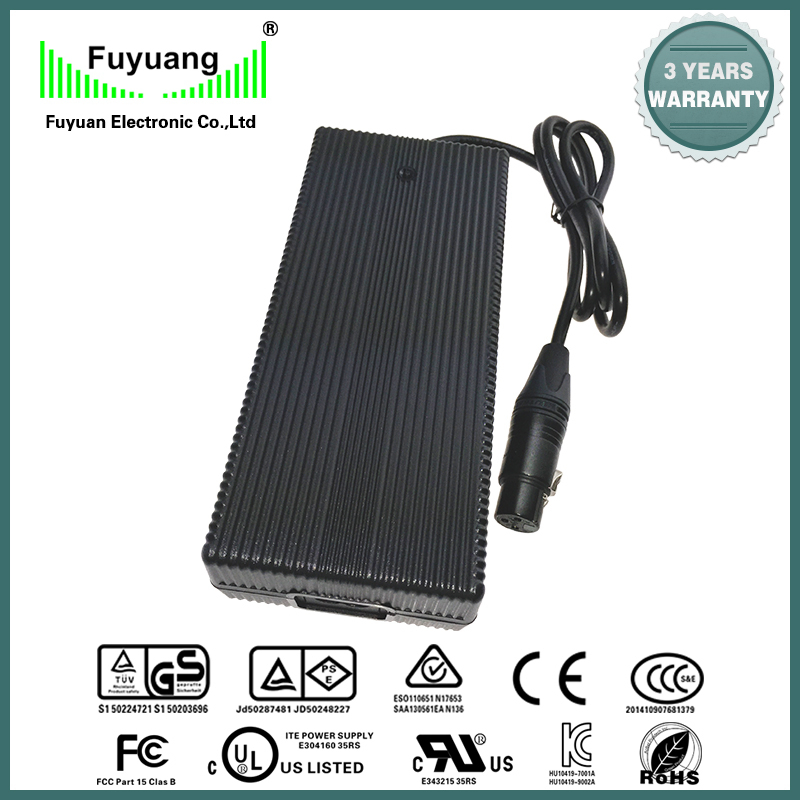

UL Listed 14.6V 10A LiFePO4 Battery Charger for RV

✔ Global Certificates: Full compliance with CE, GS, CB, UL, CUL, FCC, PSE, SAA, RCM, KC, CCC, ROHS, REACH.

✔ 100% Quality Assurance: All units are 100% burn-in tested and inspected with Automatic Test Equipment (ATE).

✔ Comprehensive Testing: Includes no-load voltage, load voltage, short circuit, OCP, OVP, Ripple Voltage, and HIPOT tests.

✔ Safety Standards: Meets UL60950, EN55022, EN60335, EN61558, and more.

✔ Long Warranty: We back our items with three-year guarantees.

Technical Specifications

Item	Parameter
Model No.	FY1469900
AC Input	100-240V, 50/60HZ
Max Charging Voltage	14.6V
Max Charging Current	10A
Power Factor	0.89
Efficiency	88%
HIPOT Testing	3000-3700V
Operating Temperature	-29ºC ~ +45.5ºC
Storage Temperature	-40ºC ~ +75ºC
MTBF	30,000 hours at 25ºC
Energy Efficiency	Level VI (DOE or COC)

Product Gallery

Battery Charger Connectors

2-Port Inline: Used on specific electric scooter brands.
3-Port Inline: Most common type for Chinese-made electric scooters and bikes.
3-Pin XLR: Commonly used on 12V, 24V, and 36V electric scooters.
4-Pin XLR: Used on newer 24V and 36V models.
3-Port House: Standard for 36V, 48V, and 60V electric scooters.
Coaxial: Commonly used on smaller child-sized 12V and 24V scooters.
RCA: Frequently used for lithium battery chargers (24V, 36V, 48V).

Recommended Charging Rates

Battery Pack	Slow Rate	Quick Rate
12V 5-8 Ah	12V 1A	12V 2A
12V 9-12 Ah	12V 1.5A	12V 3A
12V 17-20 Ah	12V 3A	12V 6A
24V 5-8 Ah	24V 1A	24V 2A
48V 9-12 Ah	48V 1.5A	48V 3A
48V 17-20 Ah	48V 3A	48V 6A

Frequently Asked Questions

Q1: What type of batteries is this charger compatible with? A: This charger is specifically designed for 12V LiFePO4 battery packs, commonly used in RVs, electric motorcycles, and electric cars.

Q2: Does the charger have international safety certifications? A: Yes, it holds global certificates including UL, CE, GS, CB, FCC, PSE, SAA, and RoHS, ensuring safety and reliability across different regions.

Q3: What safety protections are built into the device? A: The charger features multiple protection layers, including short circuit protection, overload protection, and overvoltage protection.

Q4: What is the input voltage range for this charger? A: It supports a wide AC input range of 100-240V at 50/60Hz, making it suitable for use worldwide.

Q5: How long is the warranty period? A: We provide a three-year guarantee on our battery chargers, reflecting our confidence in the product's durability and quality.

Q6: What is the energy efficiency level of this charger? A: The charger is highly efficient, with an efficiency rating of over 92% and meets Energy Efficiency Level VI (DOE or COC) standards.
