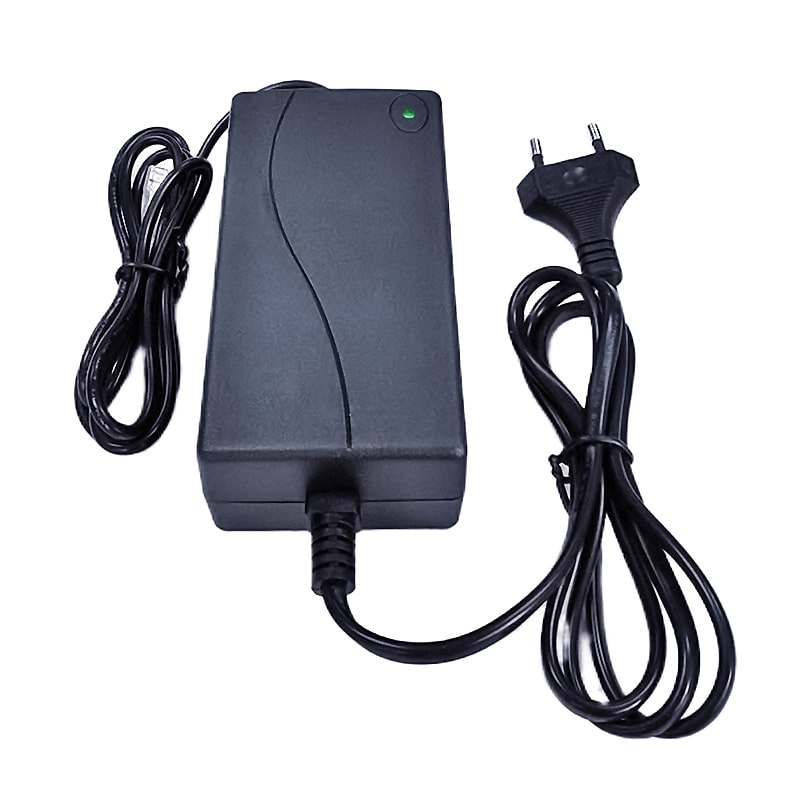

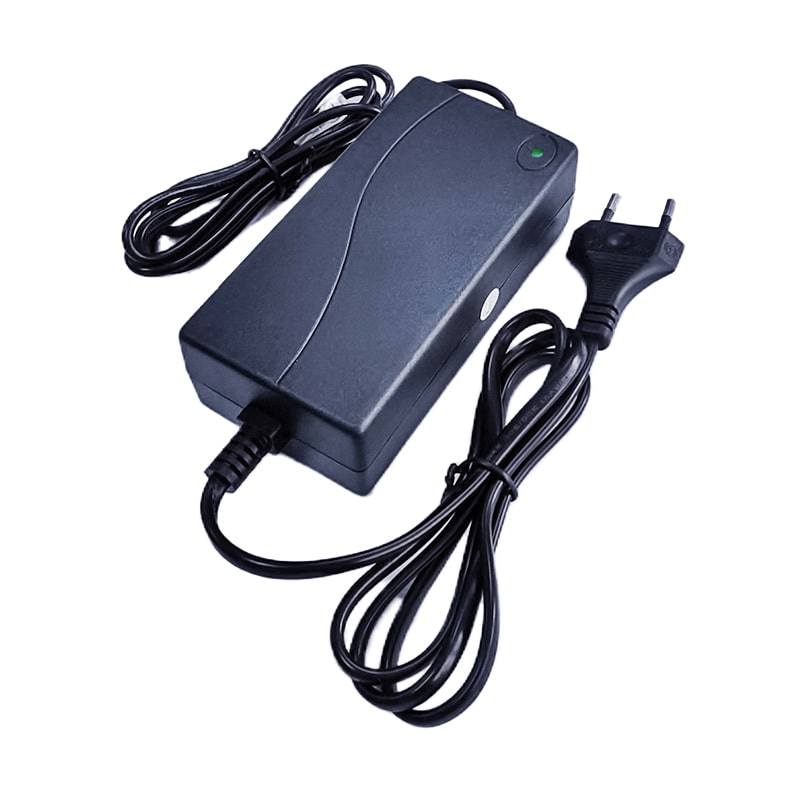

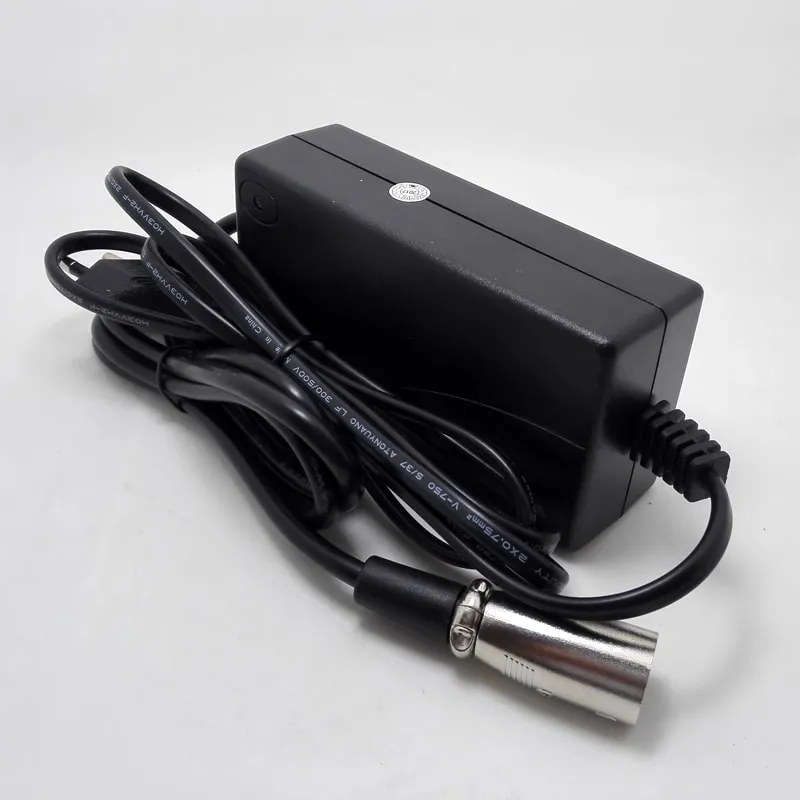

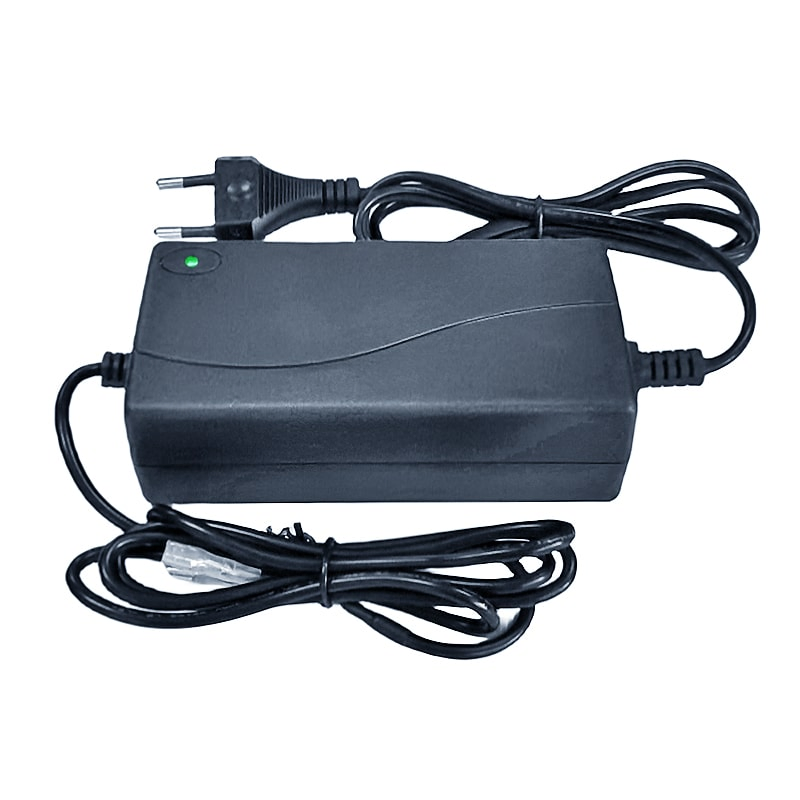

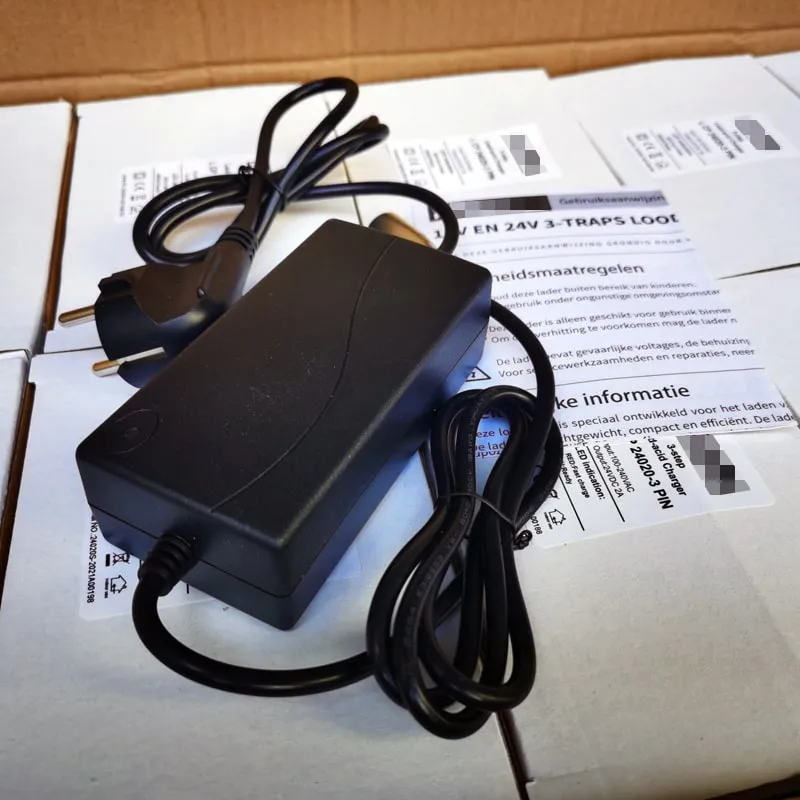

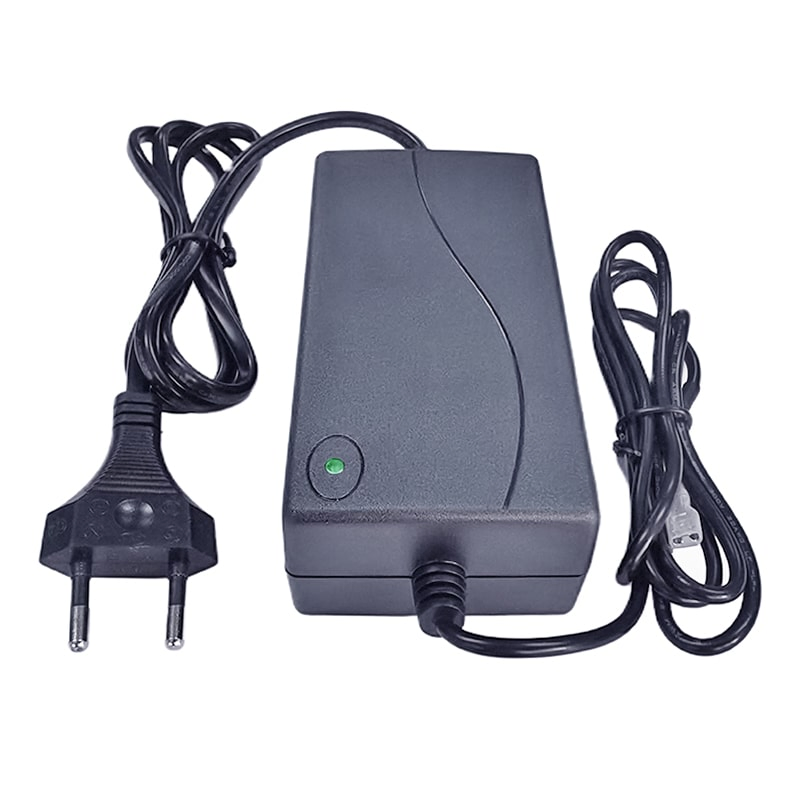

Smart Charger 12V 3A 4A 60W DC 14.7V 4A for SLA /AGM /VRLA /Gel Lead Acid Batteries for Electric Scooter Wheelchair Security System

1 / 5

Smart Charger 12V 3A 4A 60W DC 14.7V 4A for SLA /AGM /VRLA /Gel Lead Acid Batteries for Electric Scooter Wheelchair Security System

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Basic Information

Model NO.

QW120-040-S

Application

Camera, Standard Battery

Nominal Voltage

14.7V

Charger Style

Intelligent Charger

Battery Type

12-Volt Lead-Acid

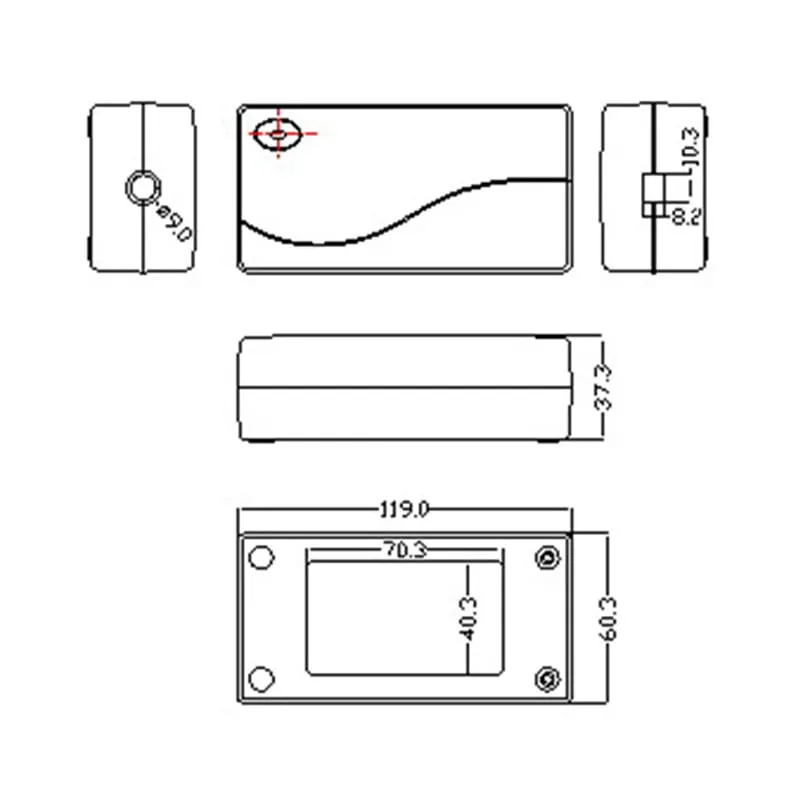

Size

119*60.3*37.3mm

Certification

RoHS, CE

Input Voltage

100-240VAC 50/60Hz

Output Current

Efficiency

≥ 85%

Quick Details & Packaging

Shell Material: Plastic (ABS + PC)

Shock & Vibration: SAEJ1378 Standard

Charging Mode: CC --- CV --- Float Charge

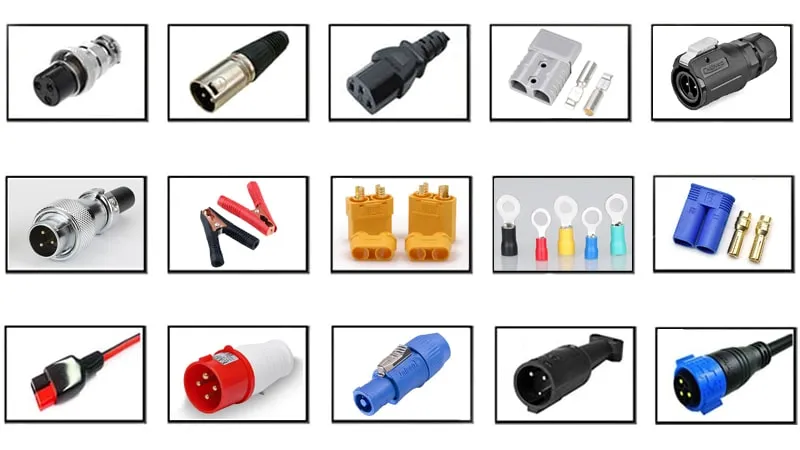

Connectors: Crocodile clip, aviation connector, XLR, Ring terminal, Anderson connector, customization available.

Packaging: 50pcs/Carton (595*362*295mm)

Lead Time: Sample within 7 work days, 15-25 days for bulk orders.

Key Features

Full auto 3 stages (CC+CV(H)+CV(F)) charging process.
Constant big charging current for significantly faster charging.
Automatically ends charging with Cut-Off output when complete.
Fan-less design with durable plastic case for silent operation.
Compatible with 12V SLA/VRLA/GEL/AGM batteries (Capacity: 4-20Ah).

Safety Protections

🛡️ Over Voltage protection

🛡️ Short Circuit protection

🛡️ Polarity error protection

🛡️ Over power protection

LED Indicator Status

The charger switches to trickle-off charging mode once the battery is full (1/10C).

Charging: Red LED

Battery Full: Green LED

Typical Model Comparison

Model	Battery Type	Input Voltage	Battery Volts	Charging Volts	Current (A)
QW064-050-F	LiFePO4	AC 100~264V	6.4V	7.3V	5A
QW128-040-F	LiFePO4		12.8V	14.6V	4A
QW148-030-L	Lithium		14.8V	16.8V	3A
QW120-040-S	Lead Acid		12V	14.7V	4A
QW240-020-S	Lead Acid		24V	29.4V	2A
QW12-24-020-S	Lead Acid		12~24V	14.7~29.4V	2A

Product Gallery

Frequently Asked Questions

Q1: What types of batteries is this charger compatible with?

A: This charger is specifically designed for 12V Lead-Acid batteries, including SLA, VRLA, GEL, and AGM types with a capacity range of 4Ah to 20Ah.

Q2: How does the 3-stage charging process work?

A: It follows a CC (Constant Current), CV (Constant Voltage), and Float Charge sequence to ensure the battery is charged quickly, safely, and maintained at full capacity.

Q3: Is it safe to leave the battery connected after it's full?

A: Yes, the charger features an automatic cut-off and switches to a trickle-off mode to prevent overcharging.

Q4: What safety features are built into the device?

A: The charger includes multiple protections: Over Voltage, Short Circuit, Polarity Error (Reverse Polarity), and Over Power protection.

Q5: Can this charger be used internationally?

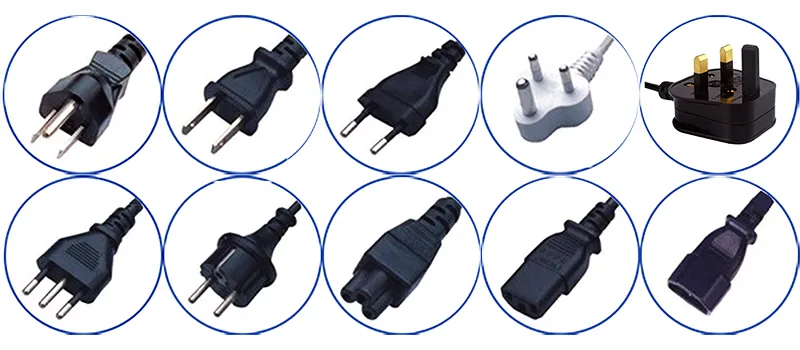

A: Yes, it supports a wide input voltage range of 100-240VAC at 50/60Hz, making it suitable for use in most countries with the appropriate plug.

Q6: How do I read the LED indicator?

A: A Red LED indicates that the battery is currently charging. A Green LED indicates that the battery is fully charged and the charger is in maintenance mode.
