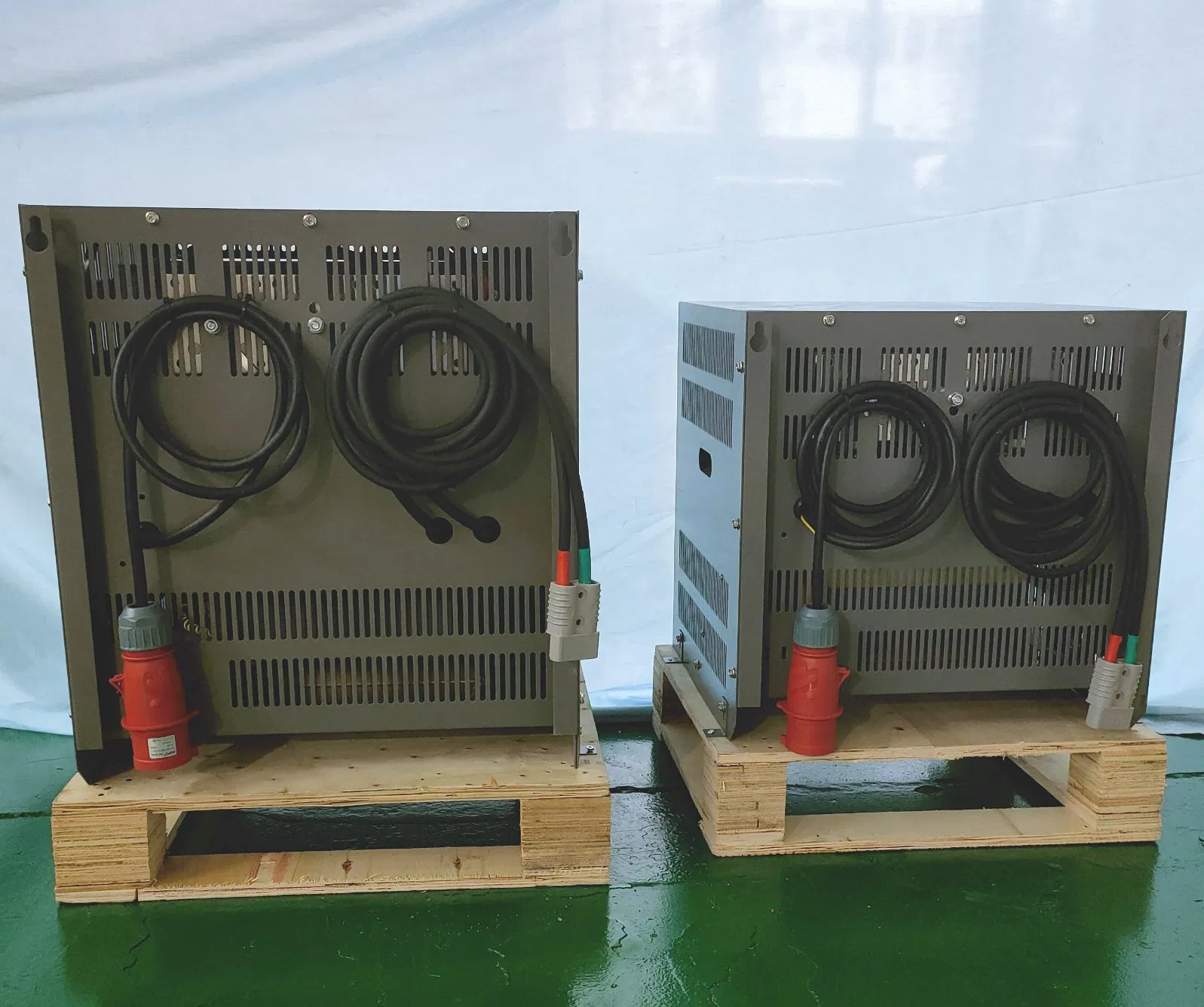

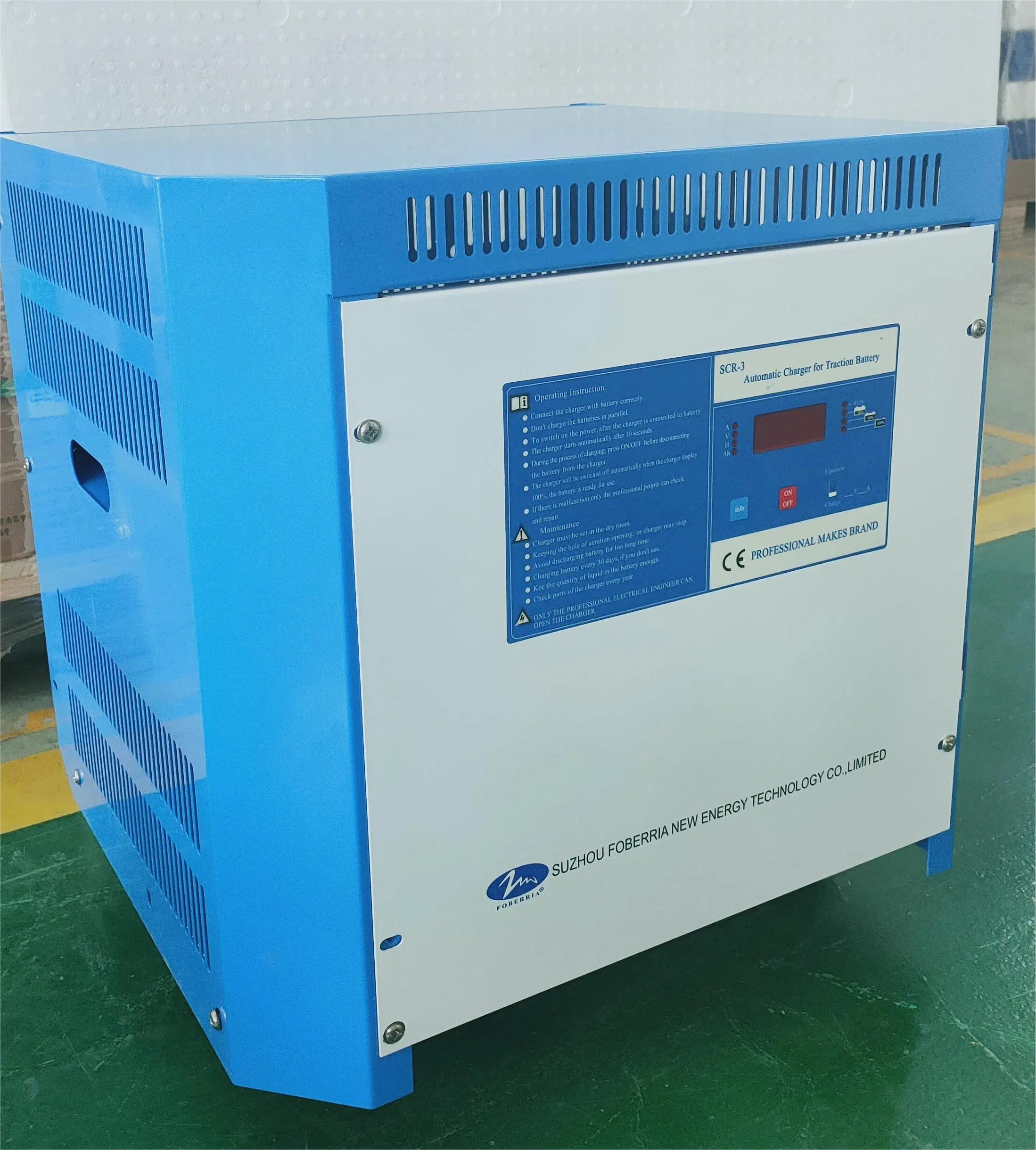

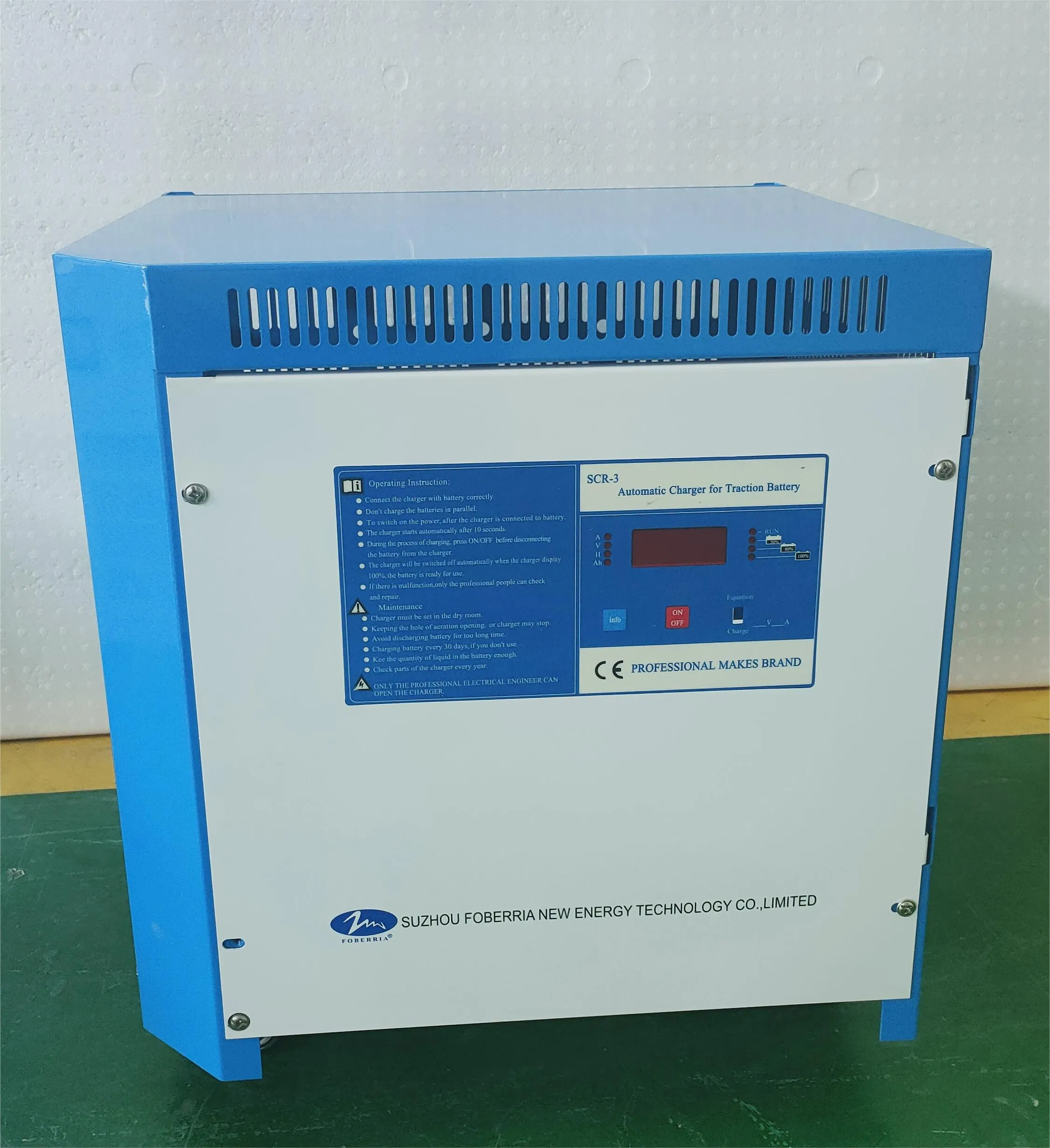

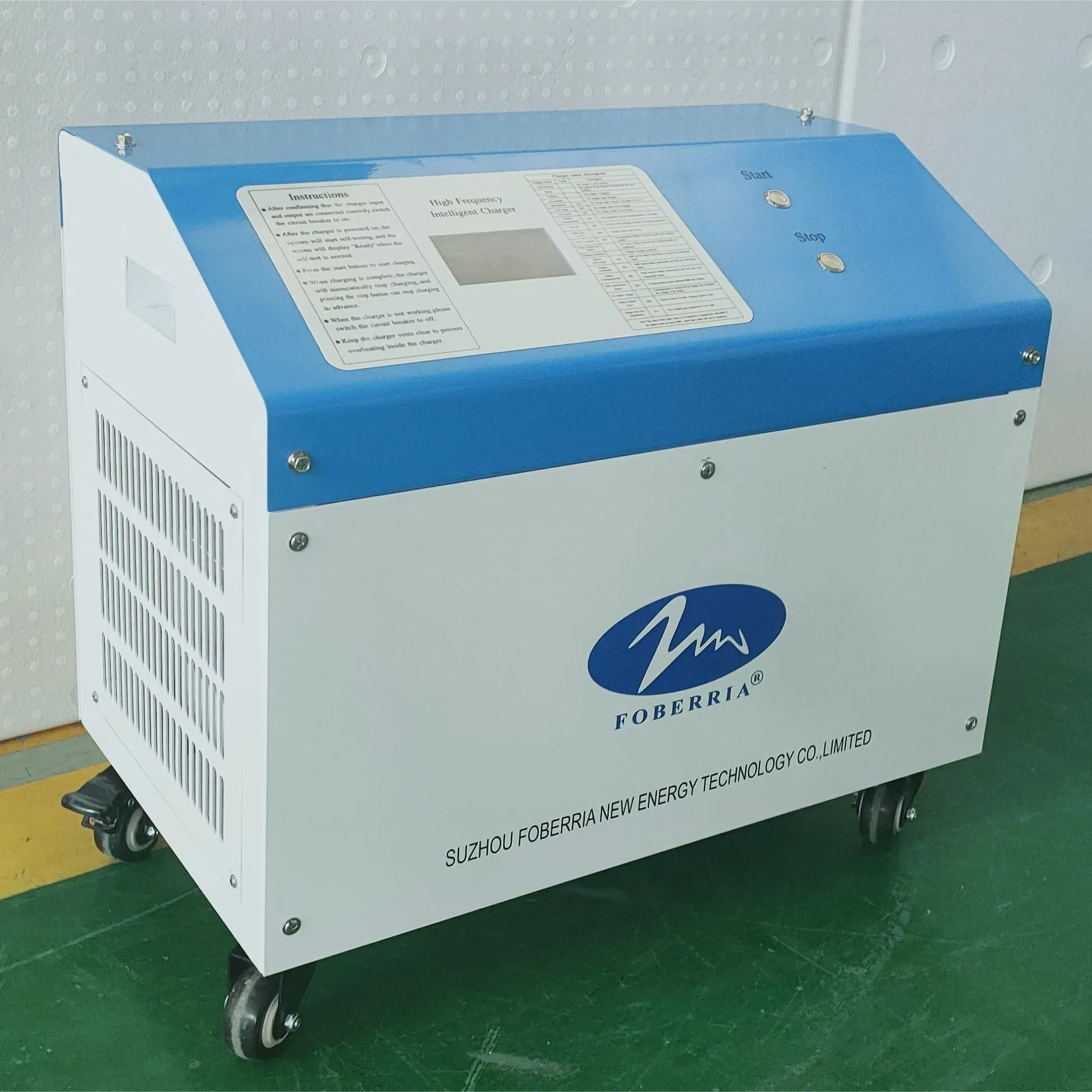

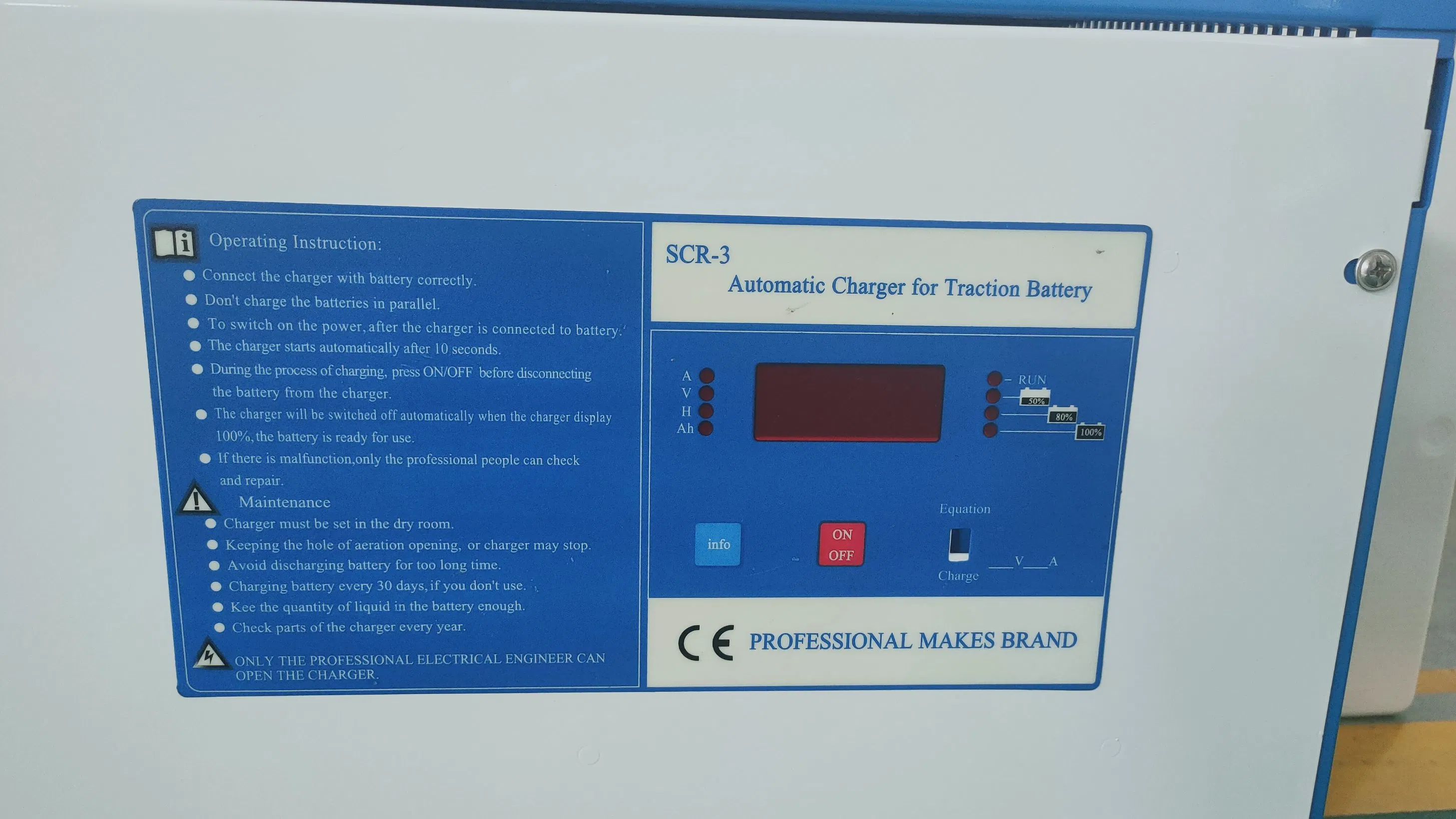

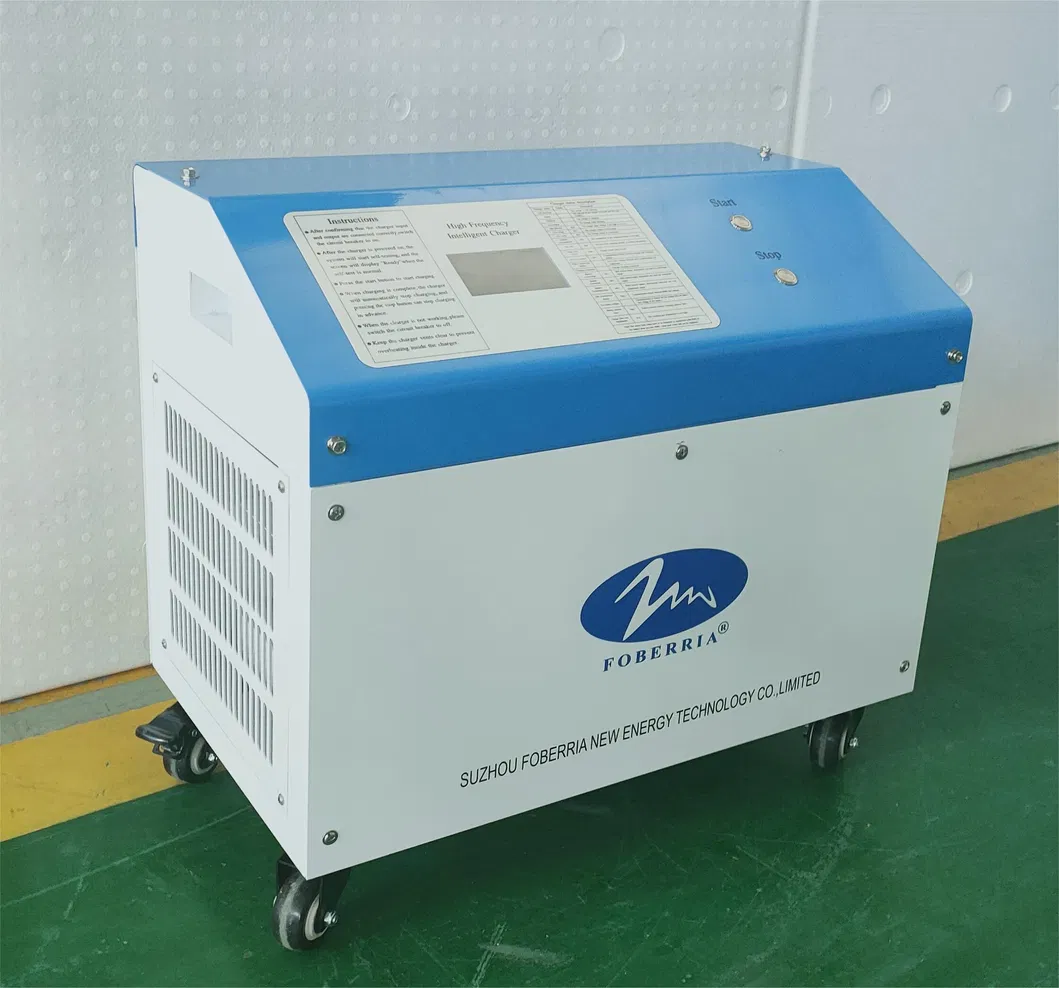

48V 80V 100A 200A DC Intelligent Lithium Battery Charger for Forklift Battery

1 / 5

48V 80V 100A 200A DC Intelligent Lithium Battery Charger for Forklift Battery

Customization:	Available
Rated Power:	24V-310W
Charging Current:	24V/3A

Send Inquiry

Product Description

Basic Specifications

Model NO.FTL

Input Voltage160~250V

TypeLithium Ion Battery Charger

Charging TypeElectric Charger

PrincipleSingle-Shock Charger

Quality Guarantee2 years

DisplayLED / LCD Screen

Conversion Efficiency≥95%

Remote UpgradeOptional

Transport PackageCarton

OriginMade in China

HS Code8504409999

Product Characteristics

Comprehensive protection: overtemperature, overvoltage, overcurrent, short circuit, and reverse connection.
Air duct isolation design with high protection levels for electronic components, ensuring safety and stability.
High efficiency & energy saving: conversion efficiency ≥95% with soft-switch transformation and intelligent dormancy technology.
Smart operation: Records over 1000 historical alarms; features clear LED/LCD screen display.
Programmable and adaptive charging curves to significantly extend battery life.
Connectivity: Supports network interconnection, mobile remote monitoring, and optional remote upgrades.
High Precision: Current ripple ≤1%+0.5%FS, voltage ripple <0.5%+0.2%FS.
Advanced Control: PID voltage and current double closed-loop control and MCU precision sampling technology.

Technical Parameters

Model	Output Voltage Range	Rated Output Current	Input Power	Suitable Lithium Battery Capacity	Dimension (mm)
FTL24V100A	18V--30VDC	100A	Single phase 220VAC, 50/60Hz	100Ah~400Ah	520300470
FTL24V200A	20V--60VDC	200A	3-phase 380VAC, 45~65Hz	200Ah~800Ah
FTL48V100A	20V--60VDC	100A	3-phase 380VAC, 45~65Hz	100Ah~400Ah
FTL48V150A	20V--60VDC	150A	3-phase 380VAC, 45~65Hz	150Ah~600Ah
FTL48V200A	20V--60VDC	200A	3-phase 380VAC, 45~65Hz	200Ah~800Ah
FTL80V100A	30V--100VDC	100A	3-phase 380VAC, 45~65Hz	100Ah~400Ah
FTL80V150A	30V--100VDC	150A	3-phase 380VAC, 45~65Hz	150Ah~600Ah
FTL80V200A	30V--100VDC	200A	3-phase 380VAC, 45~65Hz	200Ah~800Ah

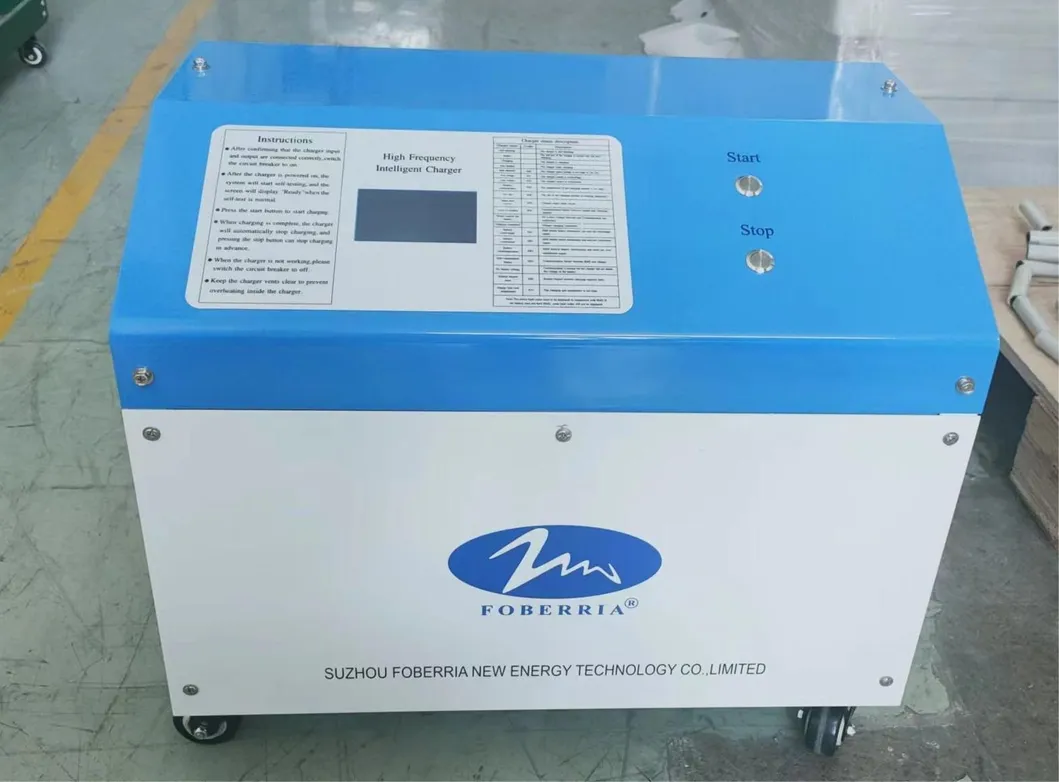

Applications

This intelligent charger is widely used for:

Forklift battery charging
Marine battery systems
Electric vehicles and AGVs

Frequently Asked Questions

Q1: What is the energy efficiency of this charger?

The charger features a conversion efficiency of ≥95%, utilizing soft-switch transformation technology to minimize power loss.

Q2: What safety protections are built-in?

It includes comprehensive protections against overtemperature, overvoltage, overcurrent, short circuits, and reverse battery connections.

Q3: Can the charger be monitored remotely?

Yes, it supports network interconnection and mobile phone remote monitoring. Remote firmware upgrades are also available as an optional feature.

Q4: How does the charger help in extending battery life?

The device uses a programmable and adaptive charging curve that adjusts to the battery's status, ensuring optimal charging cycles and longevity.

Q5: What types of displays does the unit use?

The charger is equipped with a clear LED or LCD screen for real-time status monitoring and historical alarm record checking (up to 1000 records).

Q6: What is the warranty period for this product?

We provide a 2-year quality guarantee for the FTL series lithium-ion battery chargers.
