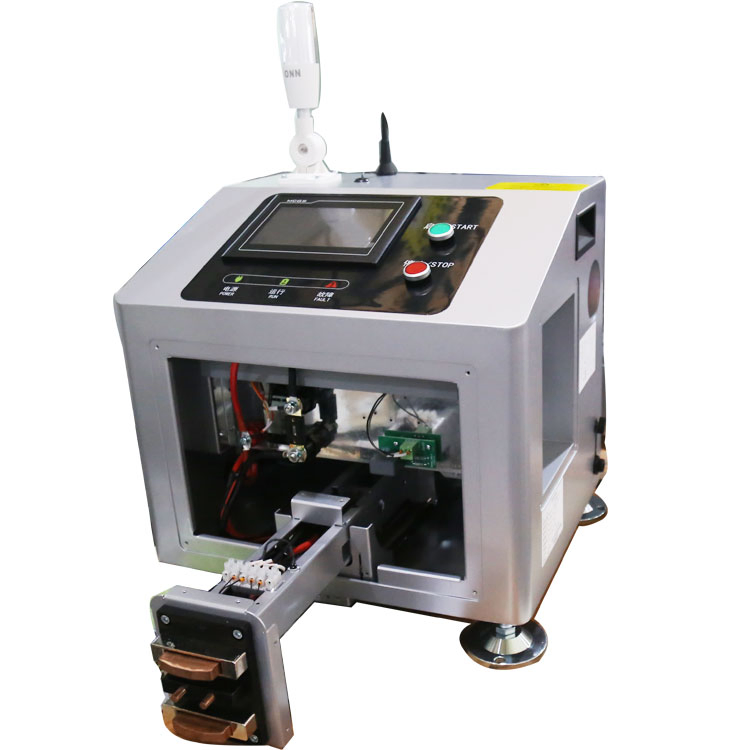

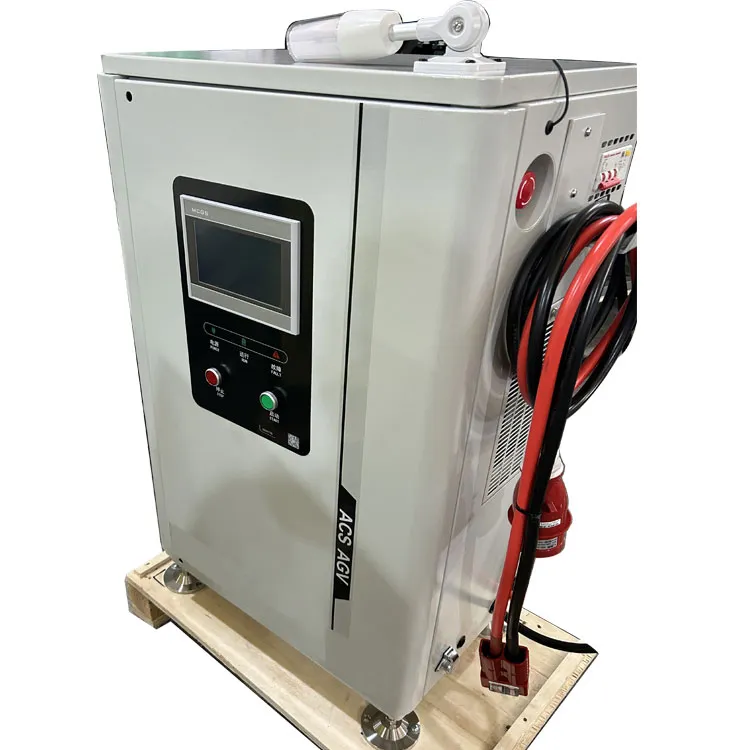

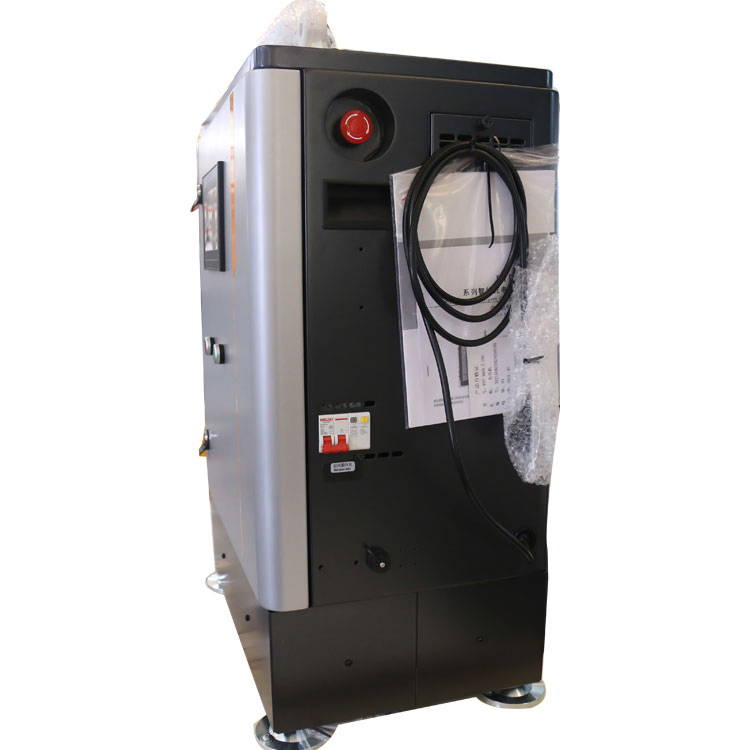

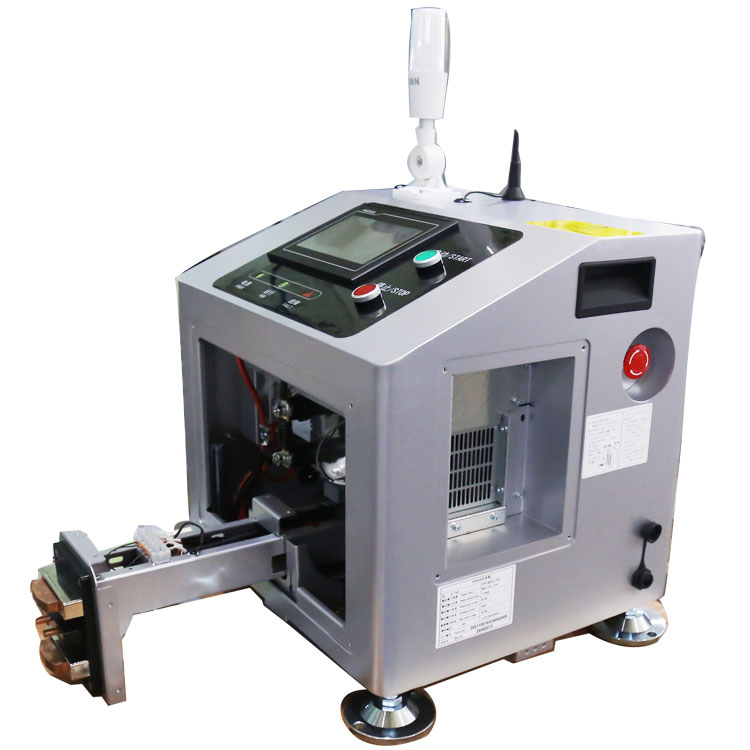

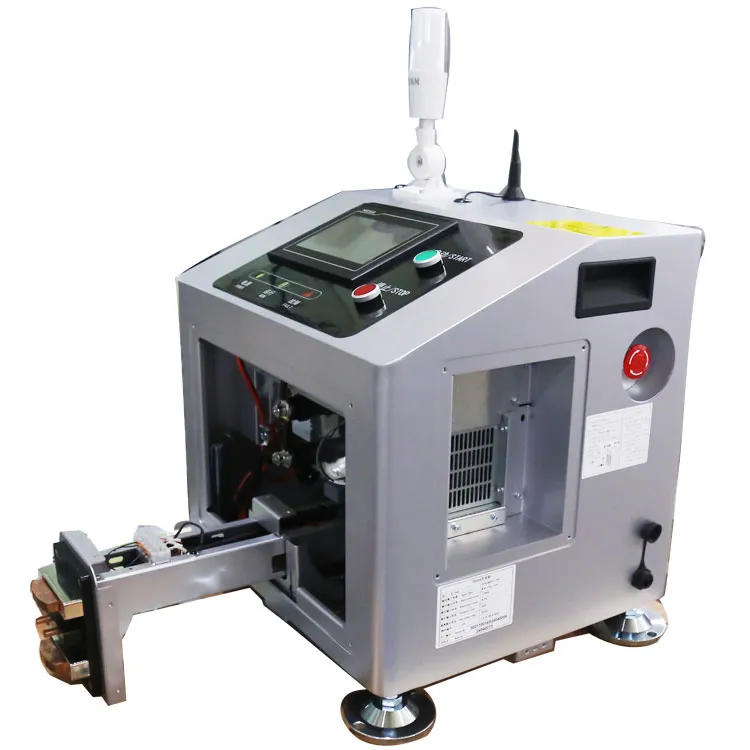

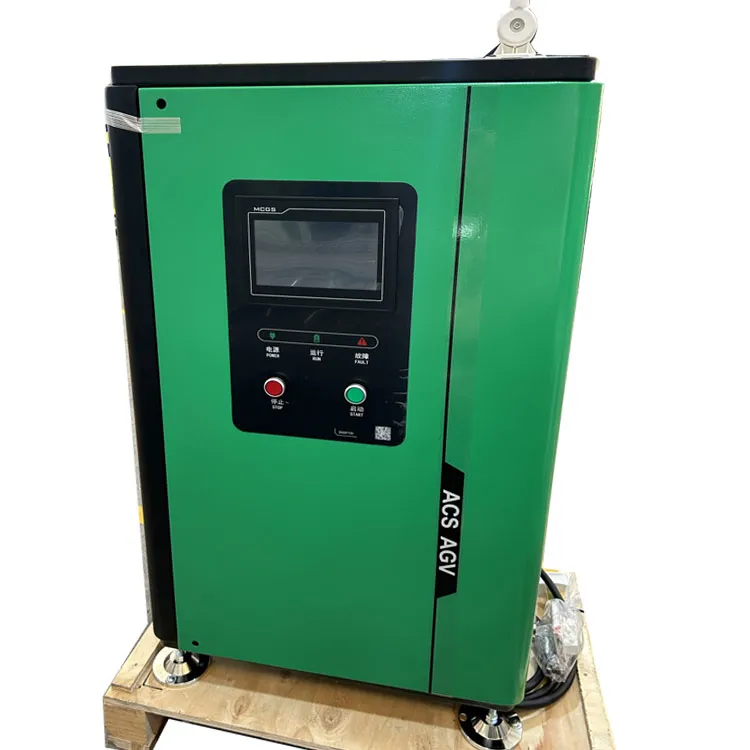

AGV ACS wireless battery charger Flexible Telescoping 24V100A 200A high frequency intelligent battery charger for AGV IACS for Forklift
The ACS series of intelligent chargers feature a modular design that integrates high-frequency soft switch with DSP digital utilization, offering high conversion efficiency and power factor. The main circuit module, designed through parameter optimization, provides continuously adjustable charging currents for a variety of AGV vehicles. The ACS chargers are designed with WIFI or infrared diffuse reflection and infrared direct transmission for smart charging, resulting in a completely automated charging process.

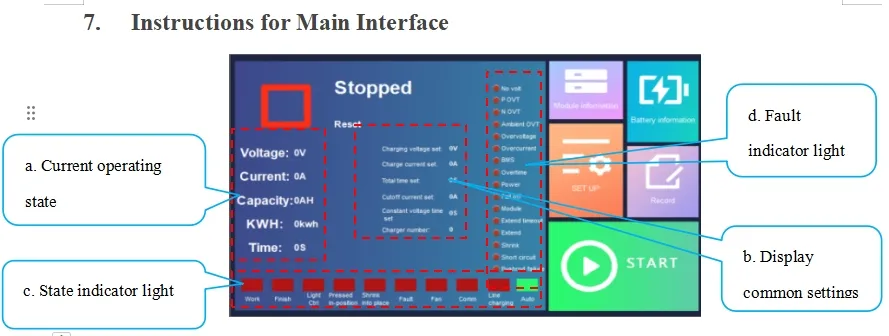

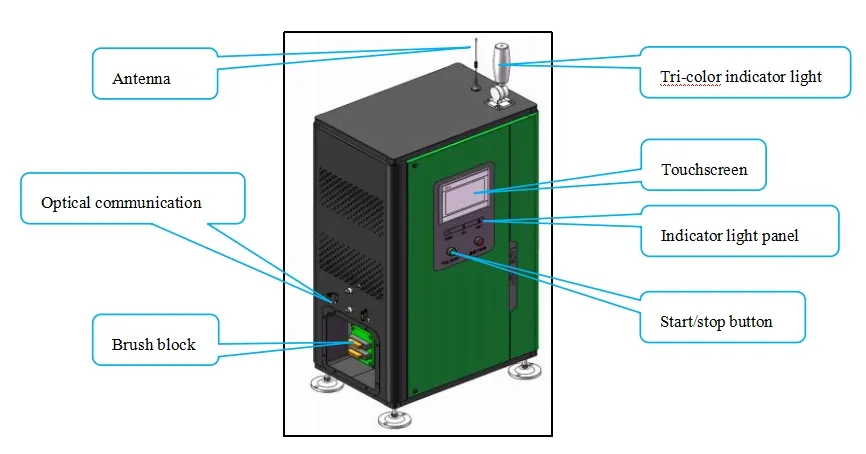

Equipped with a 7/4.3-inch touchscreen, the charger allows for control of the charging process, display of charging status, recording of charging data, and logging of fault information.
| Model(V/A) | Rated Input | Output kW | Output Current | Voltage Range | Weight (Main) | Communication |
|---|---|---|---|---|---|---|
| ACS-E29.2V/100A | Single-phase 220 | 2.9 | 100A | 24-32V | 56kg | CAN |
| ACS-E58.4V/100A | Single-phase 220 | 5.8 | 100A | 48-60V | 60kg | CAN |
| ACS-D58.4V/100A | Three-phase 380 | 5.8 | 100A | 48-100V | 60kg | CAN |
| ACS-D58.4V/200A | Three-phase 380 | 11.7 | 200A | 20-120V | 94kg | CAN |
| Protection Item | Feature | Activation Detail |
|---|---|---|
| Output Overvoltage | Yes | Maximum charging voltage +2V |
| Output Overcurrent | Yes | 120% of rated current |
| Reverse Polarity | Yes | Charger will not start if detected |
| Short Circuit | Optional | Charger will not start if detected |
| Overtemperature | Yes | Alarm at >90°C, Resume at -5°C |
| Ground Protection | Yes | Yellow-green lines fitted for housing |
