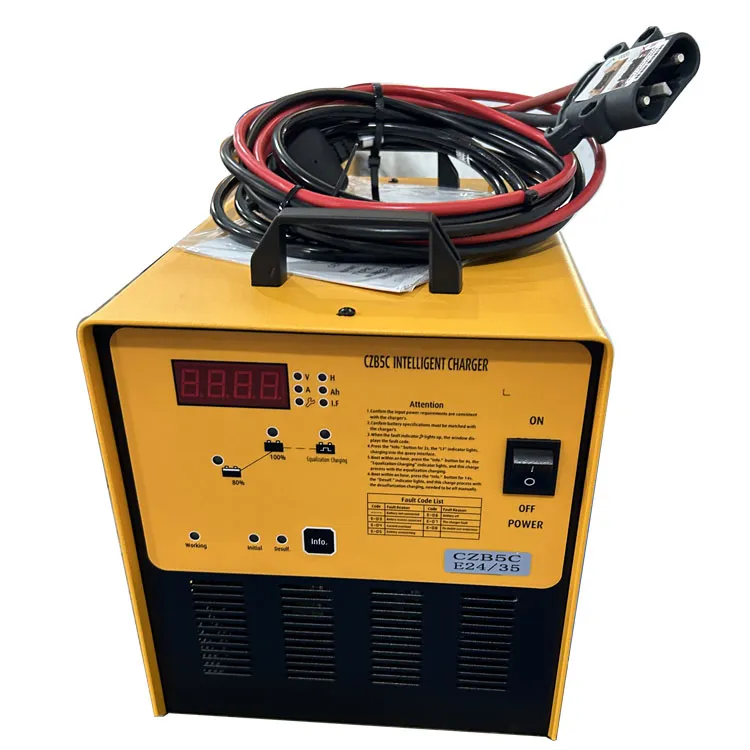

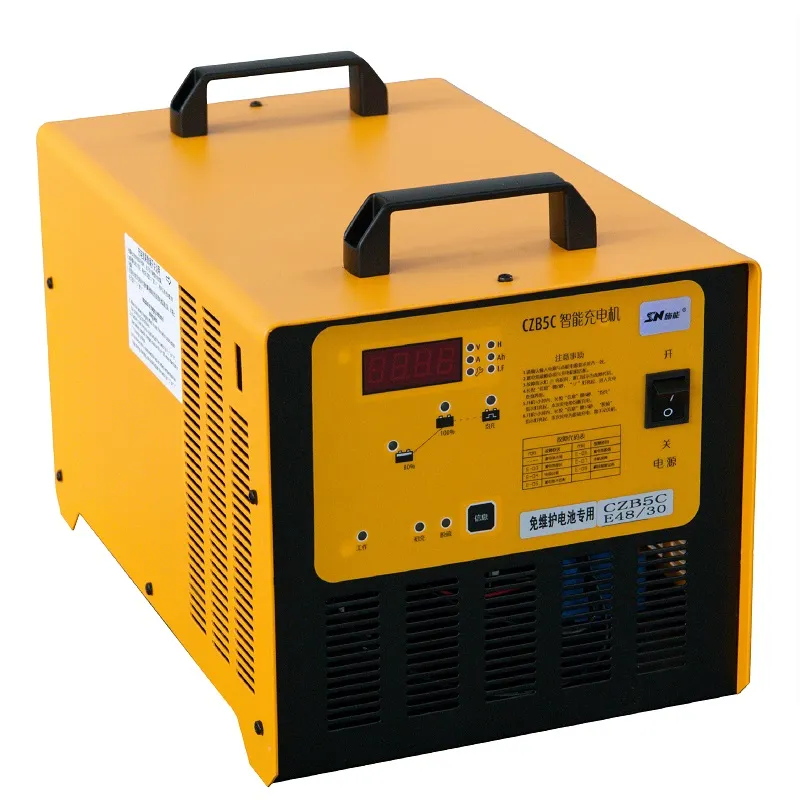

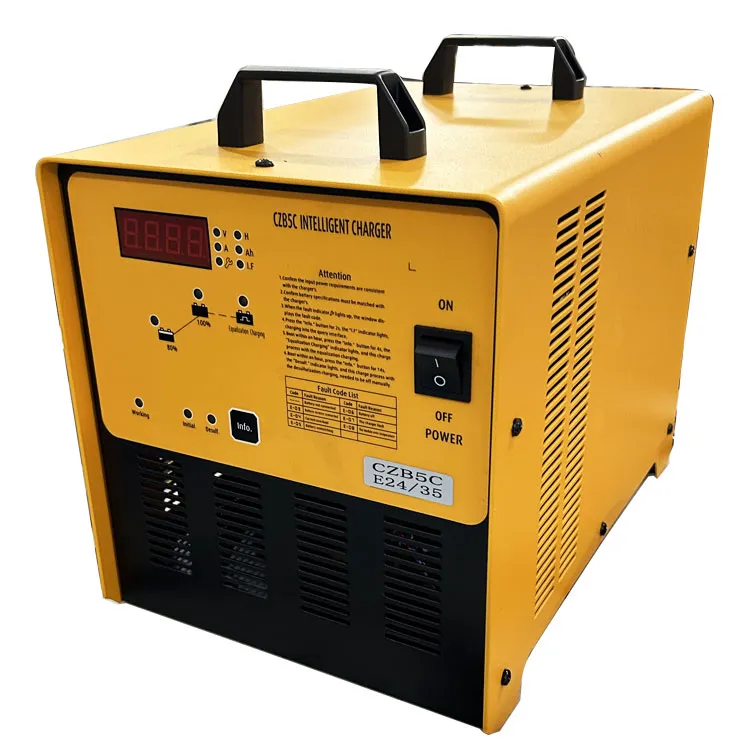

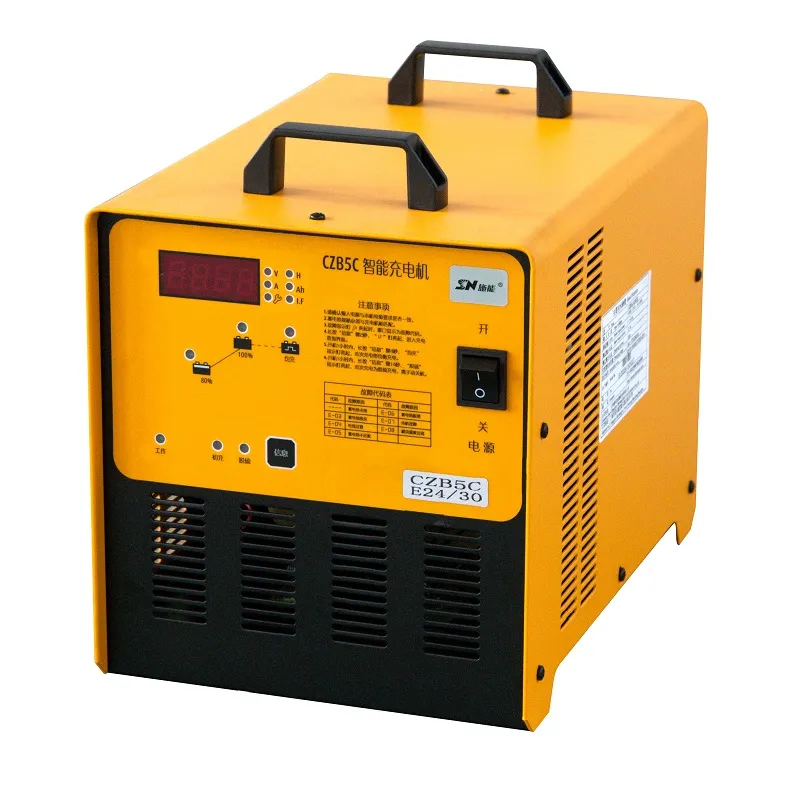

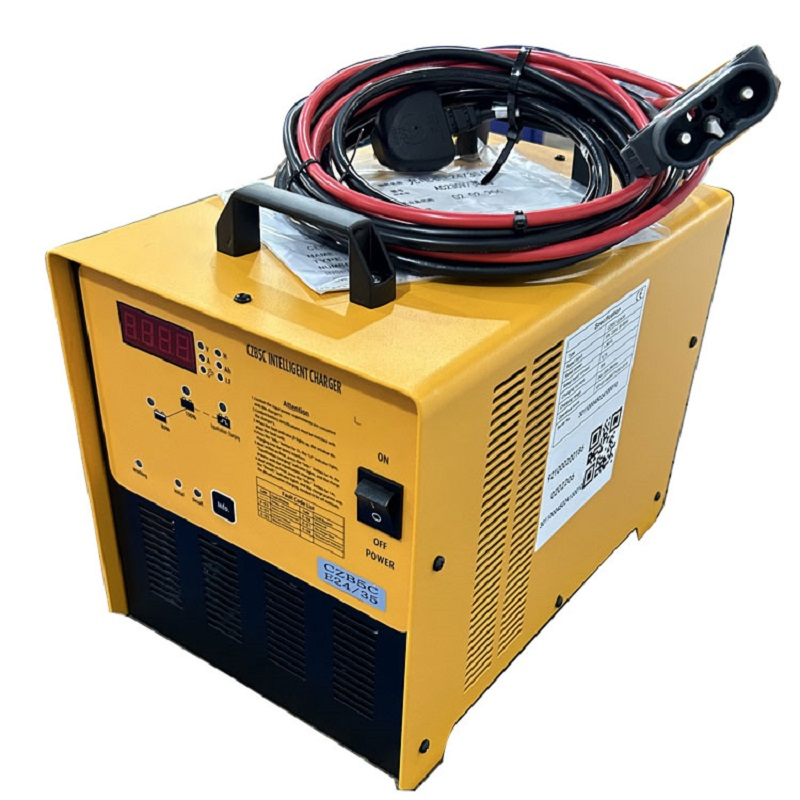

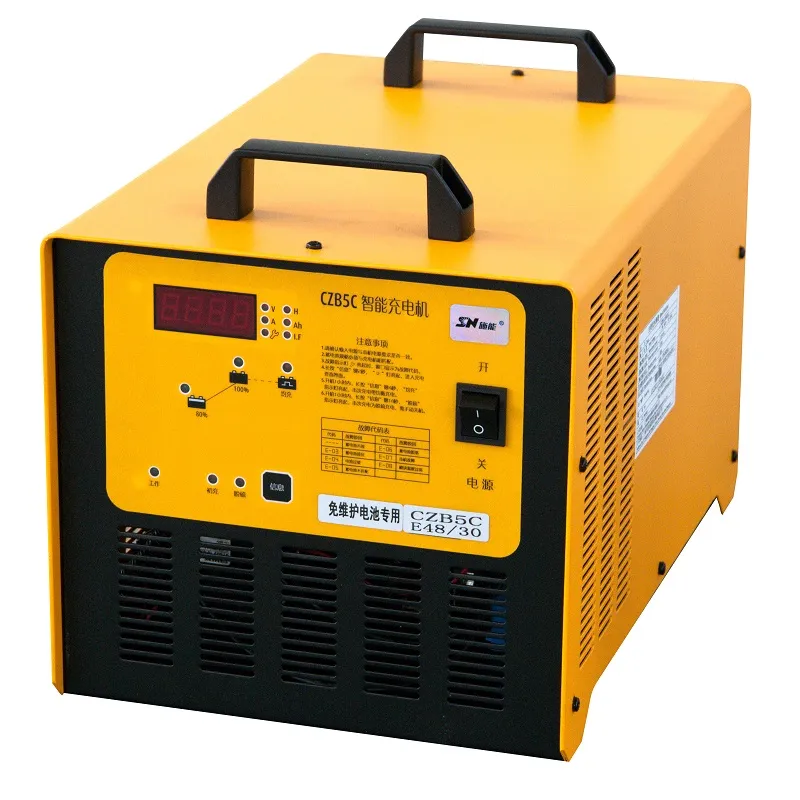

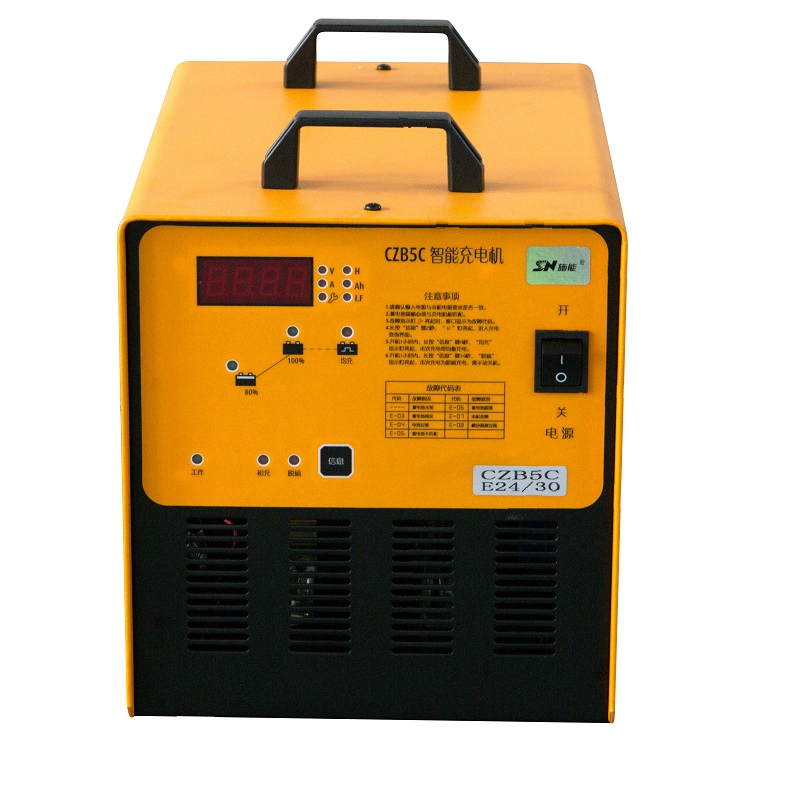

Single Phase CZB5C Intelligent 50 AMP Battery Charger 24V 50A
Key Features & Technology
Advanced Charging Curve: Combines leakage transformer and silicon-controlled rectifier technology with Micro-computer control to optimize the Wsa+Pulse charging curve.
Battery Life Extension: Pulse charging is performed before gas emissions and in the late stage of recharge to significantly prolong battery working life.
PID Control Technology: Dynamic tracking and automatic adjustment of charging parameters for precision performance.
Smart Protection: Features automatic detection, soft-start, and comprehensive alarms for open circuits, reverse connection, overload, and short circuits.
Data Logging: Records results of the past 30 charging cycles for maintenance and monitoring.
Technical Parameters
Type (V/A)
Main Power
Input Power (KVA)
Input Current (A)
Output Current (A)
Battery V/AH (7.5H~10H)
Size (mm)
Weight (Kg)
CZB5C-E24V/20A
Single Phase
0.75
3.4
20
24V/115-160AH
240*350*260
21.0
CZB5C-E24V/50A
1.9
8.5
50
24V/290-400AH
240*350*260
25.5
CZB5C-E24V/30A
1.1
5.1
30
24V/175-240AH
240*350*260
21.0
CZB5C-E36V/30A
1.7
7.7
30
36V/175-240AH
240*350*260
23.5
CZB5C-E48V/30A
2.3
10.2
30
48V/175-240AH
240*350*260
28.0
CZB5C-E48V/80A
6.0
27.3
80
48V/465-640AH
466*360*783
56.0
CZB5C-D48V/100A
Three Phase
7.5
11.4
100
48V/580-800AH
526*360*883
86.0
CZB5C-D80V/120A
15.0
22.8
120
80V/700-960AH
526*360*883
107.0
Frequently Asked Questions
Q1: How long is the warranty for this battery charger?
All products come with a one-year warranty, and we provide ongoing technical support for all our equipment.
Q2: What types of batteries is this charger compatible with?
This intelligent charger is designed for various lead-acid batteries and can be adjusted for lithium battery applications as well.
Q3: Does the product have international certifications?
Yes, our chargers hold certificates such as CE, UL, ECM, and SGS. We can apply for additional certifications if required for your specific market.
Q4: Can this charger be used for different forklift brands?
Absolutely. Our chargers are compatible with major forklift brands including Linde, Hyster, Noblift, Heli, HC, and many others.
Q5: How is the quality of the products ensured?
We have a professional technical team that conducts thousands of stability tests on every new model. Each unit is inspected thoroughly before delivery.
Q6: Is customization available for specific power requirements?
Yes, we offer customization options to meet different voltage and current requirements based on your specific industrial needs.
